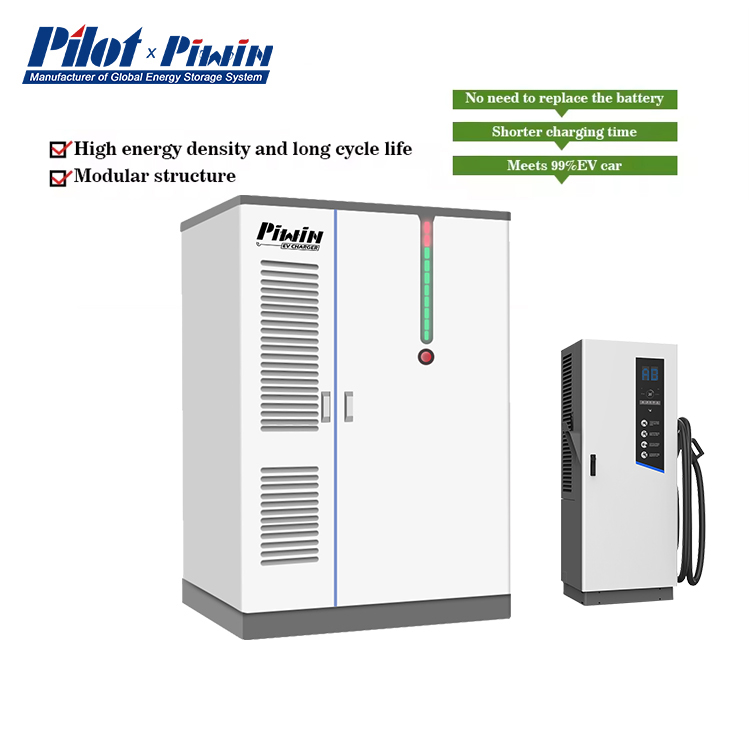

Products Description

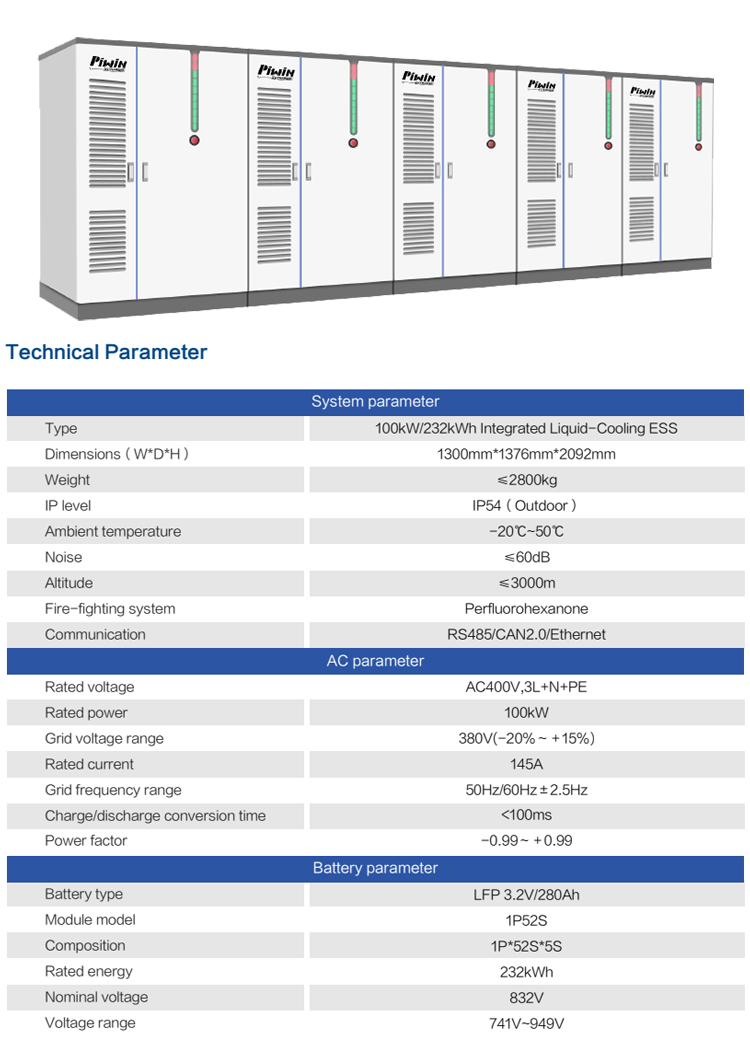

| System Parameter |
| Type | 100kW/232kWh Integrated Liquid-Cooling ESS |
| Dimensions (W*D*H) | 1300mm*1376mm*2092mm |
| Weight | ≤2800kg |
| IP level | IP54 (Outdoor) |
| Ambient temperature | -20°C~50°C |
| Noise | ≤60dB |
| Altitude | ≤3000m |
| Fire-fighting system | Perfluorohexanone |
| Communication | RS485/CAN2.0/Ethernet |
| AC Parameter |
| Rated voltage | AC400V, 3L+N+PE |
| Rated power | 100kW |
| Charge/discharge conversion time | ≤100ms |
| Power factor | -0.99~ +0.99 |
| Battery Parameter |
| Battery type | LFP 3.2V/280Ah |
| Module model | 1P52S |
| Rated energy | 232kWh |
| Nominal voltage | 832V |
| Voltage range | 741V~949V |

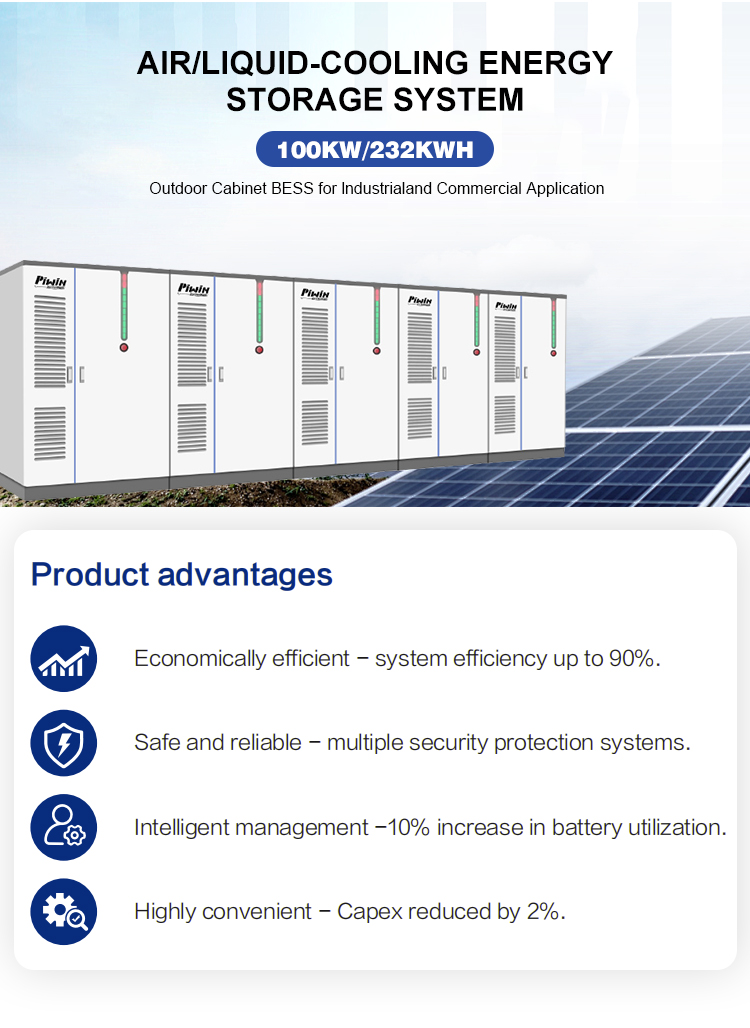

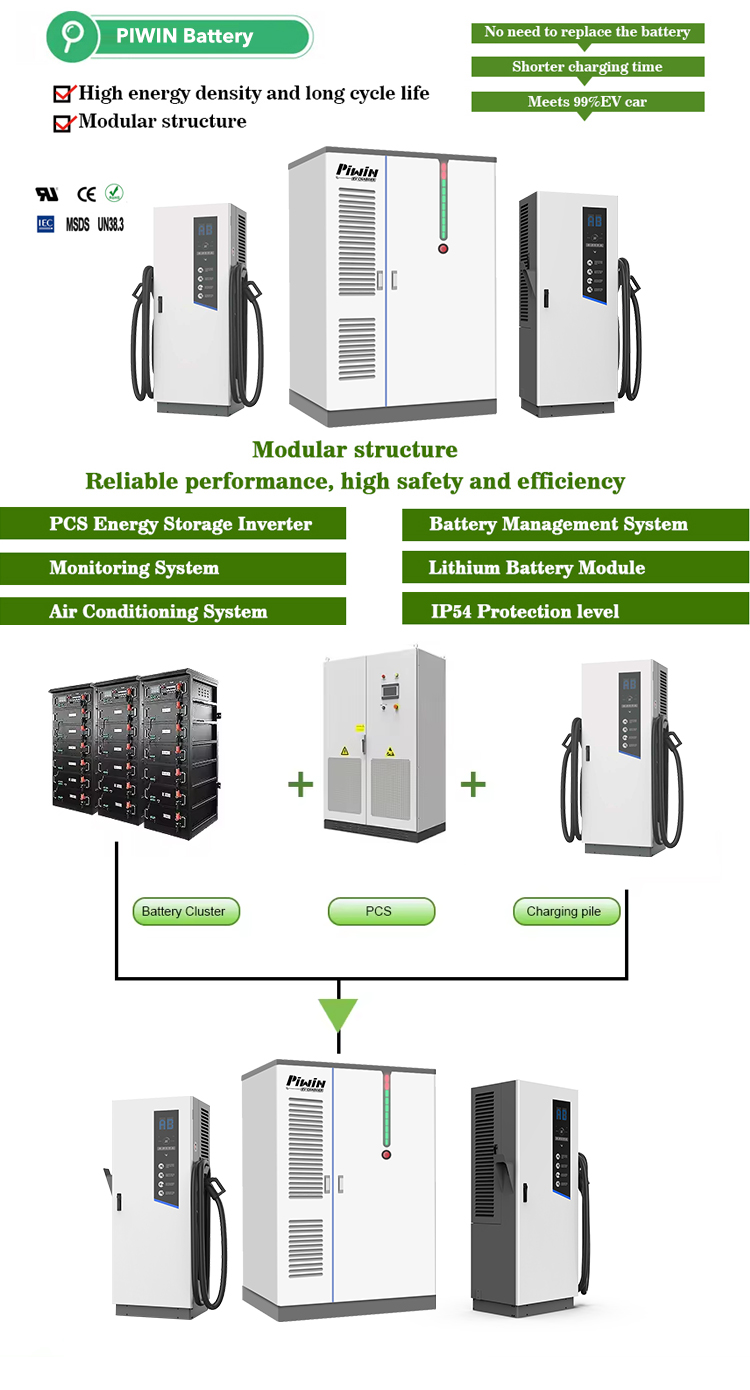

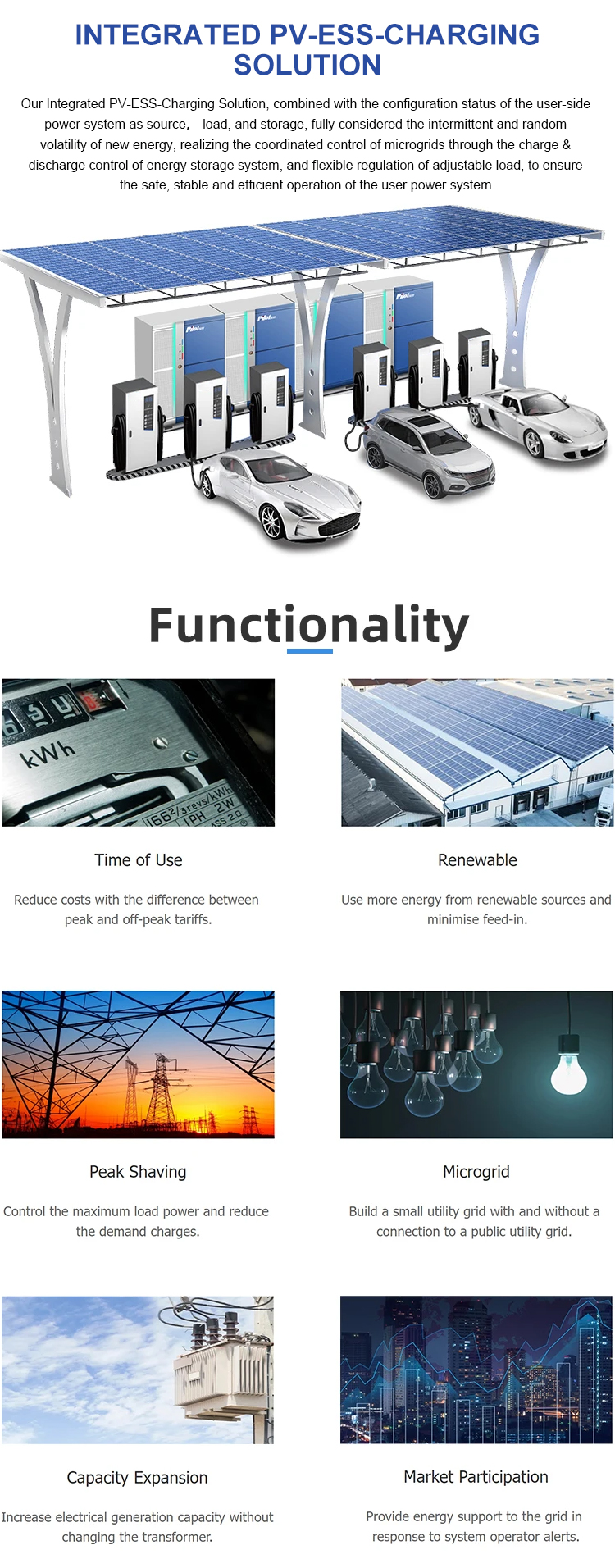

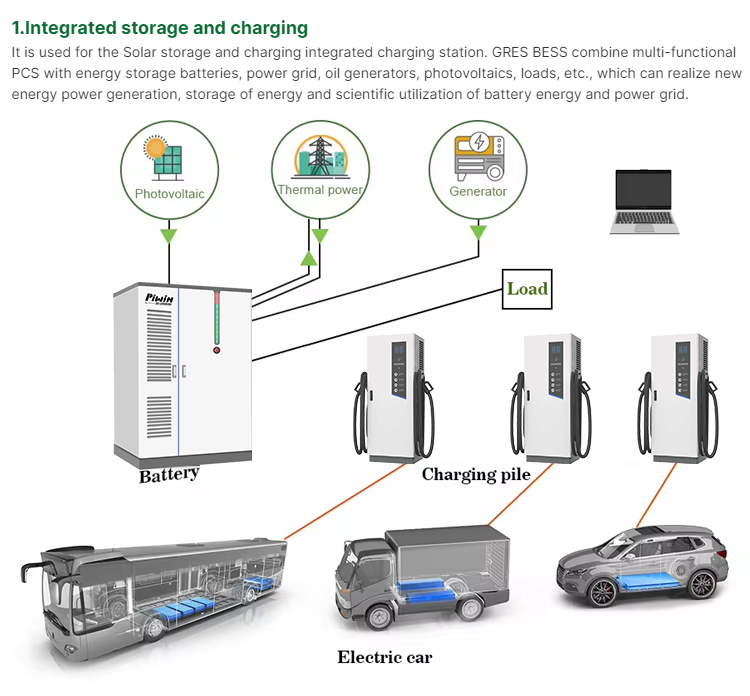

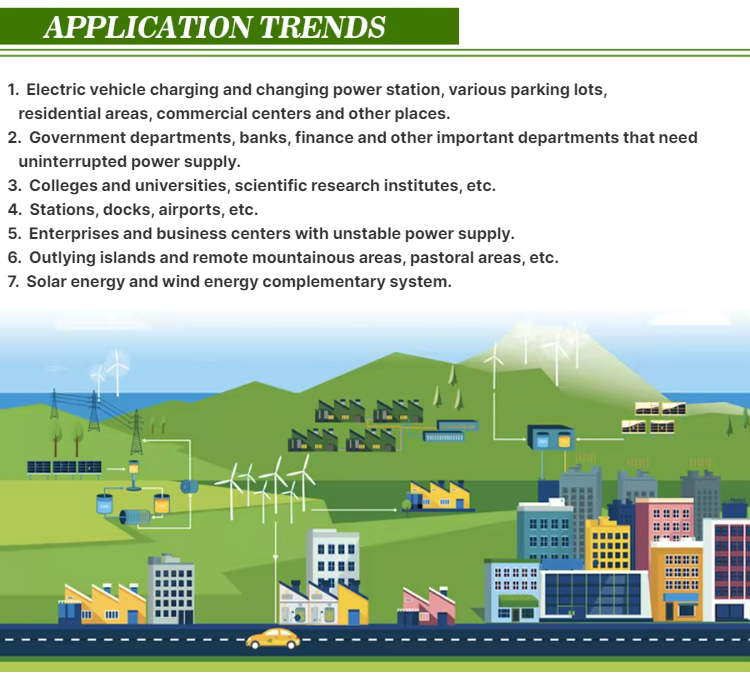

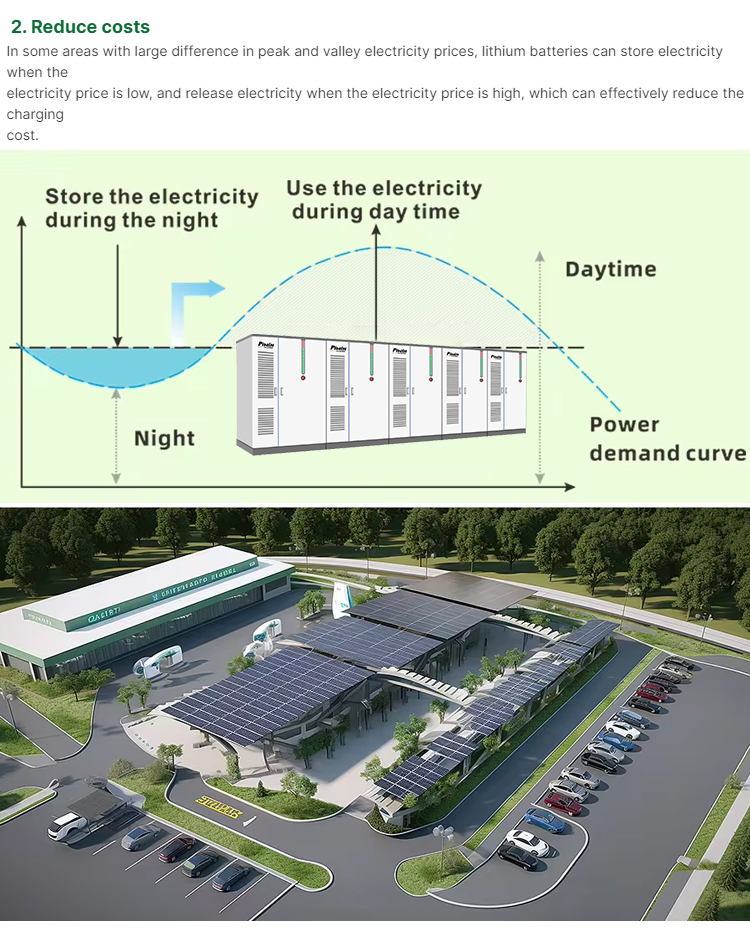

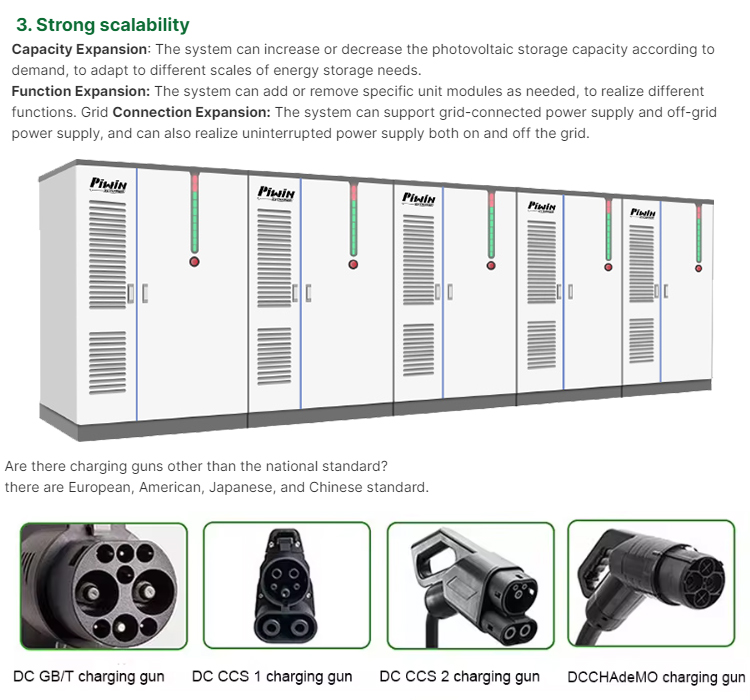

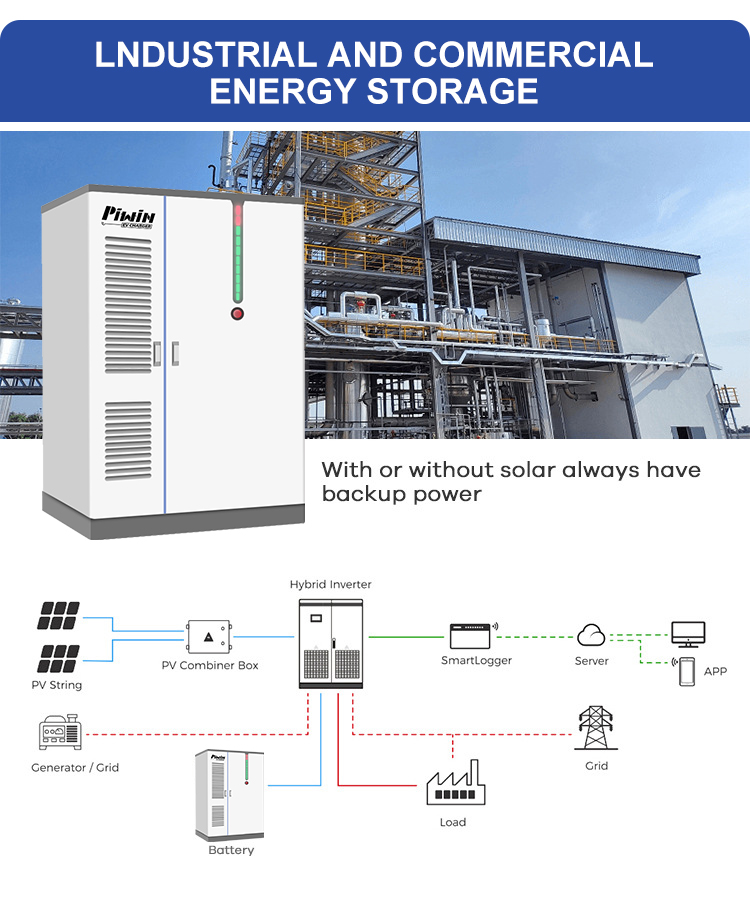

Product Display

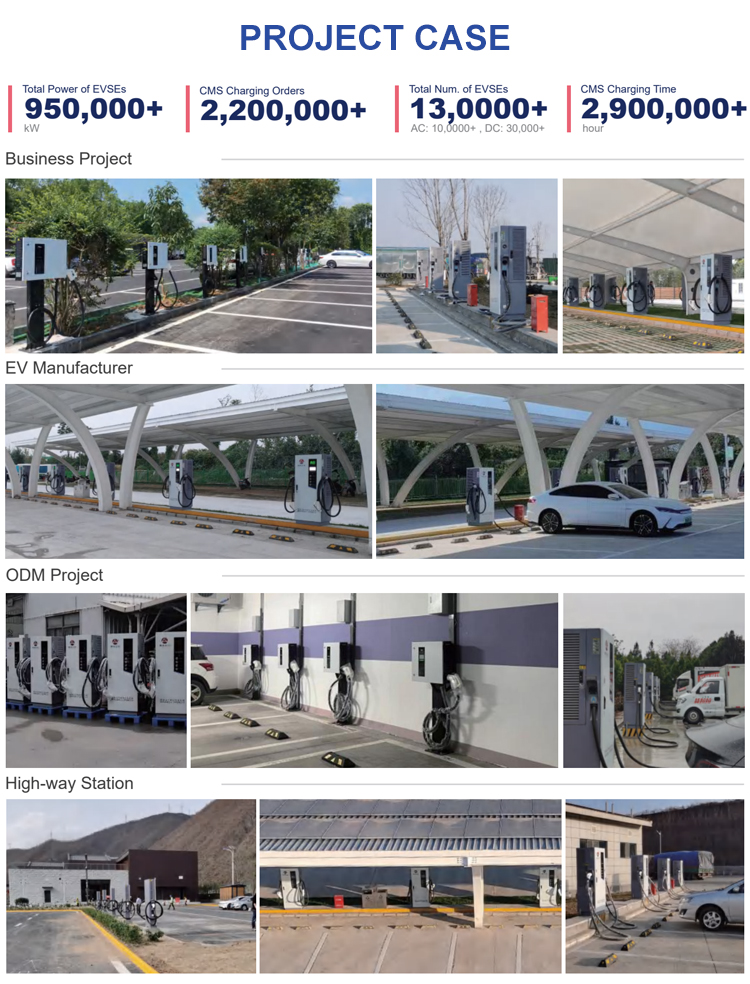

Project Case
Our Service
Company Profile
Packaging & Shipping
Frequently Asked Questions
1. What is the total capacity of this liquid-cooling ESS?
This system features a total energy capacity of 232kWh with a rated power output of 100kW.
2. Is the system suitable for outdoor environments?
Yes, the system is designed with an IP54 protection level, making it fully capable of outdoor installation and operation.
3. What battery technology is used in this unit?
The system utilizes LFP (Lithium Iron Phosphate) battery technology, specifically 3.2V/280Ah cells, for enhanced safety and longevity.
4. What communication protocols are supported?
The unit supports standard industry communication protocols including RS485, CAN2.0, and Ethernet.
5. What safety measures are included?
The system is equipped with an integrated Perfluorohexanone fire-fighting system to ensure high-level fire safety performance.
6. Can this system work in extreme temperatures?
The ESS is designed to operate efficiently within an ambient temperature range of -20°C to 50°C.
