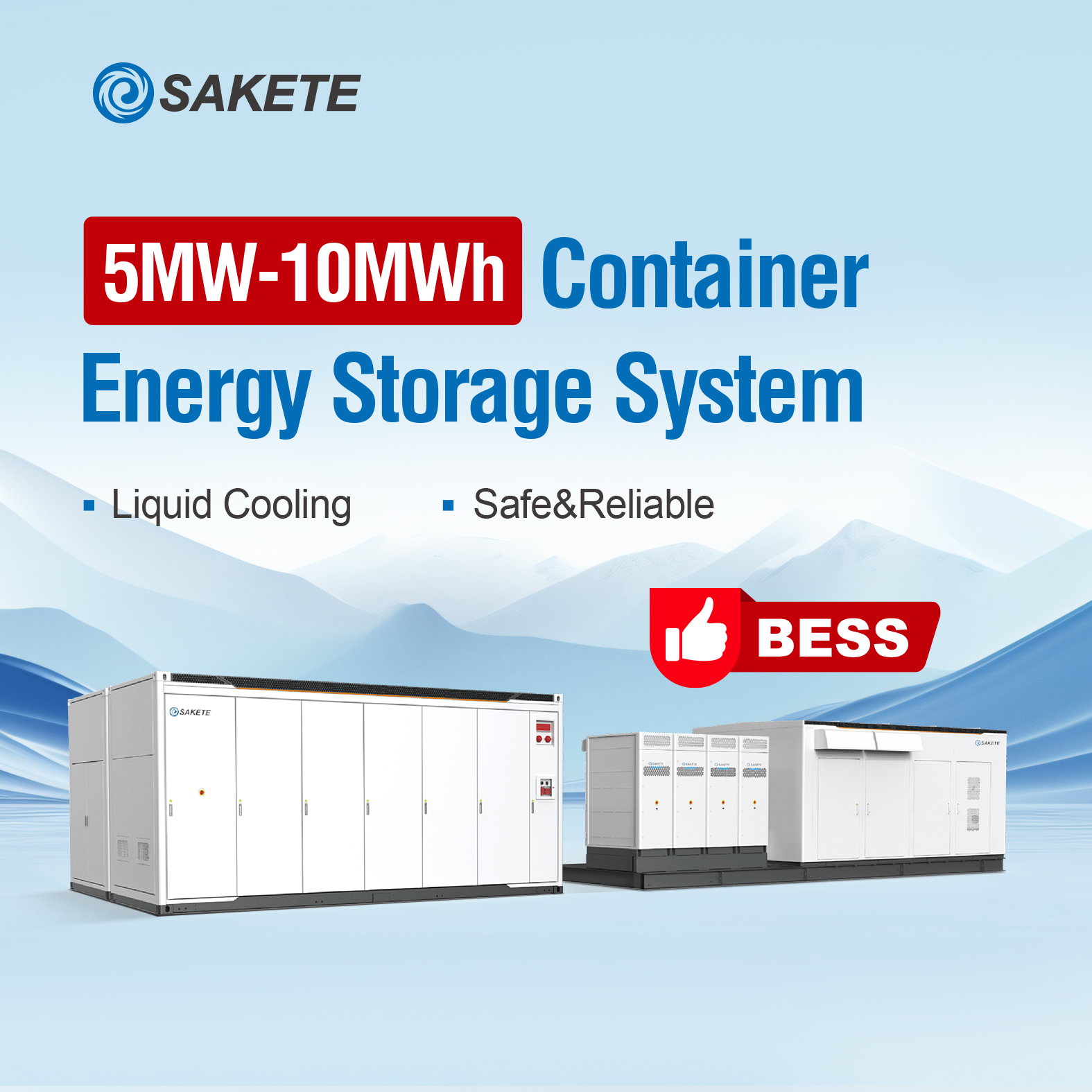

The 10MWh-5MW containerized energy storage system delivers stable, controllable, and cost-effective power security for industrial and commercial projects. It efficiently absorbs low-cost electricity during off-peak hours and releases high-value energy during peak demand, helping you significantly reduce operating costs while enhancing power stability.
Its millisecond-level response capability minimizes frequency fluctuations, reduces outage and curtailment risks, and ensures uninterrupted operation for critical loads. Engineered for industrial and commercial applications, this product offers robust design, fast delivery, and flexible on-site expansion. It integrates seamlessly with existing electrical infrastructure, generating immediate value from day one.

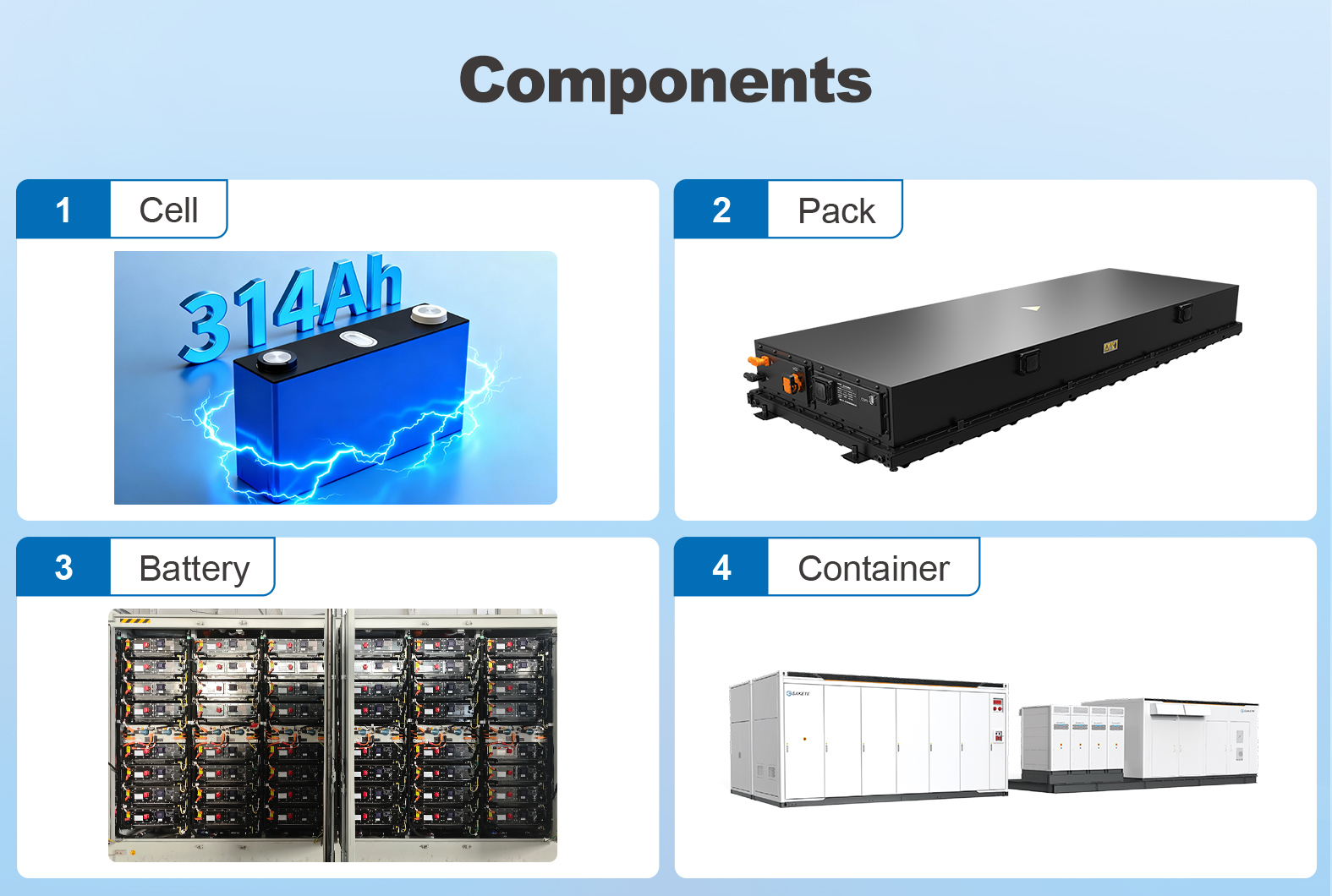

| Battery Data | |
|---|---|
| Model | SKTESS10000-5000K |

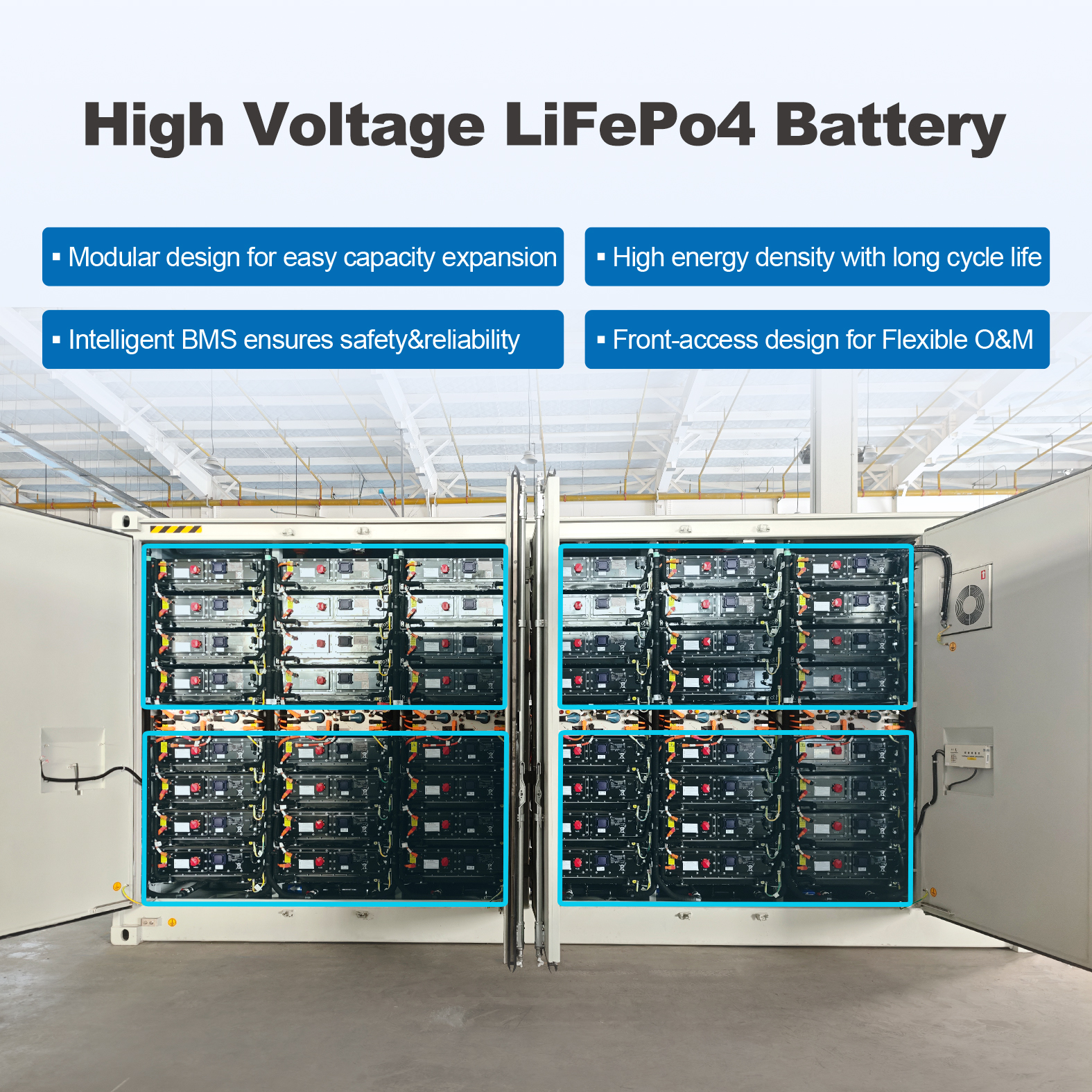

| Battery Type | LiFePO4 |
| Rated Capacity | 314Ah |
| Pack Configuration | 12P416S*2 |
| Nominal Capacity | 5015kWh*2 |
| Nominal Voltage | 1331.2V |
| Operating Voltage Range | 1123.2~1497.6V |
| Max.Continuous Charge / Discharge Current | 157A |
| Charge / Discharge Rate | 0.5C |
| Cycle Life | Cycle Life ≥ 6000 / 5 Years (@25°C ± 2℃, 0.5C / 0.5C, 70% EOL) |
| System Data | |
| Max. AC Output Power | 5000kW |
| Grid Type | 3L/PE |
| AC Output Frequency | 50/60HZ |
| AC Output Voltage | Supports 6/10/12/24/33/35kV |
| Ingress Protection | IP54 |
| Anti-Corrosion Grade | C3 (C4 Optional) |
| Max. System Efficiency | 88% |
| Relative Humidity | 5~95 %(non-condensing) |
| Max. Working Altitude | 3000m (>2000m derating) |
| Cooling | Liquid Cooling (Battery cabinet) |
| Dimension | 6058 × 2438 × 2896 mm x3 |
The intelligent HVAC system maintains ideal internal conditions: Automatic cooling/heating for stable battery performance, humidity control to protect components, and energy-efficient operation to reduce maintenance.

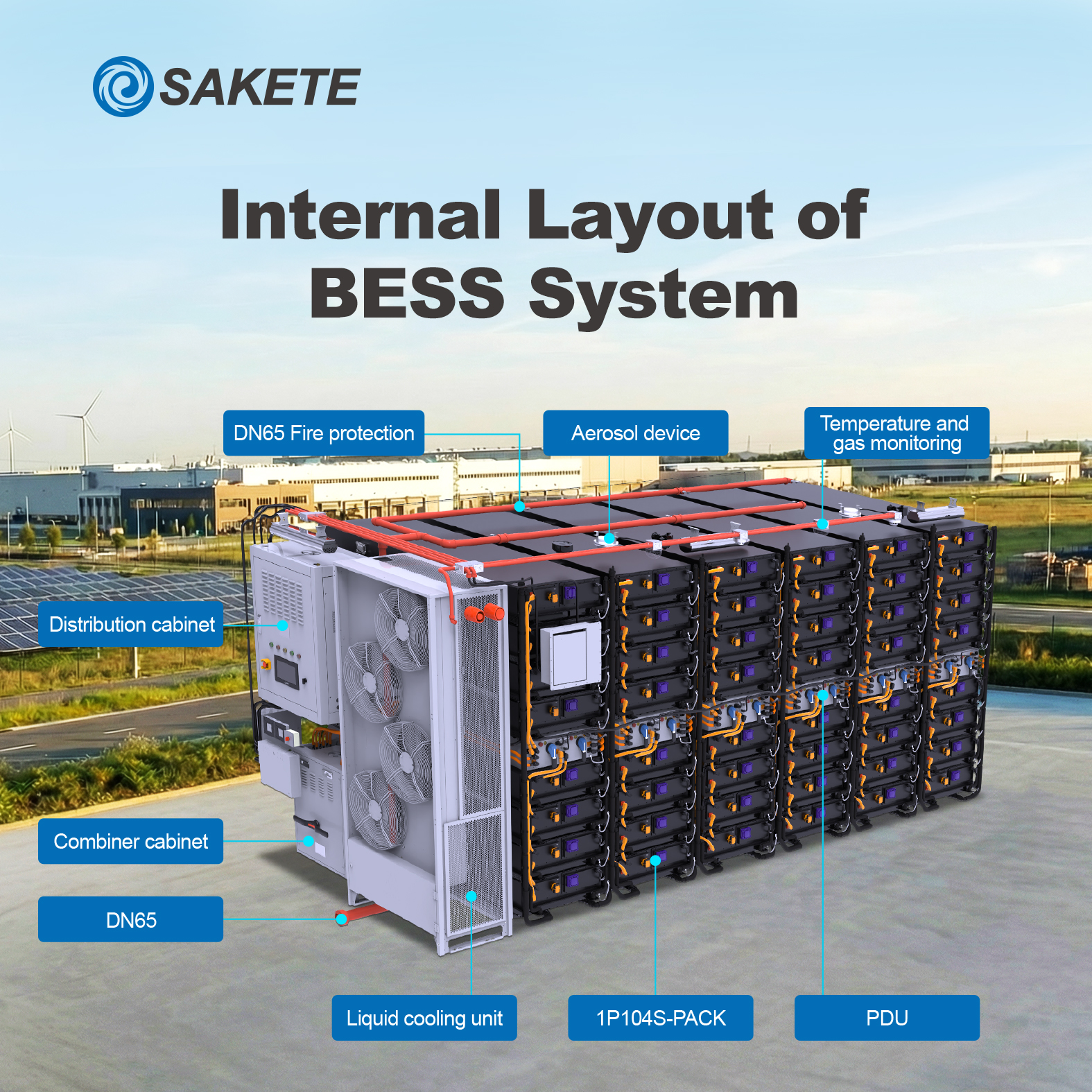

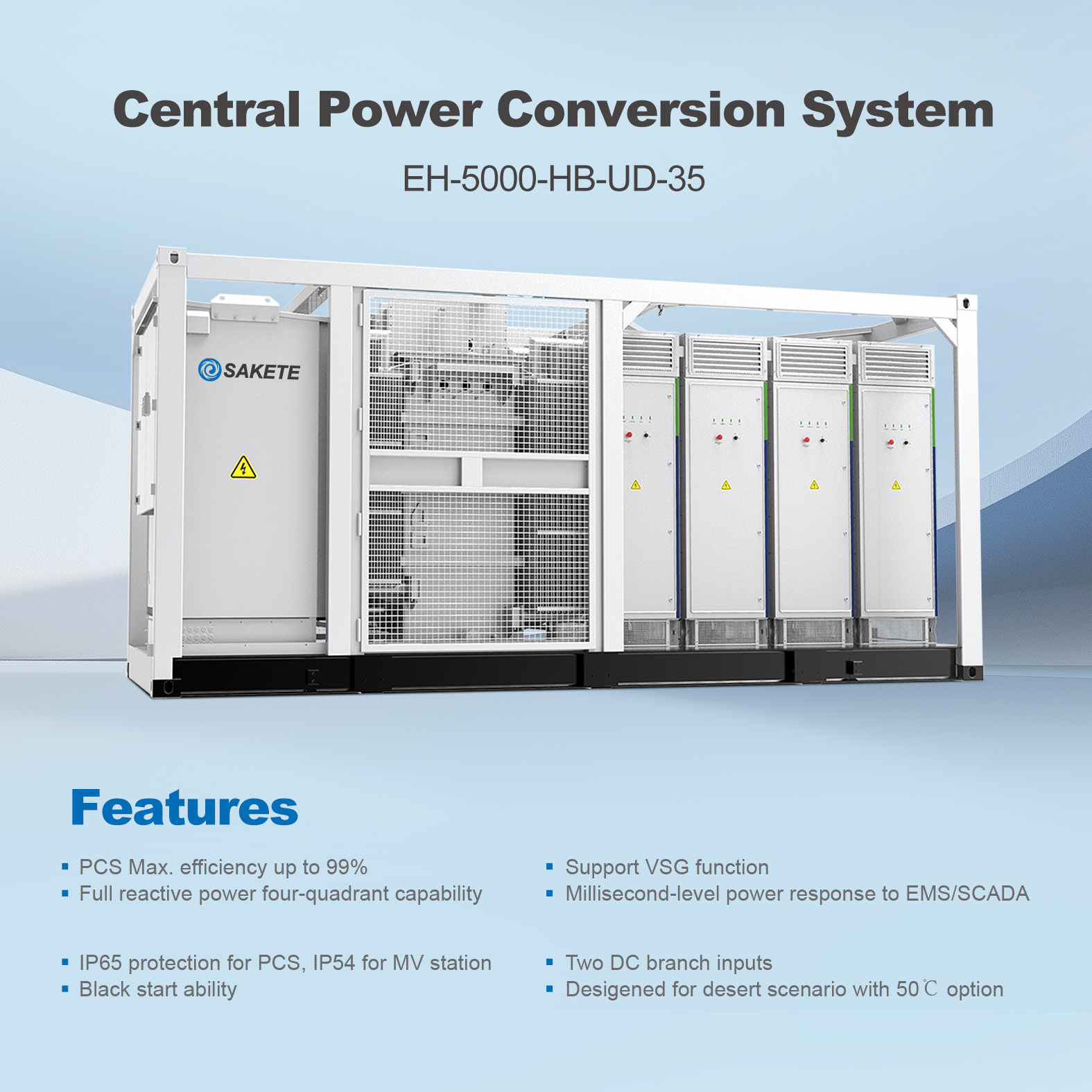

Factory pre-installed for plug-and-play commissioning. Centralized control of batteries, PCS, HVAC, and fire protection.

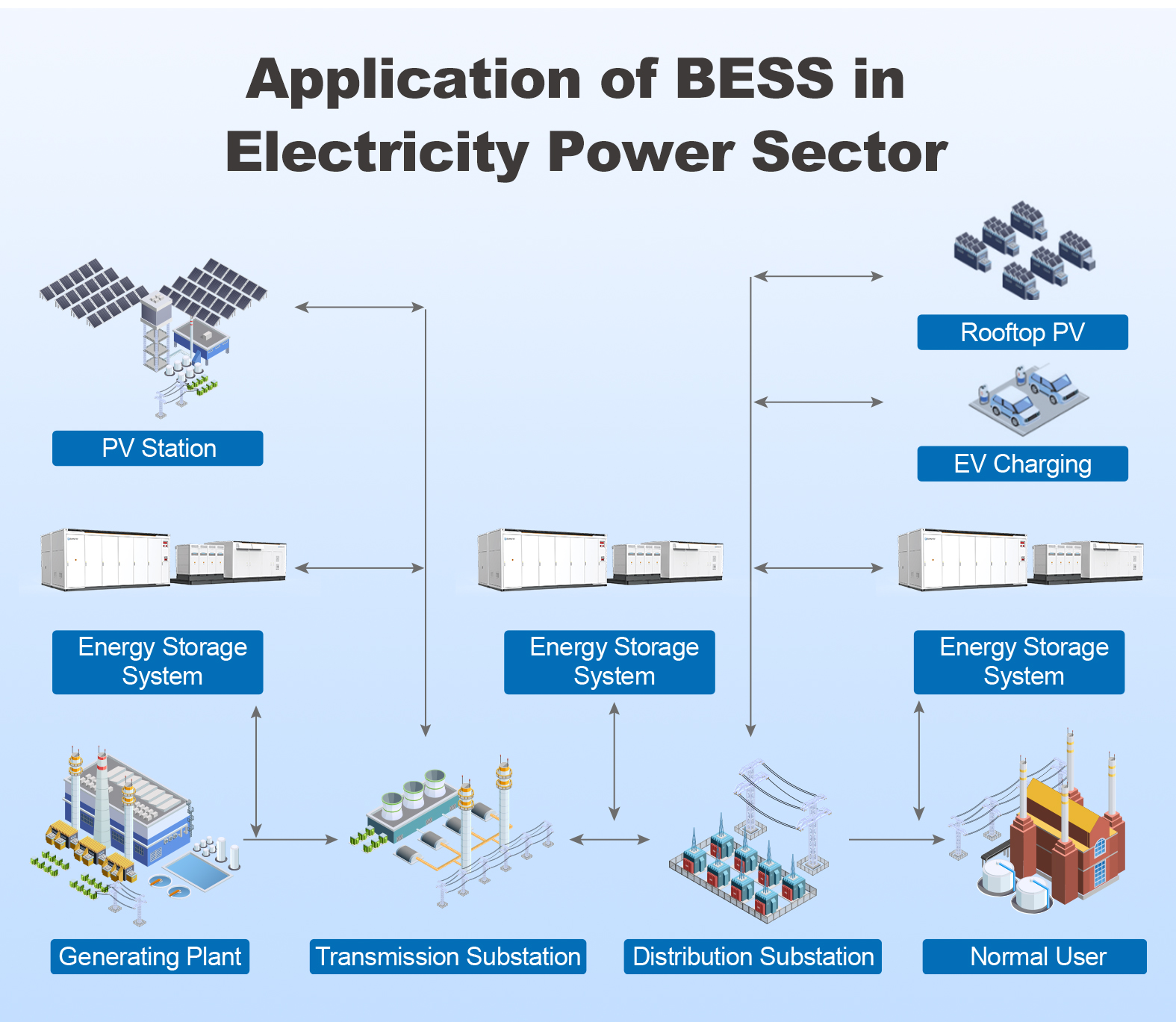

Supports peak shaving, TOU arbitrage, demand control, and PV optimization to maximize ROI.
Cloud monitoring and remote diagnostics reduce operational costs and improve efficiency.
