Smart Solar Energy Storage System for Home Efficiency Solutions

Customization:	Available
Weight:	50kg
Warranty:	5years

Basic Info

Model NO. DHDJ-5000

Cycle Life 6000 Times

Nominal Capacity 5kwh-60kwh

Material LiFePO4

Battery Cell Grade a+

BMS Yes

Voltage 51.2V

Capacity 5120wh

Cell Capacity 100ah

Transport Package Cartoon Box

Specification 602*532*215mm

Origin China

HS Code 8507600090

Production Capacity 500 Sets/Month

Packaging & Delivery

Package Size 60.00cm * 53.00cm * 22.00cm

Package Gross Weight 50.000kg

Product Description

Battery Module Stacking Design:

Design a smart Battery Management System (BMS) to monitor the voltage, temperature, and current of the battery pack in real-time, ensuring safe and stable operation. Use a modular design to allow users to flexibly adjust battery capacity based on household energy needs.

Smart Solar Energy Storage System for Home Efficiency Solutions

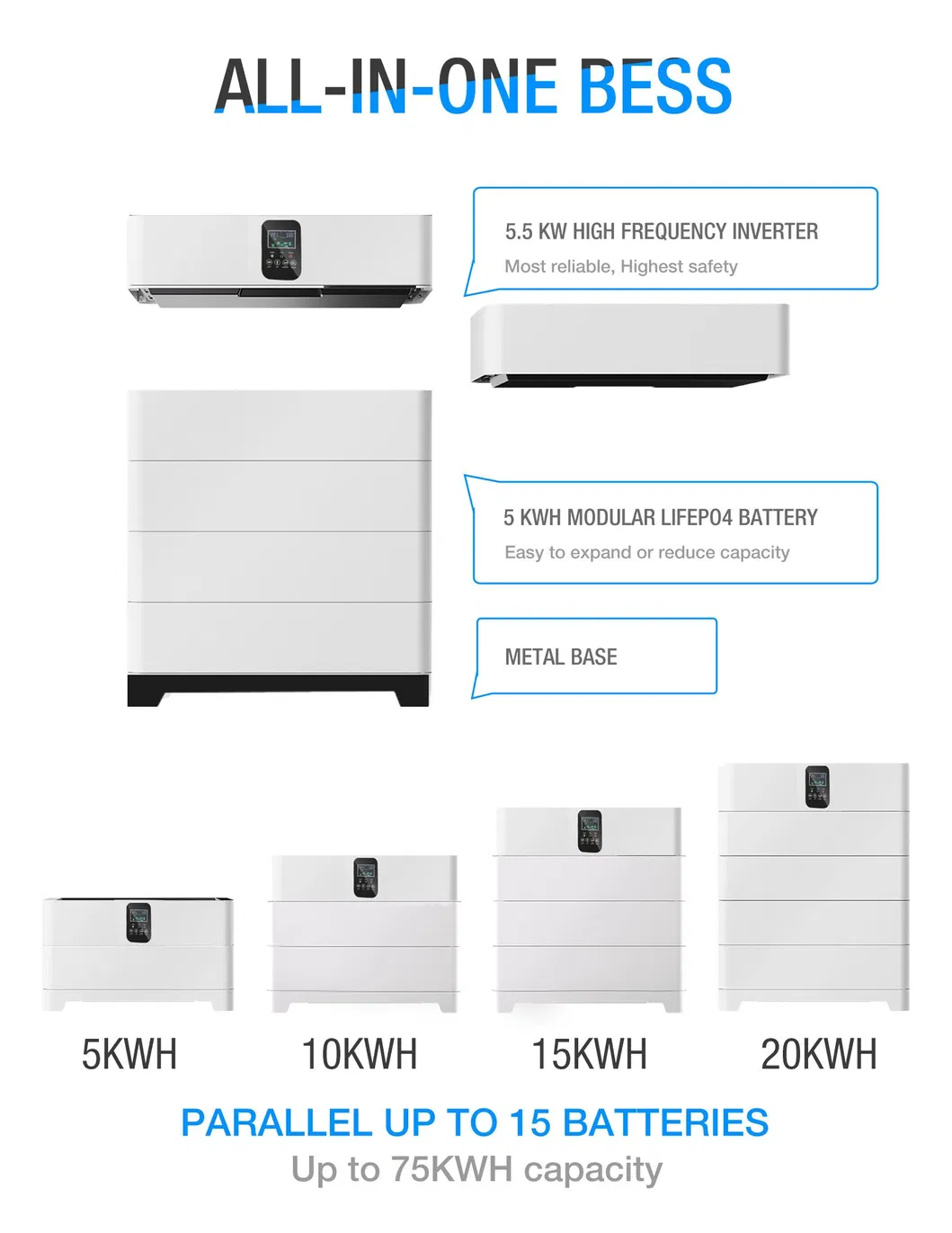

All-in-One Design:

Optimize the integration of the inverter, battery, and BMS to improve space utilization and aesthetics. Employ a compact inverter and efficient cooling solutions to ensure stable operation under high loads. The streamlined exterior design will hide wiring and offer various color and material options to suit different home styles.

Communication Interface:

Consider using CAN bus or RS485 to enhance anti-interference capabilities, suitable for complex electromagnetic environments. Design interfaces that support multiple communication protocols or allow software upgrades to accommodate new standards.

Product Parameters

Battery model	Voltage	Energy	Capacity	Size	Current	Material
DHDJ-5000*1	51.2V	100Ah	5.12kWh	602532215mm	100A	LiFePO4
DHDJ-5000*2	51.2V	200Ah	10.24kWh	602532430mm	100A	LiFePO4
DHDJ-5000*3	51.2V	300Ah	15.36kWh	602532645mm	100A	LiFePO4

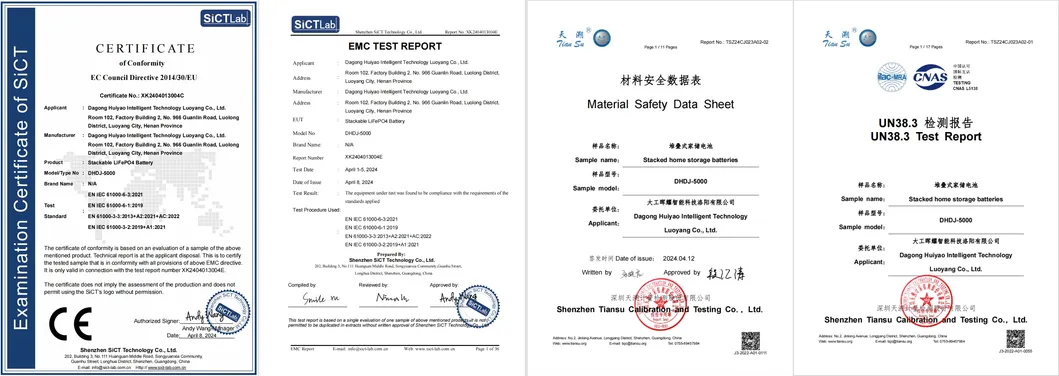

Certifications

ISO 9001 CE UN38.3 MSDS

Packaging & Shipping

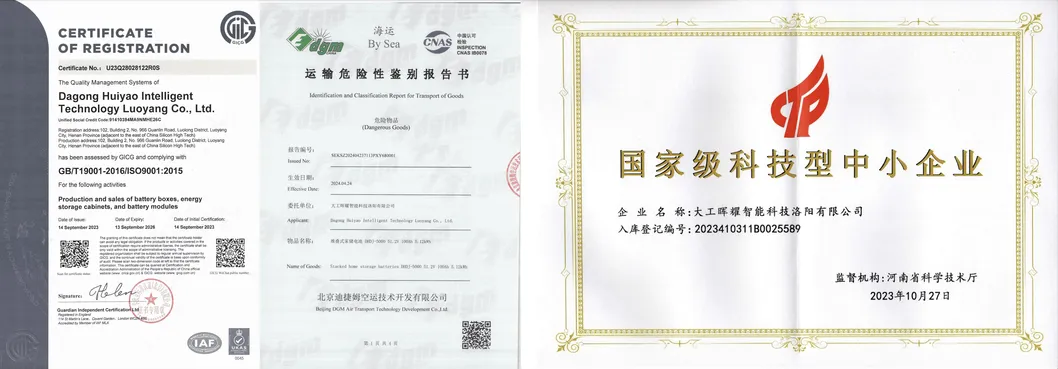

We have safe transport certificate for land and sea transport:

Our battery products are packaged using specialized, customs-approved hazardous packaging boxes to ensure compliance with international dangerous goods transportation standards. We hold safety transportation certification for both land and sea transport, proving that our packaging and transportation methods meet relevant laws and regulations. This includes the requirements of the United Nations' "Manual of Tests and Criteria" Part III, Section 38.3, as well as standards for air, rail, road, and water transport. Our "Hazardous Packaging Certificate" ensures compliance with the declaration of dangerous goods to maritime authorities and port authorities before the ship sails. Through these measures, we guarantee the safety and compliance of our battery products during land and sea transport.

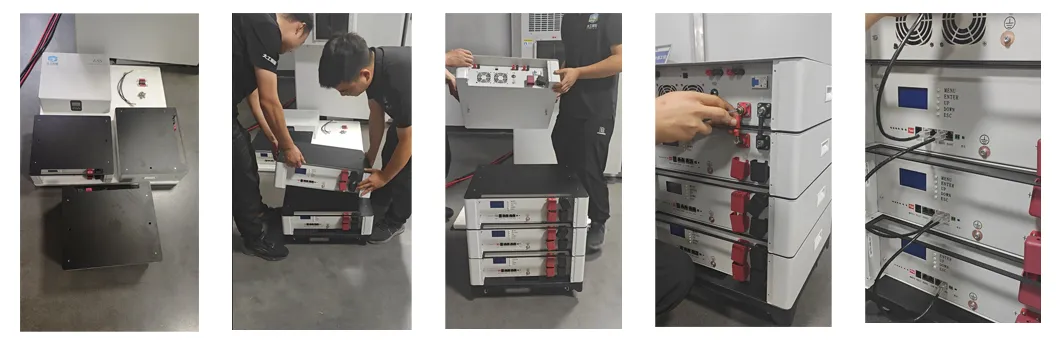

Installation Instructions

Our battery installation process is designed to be user-friendly, allowing individuals without professional electrician backgrounds to easily manage. Here are the steps for installation, complete with detailed video guidance and remote online video support to ensure that everyone can complete the installation smoothly:

1

Unboxing Preparation: Start by opening the packaging and removing the battery units. Our packaging is designed with ease of use in mind, ensuring that you can easily take out the batteries.

2

Stacking Batteries: Next, follow the video guidance to stack the battery units together. This step is straightforward and does not require any special tools.

3

Parallel Connection: Then, according to the video instructions, connect the battery units in parallel. This step ensures that the battery pack can provide a stable power output.

4

Communication Cable Connection: Following the installation video, connect the communication cable to the battery management system. This step allows the battery management system to monitor and control the working status of the batteries.

5

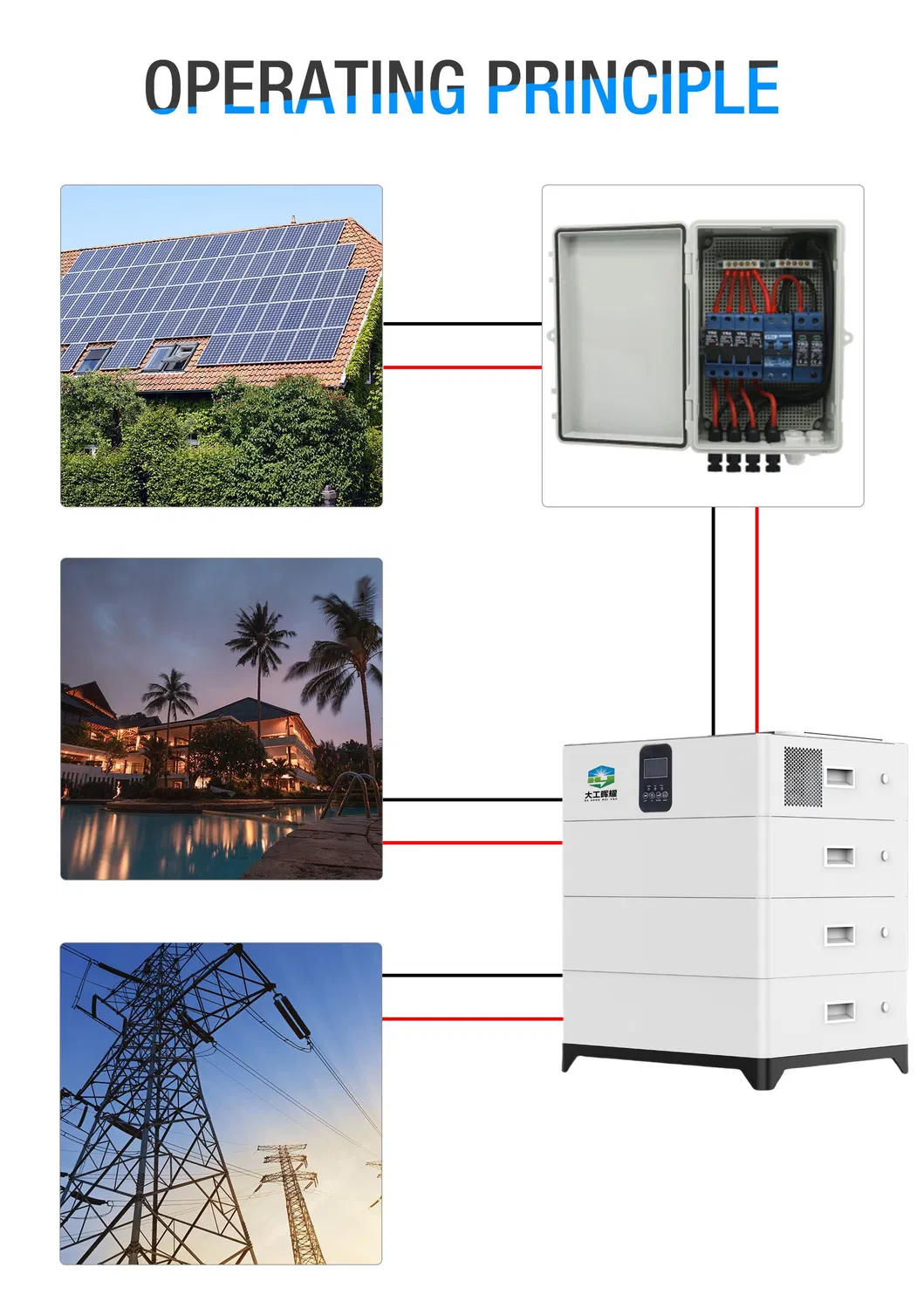

Connecting to Power: Finally, connect the battery pack to the photovoltaic (PV), mains electricity, and output power supply systems. This step integrates the battery pack into the power system, completing the entire installation process.

Our installation videos and remote online guidance services are aimed at providing clear step-by-step instructions and real-time assistance to ensure that everyone can safely and efficiently complete the installation. Whether you're doing it yourself or seeking help from a friend, our battery installation has become simple and quick.

FAQ

Q When system is first time start in operation is there something electric or mechanical adjustment (some technical, electrical parameters?)

It will be set at the factory, no adjustment is required, and the system will automatically adapt.

Q What needs to be check and maintenance through operations? Do we needs change some components? Do we need watch or control some parameters? And how often do we maintain it.

The parameters have been set when the product is produced, and no need to change manually. Monitoring: View the LCD screen of the device directly, or can add the WIFI module to connect to the APP.

Q How we can calculate solar system for hours what have 4000 kWh consuption per Year. And second one have 2000 kWh per year consuption.

4000kwh/year ÷ 365 = about 10.9kwh/day

• 2000kwh/year ÷ 365 = about 5.4kwh/day
• According the electricity comsuption to determine the power and number of solar panels and Batteries, or choose the standard configuration from our warehouse.

Q What is our primary business focus?

Solar energy system and components, such as inverter, Lithium battery.

Q What is our after-sales policy?

Within the shelf life, if the problem is with the product itself, it will be replaced free of charge. Outside the shelf life, it will be sold to the customer at a 20% discount on the original price.

Q For how long time will be Guaranty price?

15 days.
