| Product Model | DH215L-100 |
|---|---|
| AC side: Rated AC power | 100kW |
| Maximum output power | 110kW |
| Permissible grid voltage | 400V(-15%-10%) |
| Permissible grid frequency | 50/60Hz±2.5Hz |
| Maximum Input Current | 158A |
| Wiring configuration | 3P4W+PE |
| DC side: | LFP 3.2V/280Ah |
|---|---|
| Battery pack configuration | 1P48S/43kWh |
| Battery system configuration | 1P240S |
| Rated energy | 215.04kWh |
| Voltage range | 648~864V |
| Inverter maximum efficiency | 98% |
| System efficiency | >88% |
| Charge and discharge rate | ≤0.5C |
This system features a nominal battery capacity of 215kWh with a rated AC power output of 100kW (maximum output power reaching up to 110kW).

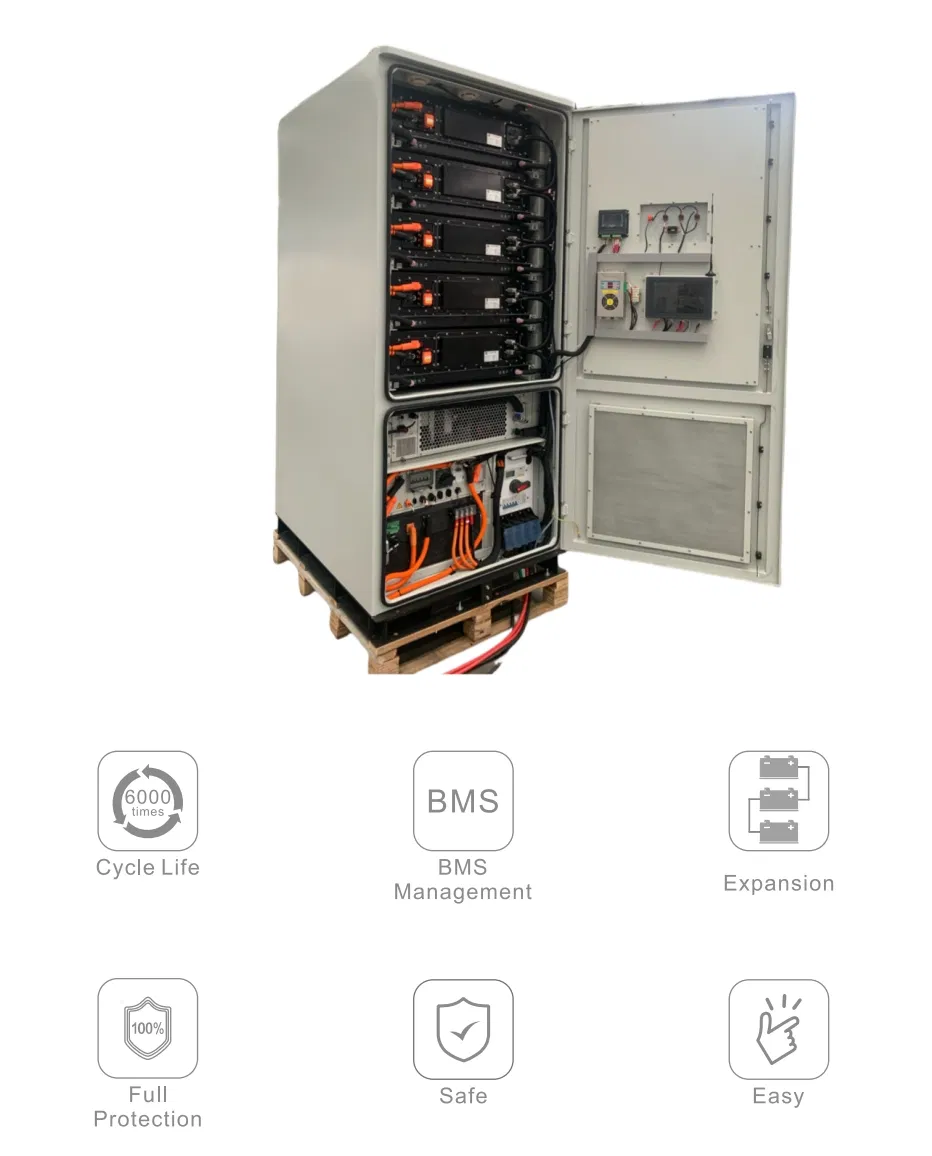

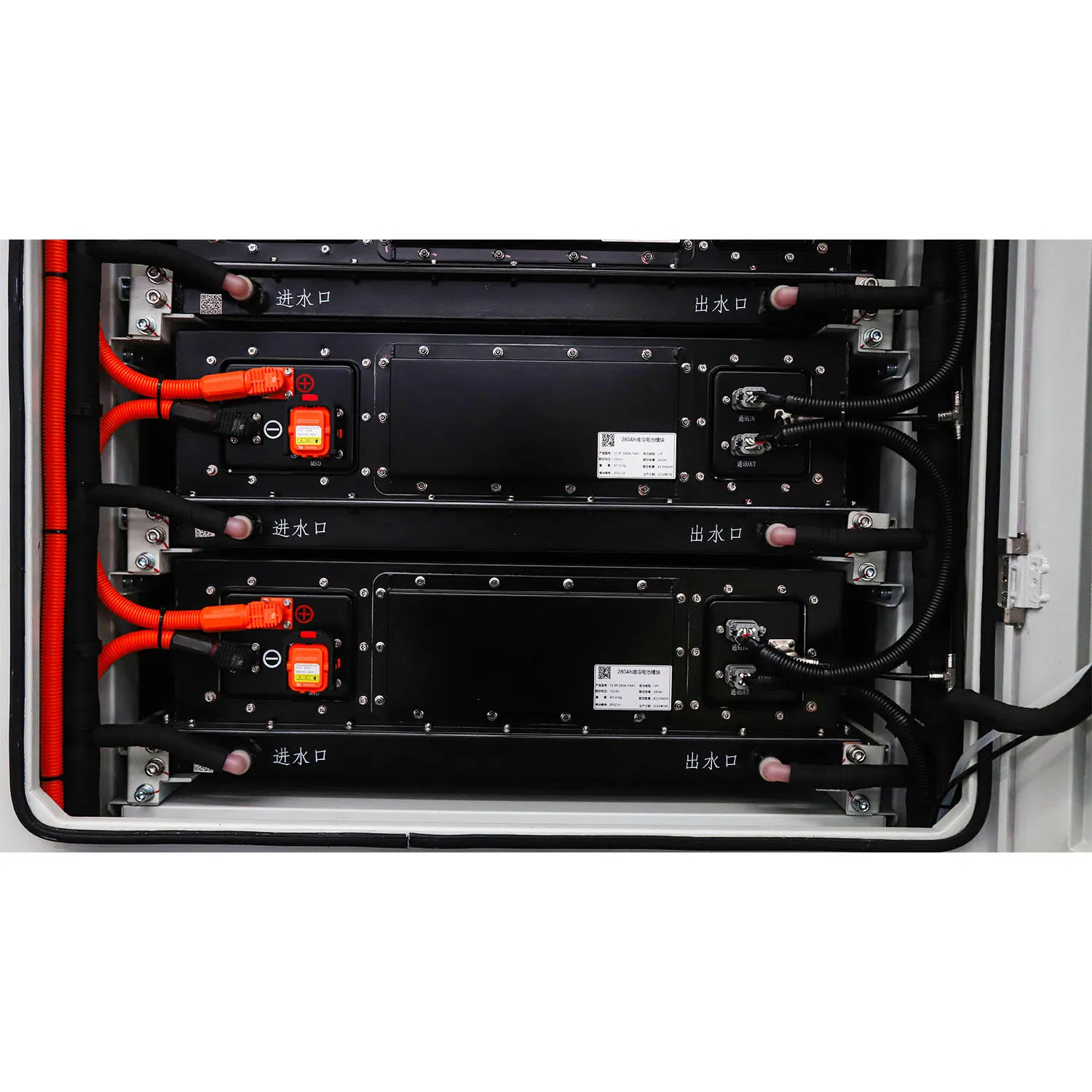

The system integrates high-performance LFP (Lithium Iron Phosphate) 3.2V/280Ah battery cells by Eve, configured in a reliable 1P240S system layout.

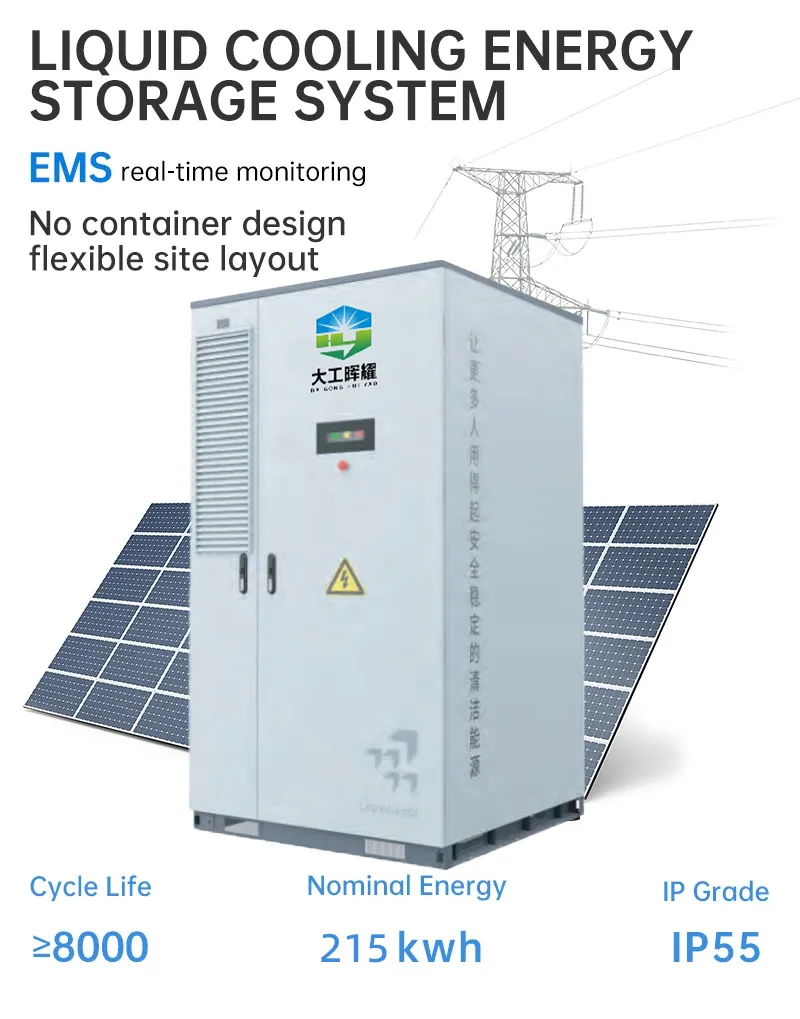

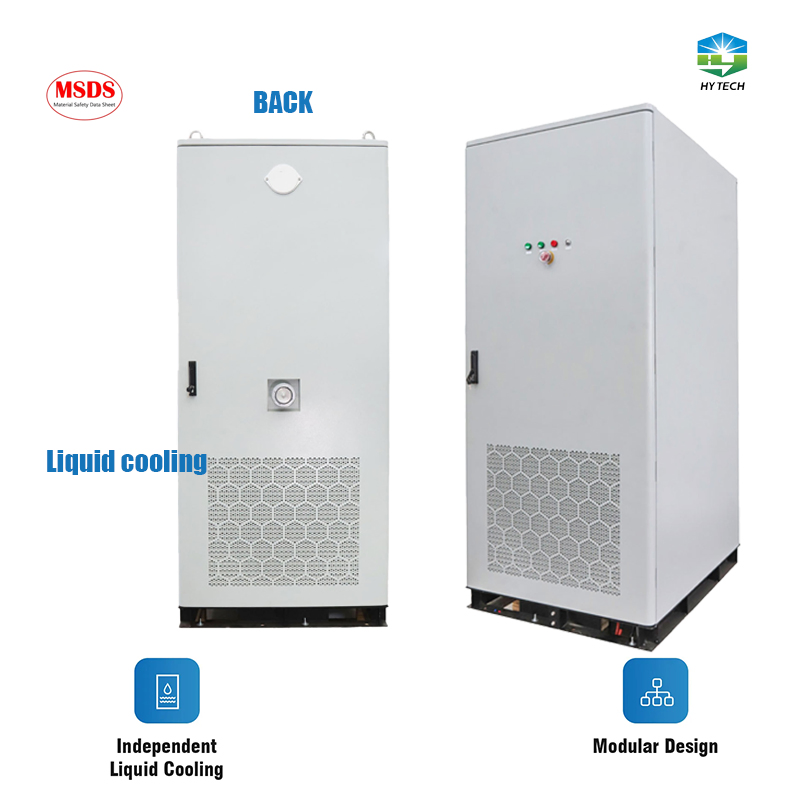

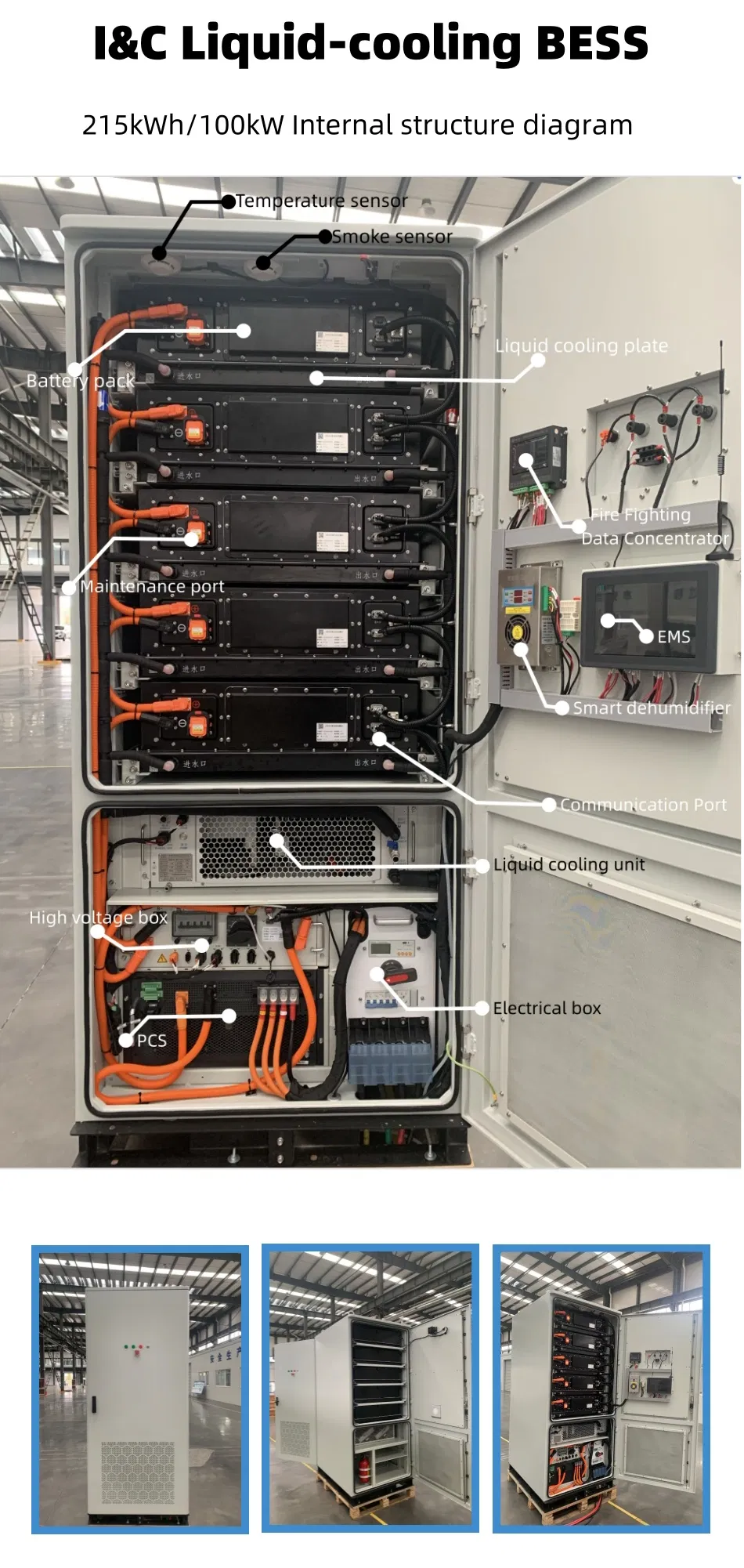

The system uses an advanced Liquid Cooling method to ensure optimal thermal management, offering a prolonged cycle life of over 6,000 cycle times.

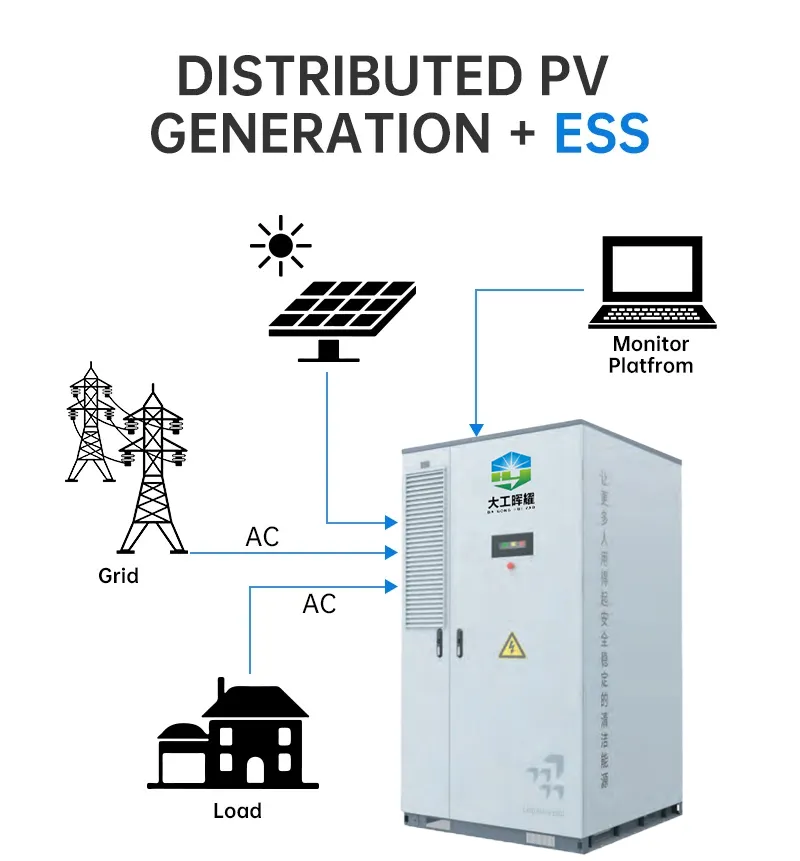

Yes, it is designed for maximum application flexibility, supporting both Off-Grid and Hybrid Grid connections with a 3P4W+PE wiring configuration.
The unit is equipped with anti-counter flow protection, reverse polarity protection, and smart home energy management systems for virtual station control and power dispatch.

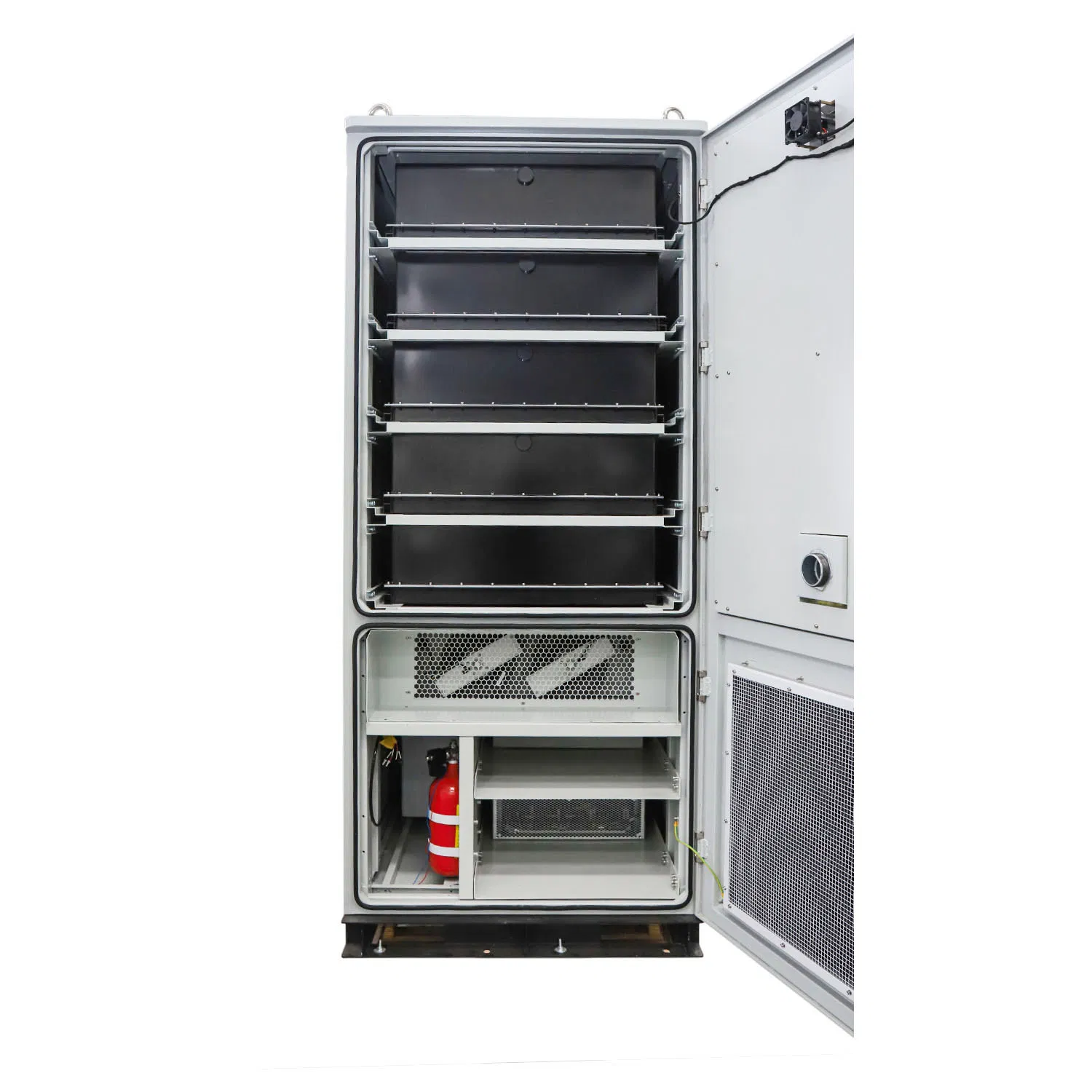

The physical system specification is 1380*1000*2330mm. For transport, it is packed in a wooden box with a package size of 100cm * 130cm * 240cm and a gross weight of approximately 2400kg.
