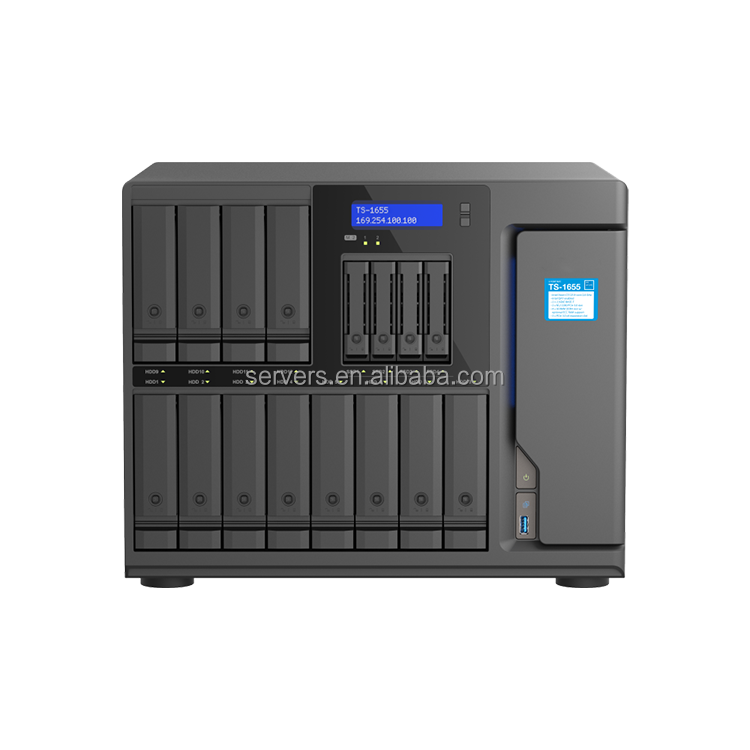

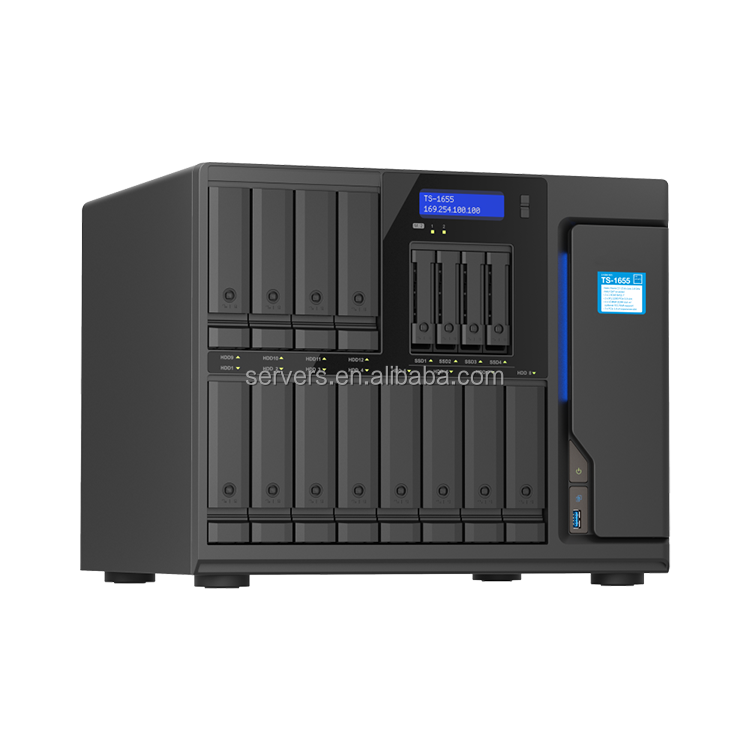

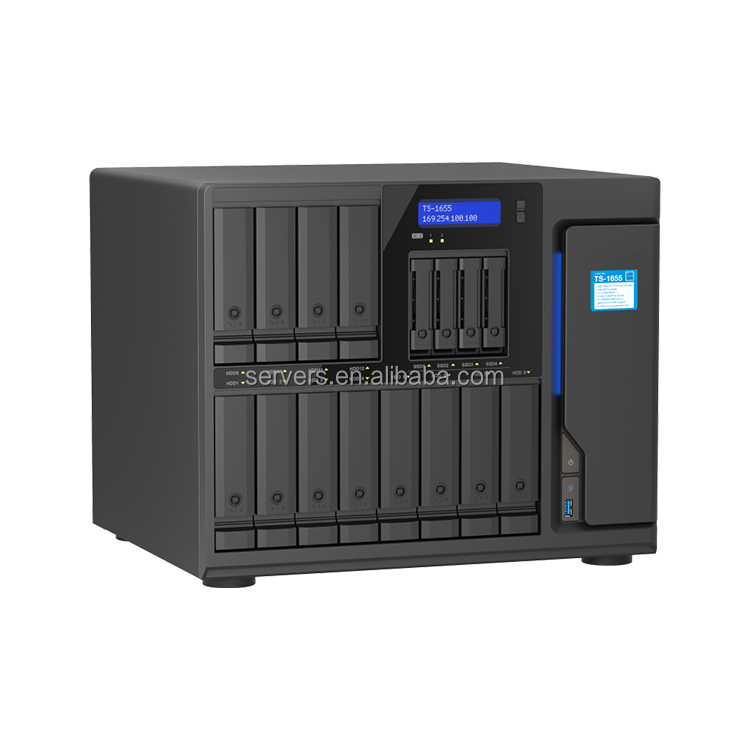

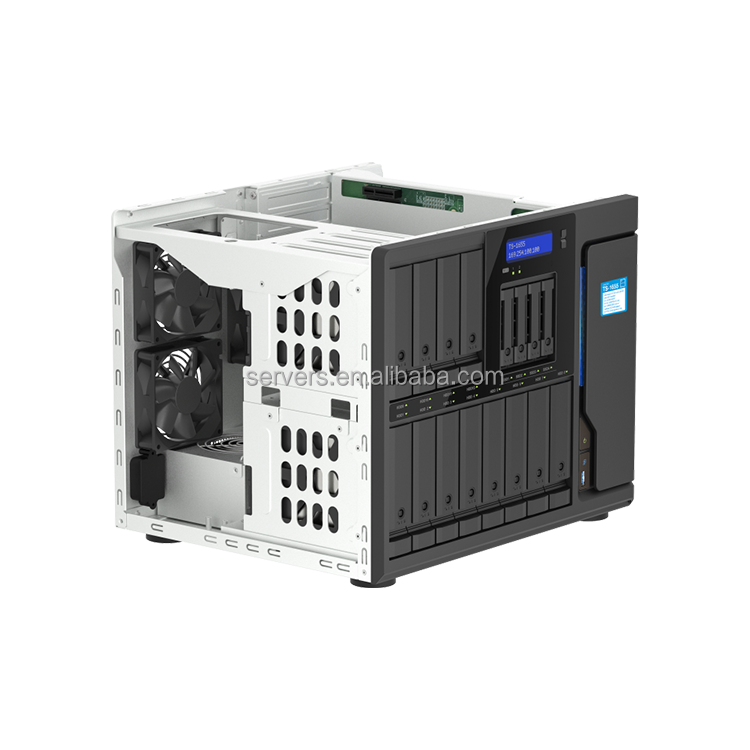

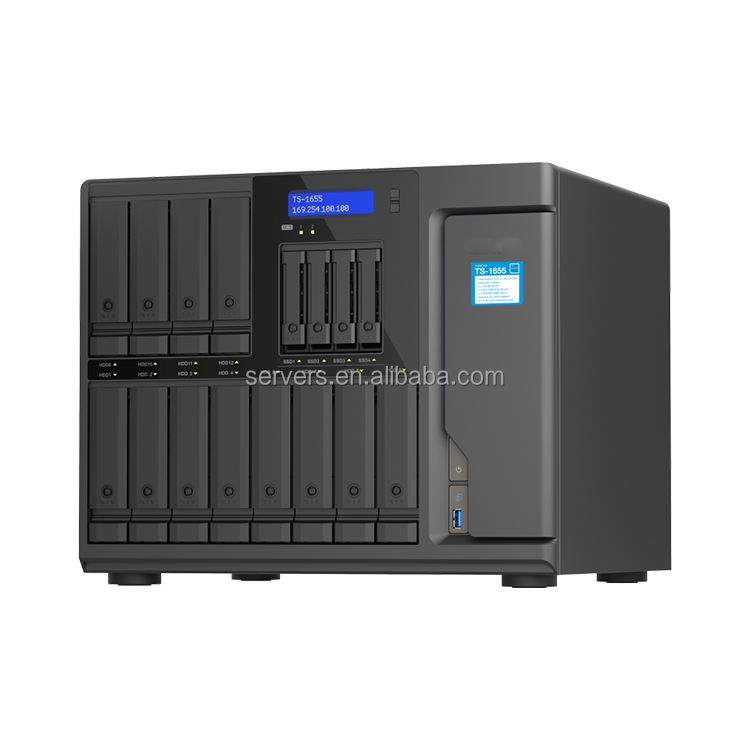

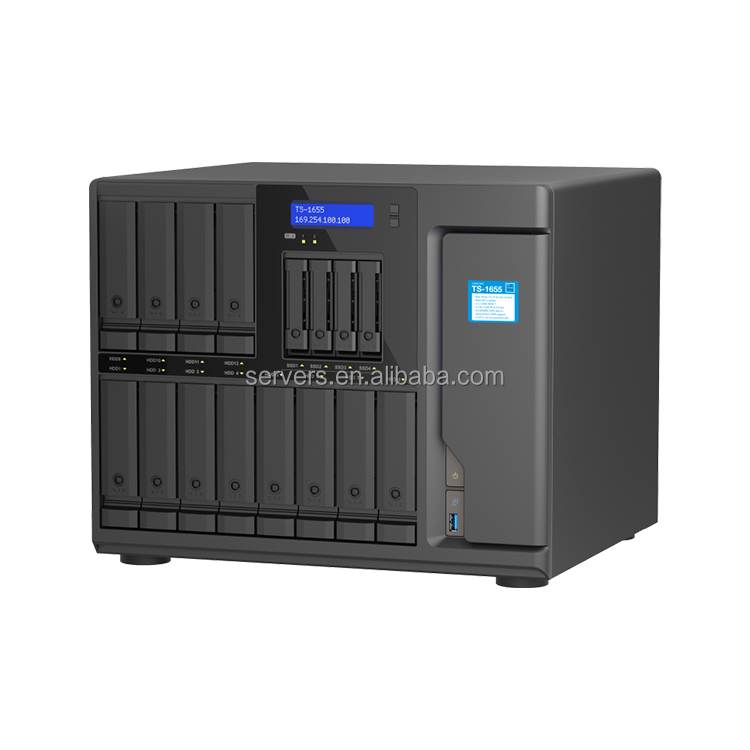

Designed for enterprise IT environments with diverse needs, the TS-1655 provides a high-capacity file center with up to 12 3.5-inch hard drives and 4 2.5-inch SSDs, while the hybrid HDD/SSD storage space allows enterprises to enjoy storage applications with both performance and cost. With eight cores and 2.5GbE high-speed transmission, the TS-1655 helps office environments efficiently handle daily operations such as cross-platform file sharing, data backup and disaster recovery, virtual machine applications, and data-intensive access. The TS-1655 is a long term supported model (up to 2030), which is a cost-effective NAS solution for enterprises with multi-deployment and long term configuration plans.
| Technical specification (hardware) | |
| CPU | Intel® Atom® C5125 Octa-Core Processor, 2.8GHz |
| CPU Architecture | 64-bit x86 |
| system memory | 8 GB non-ECC UDIMM DDR4 (1 x 8 GB) |
| Memory Limit | 128 GB (4 x 32 GB) |
| Memory Slot | 4 x UDIMM DDR4 |
| flash memory | 5 GB (dual-boot OS protection) |
| Number of hard disk slots | 12 x 3.5" + 4 x 2.5" SATA 6Gb/s, 3Gb/s |
| Supported Hard Disk Types |
3.5-inch bays: 3.5-inch SATA hard drives, 2.5-inch SATA solid state drives 2.5-inch bays: 2.5-inch SATA solid state drives |
| M.2 Slot | 2 x M.2 2280 PCIe Gen 3 x2 slot |
| 2.5 Gigabit Ethernet Ports (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
| PCIe Slot | 3 |
| USB 3.2 Gen 1 port | 4 |
| Size | 294.29*369.89*319.8mm |
| net weight | 14.24kg |
| operating temperature | 0 - 40°C (32°F - 104°F) |
| Storage temperature | -20 - 70 °C (-4°F - 158°F) |
| power supply | 550W, 100-240V |
| relative humidity | 5-95% RH (non-condensing), wet bulb: 27°C (80.6°F) |
| fan |

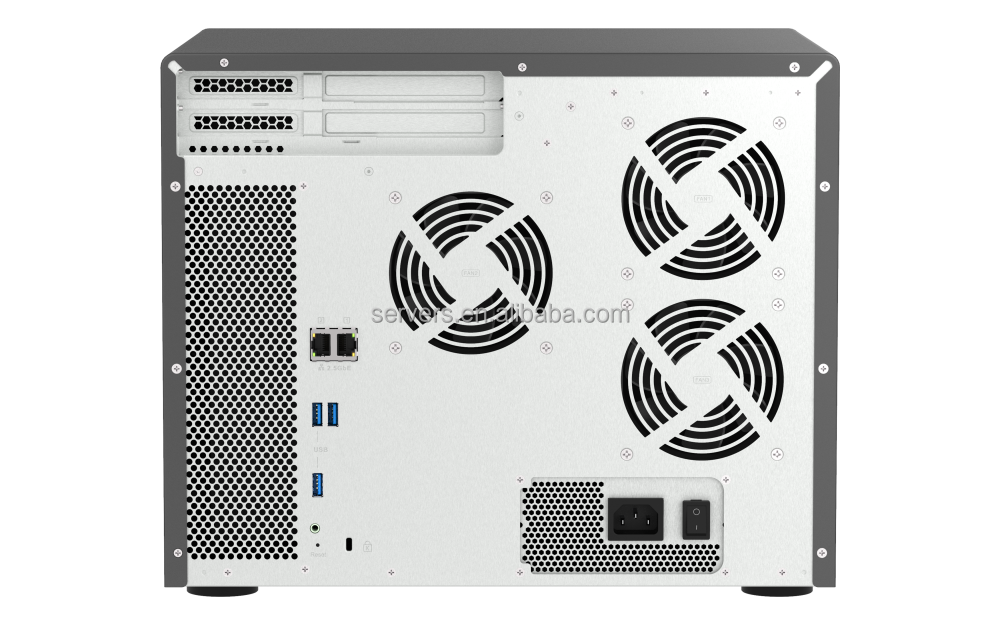

System Fan: 3 x 92mm, 12VDC CPU Fan: 2 x 97mm, 12VDC |
| CIFS Number Limit - Memory Limit | 2500 |

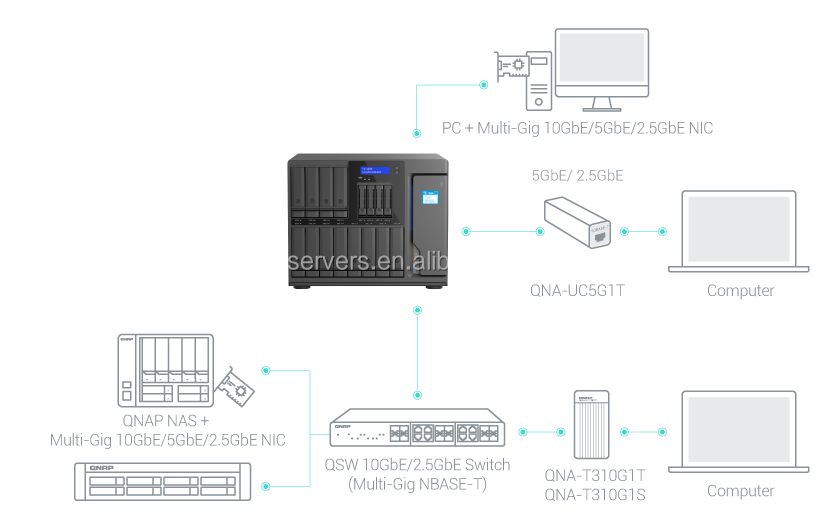

High-speed 2.5GbE network makes dense file access, high-speed backup/restore, virtual machine applications, and audio/video transfers even smoother.

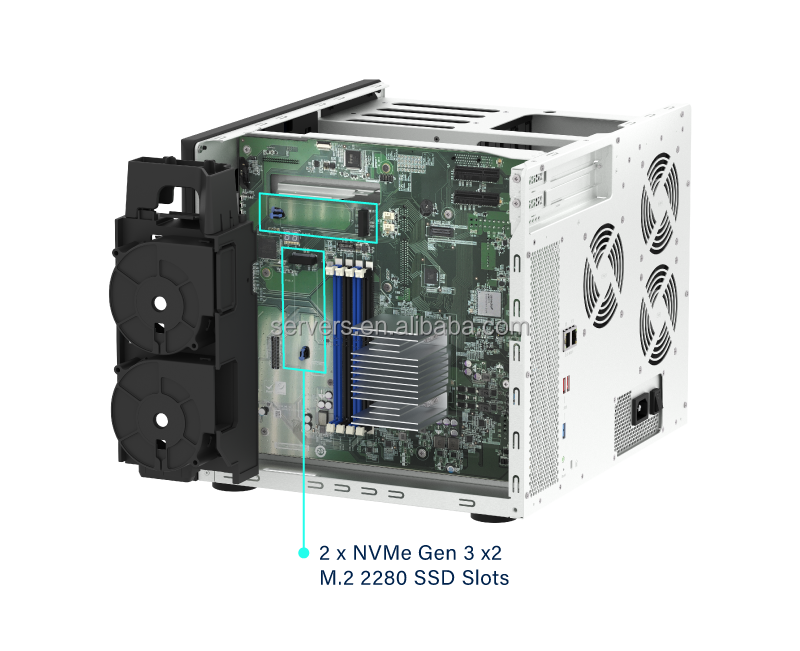

M.2 NVMe PCIe Gen 3 dual slot configurable for SSD caching applications or high-speed storage pools, also supports Coral M.2 gas pedals.
3 PCIe expansion slots for flexible installation of 5/10/25GbE cards, Fibre Channel expansion cards, or QM2 expansion cards.
A single machine can run multiple virtual machines and software containers, supporting SR-IOV to improve resource utilization.
The TS-1655 integrates with mainstream cloud services and combines native caching to make accessing cloud data as fast as local access, accelerating enterprise data to the cloud.
Connect to QNAP's wide range of storage expansion devices to meet the ever-increasing demand for huge amounts of data storage.
