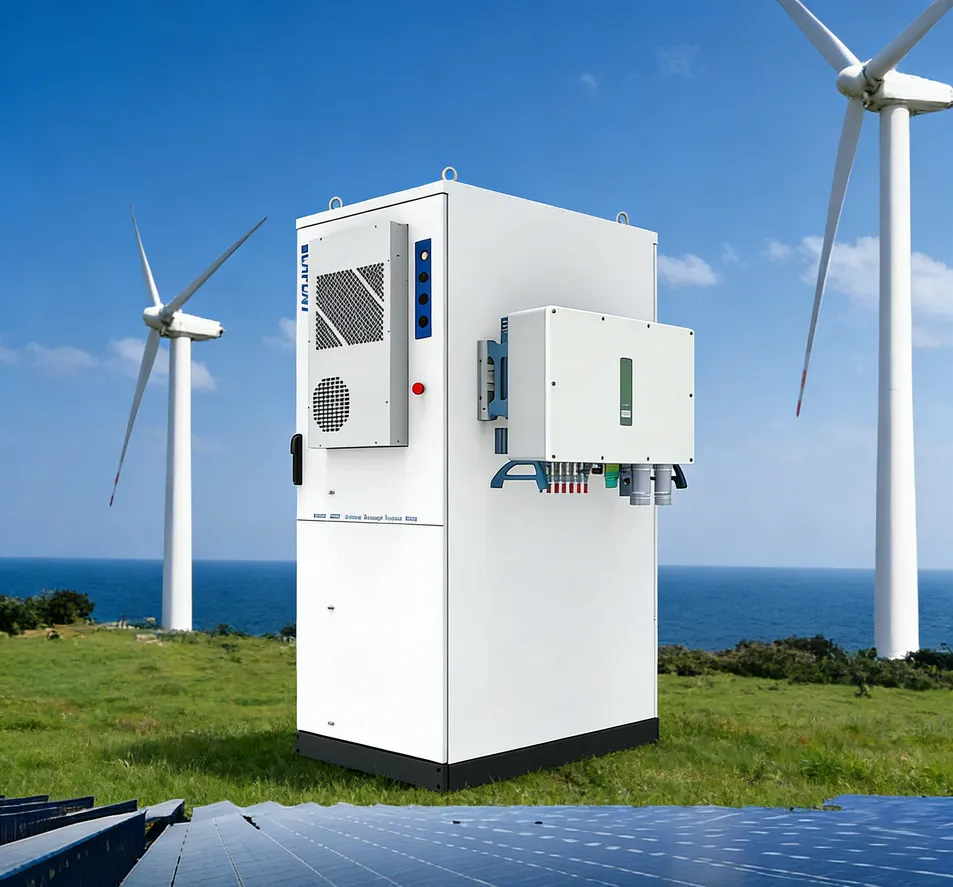

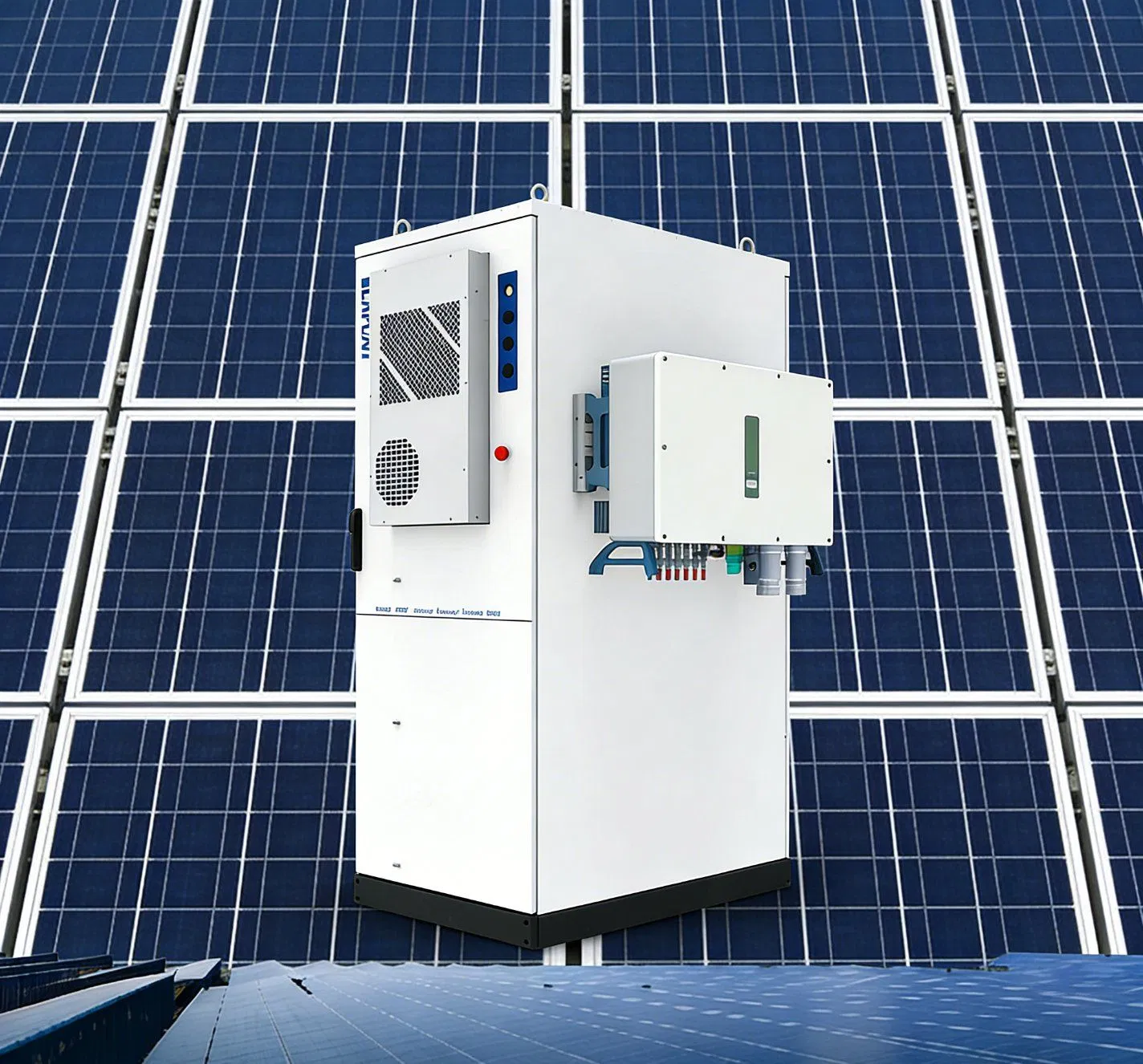

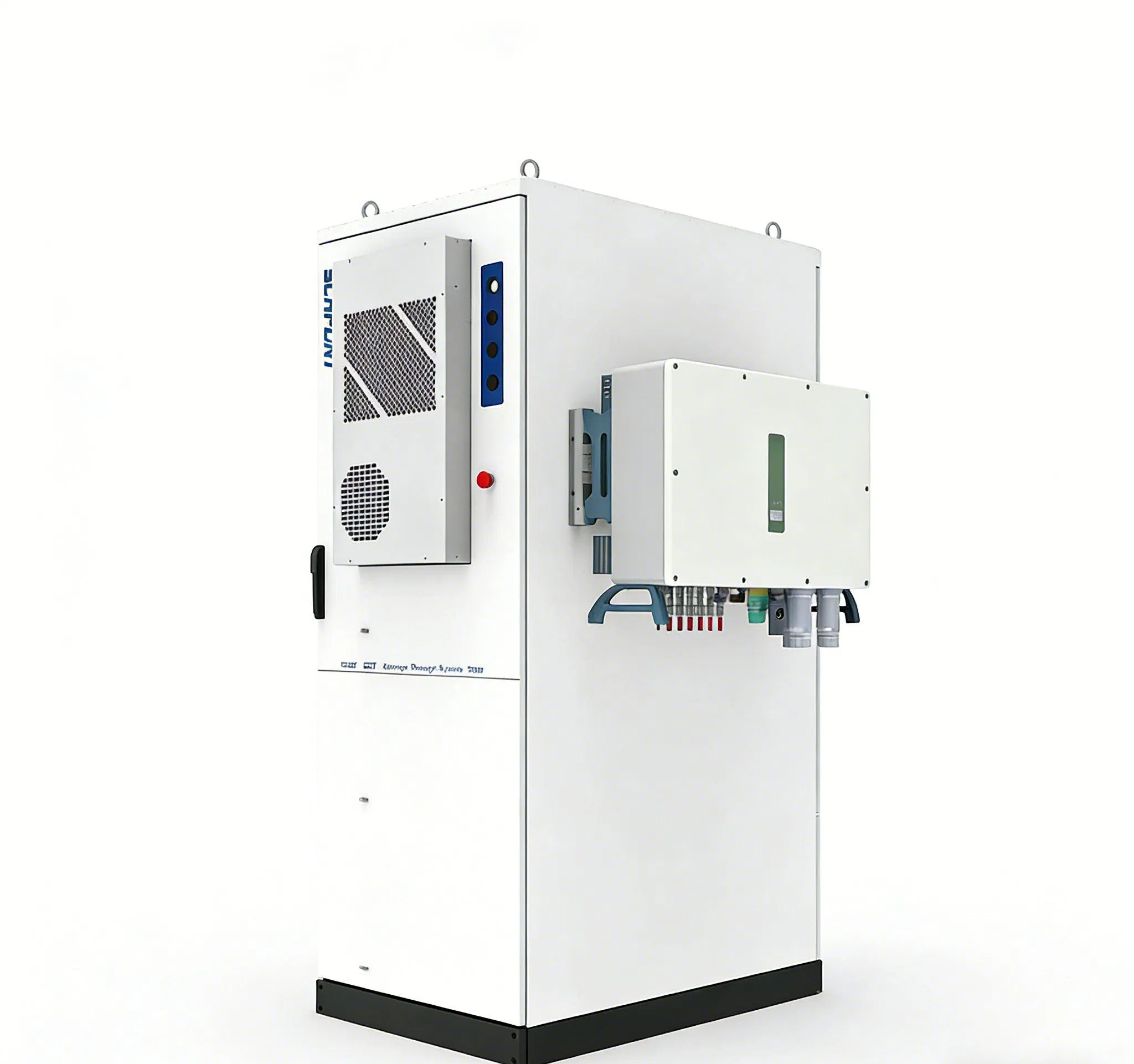

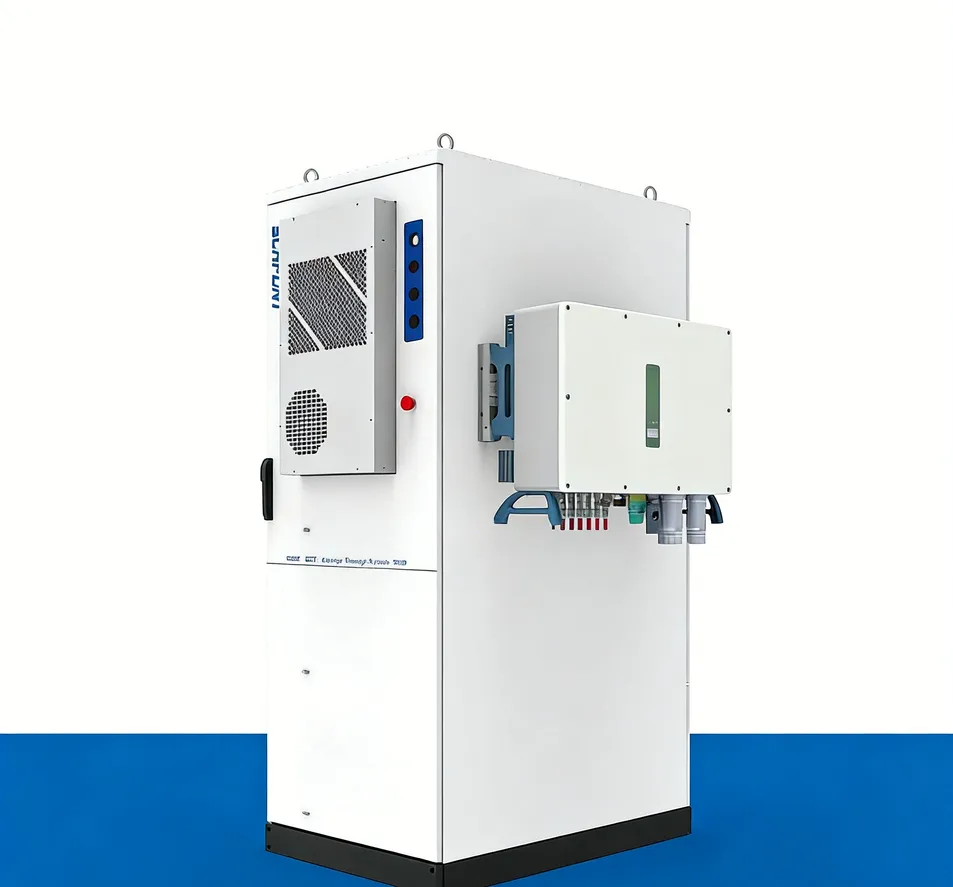

The SET-E64WX is a compact PV-plus ESS solution, designed on ESS integration and digital monitoring technologies. The cabinet integrates components such as lithium battery, HVAC, fire suppression system (FSS), and EMS. With a compact structure, it enables easy installation and flexible capacity expansion.
RTE up to 87%, DOD up to 100%. Optimized for performance.
IP55 rating with advanced ventilation and temperature control.
Small footprint design, easy to transport and install on-site.
Modular design supports parallel connection for system scaling.
Direct support for PV connections with high integration.
| Model NO. | SET-E64WX |
|---|---|
| Energy Capacity | 9.216 kWh / 1P24S |
| Cycle Life | 5000 Cycles (80% DOD) |
| Cell Type | LEP / 120Ah |
| Rated DC Voltage | 537.6V |
| Grid Type | 3W+N+PE |
| Ingress Rating | IP55 |
| Operating Temp | -25°C to 55°C |
| Dimensions | 800 x 1200 x 2030 mm |
With over ten years of expertise in wisdom energy management, our team focuses on distributed energy storage. We provide foresight, secure, and sustainable energy infrastructure products. As a drafting unit for technical specifications in optical storage integration, we offer comprehensive solutions including battery modules, air and liquid cooling systems, and intelligent management platforms. We are committed to being a leading safe, low-carbon, green energy service provider.
