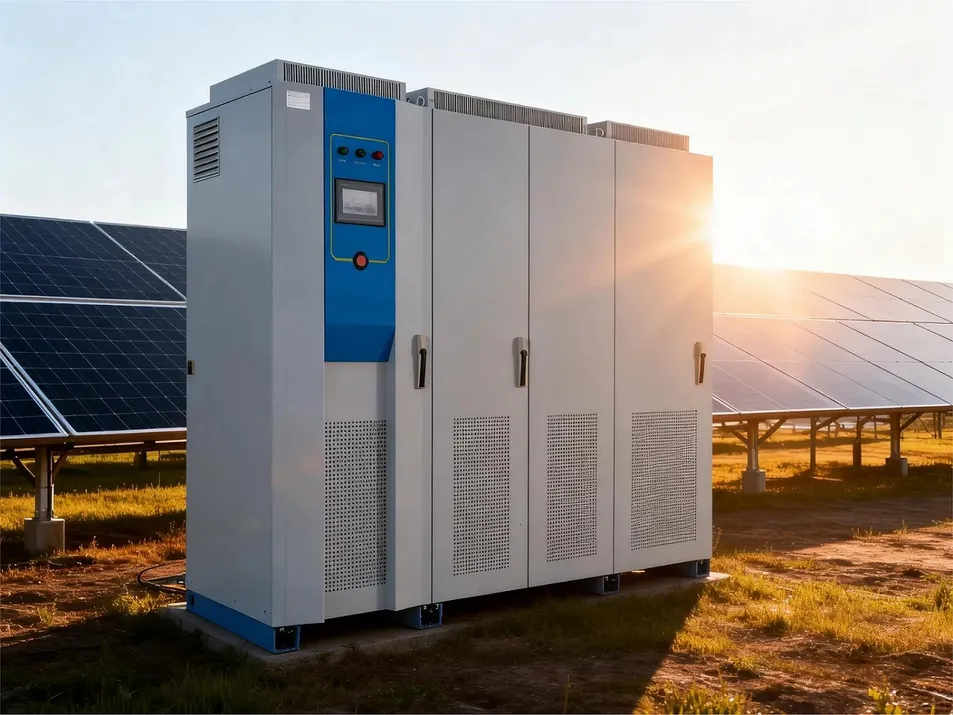

OEM ODM Customized Integrated and off Grid Hybrid Solar Cell Outdoor Cabinet Energy Storage System Solution

Product Description

The integrated photovoltaic-storage system combines an energy storage converter and a photovoltaic inverter, enabling efficient utilization of photovoltaic power generation, reducing on-site installation workload, simplifying integration for integrators, and meeting the needs of integrated photovoltaic-storage applications in small and medium-sized microgrids and industrial and commercial buildings.

Key Features

Intelligent switching operation strategy: It can be directly connected to photovoltaic panels for charging, eliminating losses during power transmission and improving the stability of output current.
Flexible configuration: Photovoltaic power can be connected to up to twice the equipment capacity, up to 200KW.
MPPT Optimization: Maximum Power Point Tracking detects voltage in real time for maximum power output.

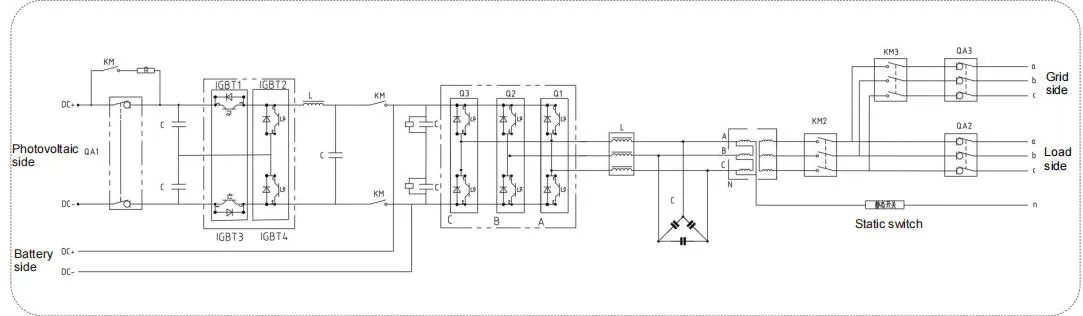

Circuit Block Diagram

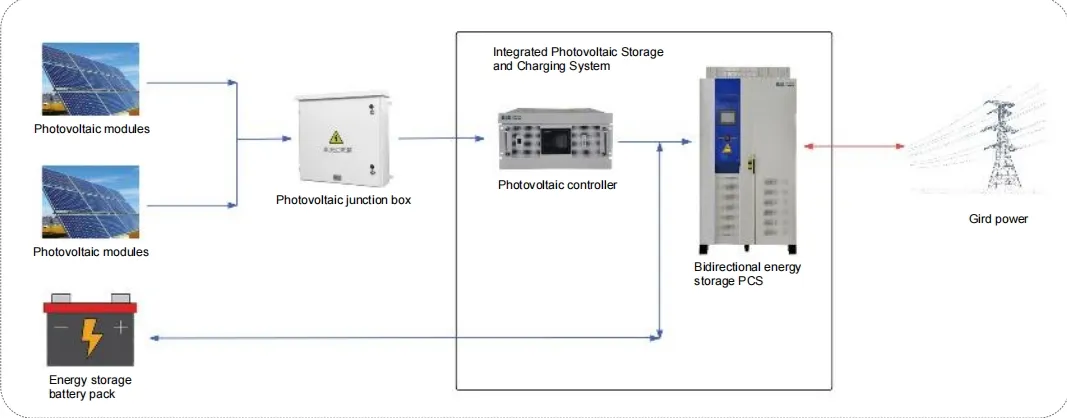

Product Application Topology

Specification

Parameter	HNS-50KS	HNS-100KS	HNS-200KS
Battery Max Current	85A	170A	340A
PV Voltage Range	DC 350V-850V
Max Power	110kW	220KW	440KW
Communication	RS485 / Network Port / CAN
Cooling Method	Forced air cooling
