Basic Info.
Steel Grade
Q355b, Q235B (ASTM A36, S355)
Thermal Insulation
PU/PIR Sandwich Panel, 50mm-200mm Thickness
Storage Temperature
-40°C to +15°C (Chiller & Freezer Tailored)
Insulation Core
PIR / PU Sandwich Panel (50mm-250mm)
Fire Safety Rating
B1 Grade (Fire Retardant & Non-Combustible)
Structure Safety
180km/H Wind & Grade 9 Seismic Resistance
Steel Corrosion
Hot-DIP Galv. / Marine-Grade Epoxy Coating
Installation
100% Bolt-Connected (Zero Welding Required)
Airtight System
Specialized EPDM Seal & Thermal Bridge Break
Floor Insulation
XPS Board / Vapor Barrier / Heating Systems
Design Standard
Compliance with ASTM, Eurocode, AS/NZS
Wind Resistance
up to 180 Km/H (Customizable)
Seismic Resistance
Grade 8-9 (Customizable)
Logistics Saving
Container Loading Optimization (Nesting Design)
Transport Package
Shipping Containers
Specification
Customization
Production Capacity
1800-2000 Tons Per Month
Packaging & Delivery
Package Size
1180.00cm * 230.00cm * 256.00cm
Package Gross Weight
2400.000kg
Product Description
Global Project Showcases
1,500 Sqm Typhoon-Resistant Seafood Cold Storage in the Philippines
- Application: Seafood Deep Processing & Cold Chain Logistics
- Location: Manila, Philippines
- Scale: 1,500 Square Meters
- Temperature Zones: -35°C (Blast Freezing) & -20°C (Deep Storage)
- Installation Time: Only 25 Days
Strict Temperature Control for Every Industry
From +10°C chillers to -40°C freezers, meet HACCP & FDA standards. Thermal-bridge-free designs ensure stability.
One-Stop Delivery 30% Lower Logistics
Turnkey cold storage solutions with quick delivery. From design to installation, risk minimized and commissioning time cut.
Can't visit in person now?
Request a Live Virtual Factory Tour! Connect with engineers via video to see CNC workshops & projects live.
| Panel Thickness |
Recommend Temp. |
Typical Application |
| 50mm (2") |
+5°C to +15°C (41°F to 59°F) |
Processing Rooms, Corridors, Prep Areas |
| 75mm (3") |
0°C to +5°C (32°F to 41°F) |
Chiller Rooms, Fresh Produce, Dairy |
| 100mm (4") |
-18°C to -5°C (0°F to 23°F) |
Standard Freezer, Frozen Meat/Poultry |
| 150mm (6") |
-25°C to -18°C (-13°F to 0°F) |
Deep Freezer, Seafood, Ice Cream |
| 200mm (8") |
-40°C to -25°C (-40°F to -13°F) |
Blast Freezer, Extreme Deep Freeze |
| Insulation Core |
High-Density PU (Polyurethane) or PIR (Polyisocyanurate) |
| Steel Skin Thickness |
0.4mm - 0.8mm (Color-coated steel or Stainless steel 304) |
| Fire Retardant Rating |
B1 / B2 Grade available to meet local fire codes |
| Connection System |
Cam-lock system or Tongue-and-groove with concealed sealing |
Company Profile
26 years of engineering excellence | National Grade-A Manufacturer. We offer premium solutions with fast global shipping.
- Trusted by contractors: Certified with CE, EN1090, ISO 9001/14001, and China State Class-One Qualification. Smooth customs clearance ensured.

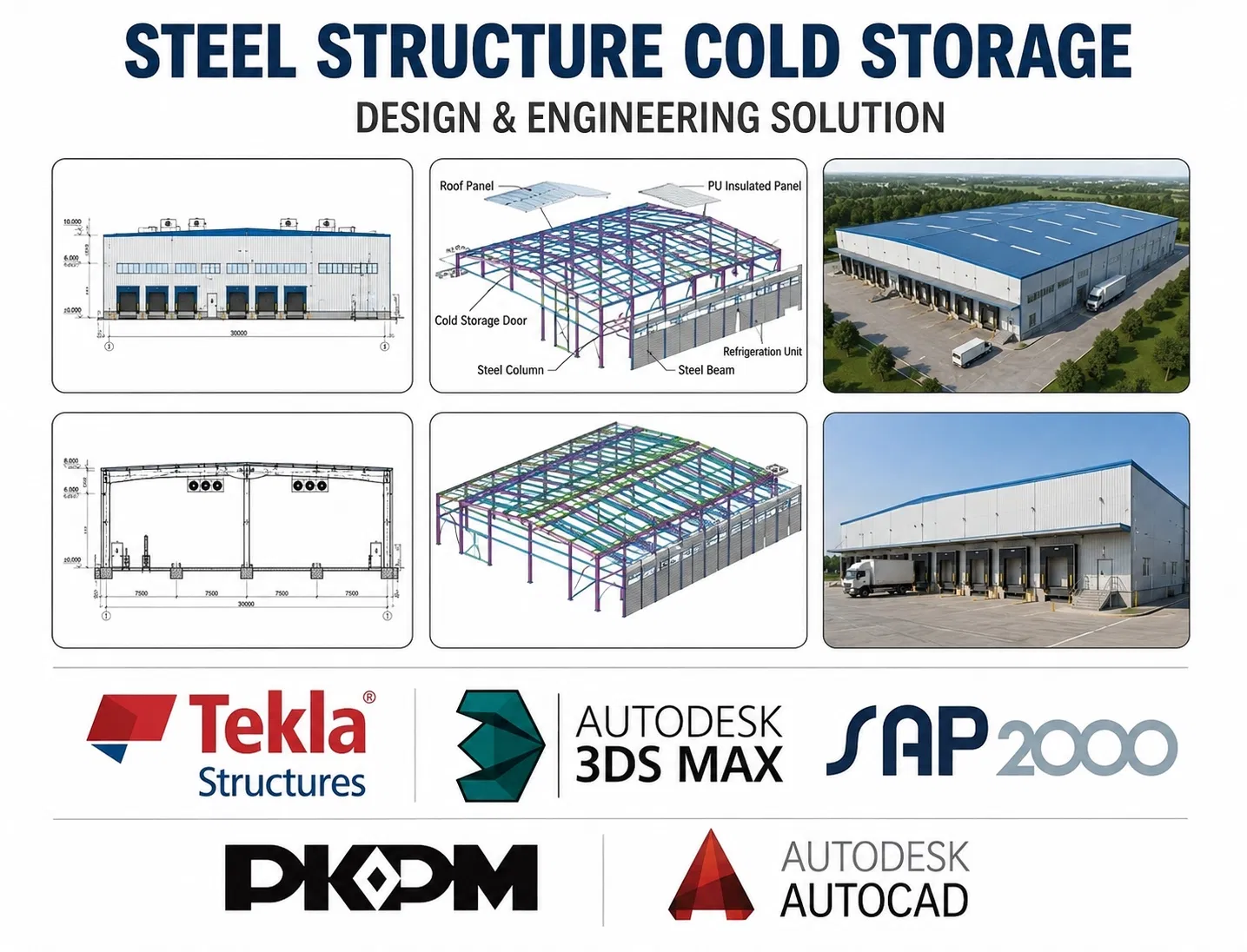

- Engineering Mastery: 50+ Engineers using BIM, Tekla, & AutoCAD for FREE 3D designs, ensuring perfect fit without re-cutting or welding.

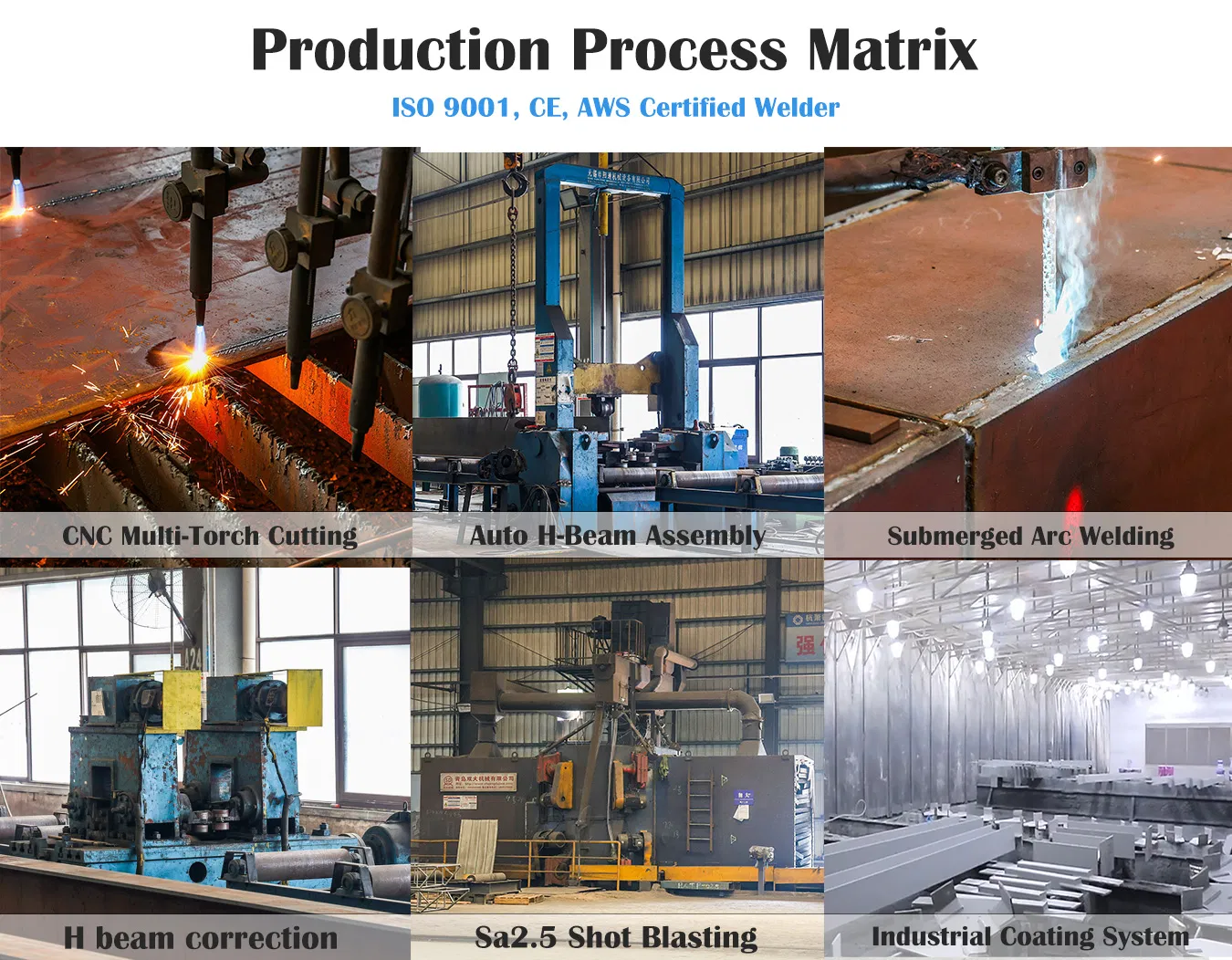

- Elite Craftsmanship: 120+ certified welders & 100% automated production lines. We handle complex projects with timely delivery.

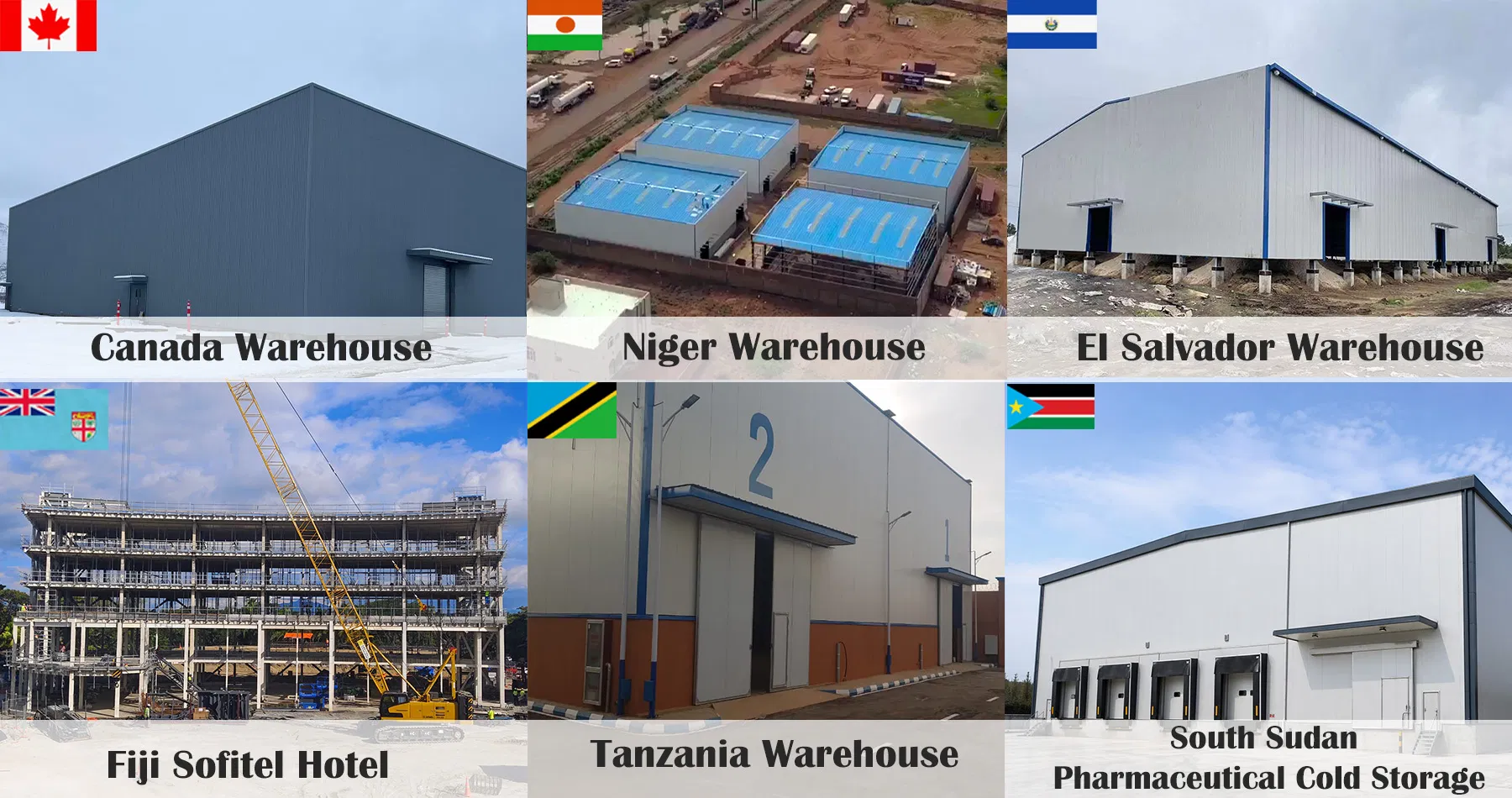

- Proven Global Footprint: Delivered projects to 50+ nations, including high-standard markets like the EU, Australia, UAE, and Russia.
- Embark on a seamless journey: Design, Fabrication, Logistics, and Installation Guidance.
Contact Us Today for a detailed quote and 3D design within 48 hours, compliant with local codes.

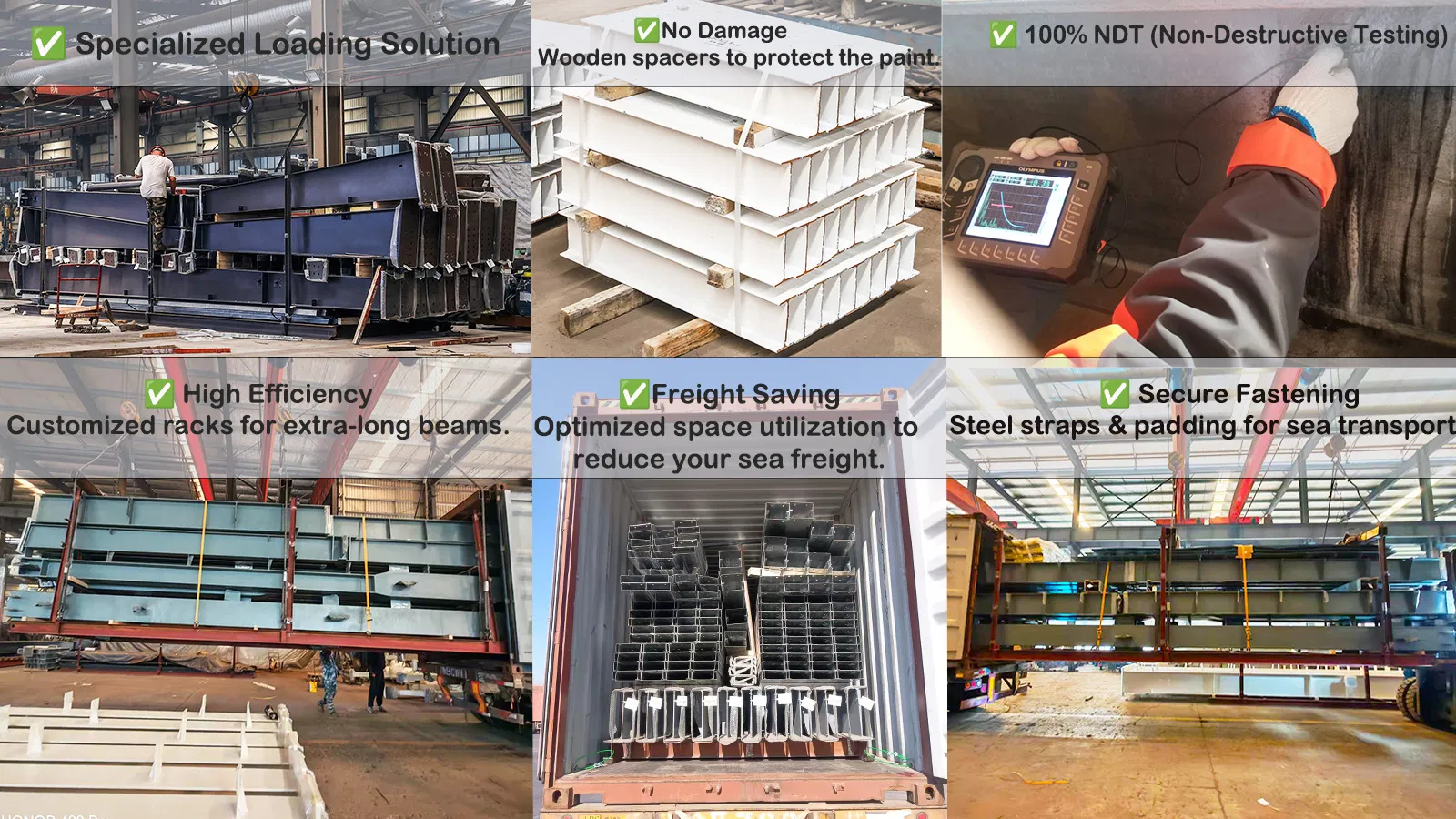

Packaging & Shipping
Customer visits the factory
Certifications
FAQ
What is the production lead time for a steel structure cold storage?
Standard production is 25-35 days post 3D drawing approval. Simultaneous frame, panel, and unit production. Expedited options available.
How is rust prevented in high humidity cold rooms?
We use heavy-duty hot-dip galvanization (up to 275g/m²) or marine-grade epoxy paint. Interior panels have PE/PVDF coatings for 50+ years of protection.
Are insulation panels fire-retardant and inspection compliant?
Yes. Our PIR panels meet B1/B2 fire standards, self-extinguishing, ensuring safety code compliance and insurance approval.
Can the floor handle heavy forklifts and multi-tier racking?
Yes. Our design supports high-bay racking with insulated concrete foundations for heavy forklift traffic without freezing or cracking.
Can the cold storage be expanded as business grows?
Yes! Our bolted modular design allows easy expansion—just bolt on more bays and panels with minimal disruption.
How long does the warehouse maintain temperature in a power outage?
Our insulation and cam-lock design ensure airtight seals, maintaining safe temps for 24–48 hours, allowing time for backup generator activation.
