Basic Info.
Model NO.
ESS-40
Protection
Over Voltage, Over Current, Short Circuit etc.
Application
Household, Office etc.
Classification
Energy Storage Solution
Standby Time
Standard Machine
Standby UPS
No
Output Capacity
220VAC
Equipment Mode
Centralized Model
Color
White
Battery Type
Lithium
Ingress Protection
IP21
No.of MPPT
2
Power Factor
0.8 Leading-0.8 Lagging
Thdi
<3%
Inverter Warranty
2 Years
Battery Warranty
5 Years
Transport Package
Carton Box or Wooden Pallets
Specification
550x621x214mm
HS Code
8504402000
Production Capacity
10000
Product Description

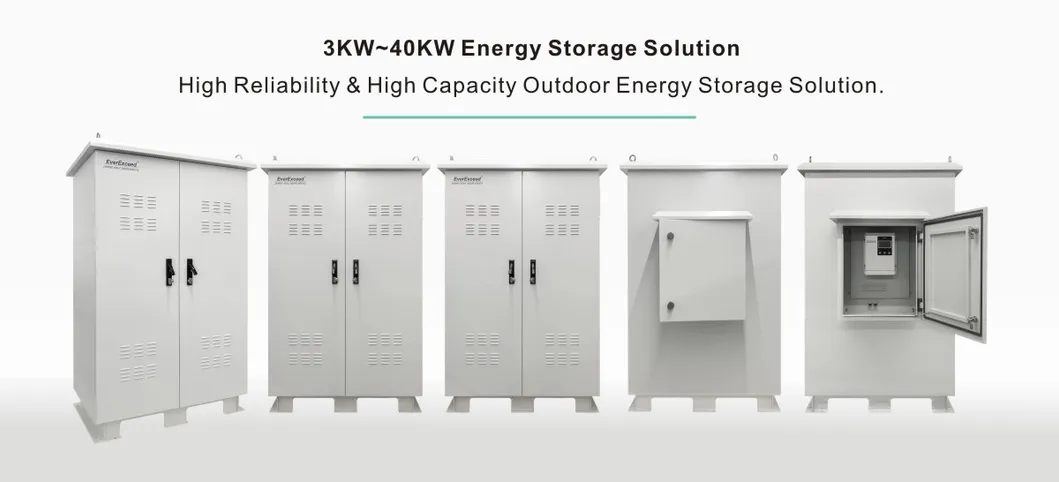

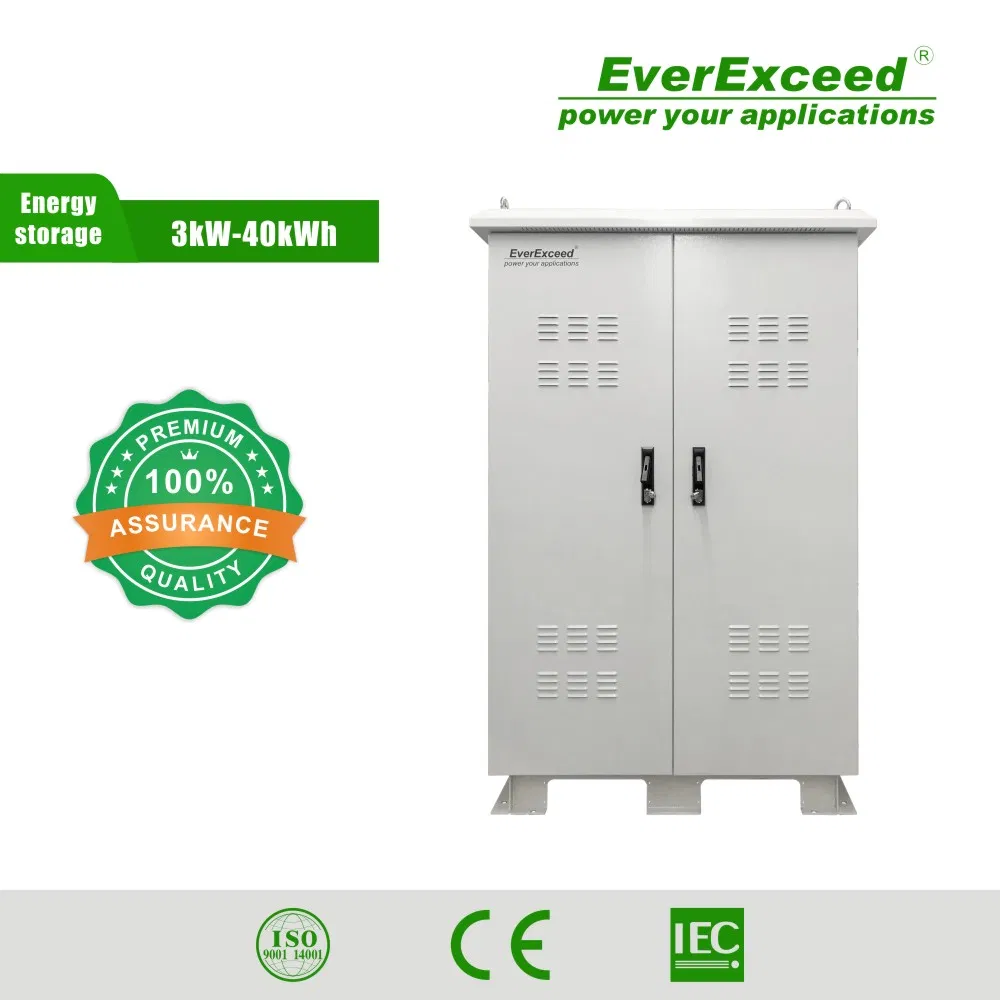

Lithium Energy Storage Solution 3kw~40kw outdoor Energy Storage Solution
Product introduction:

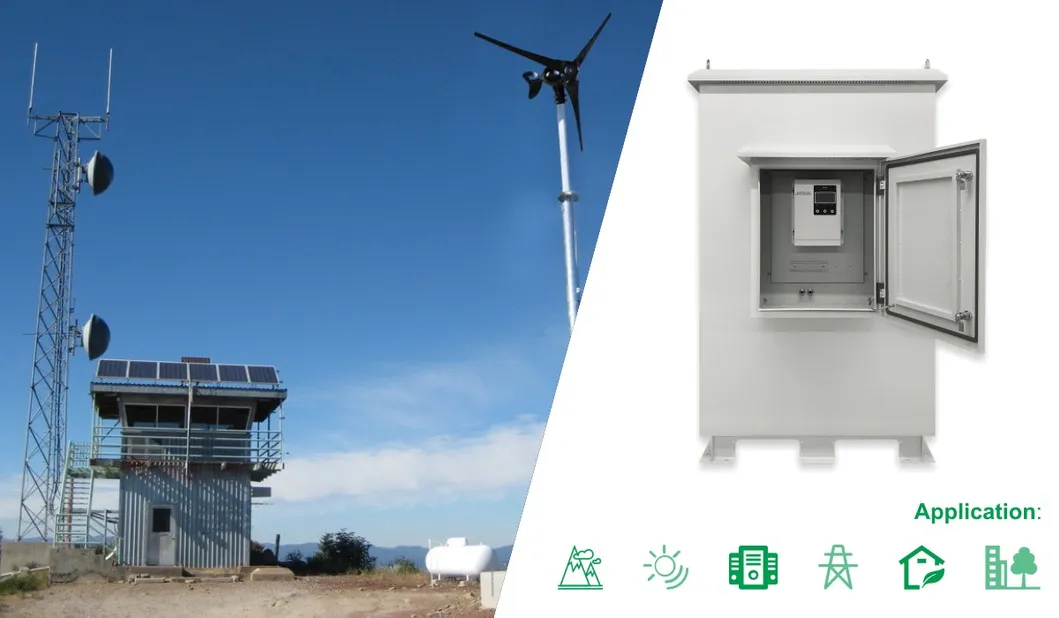

Outdoor Solar Energy Storage solutions have been designed in a way to comply with requirements of outdoor applications like oil and gas, island, off-grid remote area etc. It is a solution for off-grid applications which includes power backup, peak shaving, load shifting, PV self-consumption, PV smoothing and etc. It comes with an intelligent ventilation system and it has the option to add an integrated air conditioner.
Technical features:
Modularity
Modular design for easy installation, maximum usage of solar energy with leading algorithm design along with intelligent ventilation system.
High Reliability
More reliable electric power supply of 24/7 including power backup, peak shaving, load shifting, PV self consumption, PV smoothing etc.
High Safety
IP55 protection ensures waterproofing and dustproofing, complete safety in outdoor applications.
Pre-Configured
The system design is excellent and pre-configured by highly skilled engineers directly from factory.
Cost Effective
Excellent TCO performance with optimized PV system. Low maintenance, repair replacement & remote monitoring.
Environment Friendly
Powered by solar energy, no CO2 emission. Protects environment.
Technical specifications:
| Parameter |
Specification |
| DC Power |
48VDC |
| DC Output |
60A |
| Solar Power |
3KW |
| Energy Storage |
40KWh |
| Shipping & Payment Details |
| Payment |
T/T, L/C, Cash, Western Union etc. (flexible payment term can be discussed) |
| Port |
Normally China (any sea port upon request) |
| Delivery |
By sea/air/train/truck transportation |
| Delivery time |
Normally 4 weeks ex factory excluding shipping. |
| Packing |
Pack in carton box then pallet (wooden box) |
Frequently Asked Questions
Q:
What are the primary applications of this Outdoor Solar Energy Storage solution?
This solution is specifically designed to meet the demands of outdoor applications such as household, office, oil and gas, island, and off-grid remote areas.
Q:
What protection features does the system offer?
The energy storage system comes integrated with complete protection mechanisms including Over Voltage, Over Current, Short Circuit protections, and is built with an IP55 rating to ensure waterproofing and dustproofing in outdoor environments.
Q:
What functions can this system perform for energy management?
It supports off-grid applications such as power backup, peak shaving, load shifting, PV self-consumption, and PV smoothing to maximize energy efficiency and reliability.
Q:
What are the core technical specifications and battery warranty terms?
The technical specifications include a 48VDC system power, 60A DC output, 3KW solar power, and 40KWh energy storage capacity. The battery type is Lithium and comes with a 5-year warranty, while the inverter has a 2-year warranty.
Q:
How is the product shipped and what are the payment terms?
Payment options are flexible and include T/T, L/C, Cash, and Western Union. Shipment can be arranged via sea, air, train, or truck transportation, typically departing from China ports with a normal ex-factory lead time of 4 weeks.
