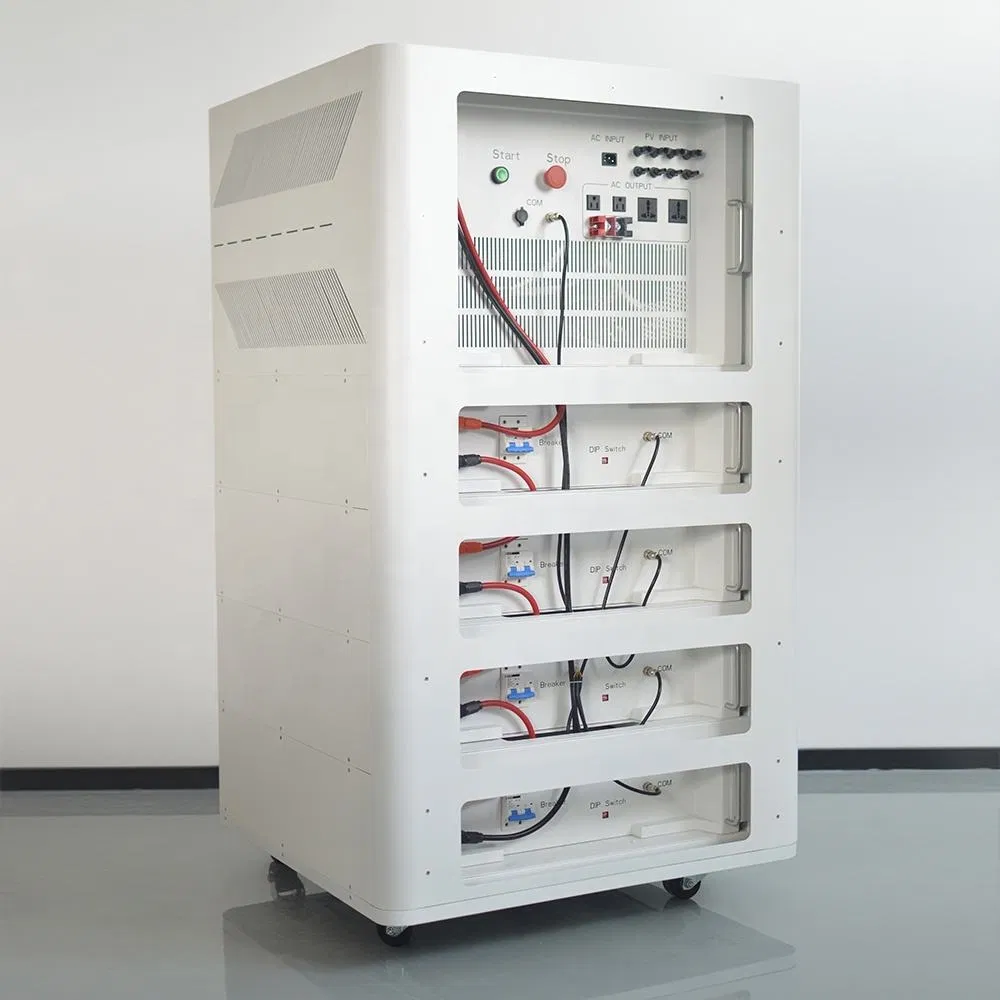

Green New Energy Storage System Renewable Power Energy Solution

Customization:	Available
Power:	241kw
Product Model:	Rjh-1516241f

Basic Info

Model NO.

LD-005

Cell Type

LFP(LiFePO4)

Rated Capacity

314ah

Rated Energy

241kwh

Rated Voltage

768VDC

Charging Voltage

840VDC

Communication

Can/RS485

Protection Level

IP55

Product Overview

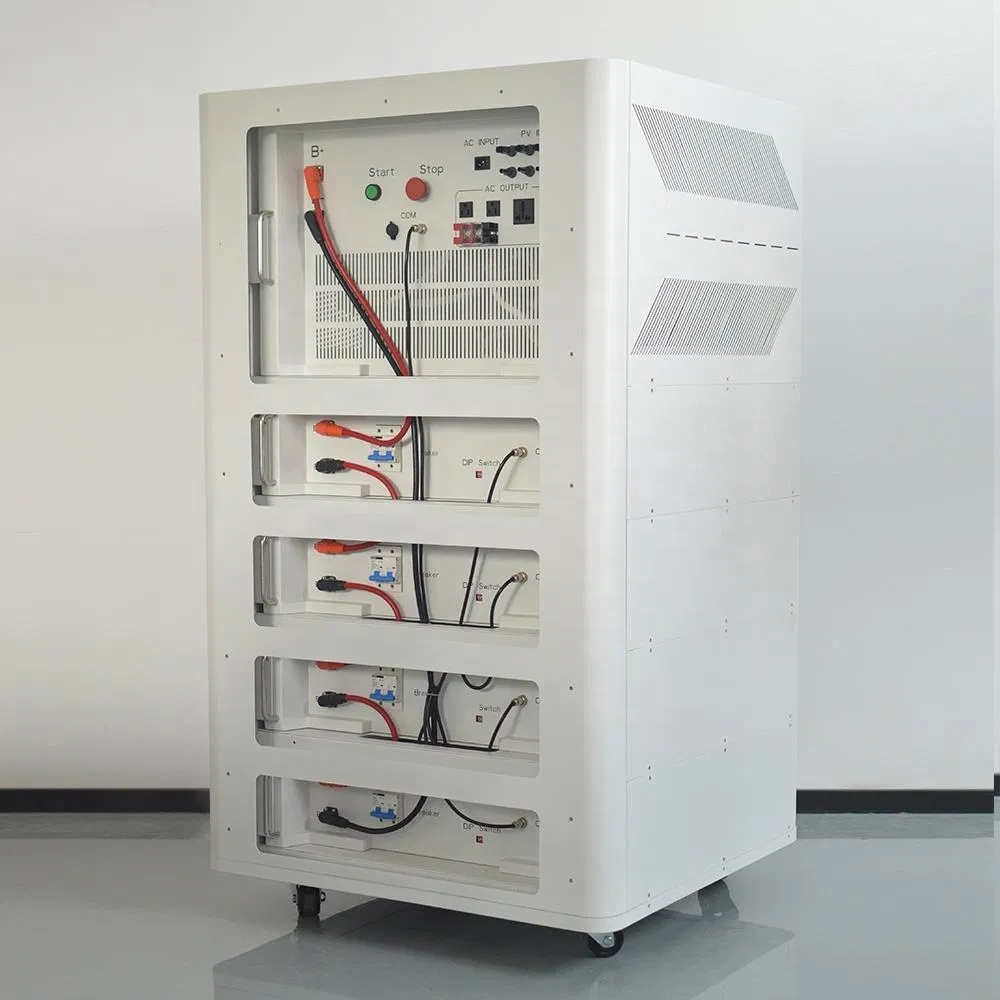

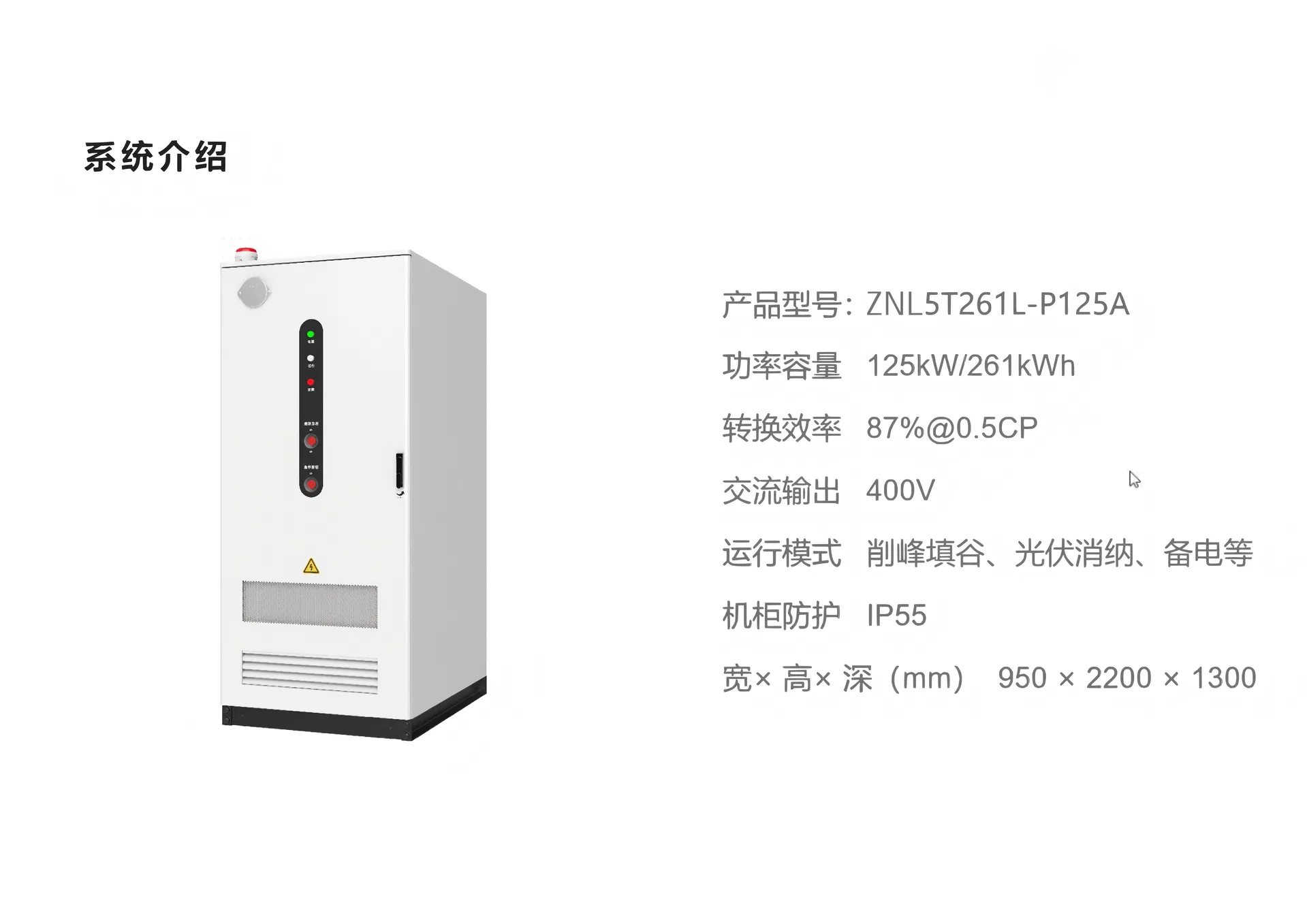

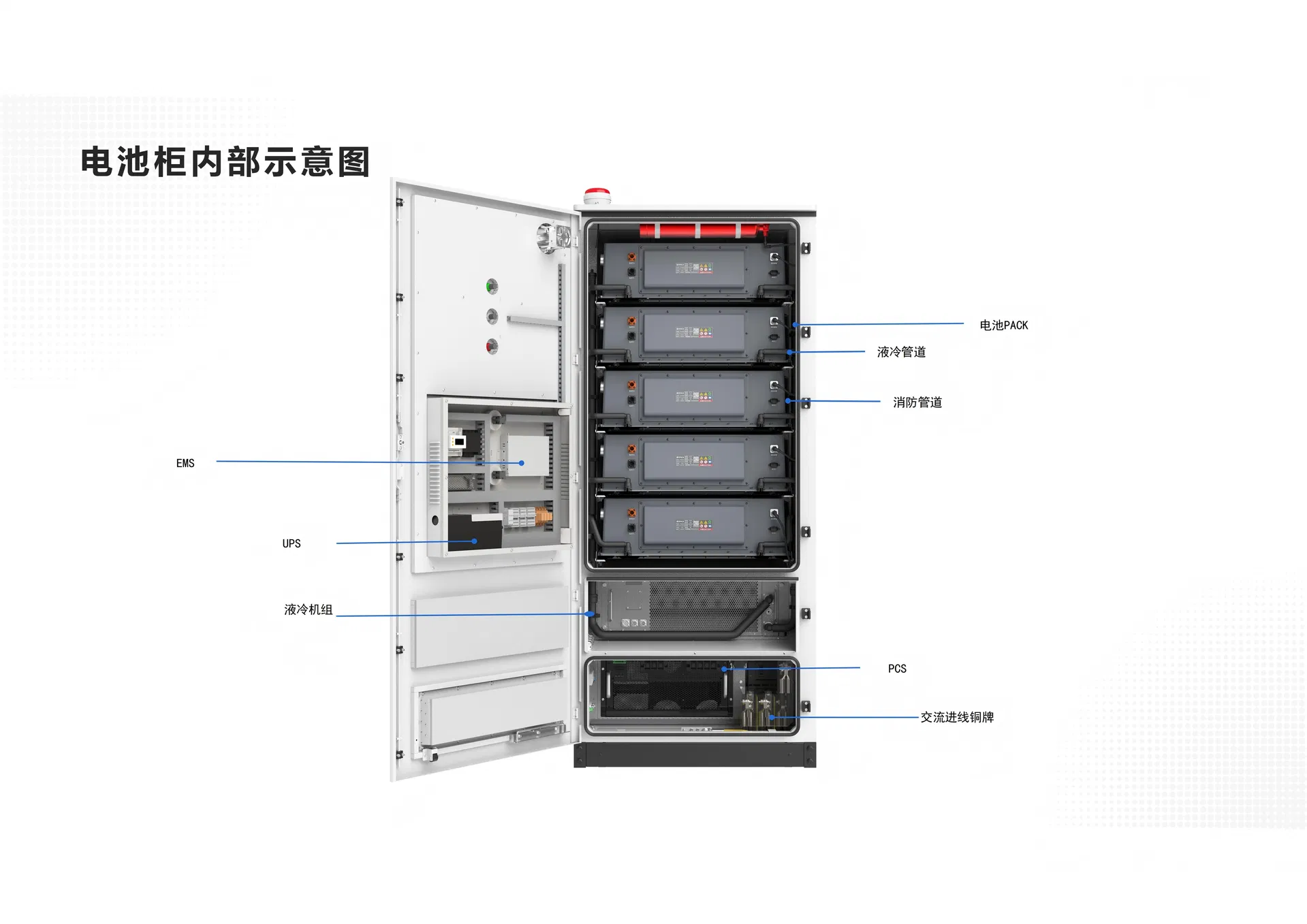

VoltaNest: All-In-One Energy Storage Cabinet
Three configurations available. Customizable according to customer needs.

A: 30KW Inverter + 61kWh Lithium Battery
B: 60KW Inverter + 112kWh Lithium Battery
C: 100KW Inverter + 241kWh Lithium Battery

This product is the perfect solution for unstable power grids, high electricity costs, microgrids, island power supply, and emergency power requirements.

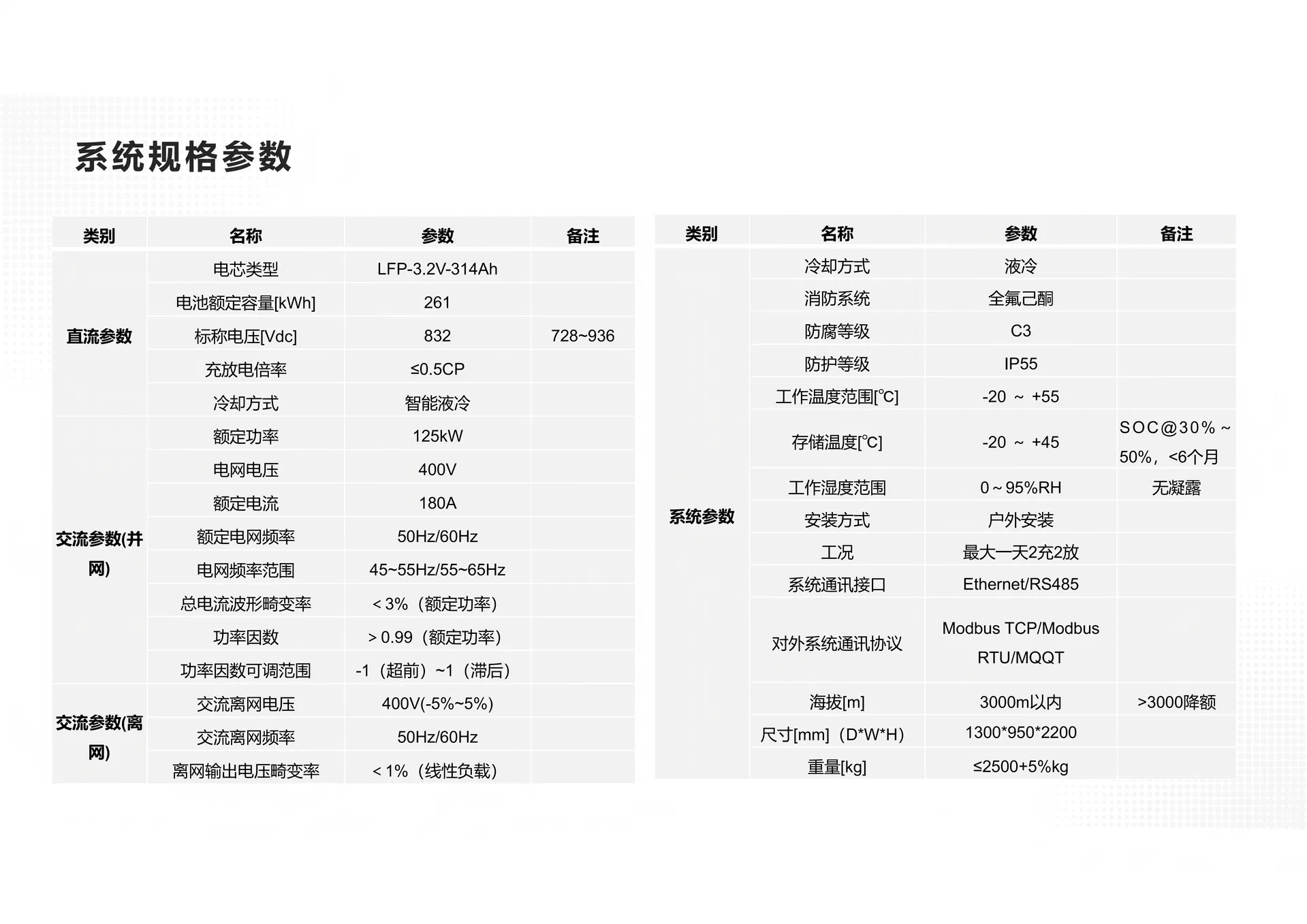

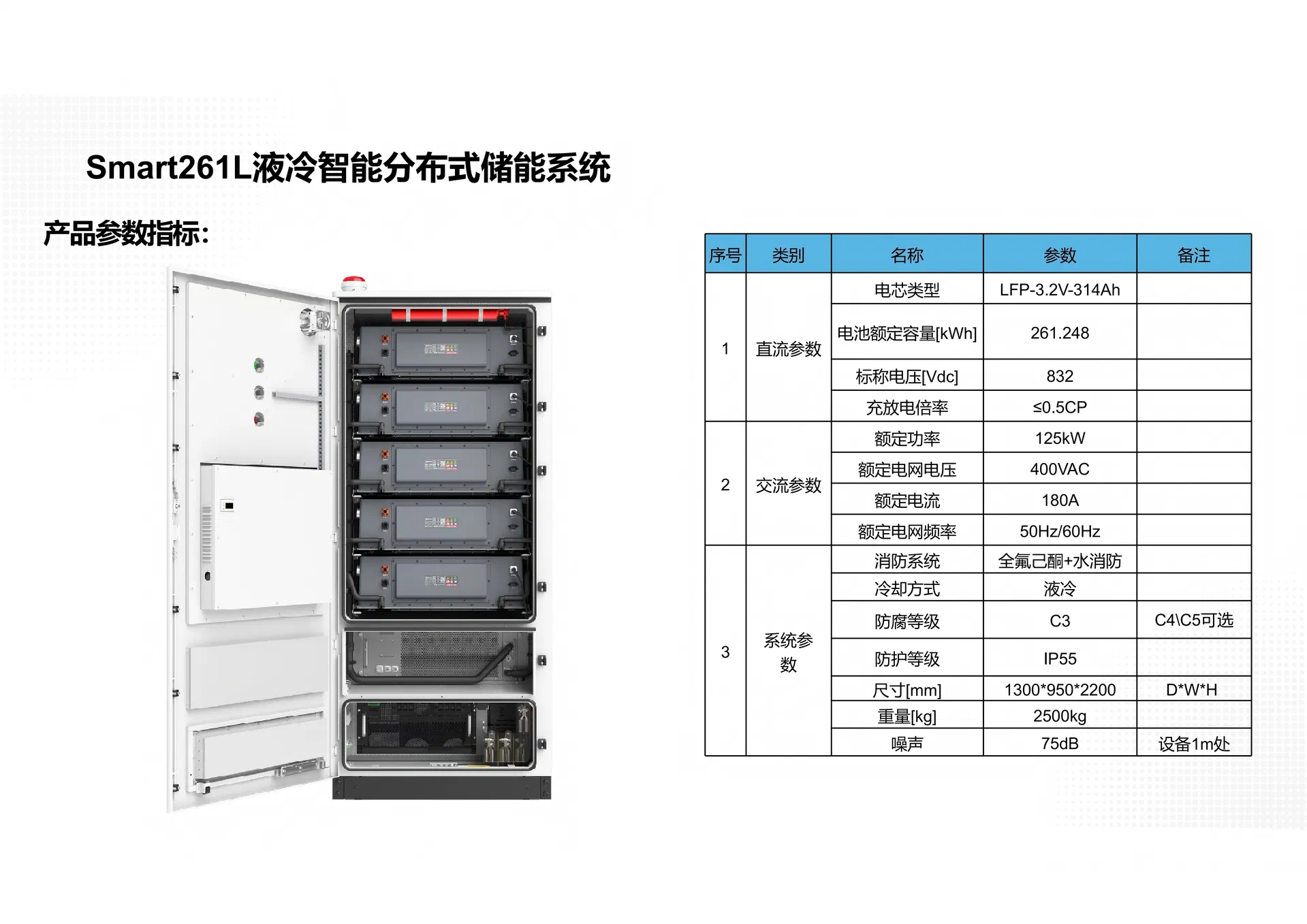

Technical Specifications

Parameter	VN-AES30-HC61	VN-AES60-HC112	VN-AES100-HC241
Nominal Output Power	30KVA	60KVA	100kVA
Energy Configuration	61.44kWh	112.5KWh	241.14KWh
Battery Chemistry	LiFePO4
Cycle Life	>8000
IP Rating	IP54

Frequently Asked Questions

1. Is this energy storage system customizable?

Yes, we offer three main configurations (30KW, 60KW, 100KW) and can customize the solution to better suit your specific energy needs.

2. What is the expected lifespan of the battery?

The system utilizes high-performance LiFePO4 cells, which provide over 8,000 cycles, ensuring stable operation for more than 10 years.

3. Can this system work with solar panels?

Yes, the system is designed with multi-energy input support, making it fully compatible with PV (photovoltaic), grid power, wind power, and diesel generators.

4. Is the system safe for outdoor installation?

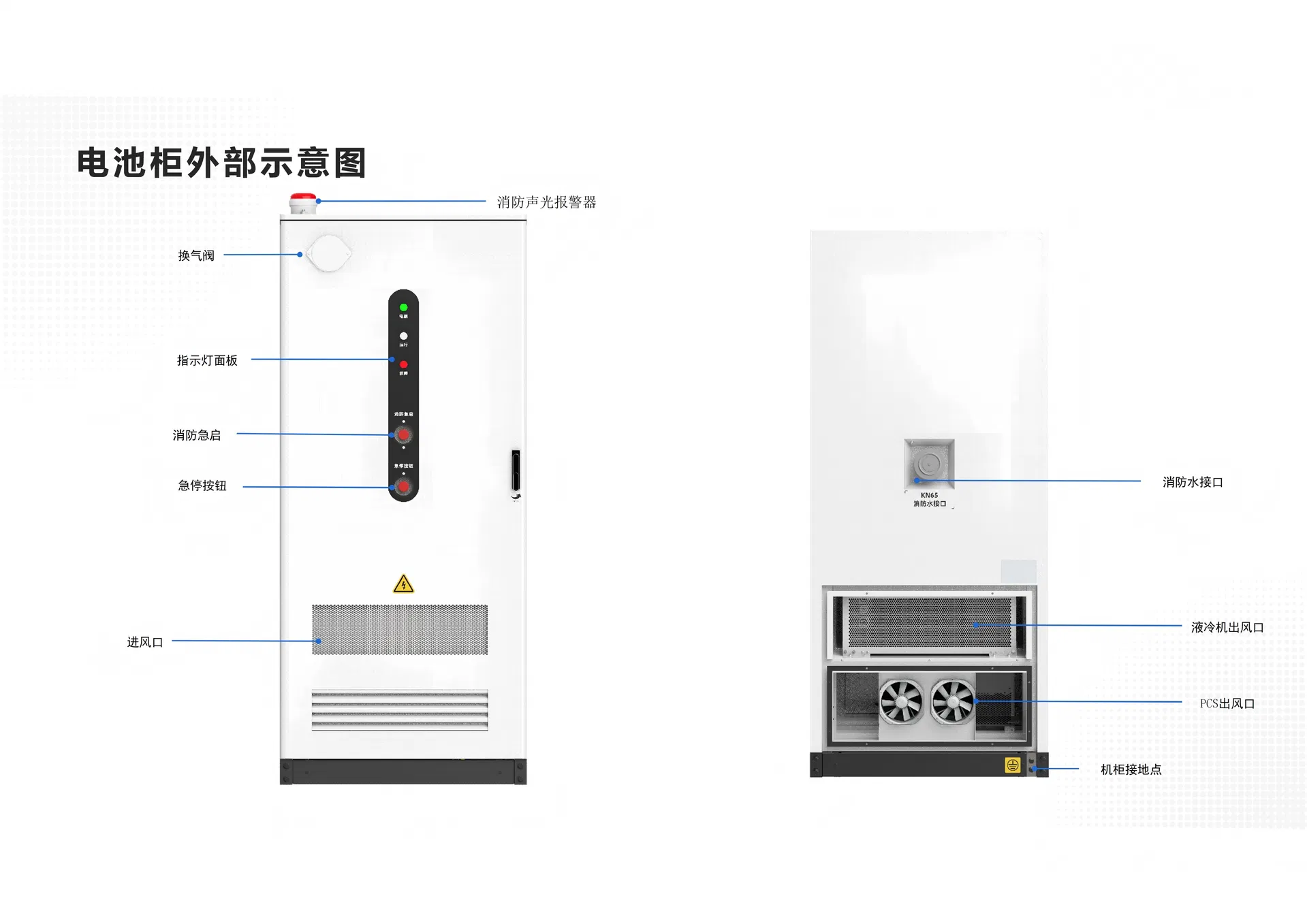

Yes, the system features a robust all-in-one outdoor integrated design with IP54 rating, built-in industrial AC for temperature control, and advanced fluoroketone fire suppression.

5. How can I monitor the system's performance?

The system includes intelligent cloud management, allowing for real-time remote monitoring, strategy optimization, and data visualization via a dashboard.

6. How fast does the system switch power sources?

The built-in STS (Static Transfer Switch) enables automatic energy switching with a response time of less than 10ms for uninterrupted power supply.
