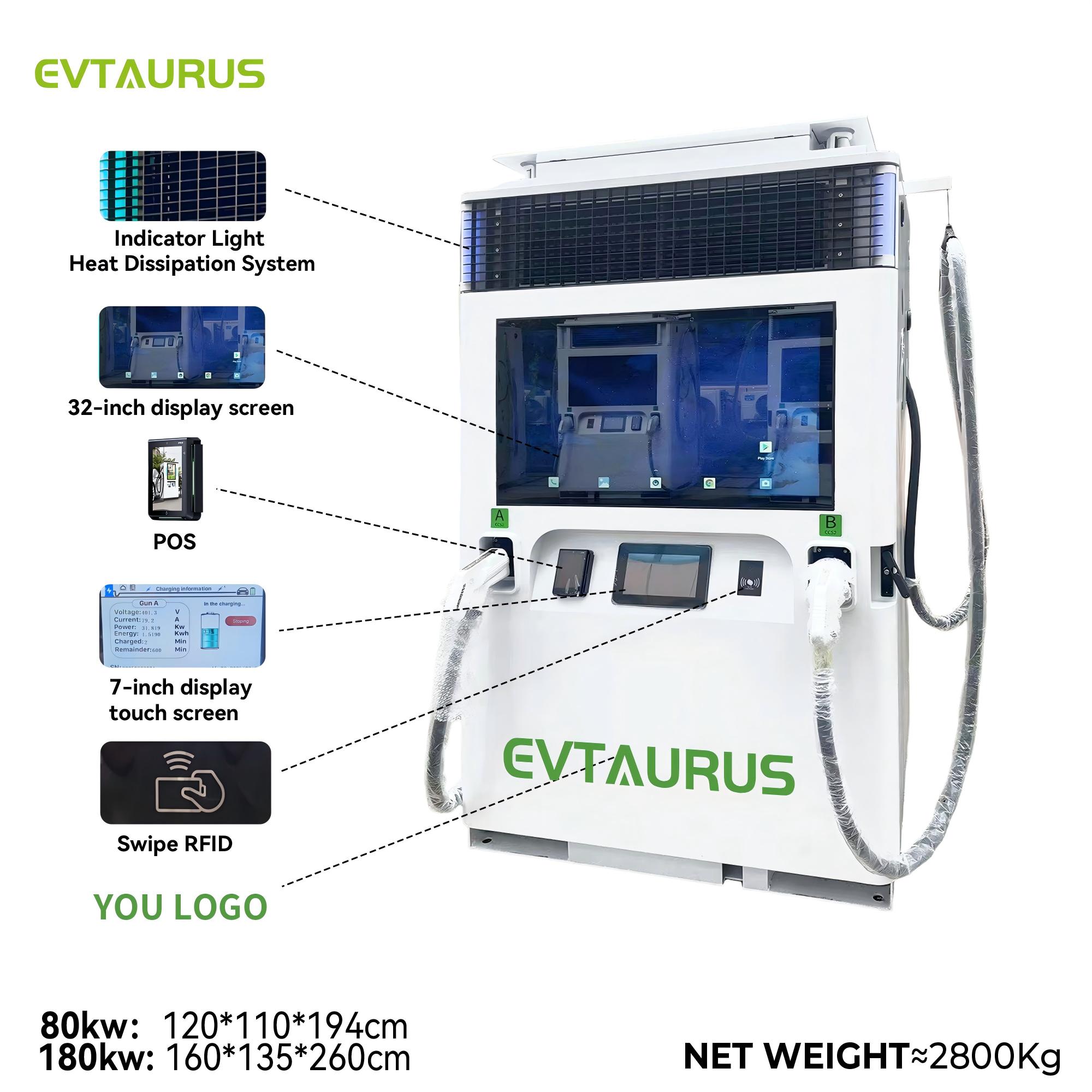

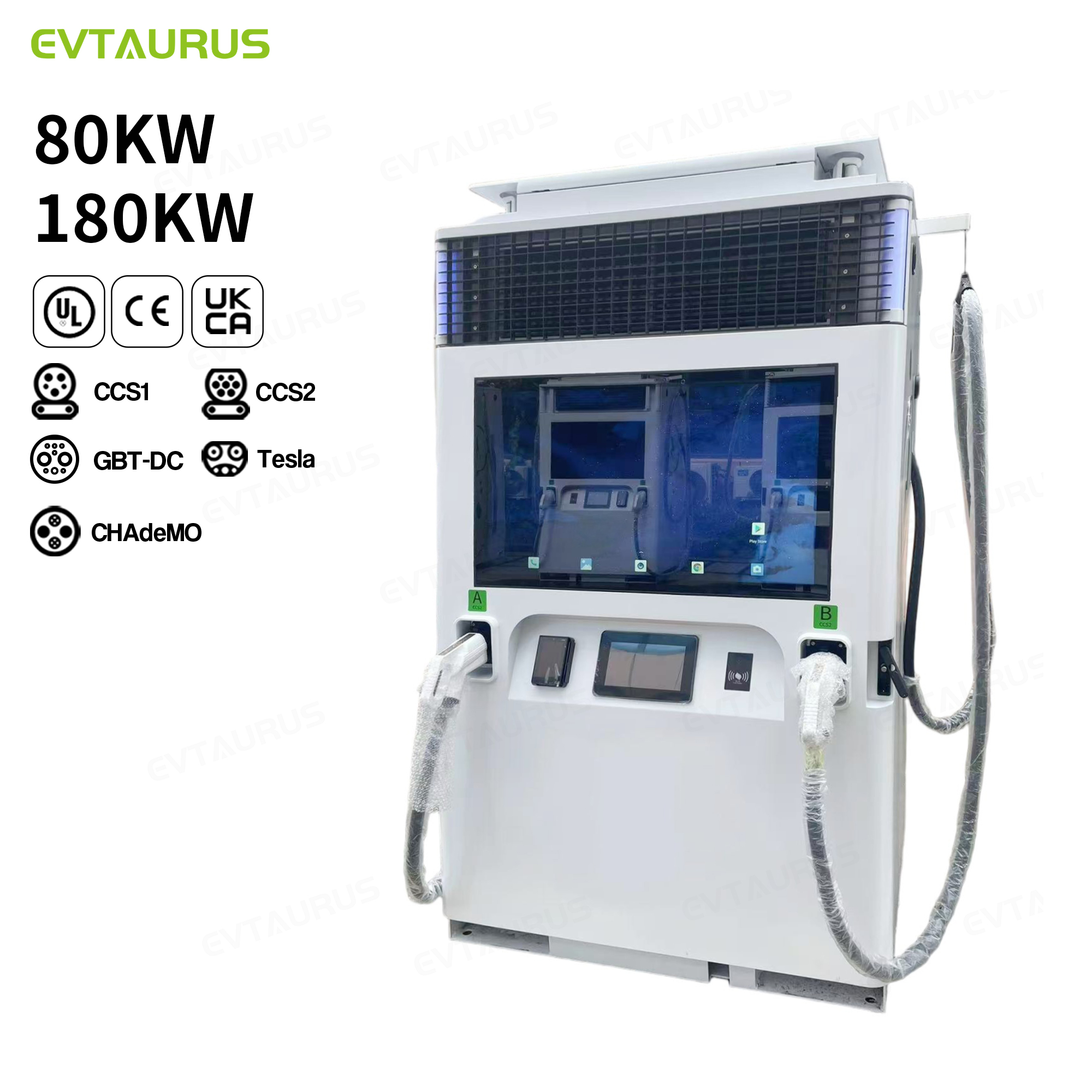

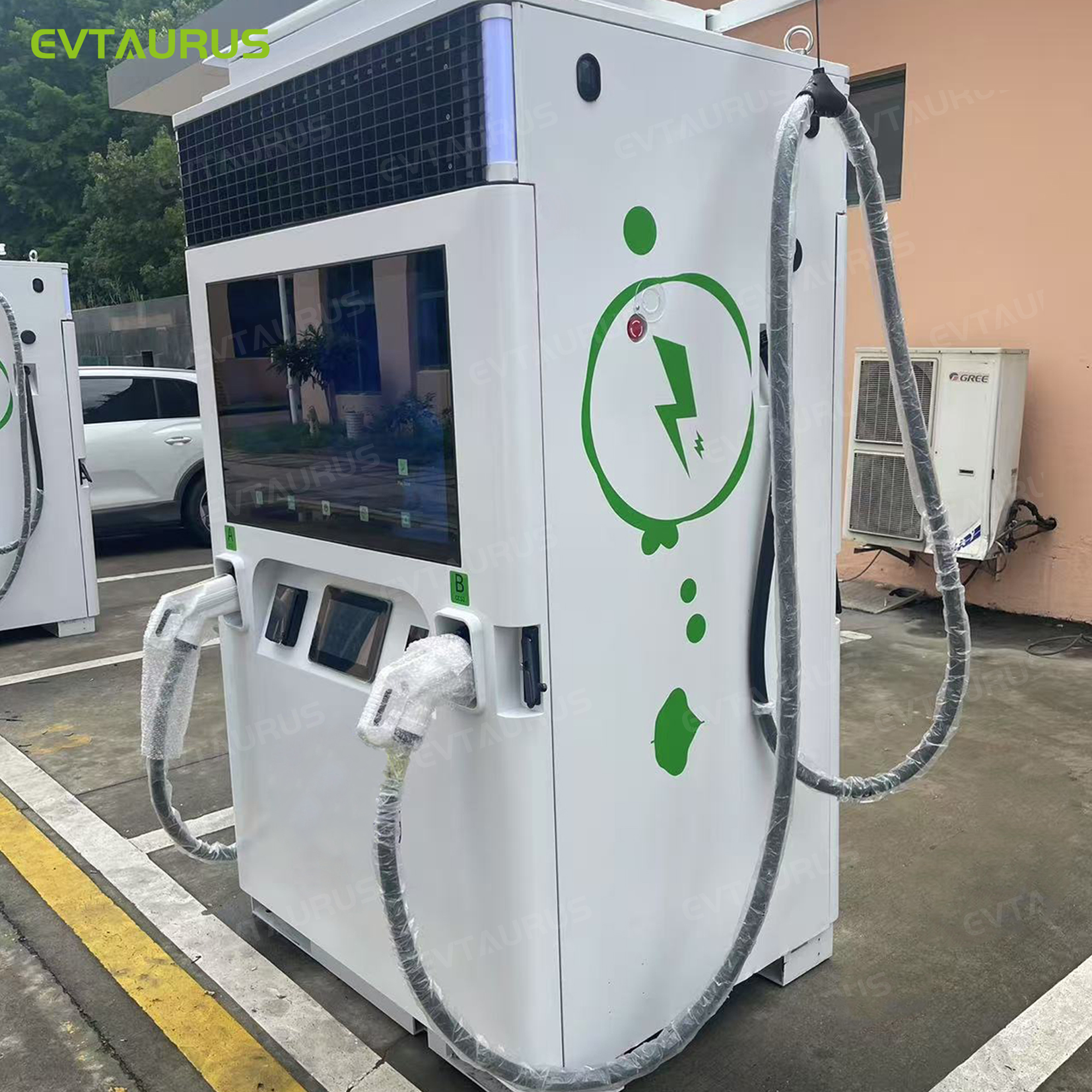

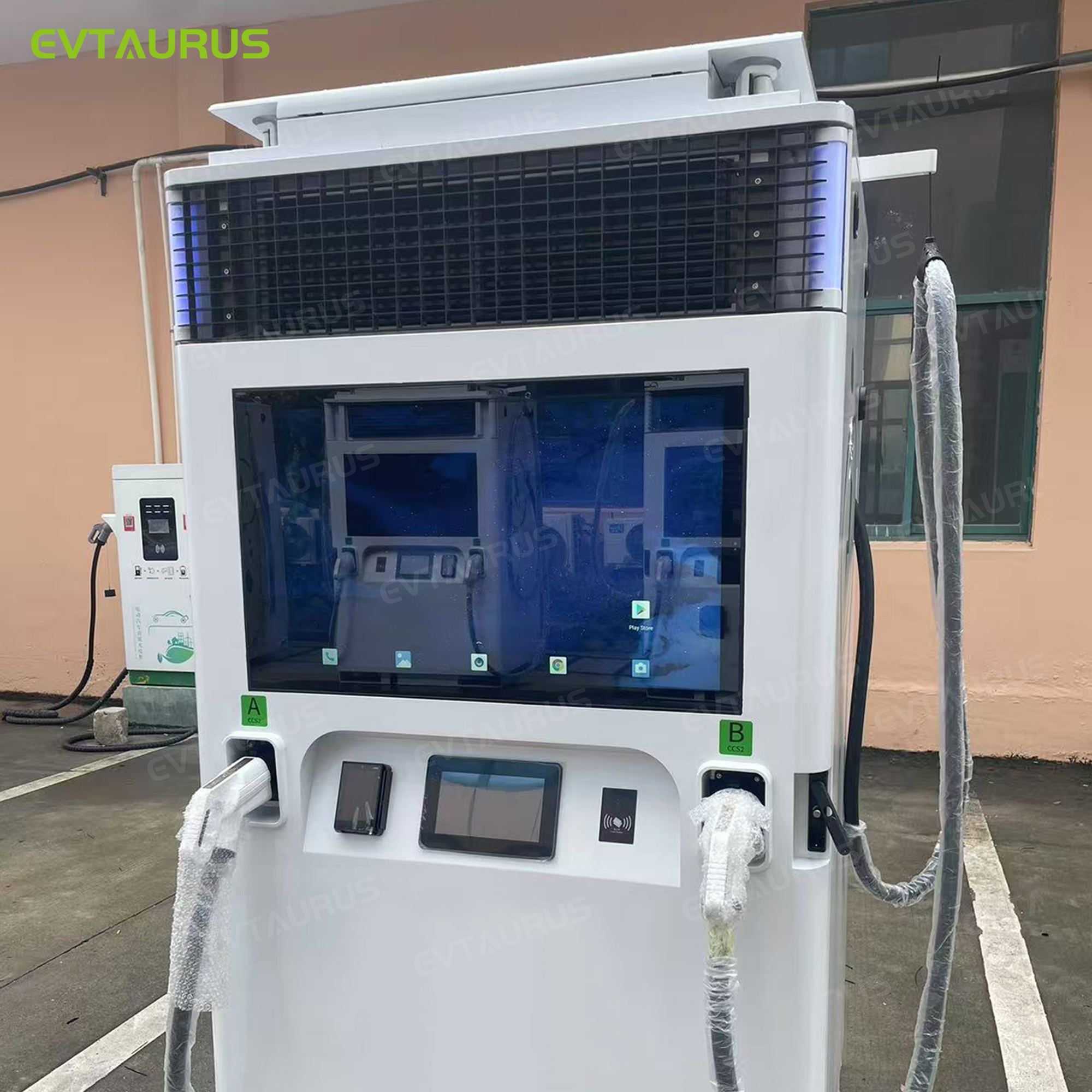

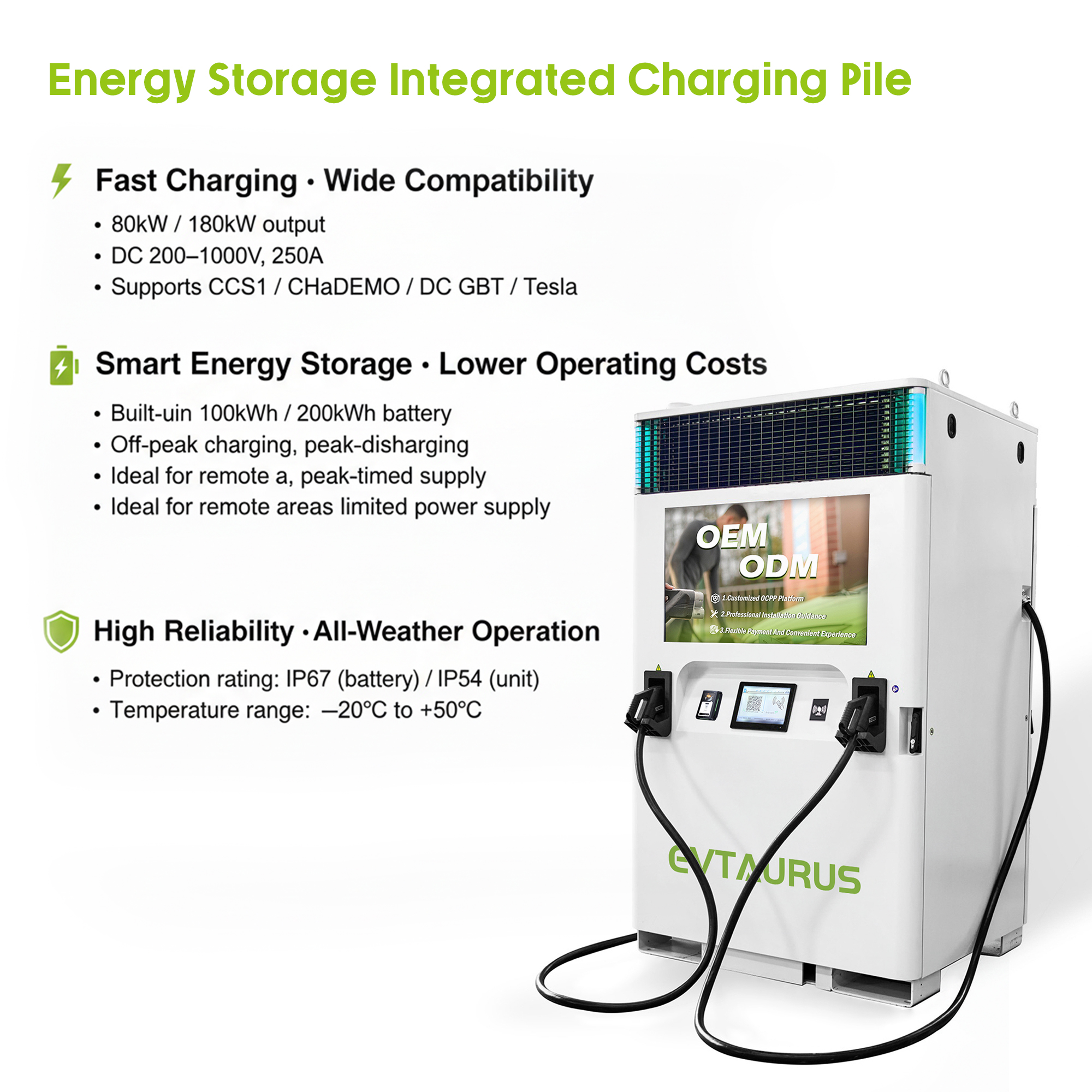

| Energy Storage Integrated Charging Pile | |
| Max Output Power | 80KW/180KW |
| Output Voltage Range | DC 200-1000V |
| Input Voltage | AC400V±20% |
| Installation Method | Floor Standing |
| Dimensions | 2600*1350*1600mm |
| Weight | 2800 KG |
| IP Grade (Battery Pack / Complete System) | IP67 / IP54 |
| Working Temp Range | -20℃ to +50℃ (intelligent adjustment) |
| Frequency | 45-65HZ |
| Input Current | 0-250A |
| Output Current | 0-250A Max |

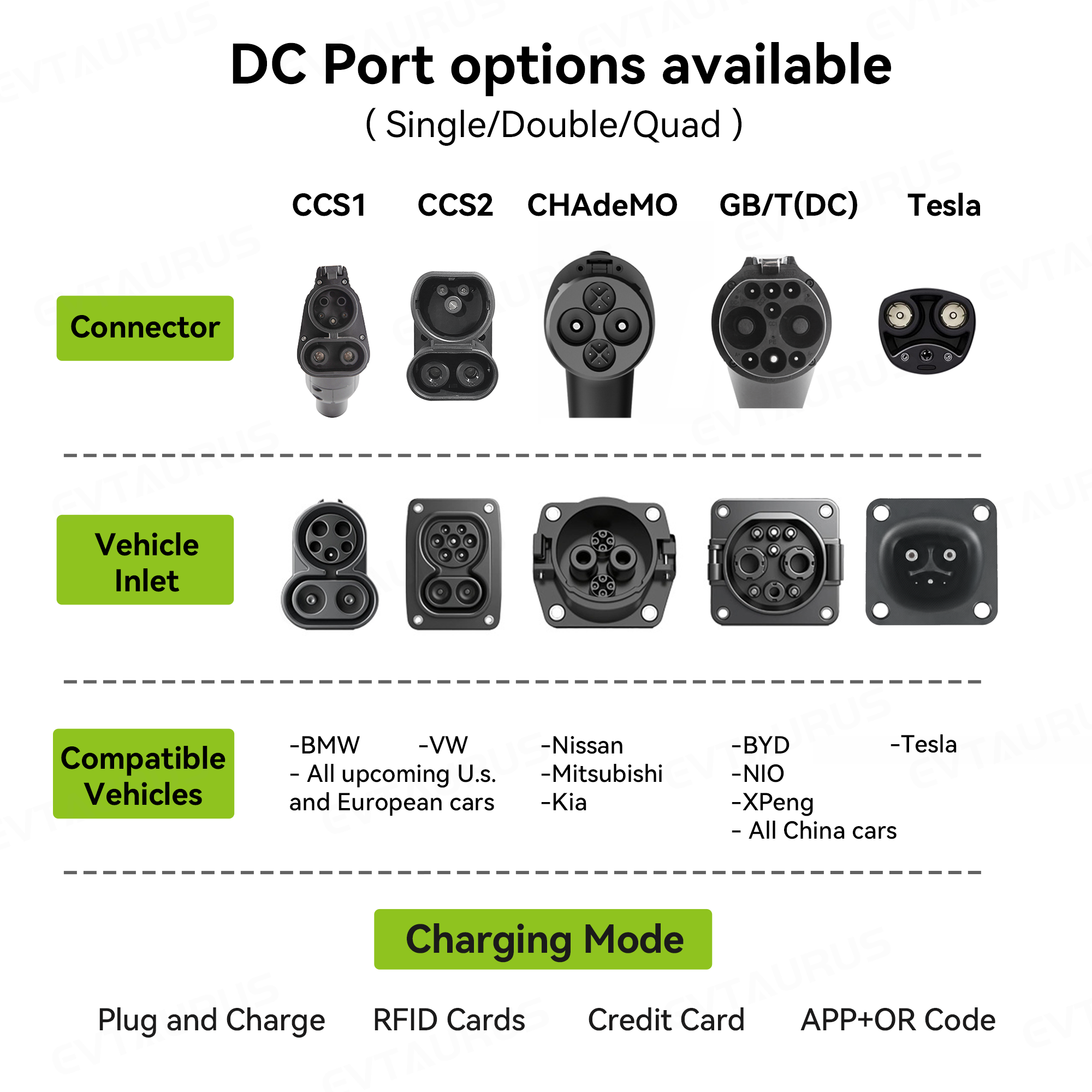

| DC Plugs | CCS1 / CCS2 / CHAdeMO / DC-GBT / Tesla |

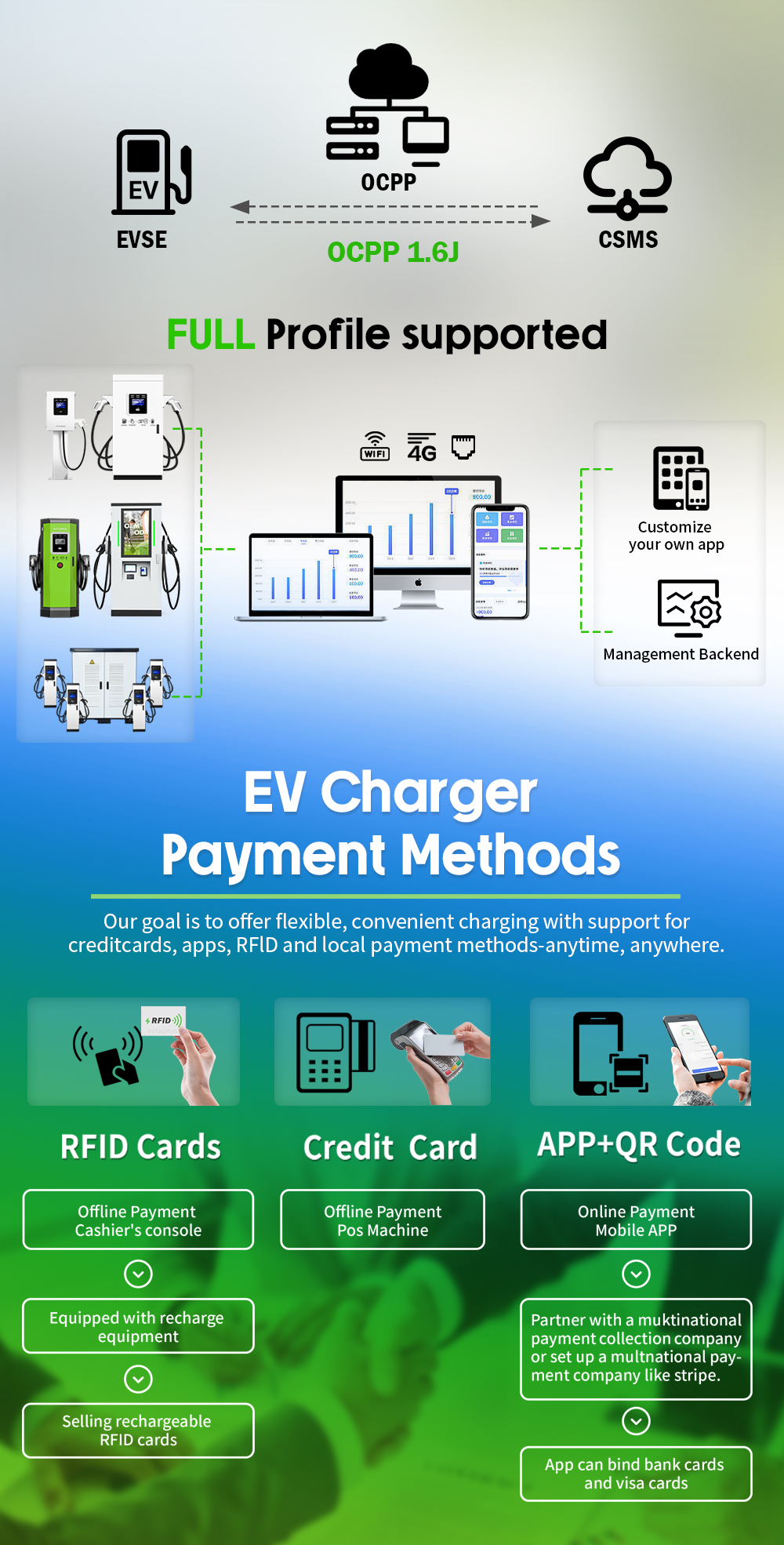

| Communication Protocol | OCPP 1.6J (2.01) |
| Length of Charging Cable | 5M (customizable) |
| Customization Scope | Colors, Logos, Software |
| Charging Mode | Automatically charge, Set power, Set amount, Set time (optional) |
| Authentication Mode | RFID / APP (QR Code), VIN charge / Password start (optional) |
| Communication Interface | Ethernet / 4G (optional) |
| Description of Battery Pack | |
| Battery Pack Config | 4P48S (4 pcs Module) |
| Rated Energy | 100KWh / 200KWh |
| Thermal Management Mode | Liquid cooling |
| Rated Capacity | 315Ah |
| Rated Voltage | 200-1000VDC |
| Max Discharge Current | 200A |
| Energy Density | 125wh/kg |
After placing the order, our team will contact you to confirm the charger model, power conditions, and installation address.
As electrical standards vary by country, please arrange a certified local electrician for installation. We provide a detailed installation manual and wiring diagram to ensure accurate setup.
If you encounter any issues during installation, our support team is available via phone or video for real-time assistance.
Once installed, we'll assist with device testing and platform integration to ensure your charger works smoothly.
We offer product warranty and long-term technical support to guarantee a worry-free experience.
