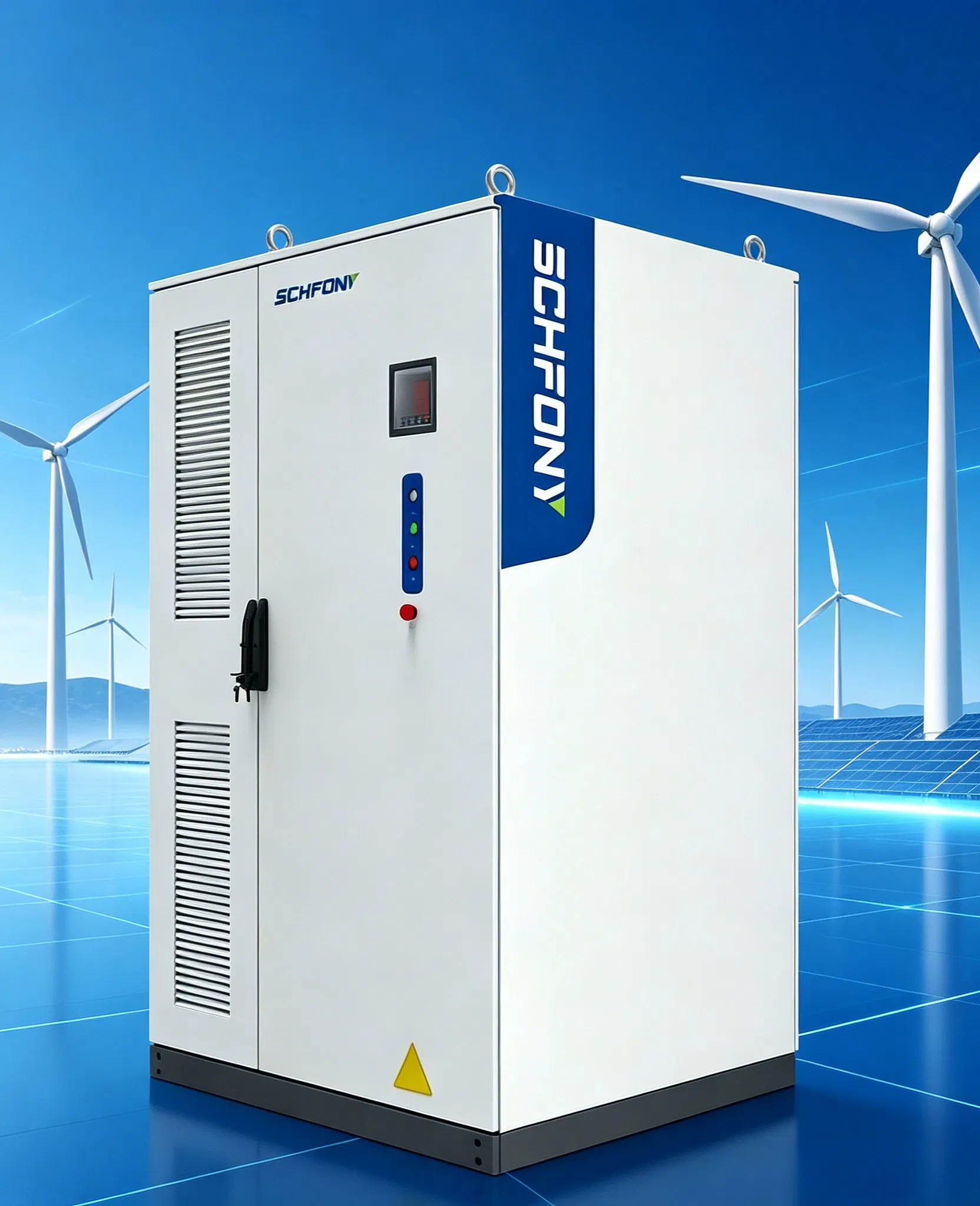

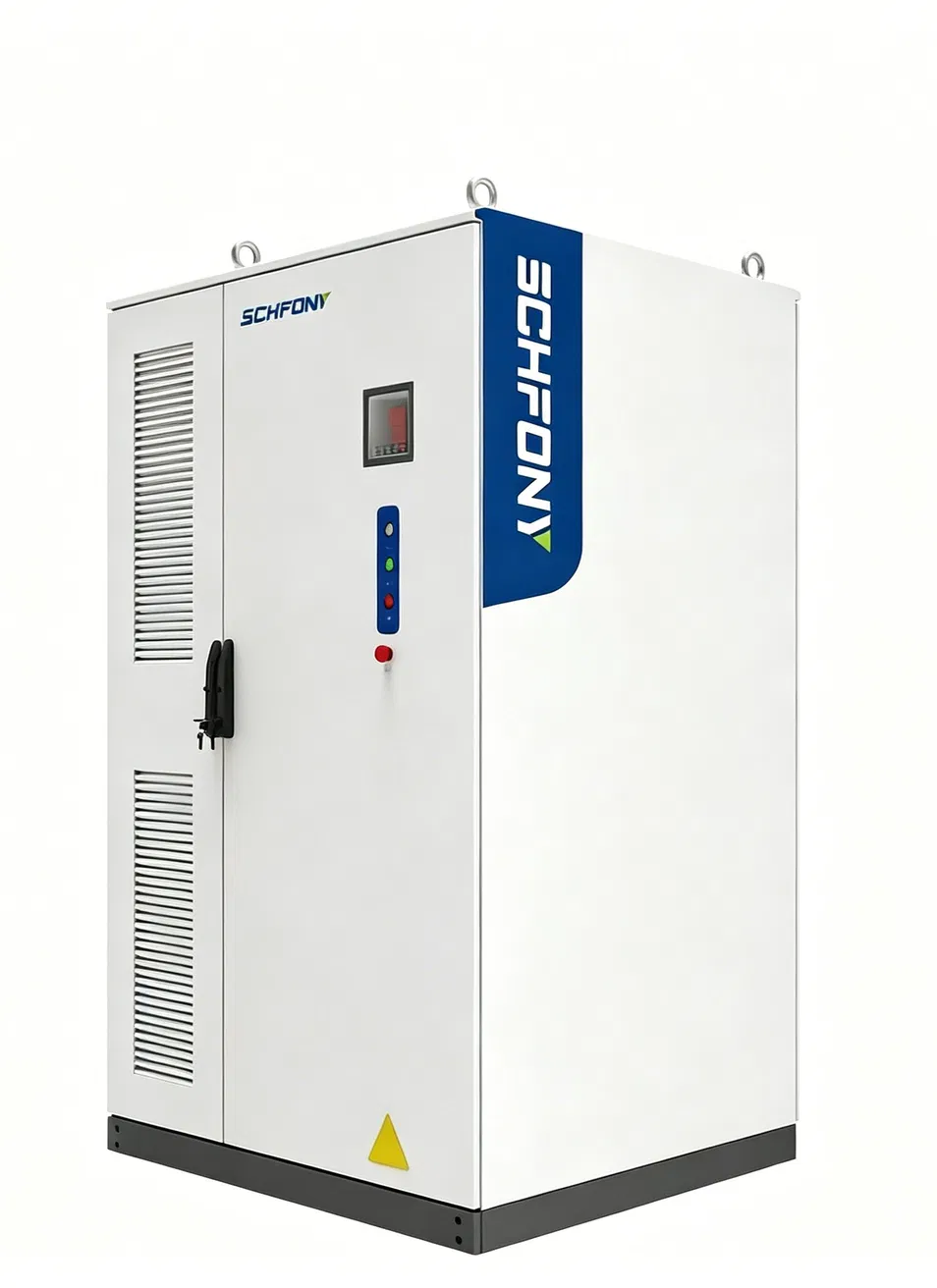

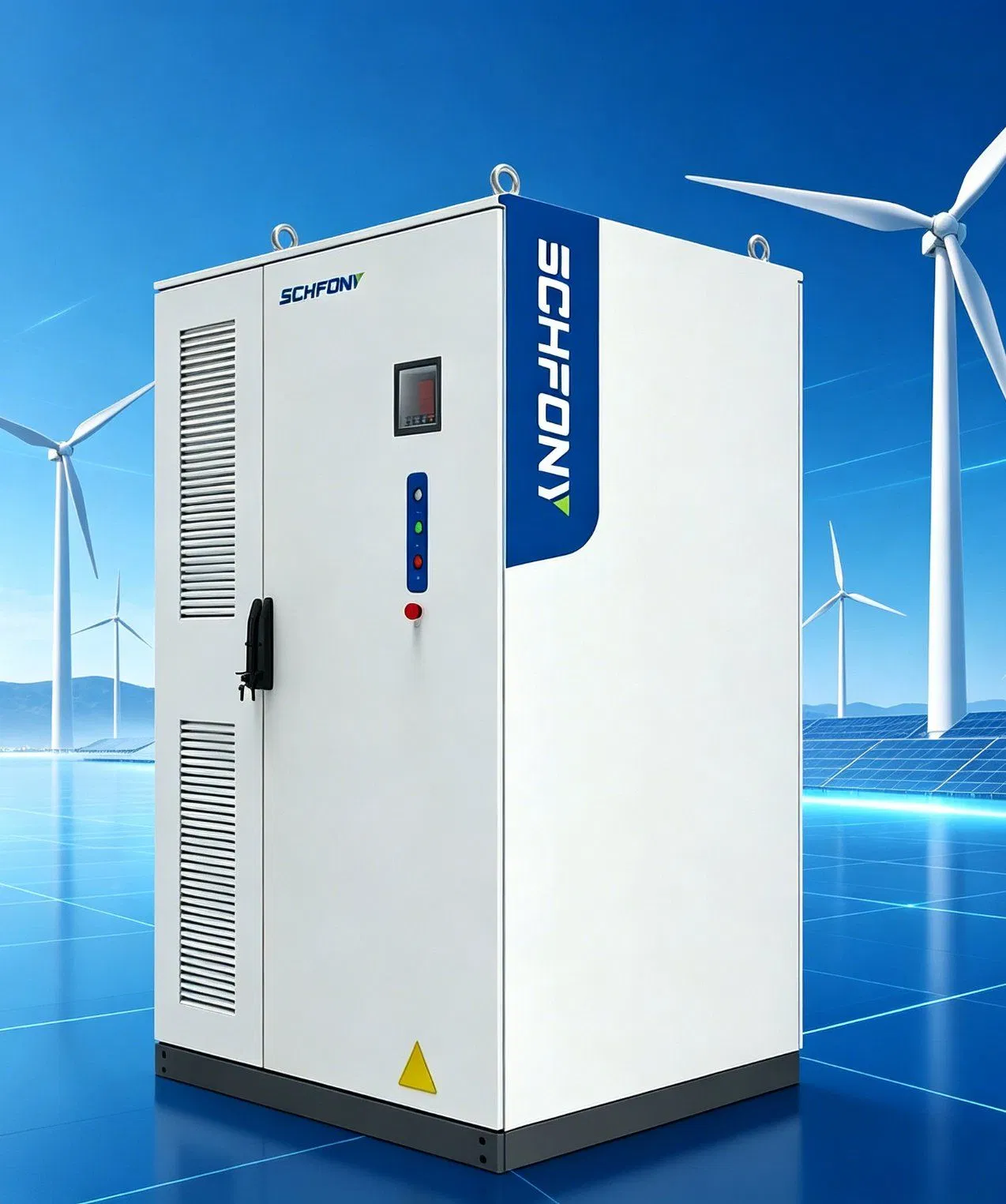

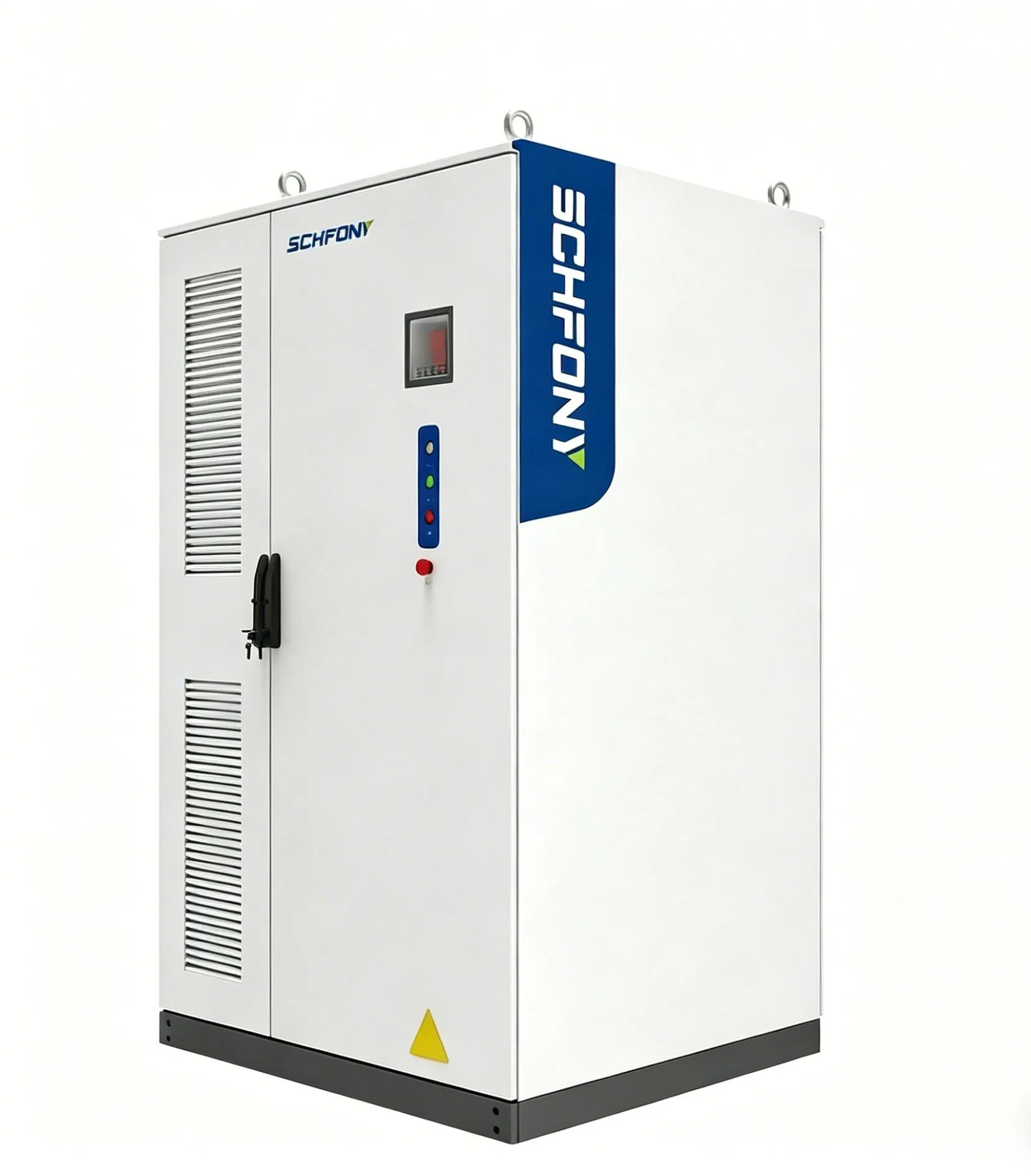

The E418LP series includes models with 400V, 690V, and 800V output options, suitable for different application scenarios and requirements. They feature advanced pack-level liquid cooling and temperature balancing, maintaining cell temperature differences within 3°C. This enhances cell temperature consistency and extends battery life. Its modular design enables flexible parallel configurations and higher energy density, significantly improving the cost-effectiveness, safety, and installation convenience of ESS projects.
2footprint only, easy transportation & fast installation.
418kWh energy in one cabinet with remarkable endurance.
Optimized in-PACK duct design ensures high-efficiency cooling with reduced energy consumption.
Over 8,000 cycles, providing excellent long-term battery performance.
Modular design, simplified parallel expansion.
In-PACK fire warning and protection with aerosol, prevent heat diffusion and runaway.
| Parameter | Value |
|---|---|
| DC Side | |
| Cell Type | LFP/314Ah |
| Pack Configuration | 52.248kWh/1P52S |
| System Configuration | 418kWh/1P416S |
| Rated DC Voltage | 1331.2V |
| DC Voltage Range | 1164.8-1497.6V |
| Max.Charge/Discharge Rate | A40:0.25P A69:0.5P A80:0.5P |
| Max. Depth of Discharge | 100%(25±2℃) |
| AC Side | |
| Rated Output Power | A40:100KW/A69:210KW/A80:210KW |
| Rated AC voltage | A40:400V/A69:690V/800V |
| AC Voltage Range | -15%-+10% |
| Grid Type | 3W+PE |
| Power factor | 0.99/-1-+1 |
| THDI | ≤3% |
| DC Ratio | <0.5%Ipn |
| General | |
| Cycle Life | ≥8000cycles |
| Communication | Modbus TCP/IP |
| Fire Suppression System | Aerosol |
| Ingress Rating | IP55 |
| Cooling | Liquid cooling+forced air cooling |
| Operating Temperature | -25℃-55C(Derating after 45C) |
| Anticorrosion Rating | C4 (C5 optional) |
| Humidity | 0-95% RH (non-condensing) |
| Altitude | 3000m (Derating above 2000m) |
| Dimensions(W*D*H) | 1500*1350*2400 mm |
| Weight | 3800kg |
| Safety/EMC | UN38.3, IEC62619, IEC63056, IEC62477-1, IEC61000-6-2/4 |
| Grid code | EN50549-1/-10, EN50549-2/-10, PN-EN-50549-1/-2 |
| Packaging & Delivery | |
| Package Size | 1500.00cm * 1350.00cm * 2400.00cm |
| Package Gross Weight | 3800.000kg |
