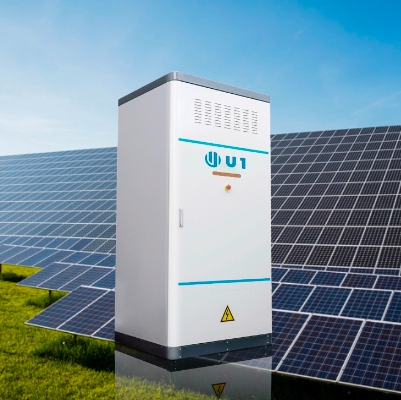

All in One 215kwh Solar Storage System All-Packaged Type Solution

1 / 5

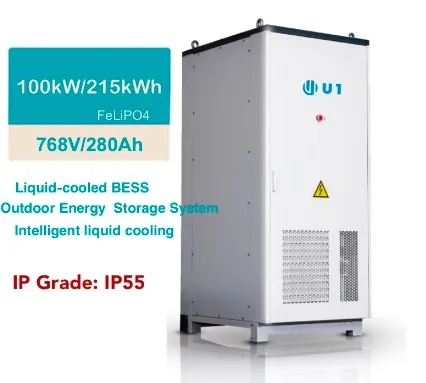

All in One 215kwh Solar Storage System All-Packaged Type Solution

Send Inquiry

Product Description

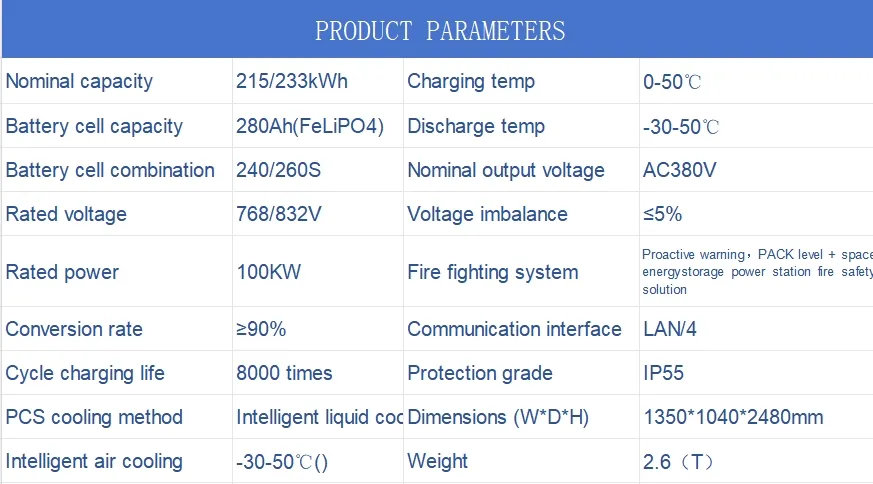

Product Parameters

Nominal capacity 215kWh

Battery cell capacity 280Ah (FeLiPO4)

Battery cell combination 240S

Rated voltage 768V

Rated power 100kW

Conversion rate ≥90%

Cycle charging life 8000 cycles

PCS cooling method Liquid Cooling

Charging temperature range 0~50ºC

Discharge temperature range -30~50ºC

Nominal output voltage AC380V

Voltage imbalance ≤5%

Communication interface LAN/4

Protection grade IP55

Fire fighting system Features proactive warning and a PACK level + space energy storage power station fire safety solution

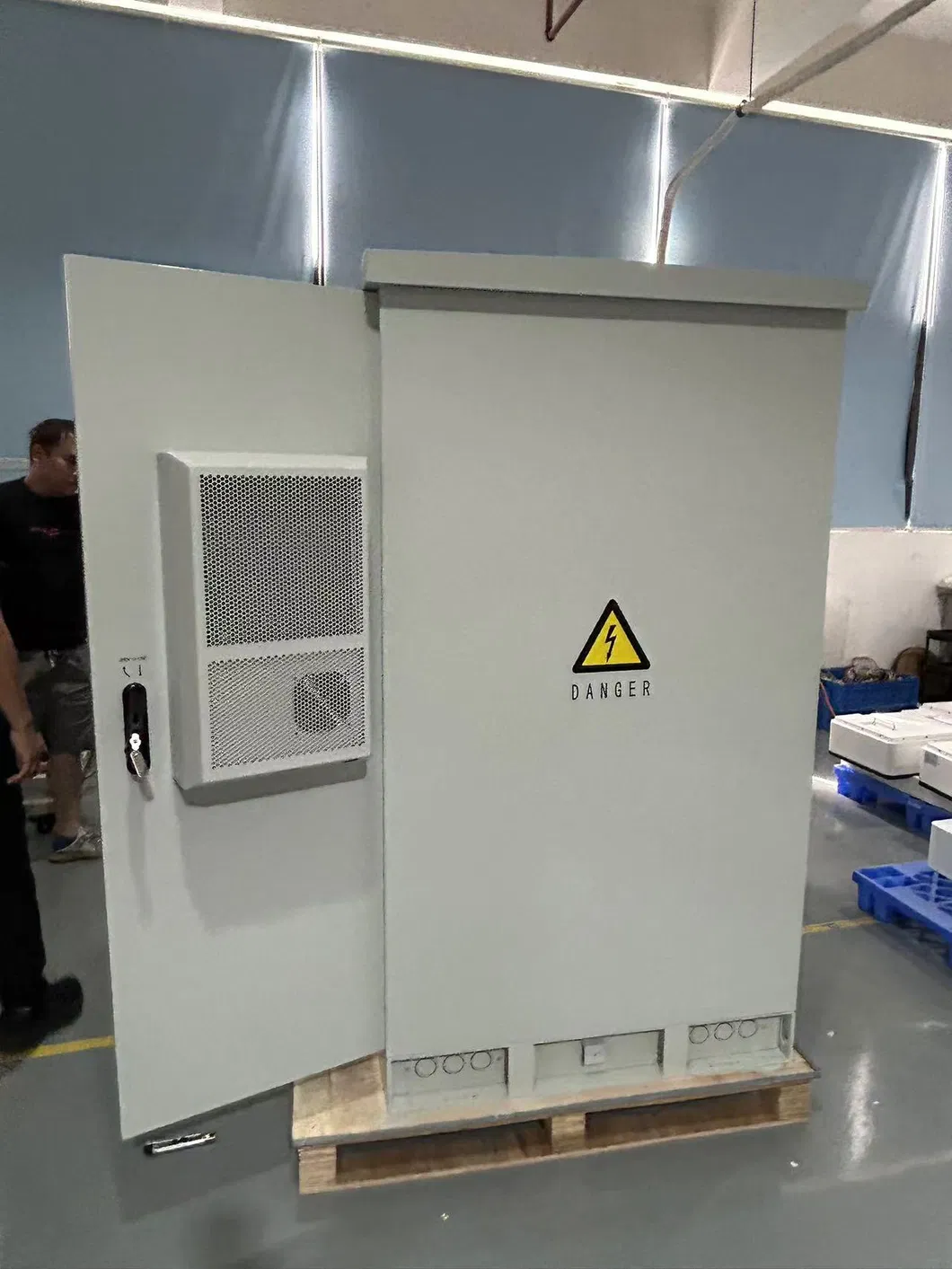

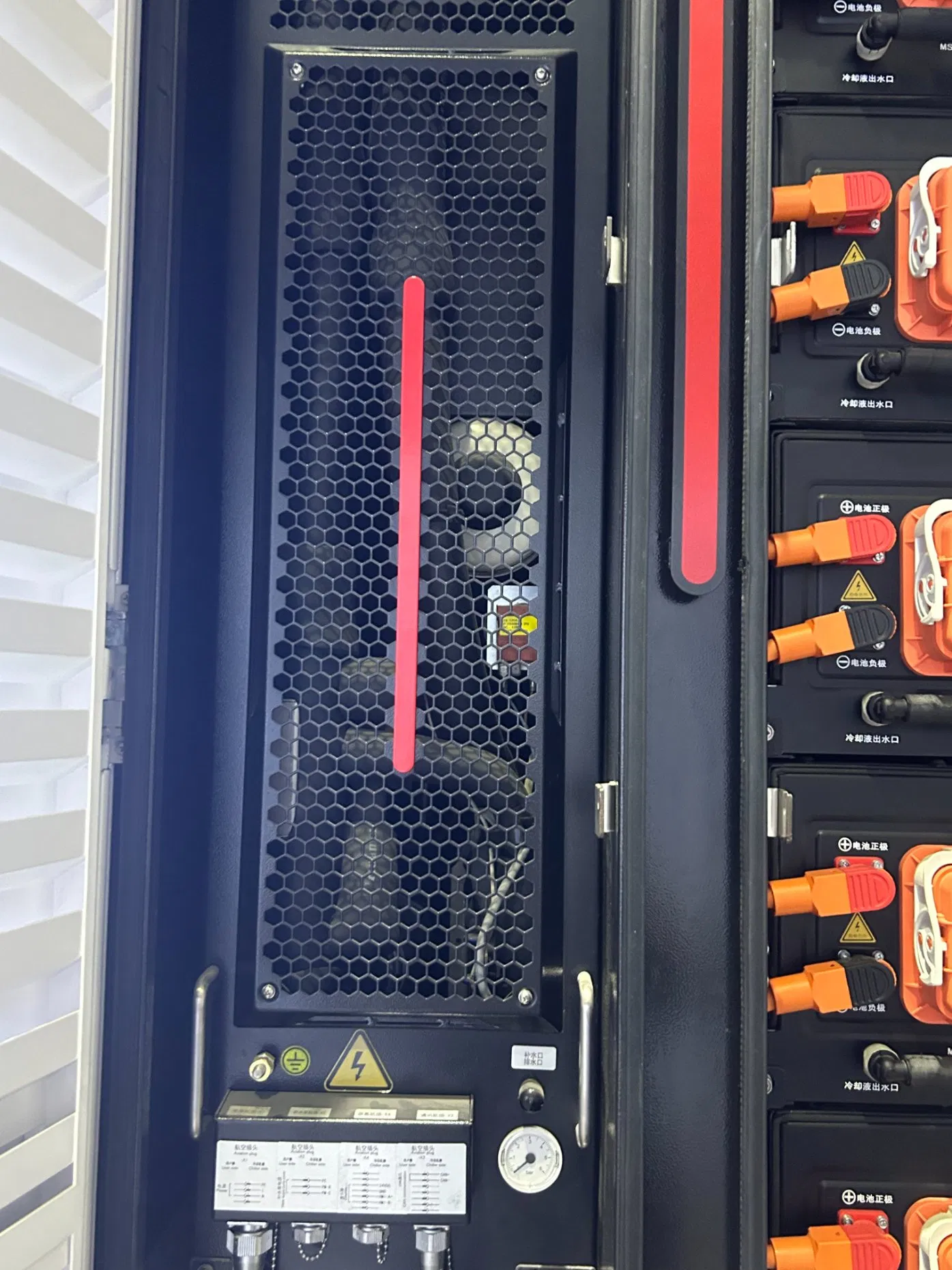

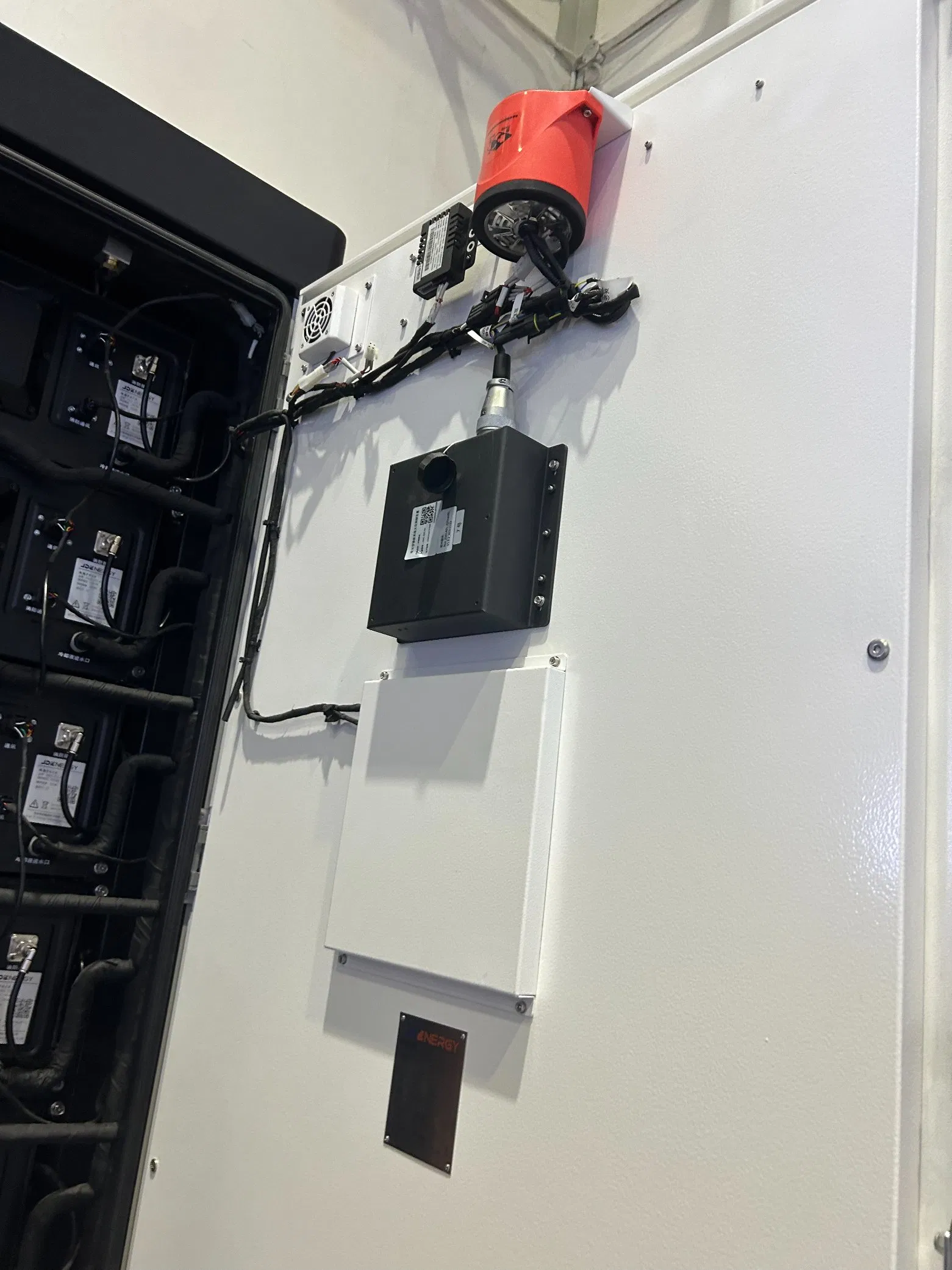

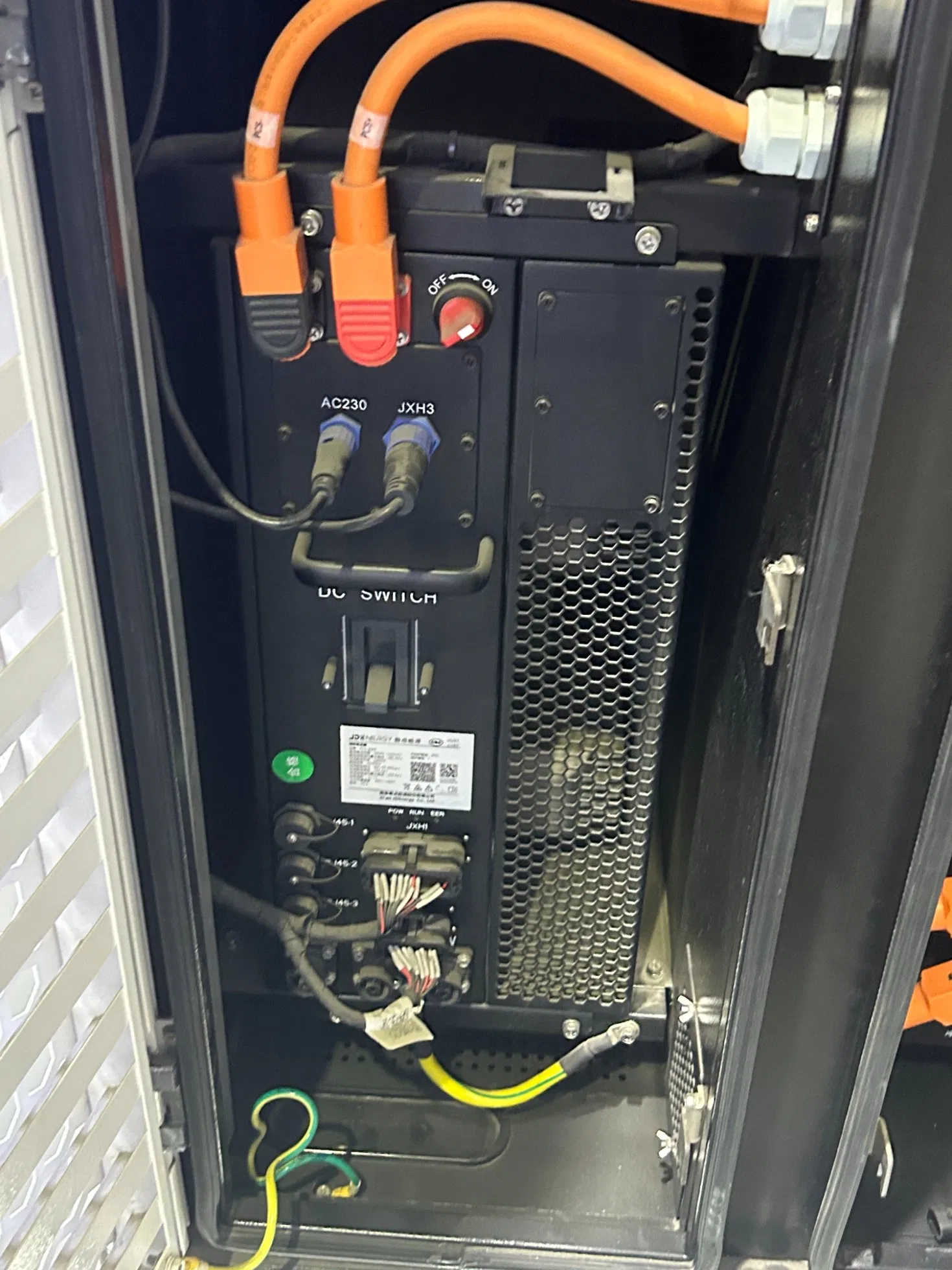

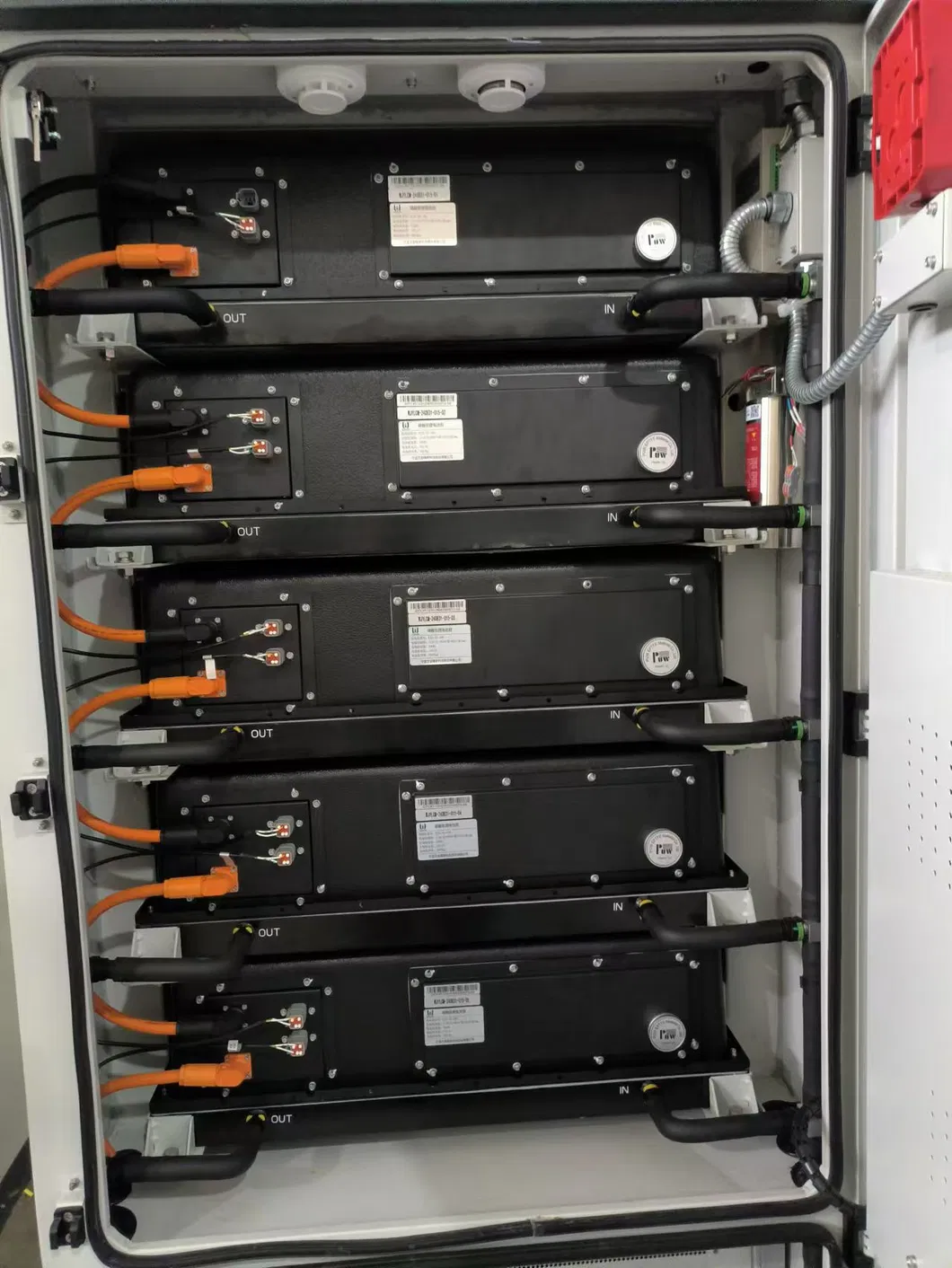

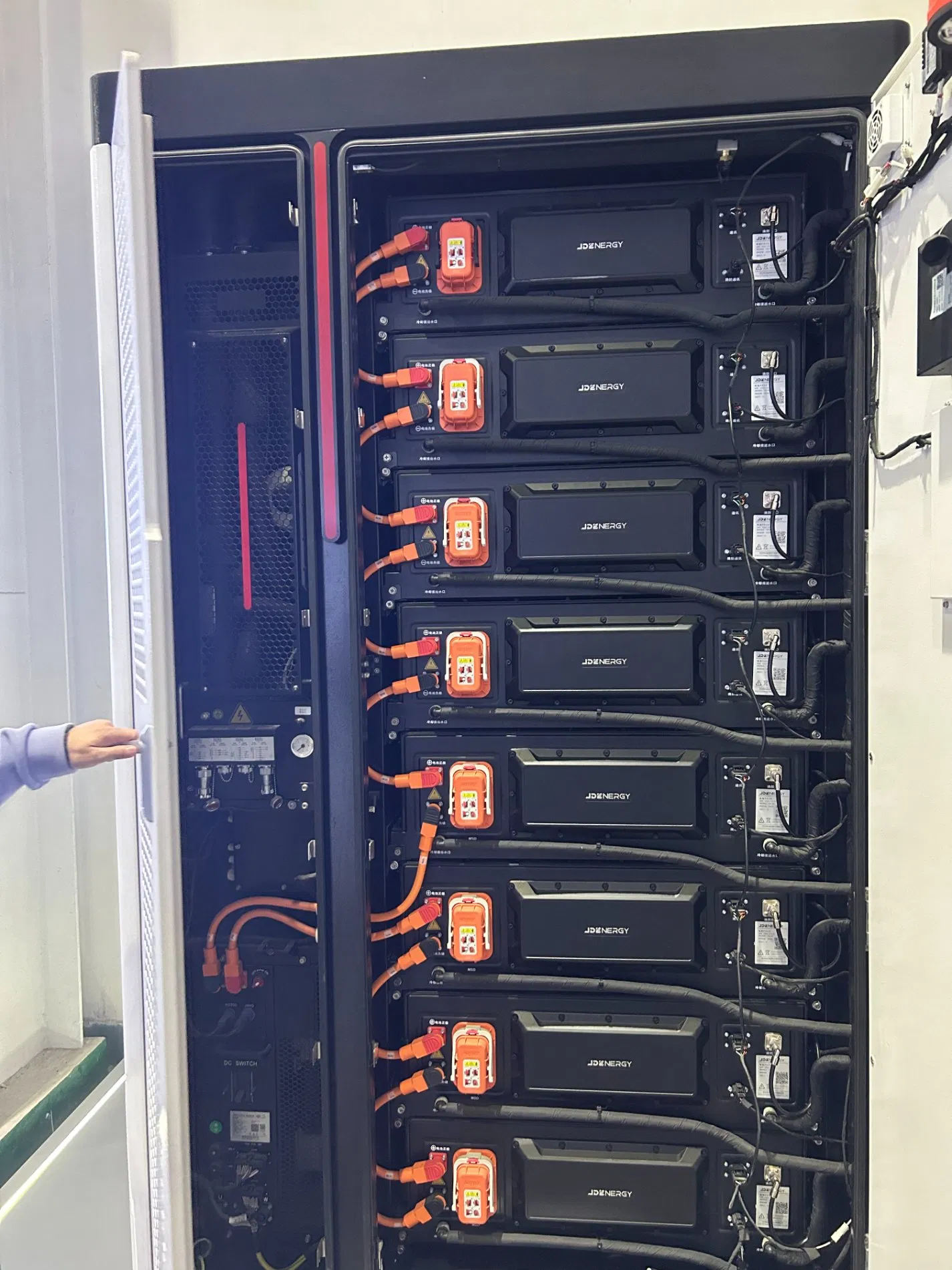

Detailed Photos

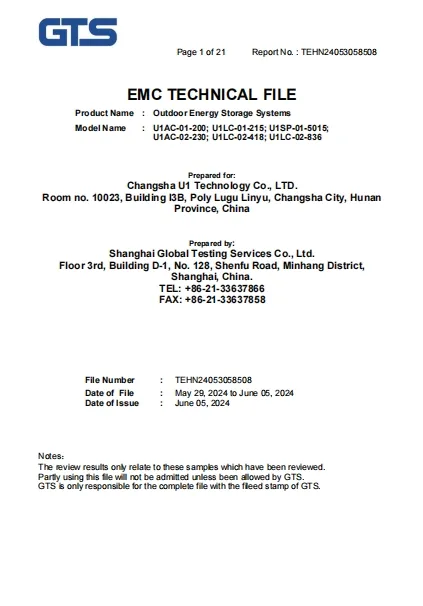

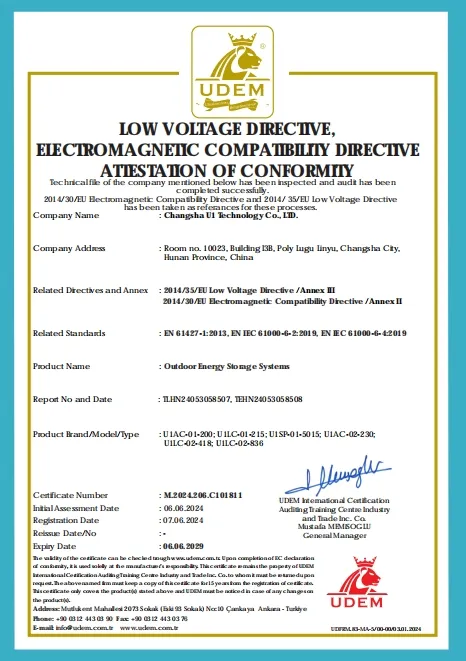

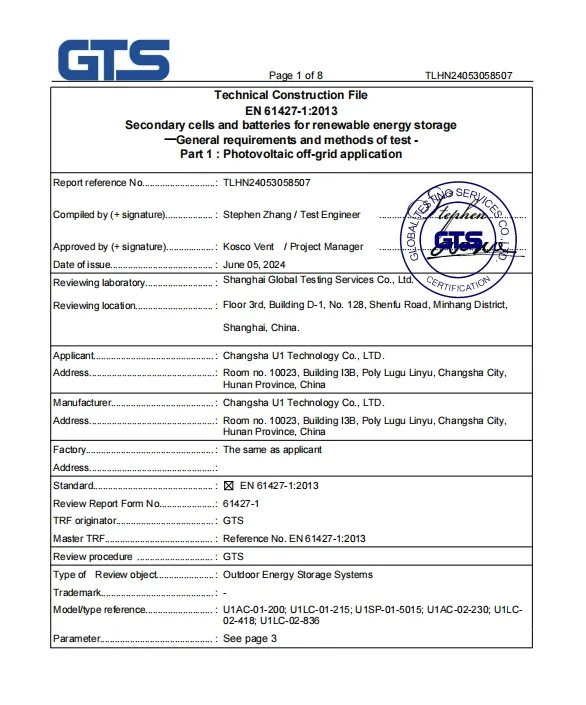

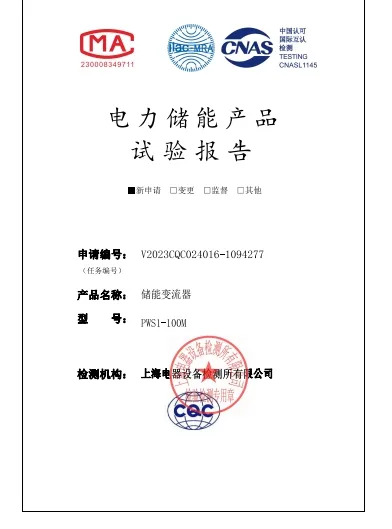

Certifications

Frequently Asked Questions

Q: What is the battery capacity and cell chemistry used in this storage system?

The system provides a nominal capacity of 215kWh utilizing high-safety FeLiPO4 (Lithium Iron Phosphate) battery cells with a single-cell capacity of 280Ah.

Q: What fire safety design does this system feature?

It includes a proactive warning layout and integrates a dedicated PACK level along with a space-level energy storage power station fire safety solution to guarantee operational security.

Q: What is the expected cycle life of the battery cell configuration?

The battery system features a 240S combination design, delivering a cycle charging lifespan of up to 8000 cycles for prolonged performance.

Q: What cooling mechanism is implemented for the PCS?

This energy storage system employs advanced Liquid Cooling for the PCS (Power Conversion System) to maintain optimal working temperatures and high conversion efficiency (≥90%).

Q: What are the operating temperature ranges and outdoor protection class?

The charging temperature range is 0 to 50ºC and the discharging range is -30 to 50ºC. The system is engineered to satisfy an IP55 protection grade, making it reliable for versatile environmental deployment.
