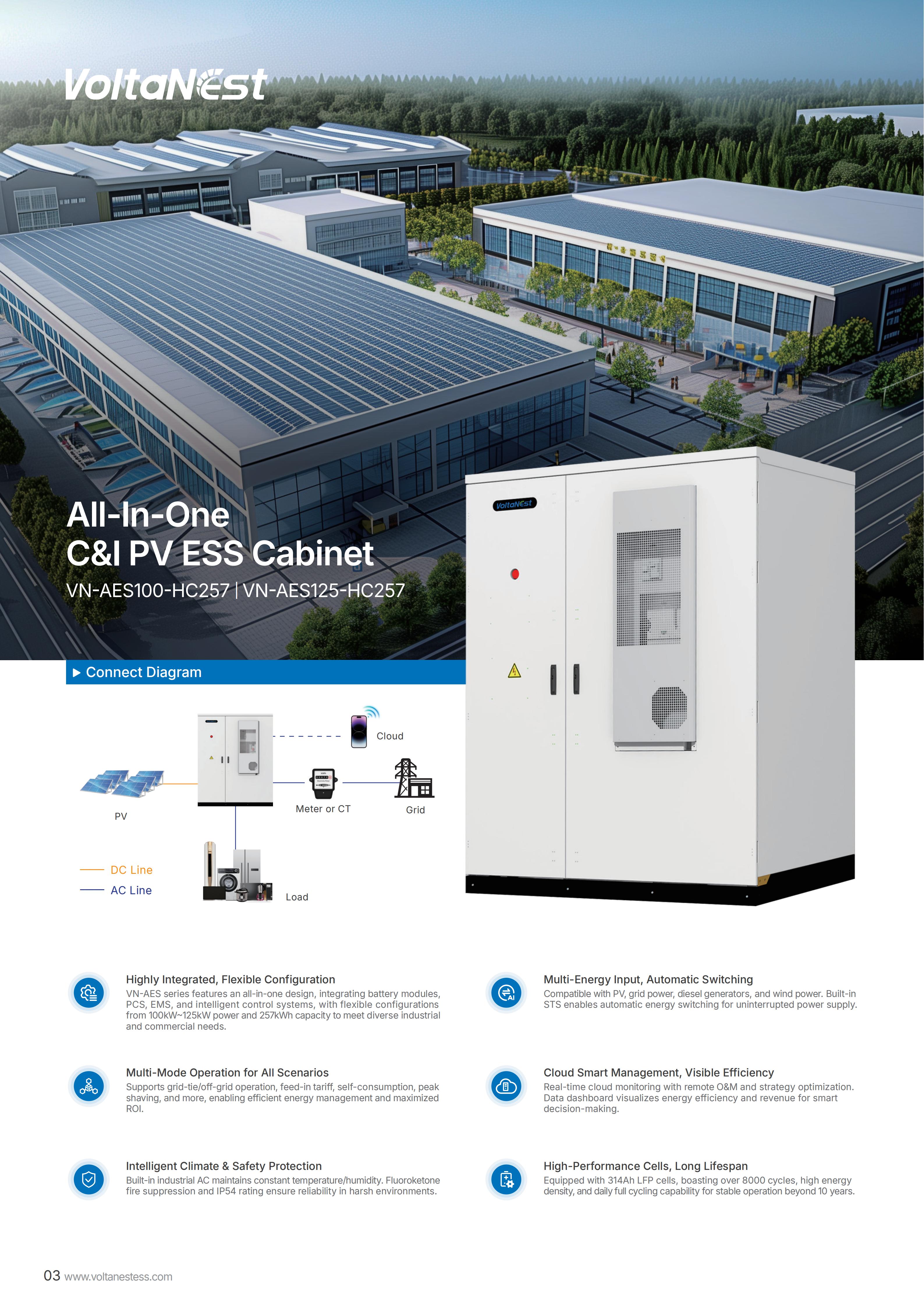

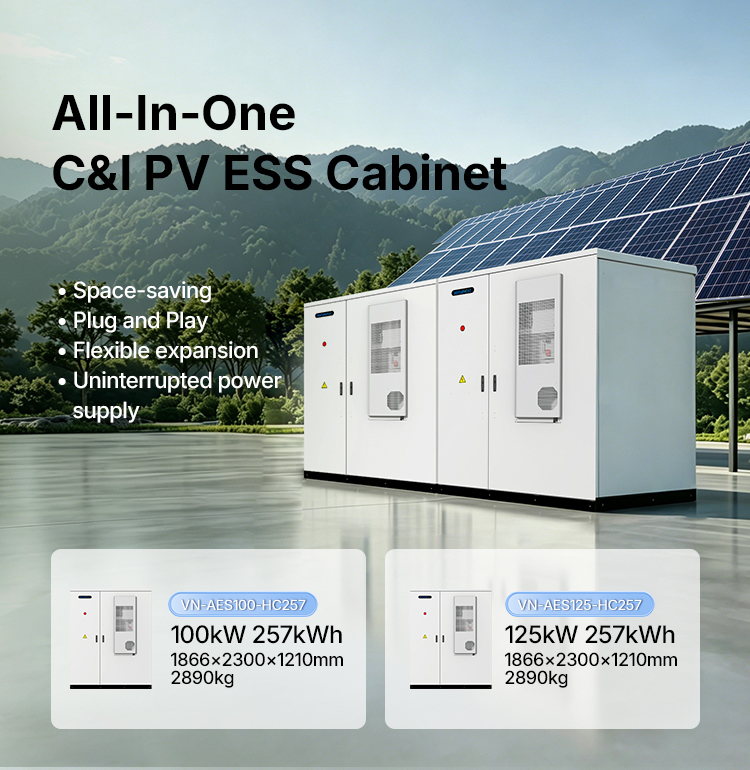

| Model | VN-AES100-HC257 | VN-AES125-HC257 |
| System Specification | ||
| Nominal Output Power | 100KVA | 125kVA |
| Max.Output Power | 110KVA | 137.5KVA |
| Energy Configuration | 257.22kWh | |
| Battery Chemistry | LiFePO4 | |
| System Nominal Voltage | 819.2V | |
| System Operating Voltage | 678.4~921.6V | |
| Switching Time(On-grid/Off-grid) | <10ms | |
| Rated PV Input Power | 120kW | |
| Max.PV Input Power | 144kW | |
| Max.PV Input Current | 4×50A | |
| Max.PV Input Voltage | 950V | |
| Number of MPPT | 4 | |
| MPPT Voltage Range | 200~850V | |
| Start Up DC Voltage | 250V | |
| Battery Technical Specification | ||

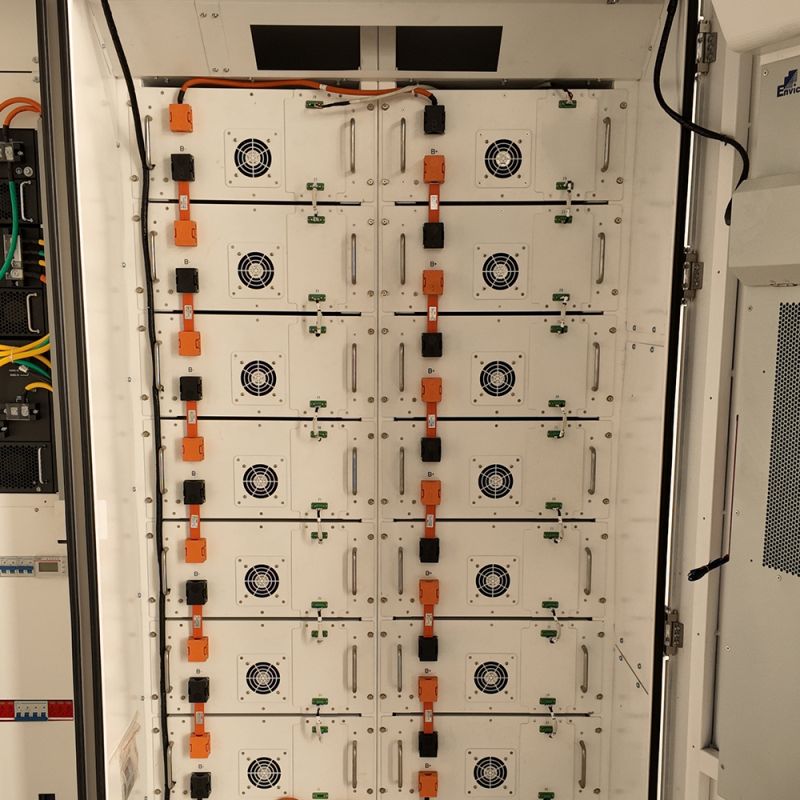

| Battery Cell | 3.2V/314Ah | |
| Connection Method | 1P256S | |
| Battery Module Energy | 819.2V/314Ah | |
| Max.Charging/Discharging Current | 157A | |
| Operating Temperature Range | Charge -20~55℃; Discharge 0~55℃ | |
| Cycle Life | >8000 | |
| PCS Technical Specification(On-grid) | ||
| Rated Output Power | 100KVA | 125kVA |
| Rated Output Current | 145A | 181A |
| Rated Grid Voltage | 400V/230V | |
| Grid Voltage Range | -20%~15% | |
| Grid Frequency Range | 50Hz(47Hz~52Hz) / 60Hz(57Hz~62Hz) | |
| THDi(@Rated Power) | <3% | |
| Power Factor | 0.8 leading~0.8 lagging | |
| PCS Technical Specification(Off-grid) | ||
| Rated Output Power | 100KVA | 125KVA |
| Max.Output Power | 110KVA | 137.5KVA |
| Rated Output Current | 145A | 181A |
| Max.Output Current | 160A | 200A |
| Rated Voltage | 400V/230V | |
| THDi(@Resistive load) | <3% | |
| Unbalanced Load Capacity | 1 | |
| Rated Output Frequency | 50/60Hz | |
| Output Overload Current | <1.1 times Stable Output, <1.25 times (100s), <1.5 times (100ms) | |
| Max.Efficiency | 0.985 | |
| General Specification | ||
| Altitude | 4000m | |
| IP Rating | IP54 | |
| Humidity | 5%~95% | |
| Dimension(W×H×D) | 1866×2300×1210mm | |
| Weight | 2890kg | 2910kg |
| Design Life | 15 Years | |
| Warranty | 5 Years | |
| Cooling | Battery compartment (intelligent air conditioning), Electrical compartment (intelligent air cooling) | |

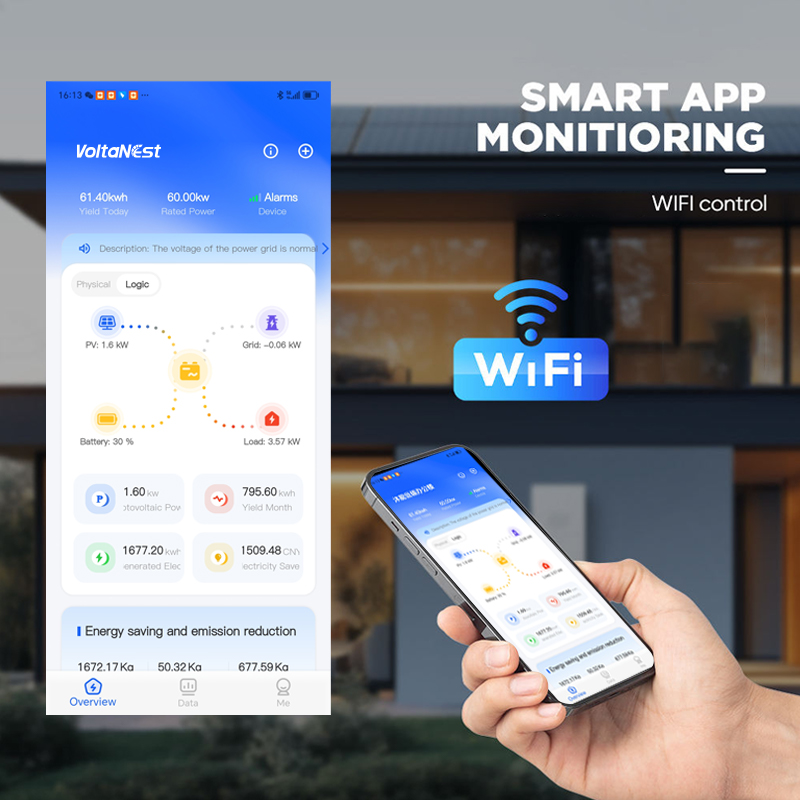

| Communication Methods | CAN/RS485/WIFI/4G | |
