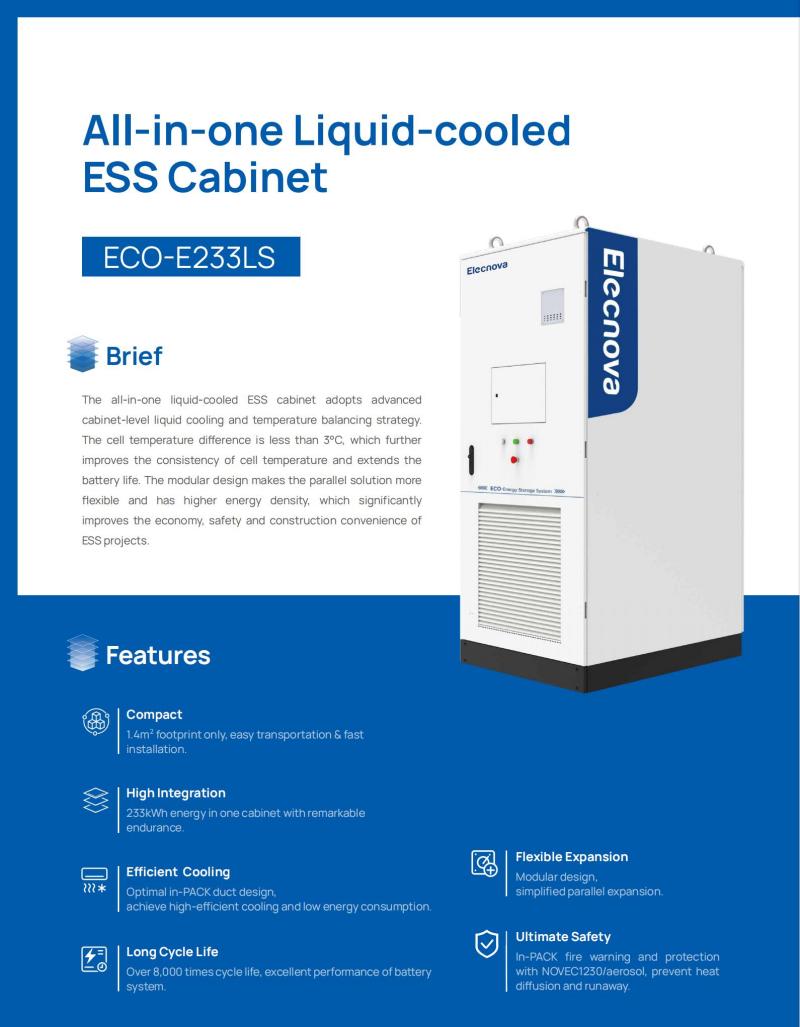

| Category | Item | Specification |
|---|---|---|
| DC Side | Cell Type | LFP280Ah |
| PACK | 46.592kWh/1P52S | |
| Battery System | 232.96kWh/1P260S | |
| Voltage Range | 728~936Vdc | |
| PACK Ingress Rating | IP65 | |
| AC Side | Rated Power | 100kW |
| Max. Power | 110kW | |
| THDi | ≤3% | |
| DC Ratio | ≤0.5%Ip | |
| Nominal Voltage | 400Vac/3P+N+PE | |
| Nominal Frequency | 50/60 Hz | |
| General | System Efficiency | ≥90% |
| Charge/Discharge Rate | 0.5P | |
| DoD | 95% | |
| SOC Accuracy | ≤3% | |
| Cycle Life | ≥8,000 times | |
| Switching Time | ≤100ms | |
| Connectivity | Ethernet /RS485 | |
| Ingress Rating | IP55 | |
| Cooling | Active liquid cooling | |
| Operating Temperature | -25°C~55°C | |
| Noise | ≤75dB | |
| Dimensions (W*D*H) | 1,050*1,350*2,400 (mm) | |
| Compliance | UN38.3, IEC62477, IEC61000, IEC62619, IEC63056, UL9540A, EN50549 |
We are a technology-based enterprise focused on providing overall solutions for energy storage systems. Our company possesses comprehensive supporting capabilities for the system integration of PACK, PCS, and BMS. We aim to meet the diversified energy requirements of segmented markets and customers, with products at the core and quality as the cornerstone. We are committed to providing high-quality customized products for various energy consumption scenarios on the power generation side, grid side, and user side.
