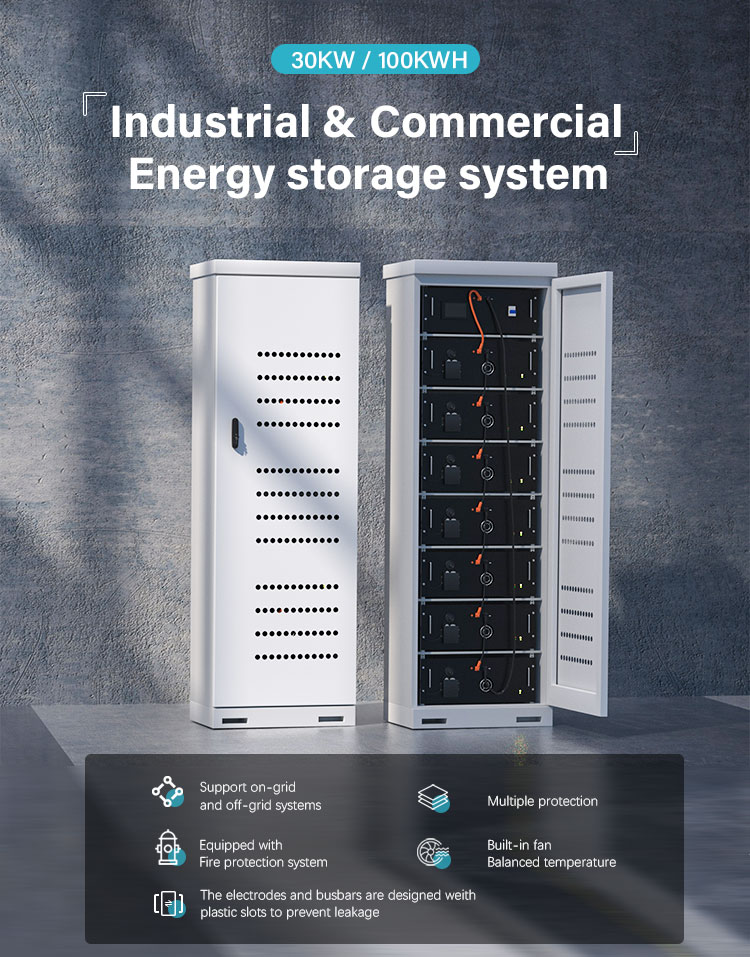

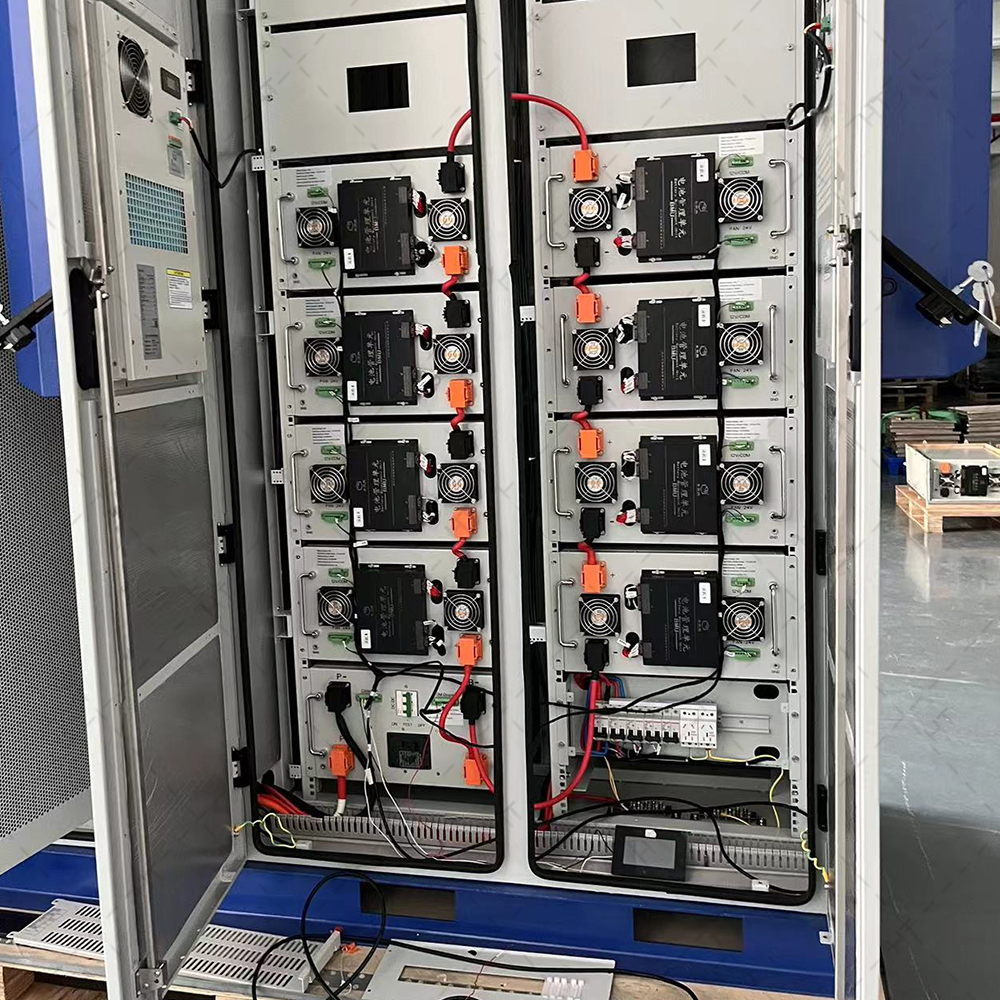

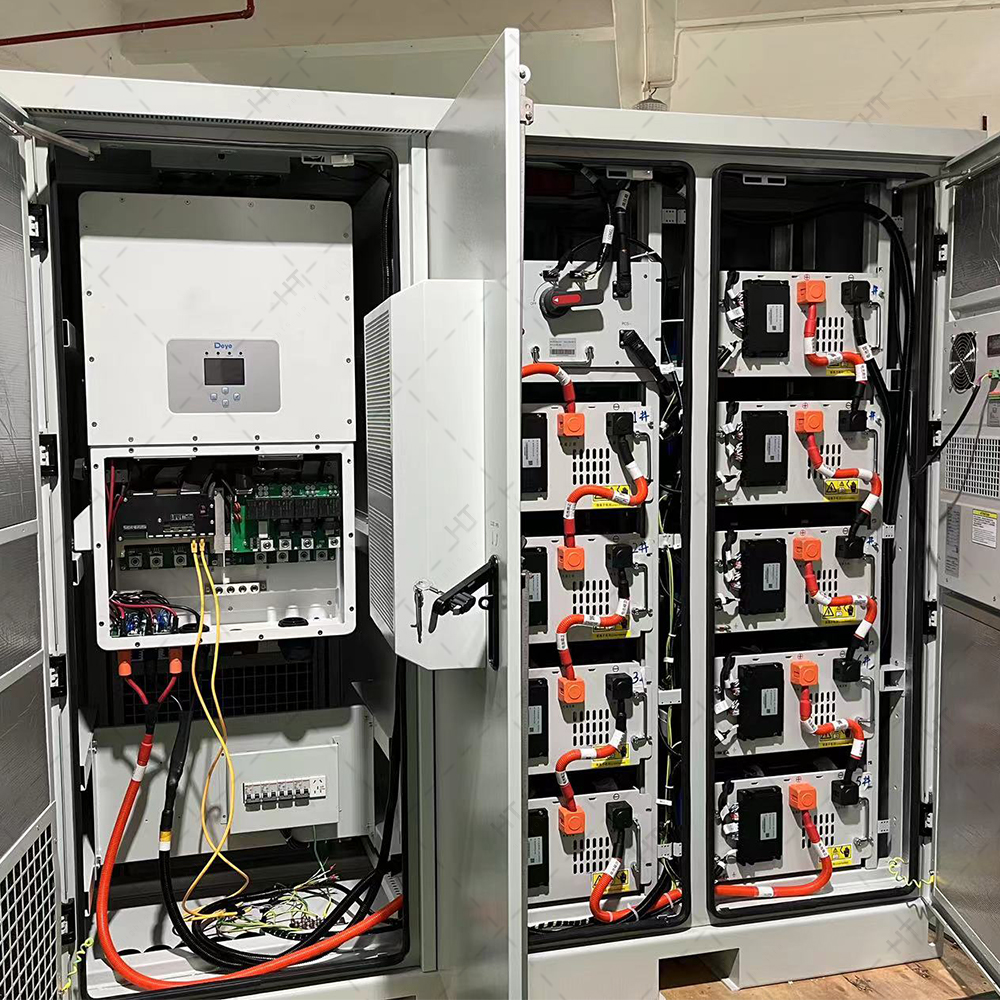

Outdoor Storage Cabinet CE Commercial 50kw 70kw Energy Storage Distributed ESS AC DC Energy Storage Integrated Cabinet 100kW
| Technical Parameter |
100kWh wind cooled type |
186kWh wind cooled type |
215kWh wind cooled type |
| Cell Capacity |
280Ah |
| Battery Type |
Lifepo4 battery |
| Nominal Voltage |
DC358.4V |
DC665.6V |
DC768V |
| Voltage Range |
DC313.6-403.2V |
DC627.2-748.8V |
DC672-864V |
| Nominal Energy |
100kwh |
186kwh |
215kwh |
| Battery Cell Equalization |
Active equalization |
| Rated Charge/Discharge Rate |
≤0.5P |
| Battery Pack |
7 * 1P16S |
13 * 1P16S |
15*1P16S |
| Working Temperature |
-40 ° C to 55 ° C |
| Fire Spray |
Heptafluoropropane/perfluorohexanone |
| Main Materials |
Galvanized steel plate |
| Surface Coating |
Electrostatic spraying/fluorocarbon paint |
| Temperature Control Method |
Single battery pack efficient wind cooling |
| Fire Detection |
Temperature/Smoke/Open Flame/Combustible Gas |
| Protection Level |
IP54 |

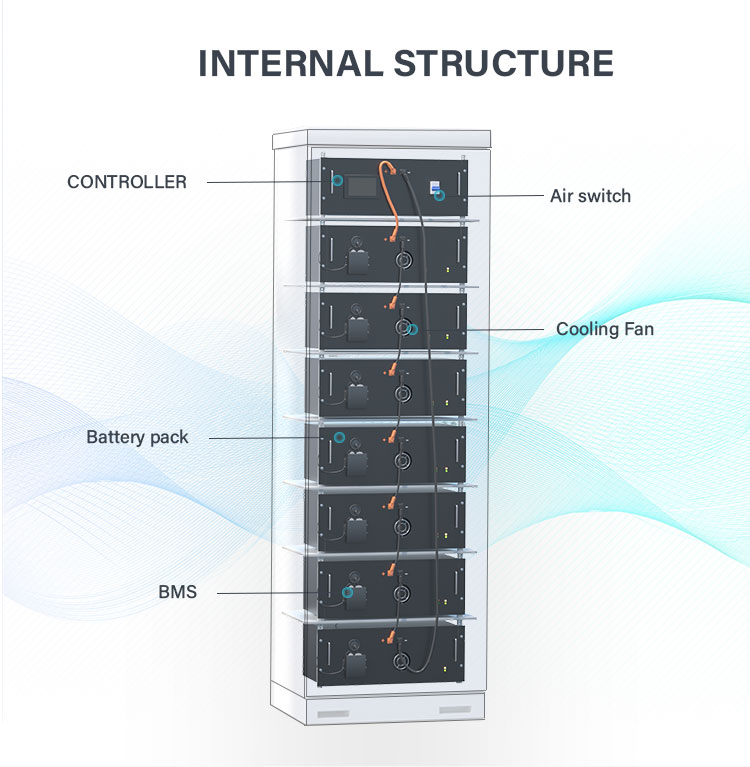

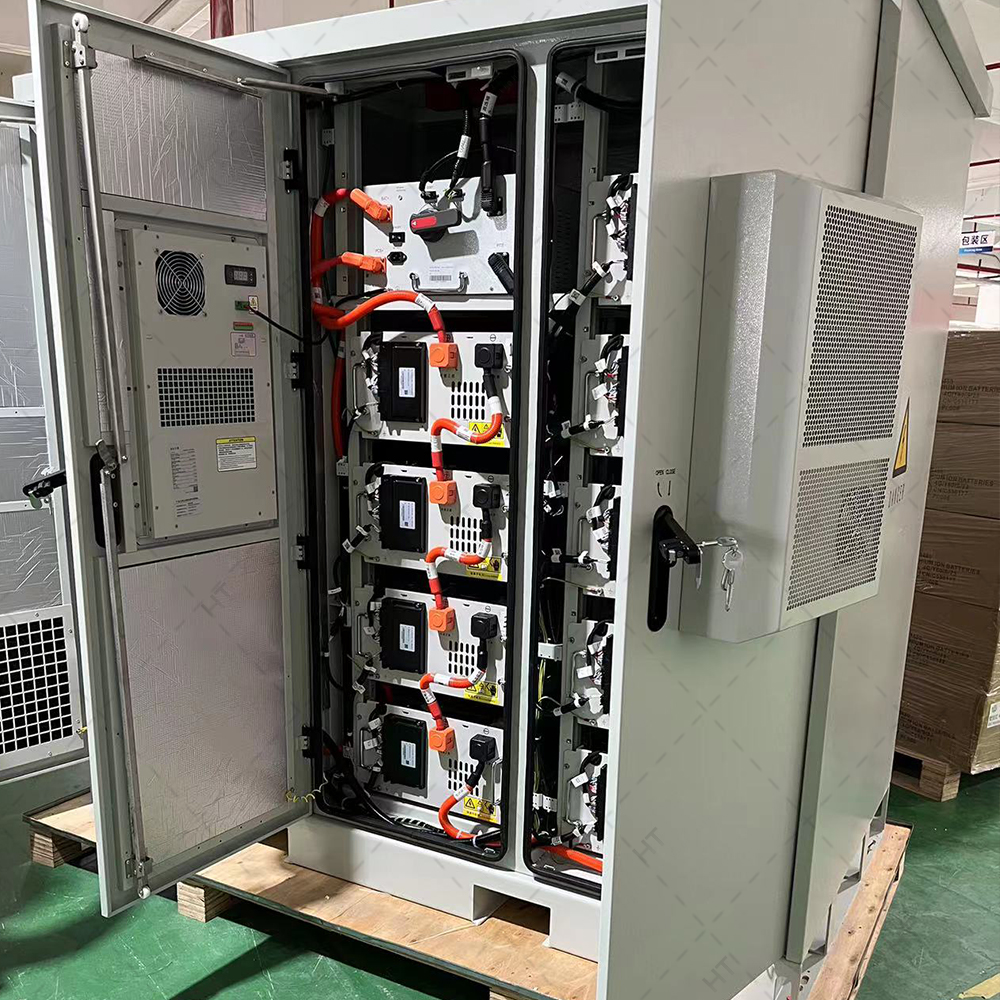

Battery Cabinet
- High efficiency air cooled battery PACK box
- Reinforced and thickened aluminum alloy bottom plate, hot-dip galvanized + spray material shell
- Meet the electrical clearance, creepage distance design requirements
- Electrostatic spray, bottom polyurethane egg condensation
- Accept personalized individual customization

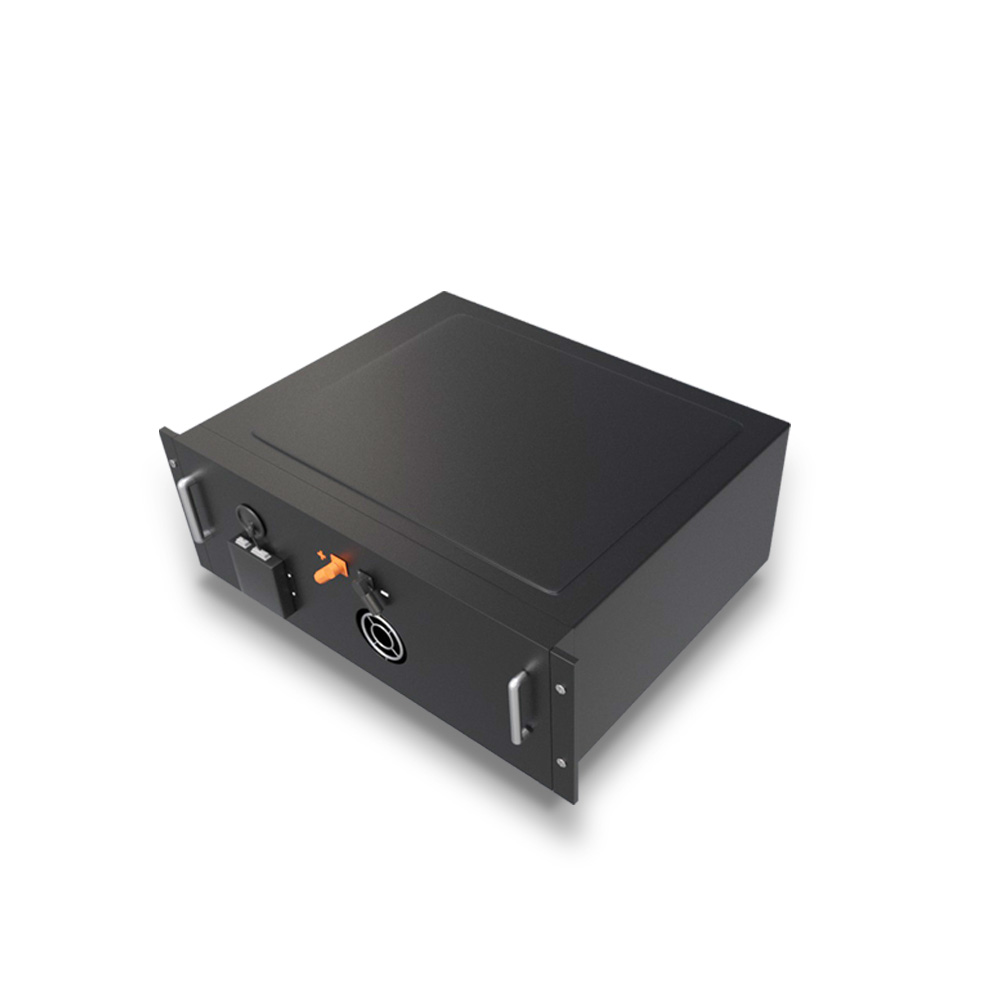

Single Cluster Configuration Information
- 51.2V*280Ah Air cooled battery pack
- Bag safety warning device, explosion-proof valve, independent fire nozzle
- Modular design, more convenient maintenance
- Reliable laser welding is used between pole and guide piece
- Accurate detection of single cell voltage, temperature
BMS System General Control
- Visual operation monitoring industrial screen
- Supports multi-channel communication such as 485, CAN, Ethernet, etc.
- Temperature and voltage measurement
- Detection of electric shock status of moving components
Intelligent Temperature Control
- Ultra-wide operating temperature range, the maximum temperature is as high as 55°C
- Frequency conversion control technology, precise temperature control
- The closed circulation system ensures the stable performance of the coolant
- Precise adjustment to realize the low temperature difference between supply and return water
- Realize high efficiency and energy saving through internal real-time processing mode

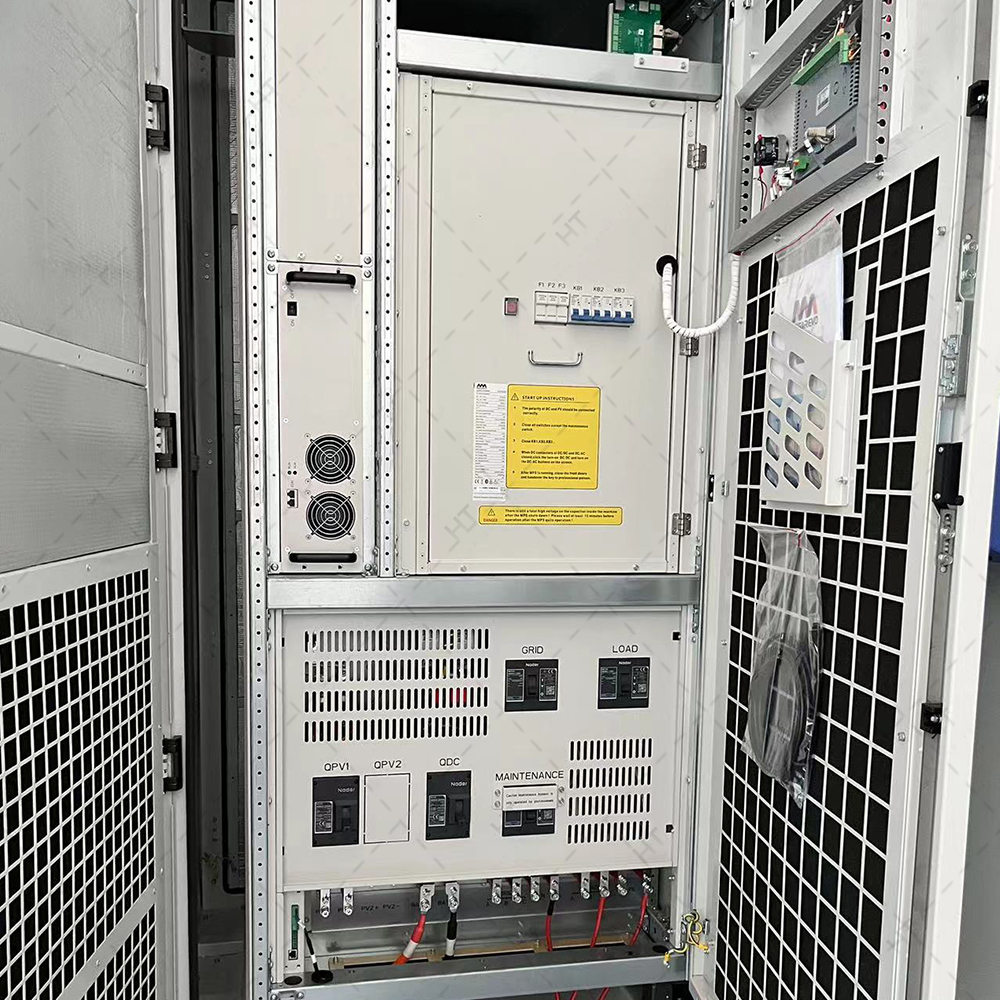

PCS
- Three-level topology, maximum 99% conversion efficiency, better power quality
- Support constant power, constant current, constant voltage control, with a frequency modulation, VSG, Black boot and other functions
- Integrated family level battery management function, high battery availability
- Support IEC61850 protocol, with MS-level response capability
- Intelligent multi-stage fan speed regulation, wide temperature operation capability, 50 °C without derating
- IP66 protection level
Intelligent Fire Protection System
- High-sensitivity sensors are used to detect the inside of the energy storage cabinet before a fire occurs
- Collect and monitor the air environment in the environment in real time, and report any abnormalities in time
- CAN bus connection mode is adopted, which can directly communicate with BMS, and the wiring is convenient
- Integrated design of fire extinguishing and control, easy installation and space saving
- Using perfluorohexanone fire extinguishing agent, the cooling effect is obvious, and there is no damage to live equipment and precision equipment

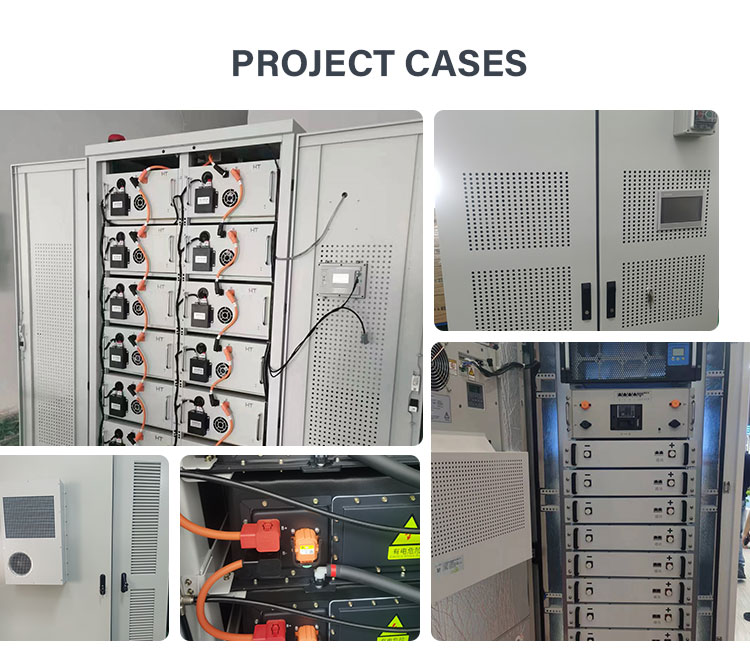

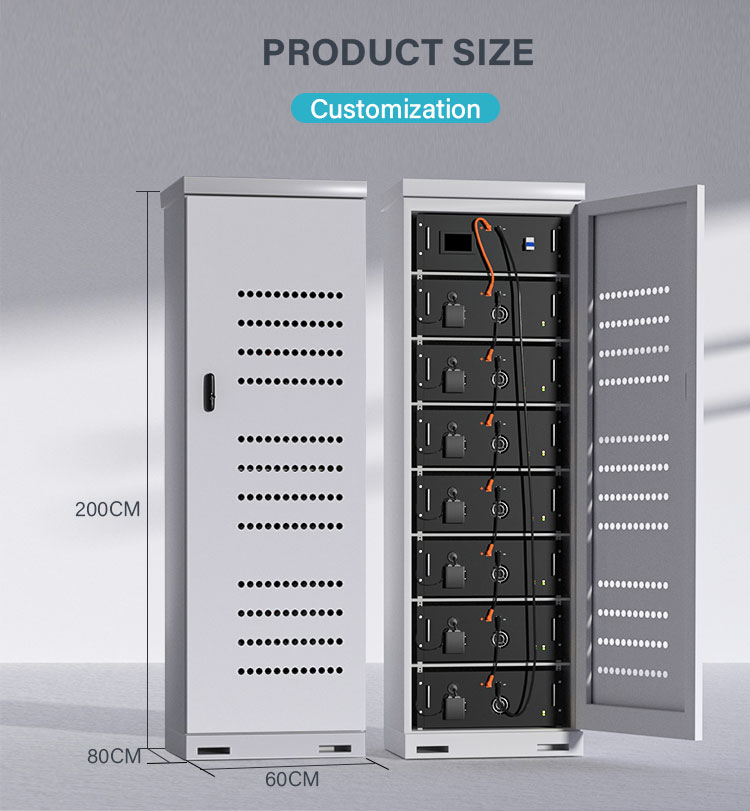

Product Gallery
Certificates & Specifications
Frequently Asked Questions
Are you a factory or a trader?
We are a manufacturer of Solar storage batteries, and we can also provide solutions for the entire solar system.
What is the warranty period?
The warranty period for batteries and inverters is 5-10 years, and the warranty period for photovoltaic panels is 25 years.
How is your technical support?
We provide lifetime online support. We have a professional engineers team who can provide you the best solutions.
Do you support OEM/ODM?
Of course, we can do OEM/ODM services for our partners.
Should I choose an on-grid system, hybrid on/off-grid system, or off-grid system?
If you just need the system for your home use, choose the off-grid system or hybrid system, as the off-grid system is much cheaper. If you want to sell the power to the power grid, then you need to choose the hybrid system or on-grid system.
How to choose the solar home system?
Firstly, please help us confirm your monthly electricity consumption (kWh), what appliances your house has (or provide an electricity bill), and how many hours of battery backup you require. Our professional engineering team will then design the most suitable and economical solar home system for you.
