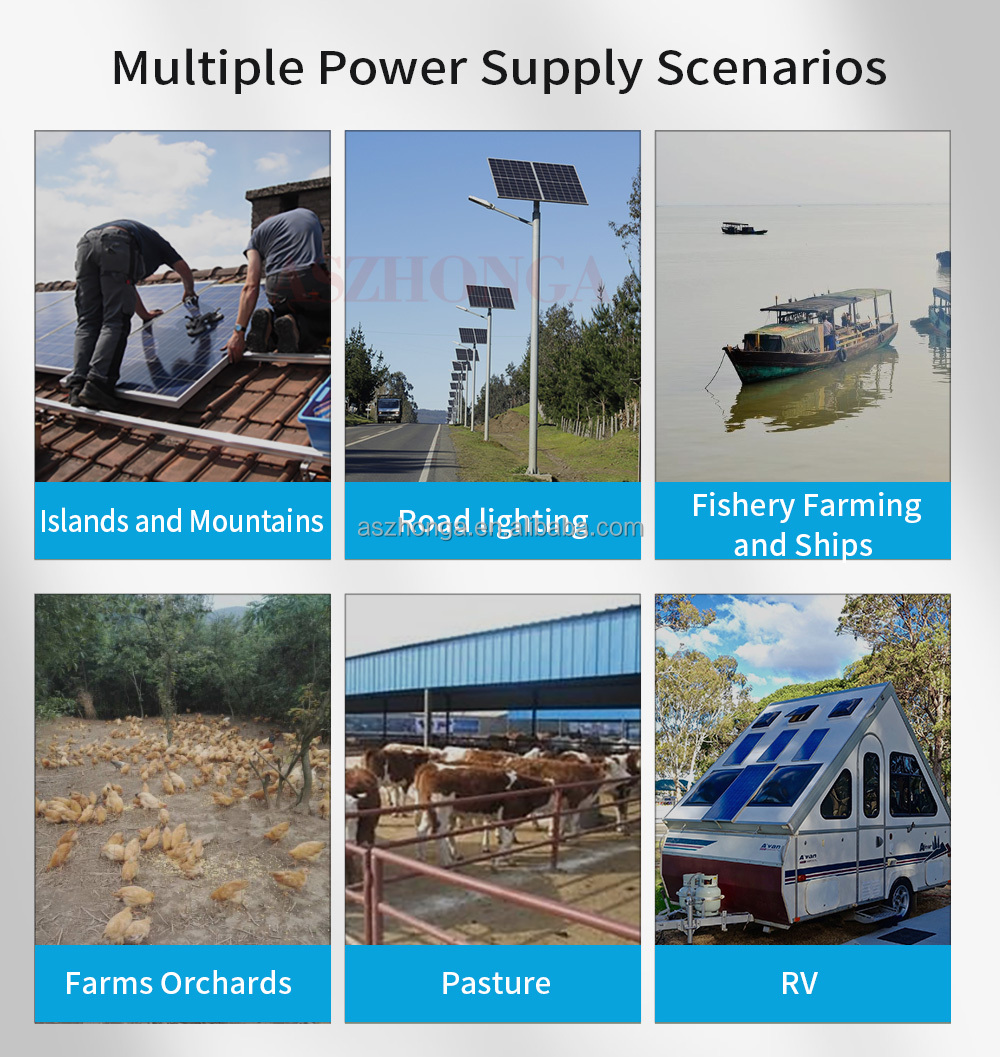

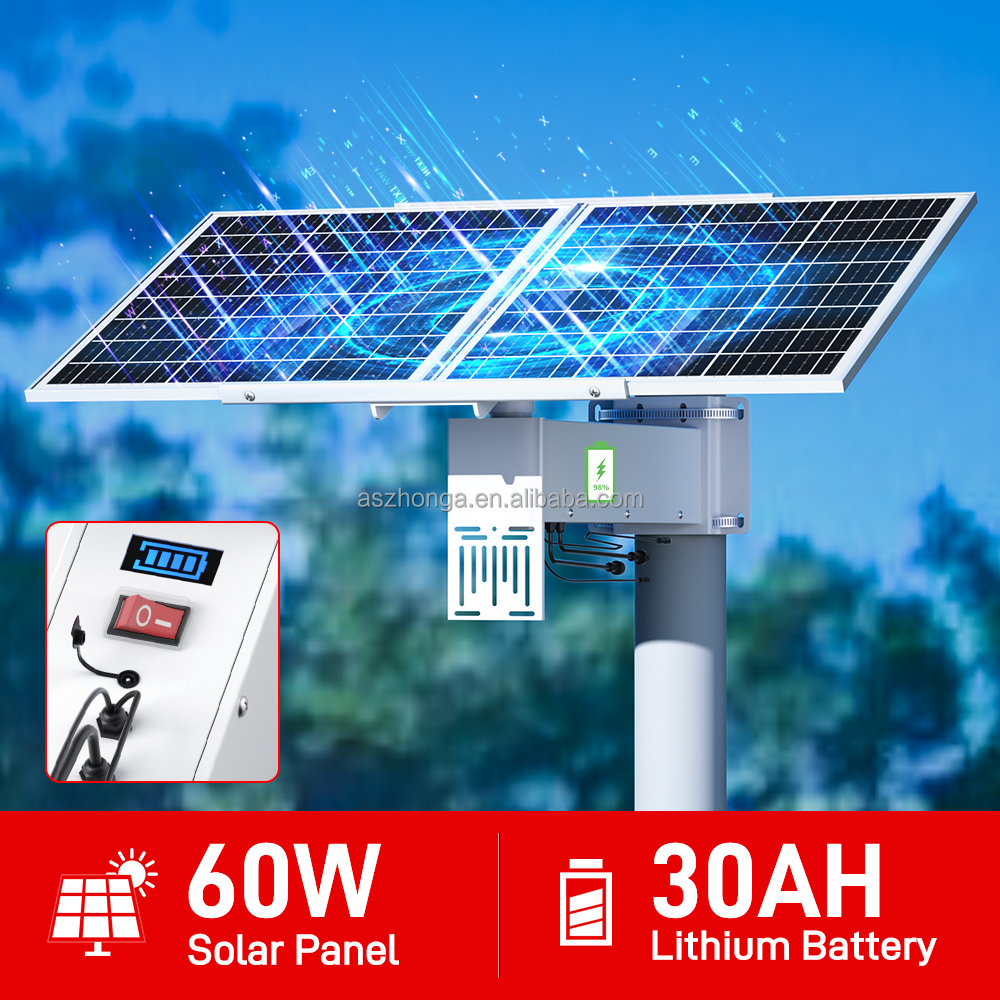

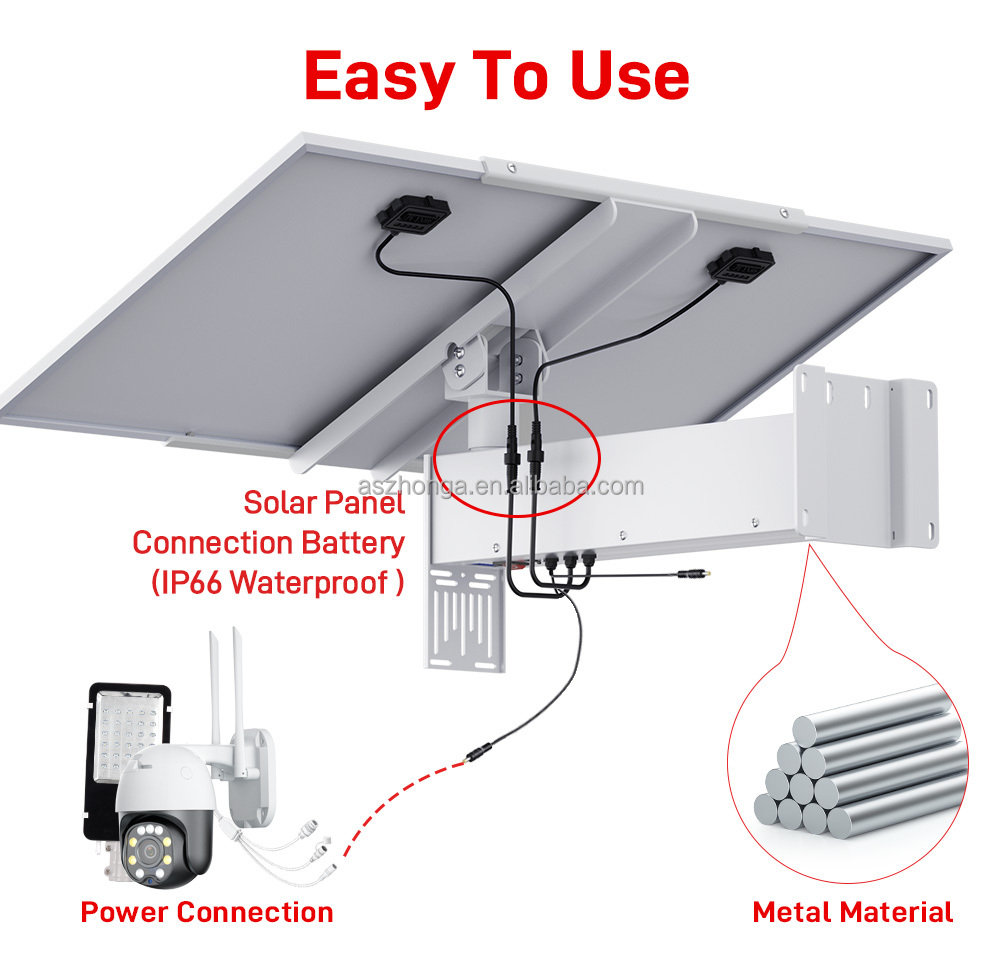

Can be used in marinas, islands, mountains, pastures, etc. where there is no electricity supply. No need to install power cables, easy to install and ready to use.
In extreme conditions where there is not enough sunlight to generate electricity, a fully charged battery can provide up to 86 hours of uninterrupted surveillance power for the accompanying camera. (The above data comes from the test under 25°C environment, for reference only. Please note: Low temperature environment will lead to power decay, please refer to the actual use time.)

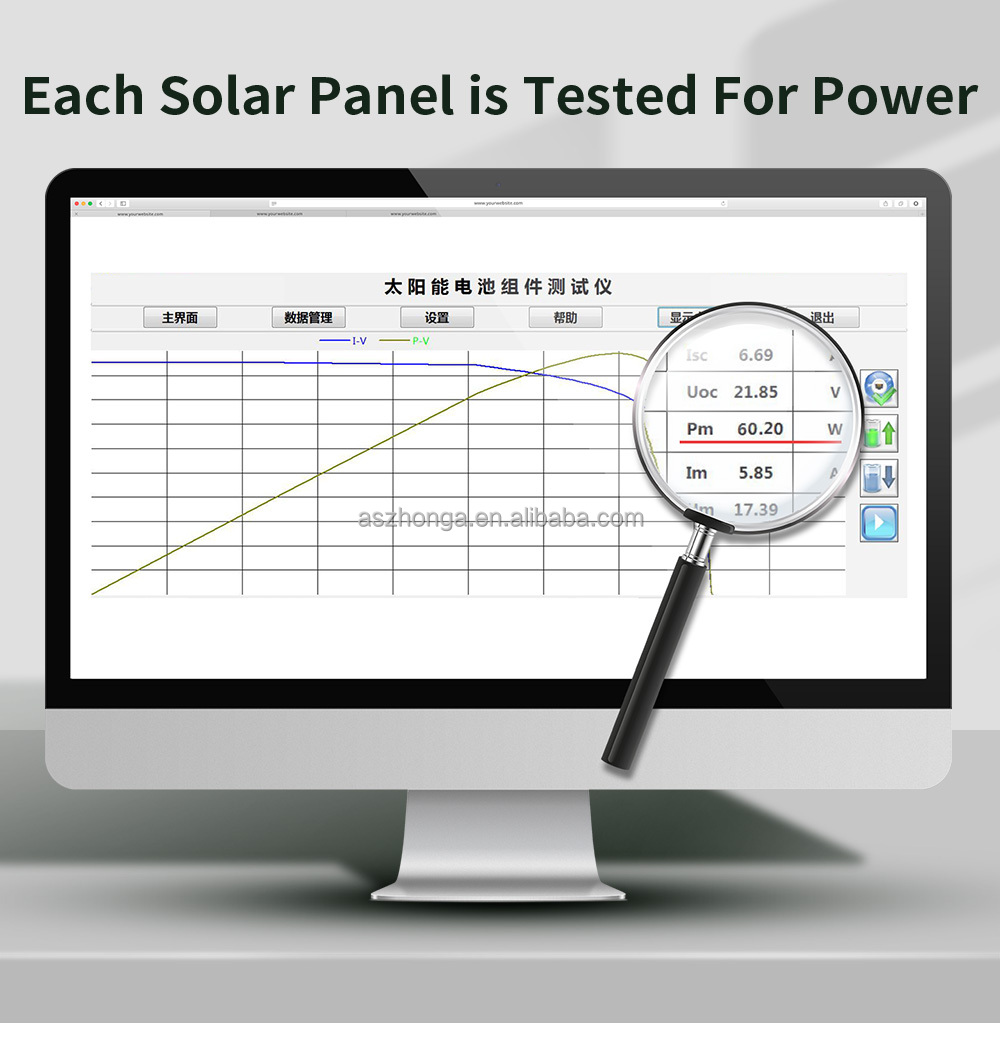

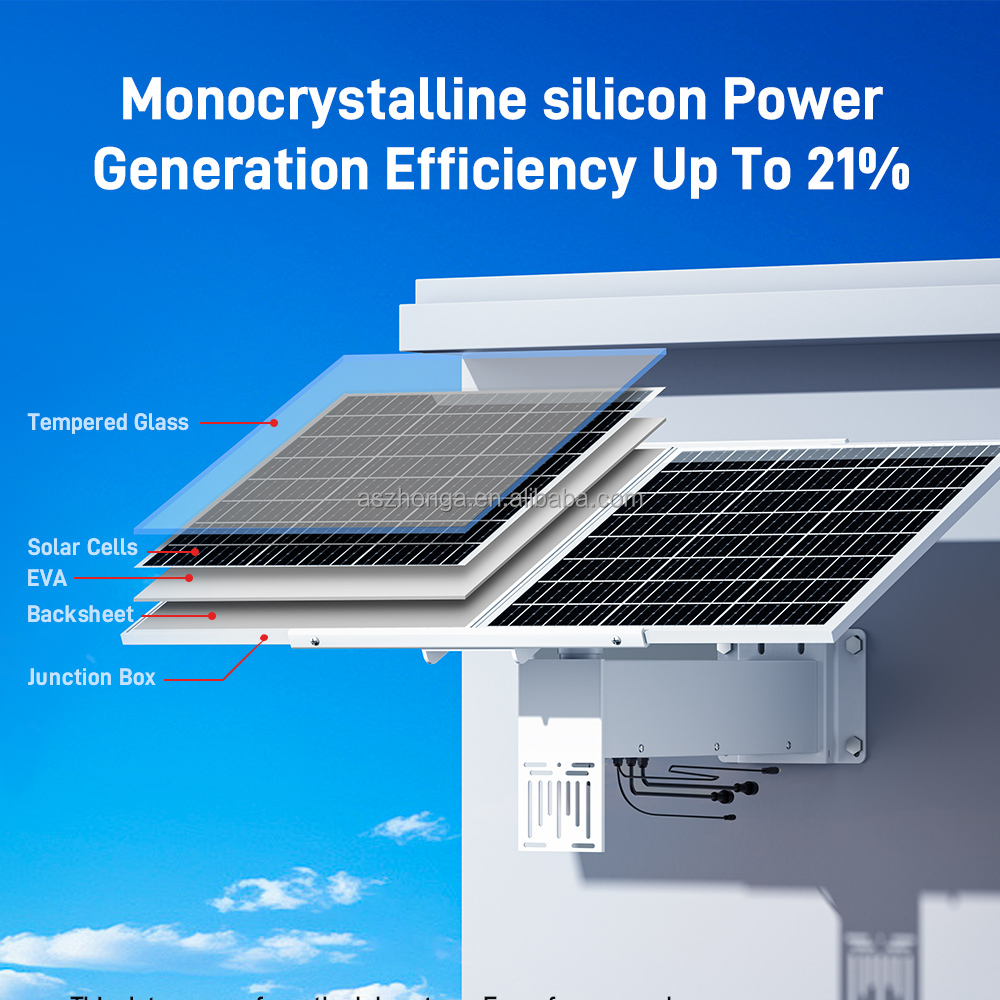

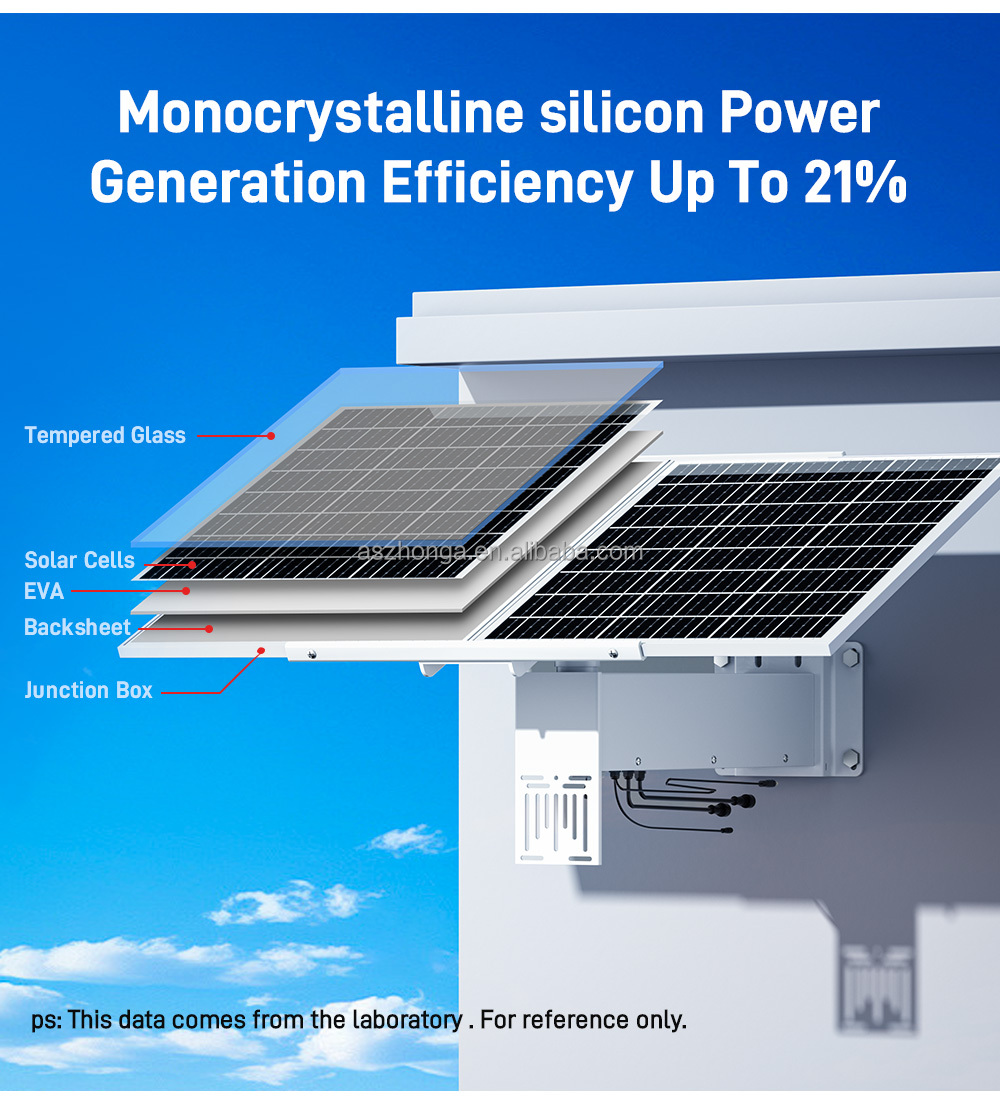

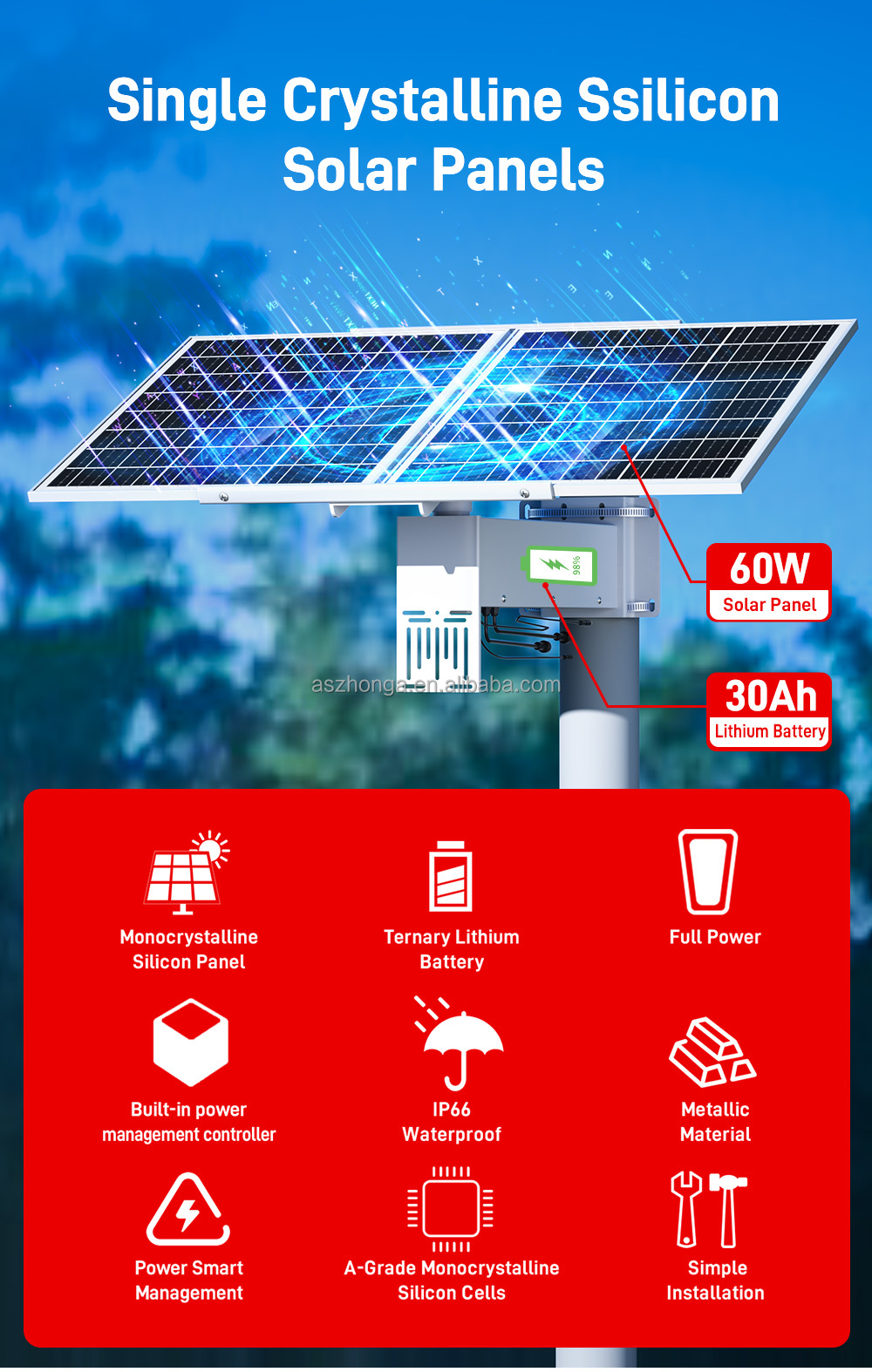

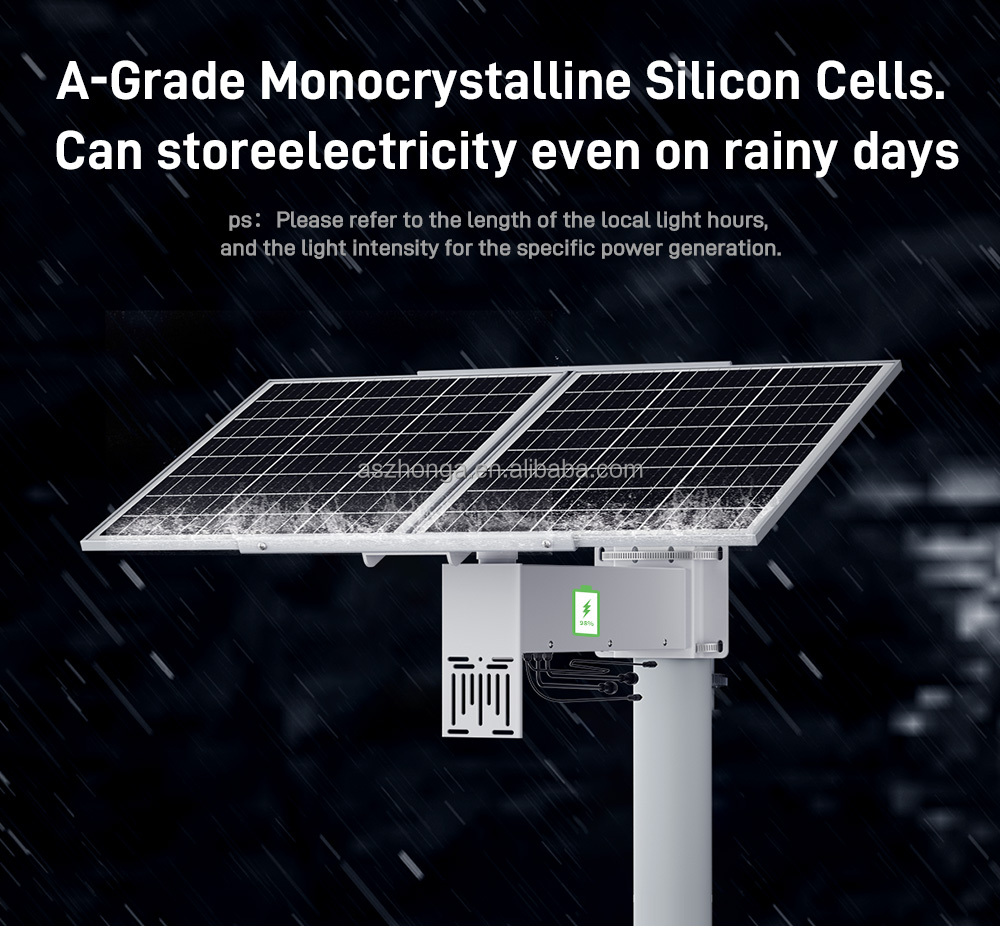

The solar panels are made using a monocrystalline silicon process. High power generation efficiency, providing up to 21% photovoltaic conversion efficiency. Can quickly replenish power for storage batteries. (NOTE: Solar panel power generation is affected by weather and latitude, please refer to the actual power generation, the above data is collected from the laboratory.)
NOTE: The above picture is only to show the effect, the number of batteries installed inside, please prevail in kind.

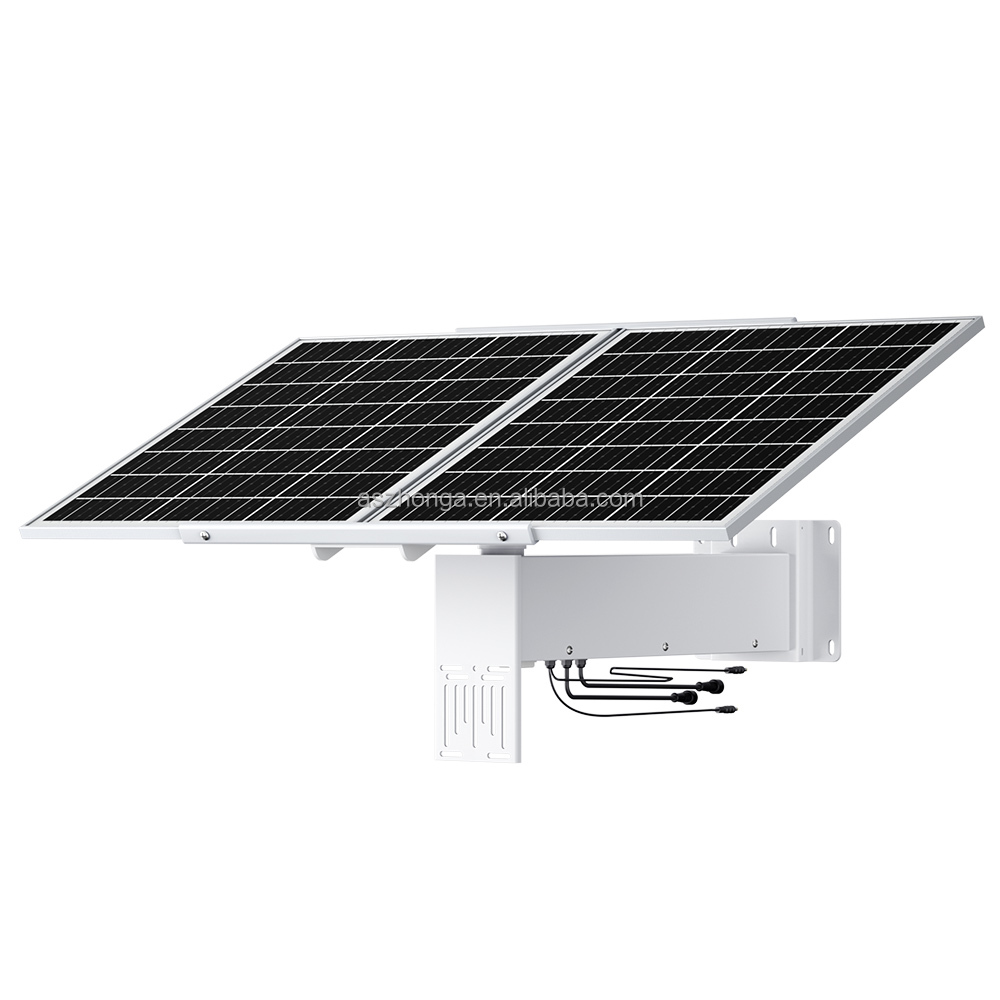

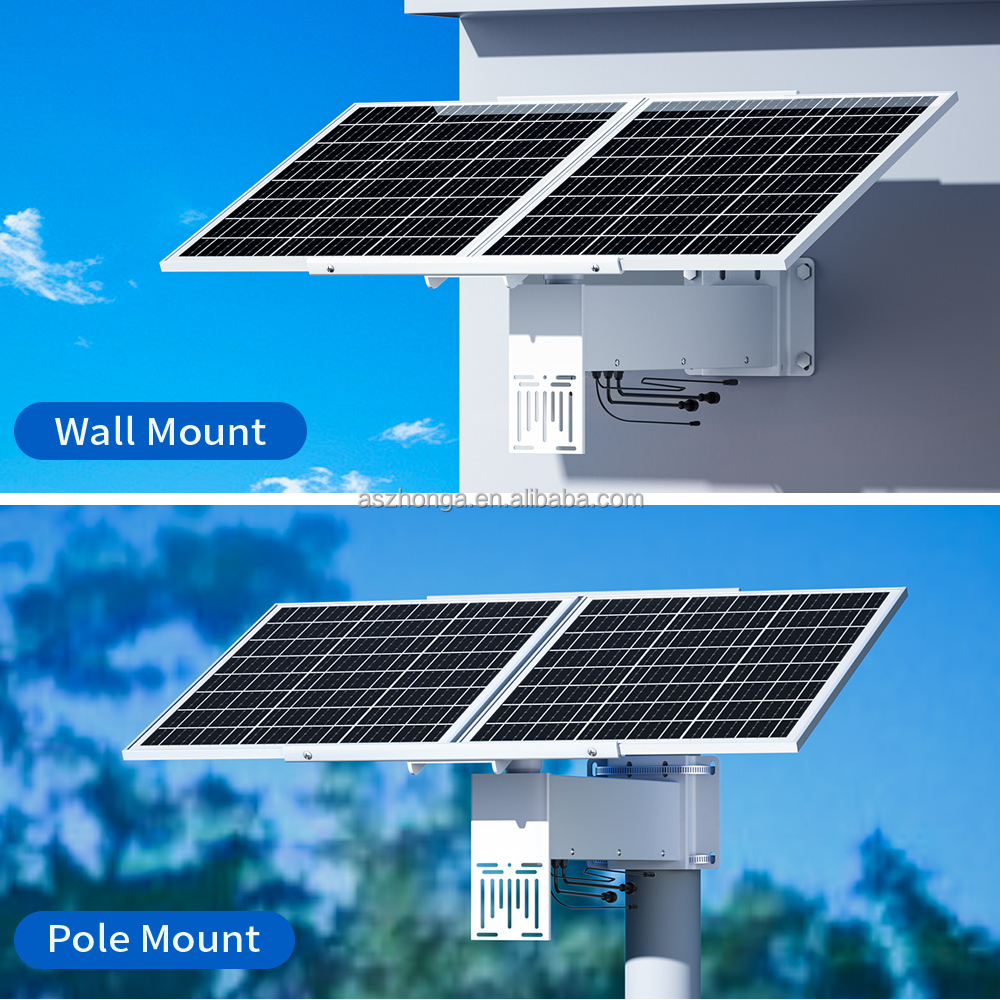

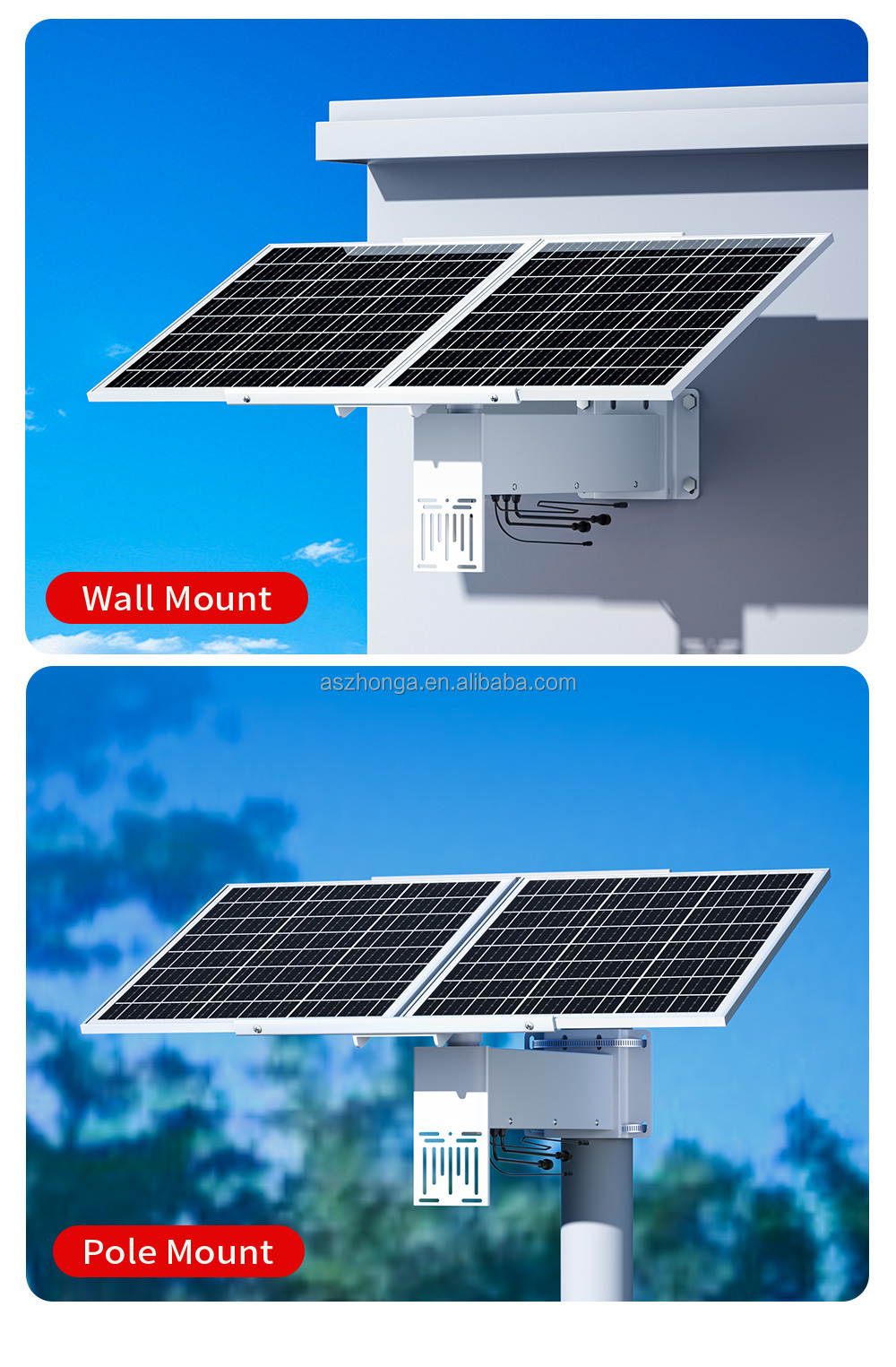

Use special bracket for multiple environment installation.
Outdoor security camera with waterproof body and power adapter, work temperature minus -20 degrees Celsius to 60 degrees Celsius, work well on the heavy rains or snows days.
| Model | SP60-20/30-L |
| Solar Panel Cell Process | Monocrystalline Silicon Whole cells |
| Rated Maximum Power(Pmax) [W] | 60 |
| Open Circuit Voltage(Voc) [V] | 21.6 |
| Maximum Power Voltage(Vmp) [V] | 18 |
| Short Circuit Current(Isc) [A] | 3.86 |
| Maximum Power Current(Imp) [A] | 3.49 |
| Module Efficiency [%] | 21.5 |
| Max system voltage [V] | 1000 |

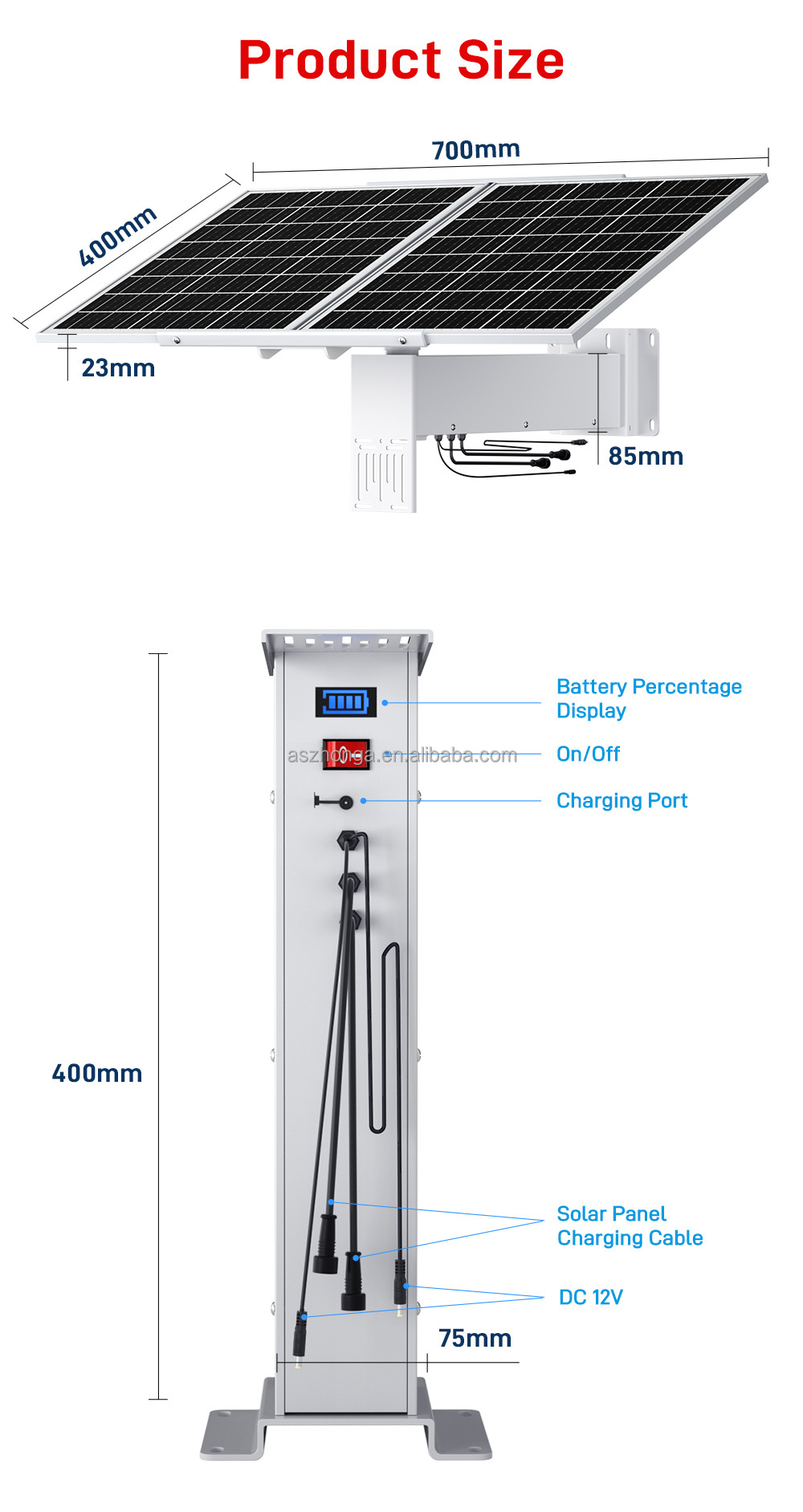

| Panel Dimension [mm] | 700*400*23 |
| Power Tolerance | 0~+3W |
| Temperature Coefficient of Isc(α_Isc) | +0.048%/°C |
| Temperature Coefficient of Voc(β_Voc) | -0.27%/°C |
| Temperature Coefficient of Pmax(γ_Pmp) | -0.35%/°C |
| Operating Temperature | -25°C ~ 70°C |
| STC | Irradiance 1000W/m², cell temperature 25°C, AM1.5G |

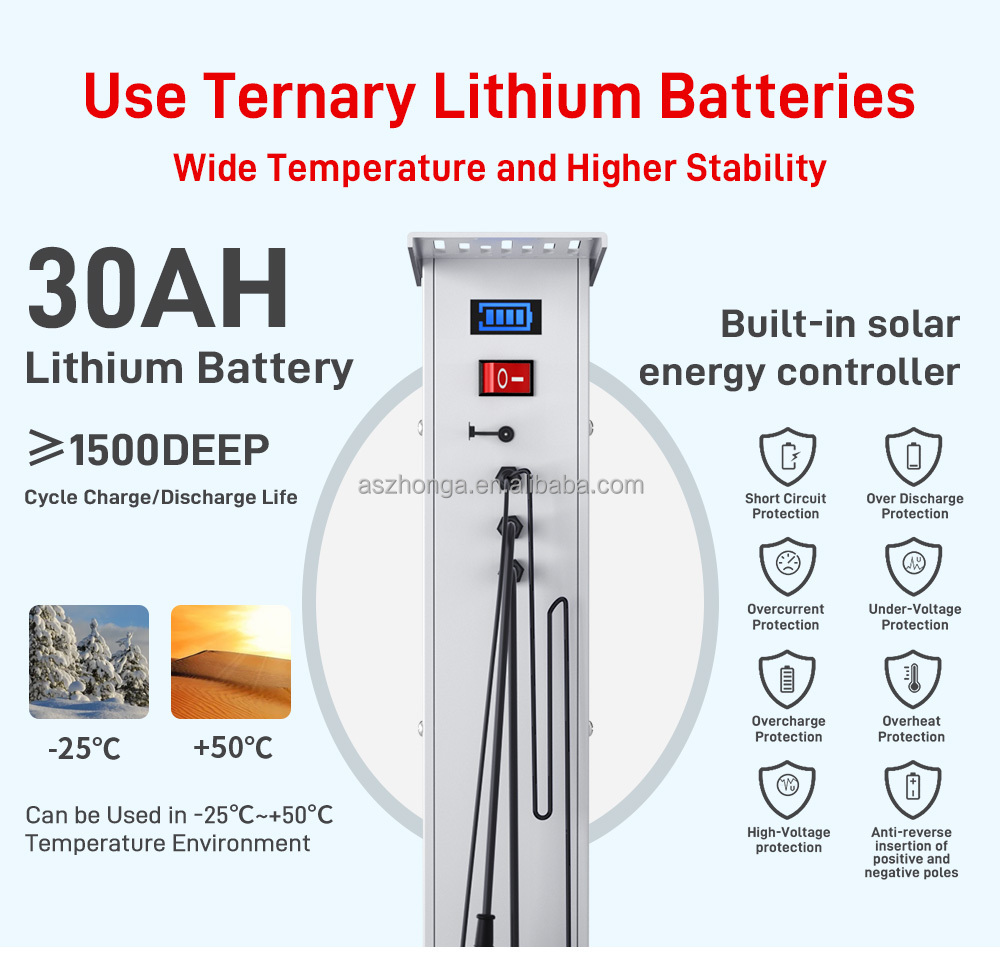

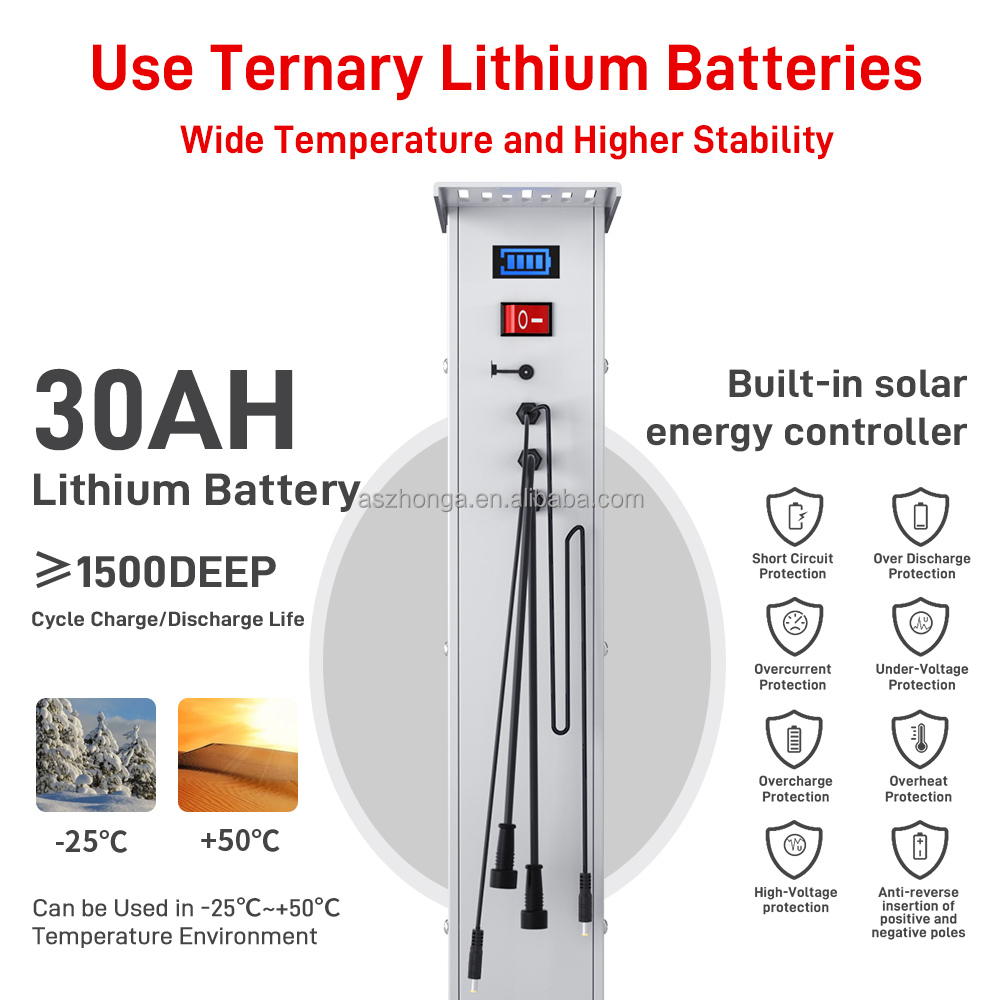

| Battery Type | Ternary Lithium Batteries |
| Nominal Capacity [Ah] | 20/30 |

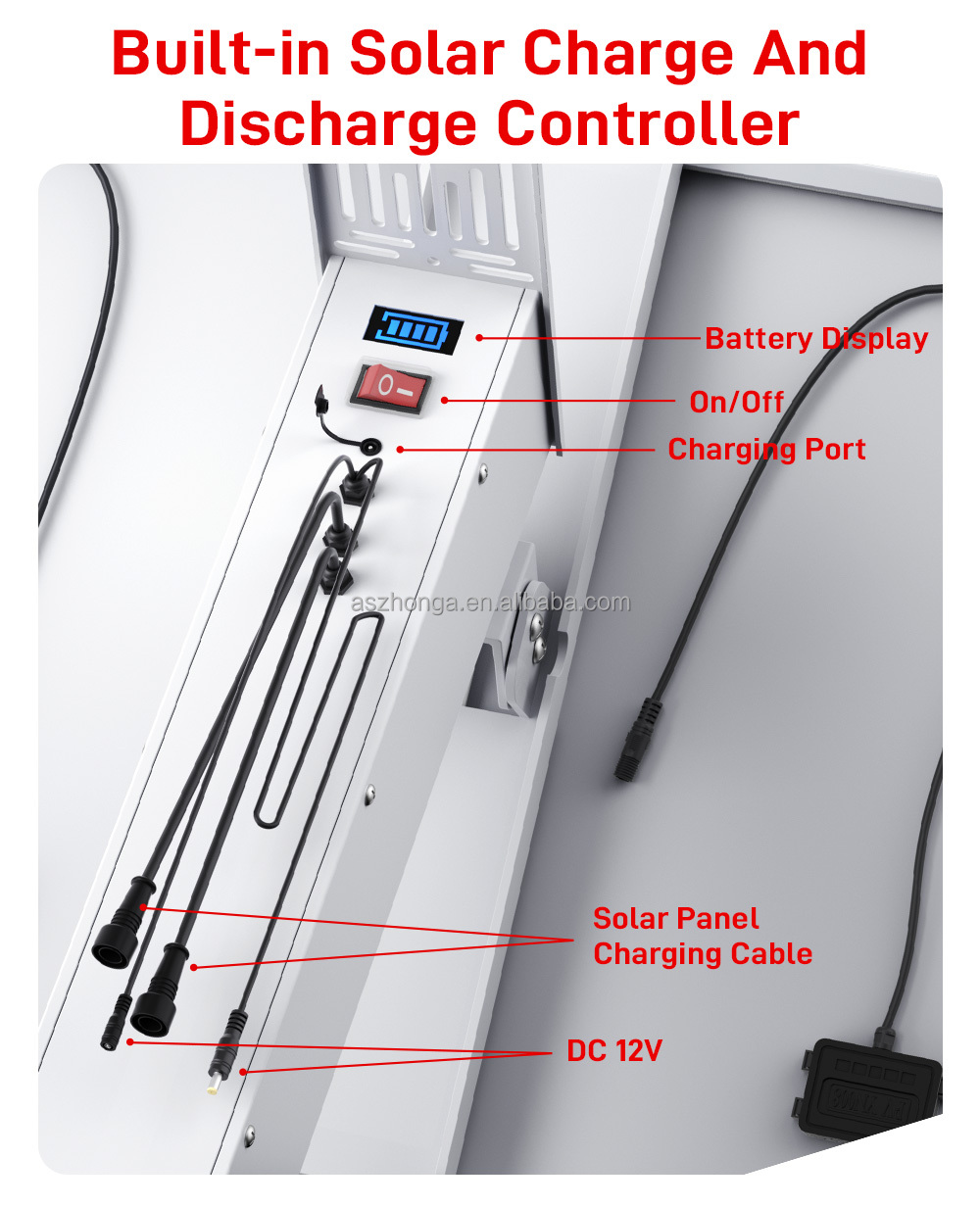

| Power Management Controller | Built-in PWM |
| Power and voltage display | Real-time Battery Voltage LED Display |
| DC IN | 12.6V |
| Solar Power Input | DC-18V 2 Pin Aviation Cable Plug |
| DC OUT | 12V 5A |
| Protective Features | Overload, reverse connection, overdischarge, overcharge, short circuit, backflow prevention, etc. |
| Operating Temperature (Battery) | -25°C ~ 50°C |
| Nominal Voltage | 11.1V |
| Internal Resistance | Full Charged Battery 25°C |
| Capacity Affected by Temperature (10 hour) |
40°C (104°F): 102% 25°C (77°F): 100% 0°C (32°F): 90% -15°C (5°F): 70% |
| Self-Discharge 25°C Capacity |
after 3 month storage: 92% after 6 month storage: 84% after 12 month storage: 65% |
| Charge constant Voltage 25°C (77°F) Float | Initial charging current less than 10A Voltage 12.3-12.6V |
| Operating temperature (General) | -20 to +60 degree |
| Operating humidity | 10% to 95% |
| Material & Waterproof Level | Side Housing, Outdoor Use, Waterproof IP66 |
| Package Size (mm) | 470*220*445 |
| Package Weight (kg) | 10 |
