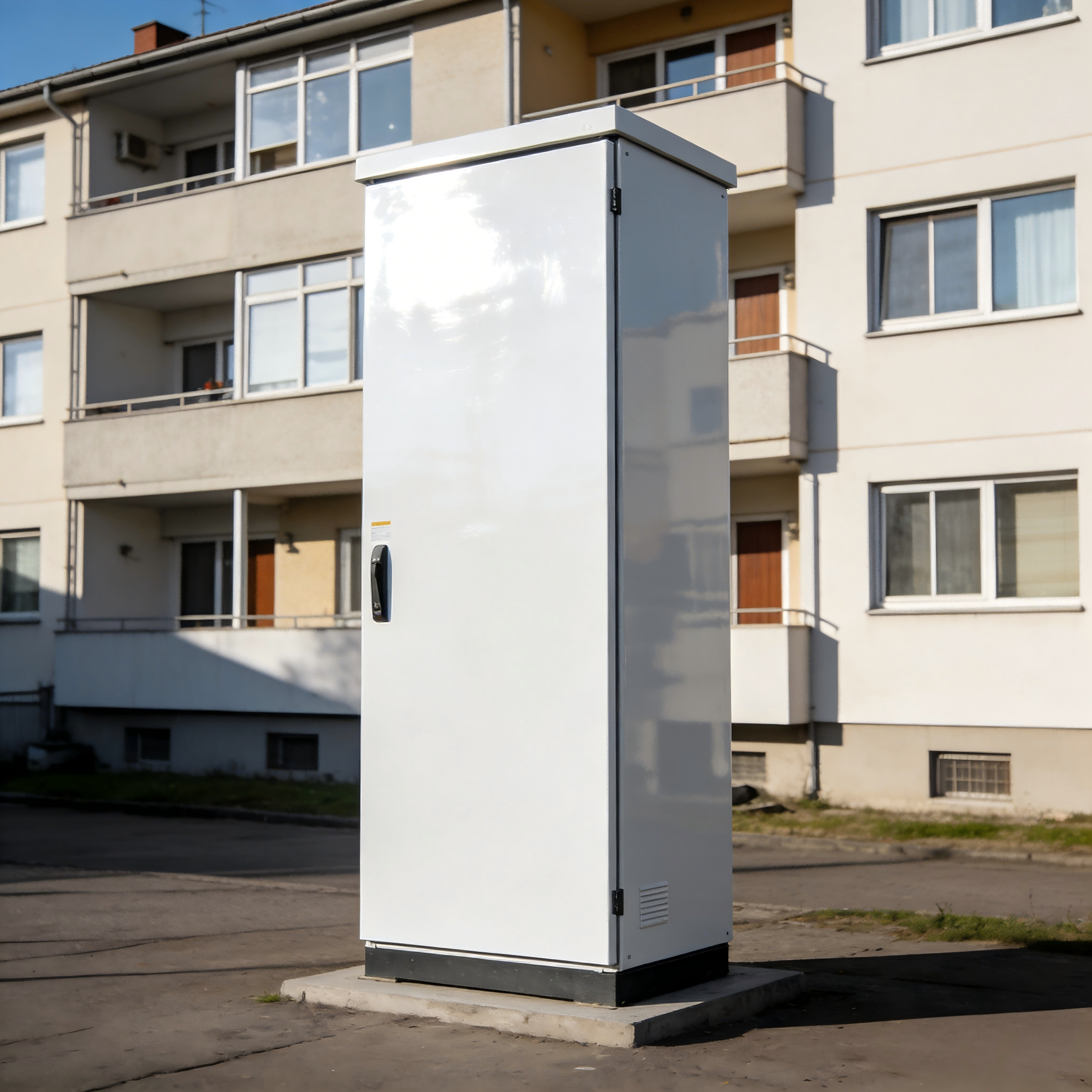

The All-in-One Cabinet Home Energy Storage System is a pre-integrated solution that combines battery modules, Battery Management System (BMS), Power Conversion System (PCS), thermal management, and safety protection systems into a single unit. Featuring integrated industrial design for plug-and-play operation, it is specifically designed for household and commercial users seeking easy installation, high safety, clean aesthetics, and low maintenance requirements.
| Model | BOX-A515 |
| System Parameters | |
| AC Rated Power(kW) | 50 |
| Battery Capacity(kWh) | 54 |
| AC Voltage | 3P/400V |
| Rated Grid Frequency(Hz) | 50/60 |
| Voltage Range | 728~910VDC |
| IP Level | IP65 (Out Door) |
| Warranty | Battery: 5 years or 6,000 cycles ; Electrical Components and structure: 10 years |
| Inverter Parameter | |
| Rated Power | 30kVA/30kW |
| Frequency(Hz) | 50/60 |
| Nominal Voltage(VAC) | 230/400 |
| Max.Efficiency | 98.5% |
| Max. PV Voltage(V) | 1000 |
| PV Array MPPT Voltage Range(VDC) | 150~850 |
| Max. Solar Input Current(A) | 40 |
| Max. Short Current(A) | 60 |
| Dimension (W*L*H)/Approximate Weight | 640*830*1900mm/750Kg |
| Battery Parameter | |
| Battery Type | LiFePO4 |
| Nominal Voltage(V) | 51.2 |
| Nominal Capacity(Wh) | 5427 |
| Voltage Range(V) | (44.8~57.6)*7 |
| Max. Charge/Discharge Current(A) | 100 |
| Communication | RS485/CAN |
| Weight(Kg) | 860 |
| Cycle Life | 8000 (@25℃) |
| Max. Operation Altitude(m) | 4000 |
| Working Temperature Range (℃) | -20 ~ 50℃ |
| Certification | CE/IEC/UL/UN38.3/MSDS |
We are a comprehensive enterprise integrating design, research and development, and manufacturing, specializing in the production of energy storage containers, container modular houses, special containers, and standard containers. The company covers an area of 20,000 square meters, with a well-organized factory layout including frame processing area, equipment assembly area, painting area, testing area, office area, and accommodation area. Our facility is equipped with 55 advanced production machines from both domestic and international sources, achieving a fully automated production process from raw material cutting, forming, and welding to painting and assembly, greatly improving production efficiency and product quality.
