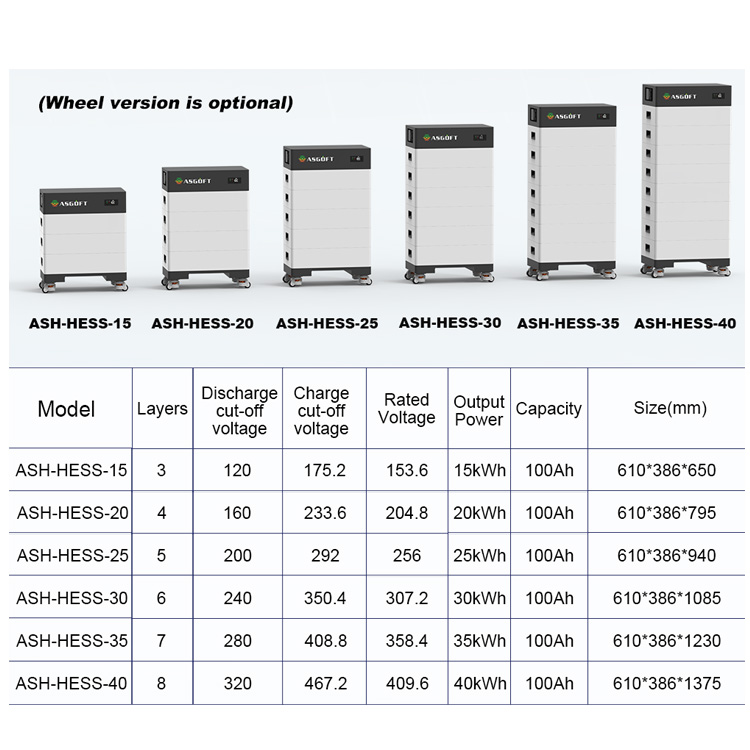

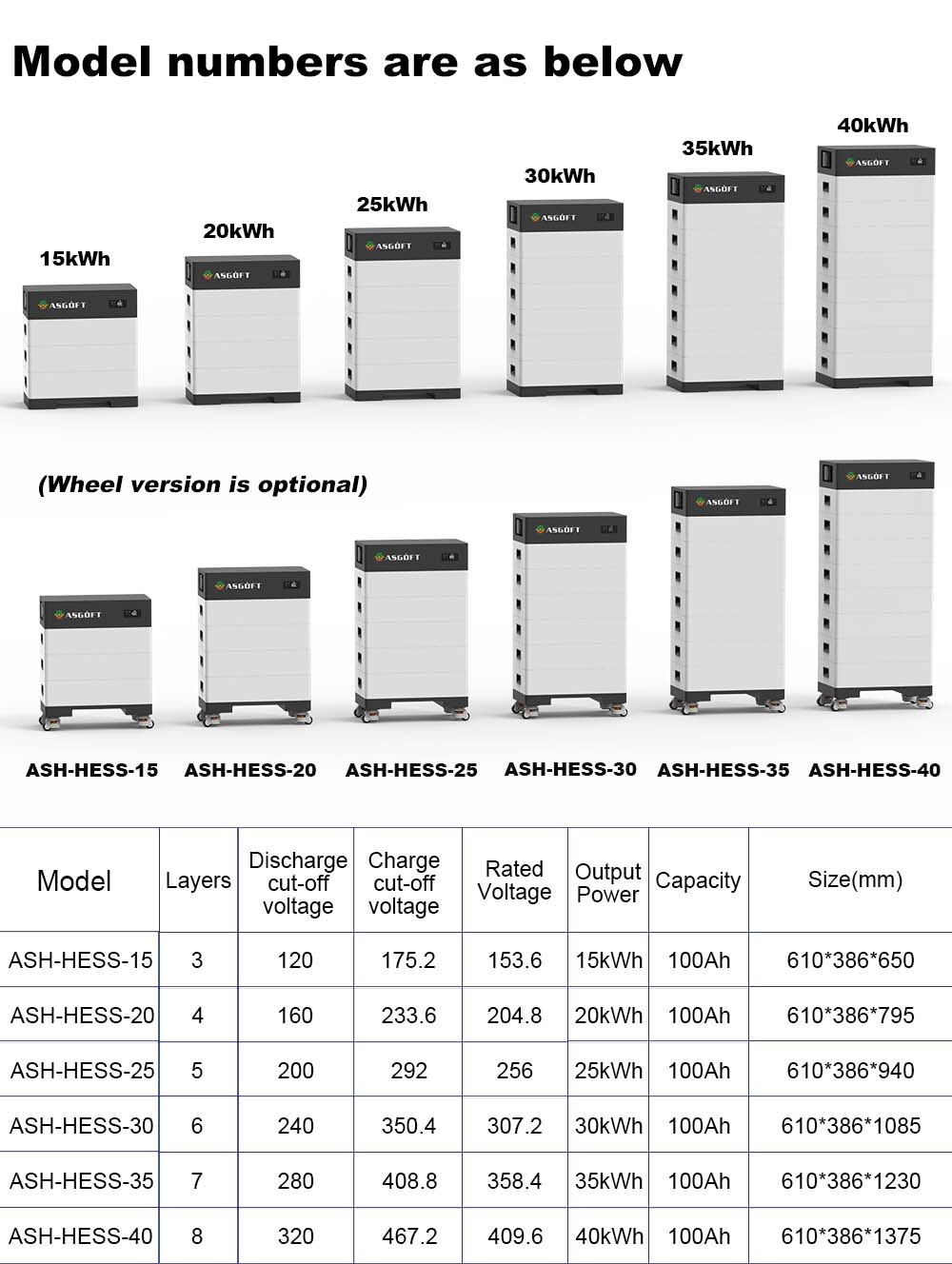

| Product Model | ASH-HESS-30 |
| Rated Voltage | 307.2V |
| Rated Capacity | 100Ah |
| Rated Energy | 30.72kWh |
| Battery Configuration | 96S1P |
| Display | LCD |
| Communication | CAN/RS485 |
| BMS | Built-in BMS |
| Battery Operating Temperature | Charge: 0°C ~ 55°C / Discharge: -20°C ~ 60°C |
| Storage Temperature Range | less than 12 months: -10°C ~ 35°C / less than 3 months: -10°C ~ 45°C |
| Factory Voltage | 300~310V |
| Max Discharge Current | 50A |
| Limited Charging Voltage | 350.4V |
| Cycle Performance | ≥6000 Cycles |
| Unit Dimension(L*W*H) | 600*377*1085mm |
| Unit Weight | 308kg±5% |
| Warranty | 10 Years |
