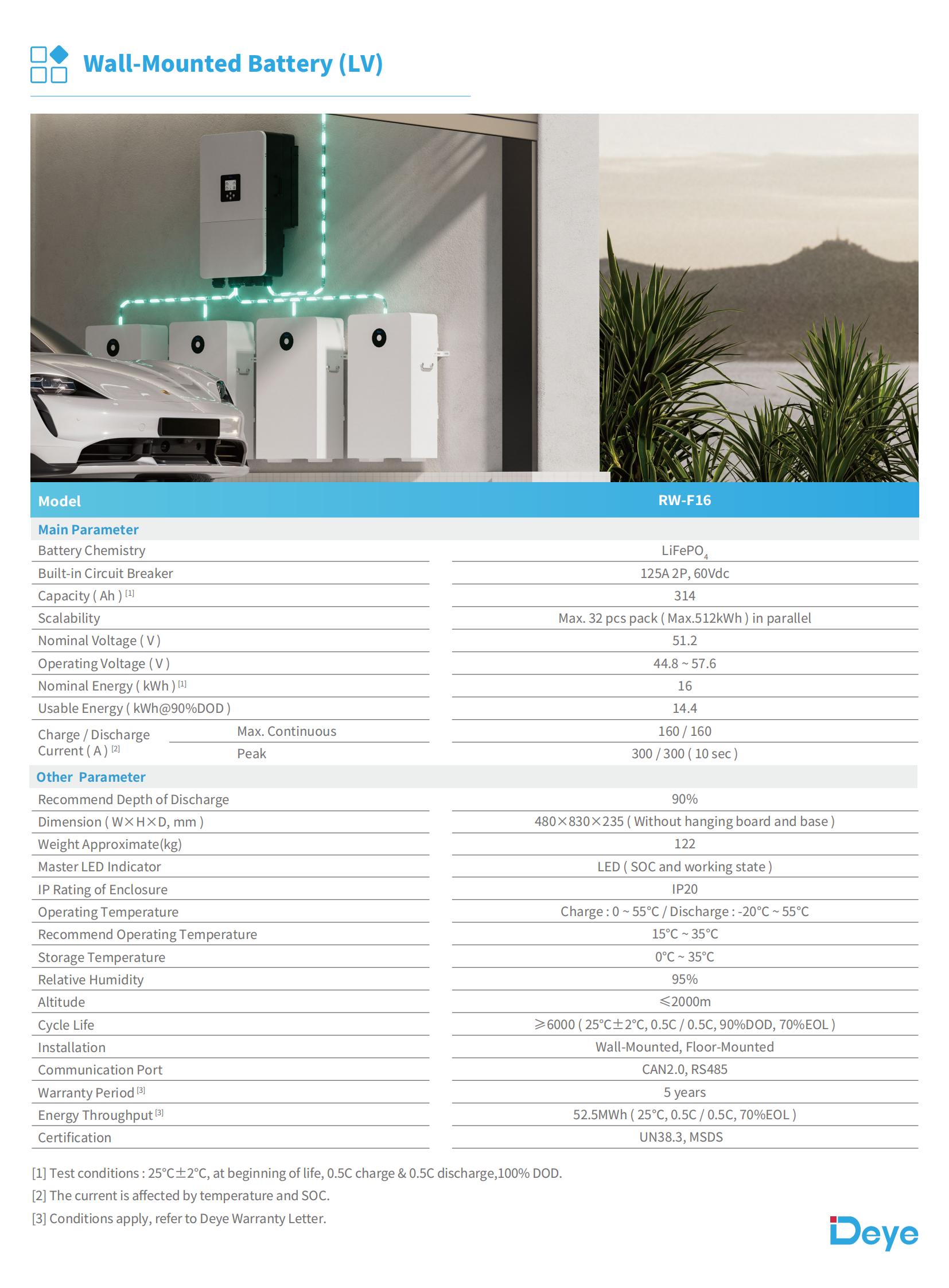

| Parameter | RW-F16 |
| Battery Chemistry | LiFePO4 |
| Capacity | 314 Ah |
| Nominal Voltage | 51.2V |
| Usable Energy | 14.4 kWh (90% Depth of Discharge) |
| Charge/Discharge Current | Maximum Continuous: 160 A, Peak: 300 A (10 seconds) |

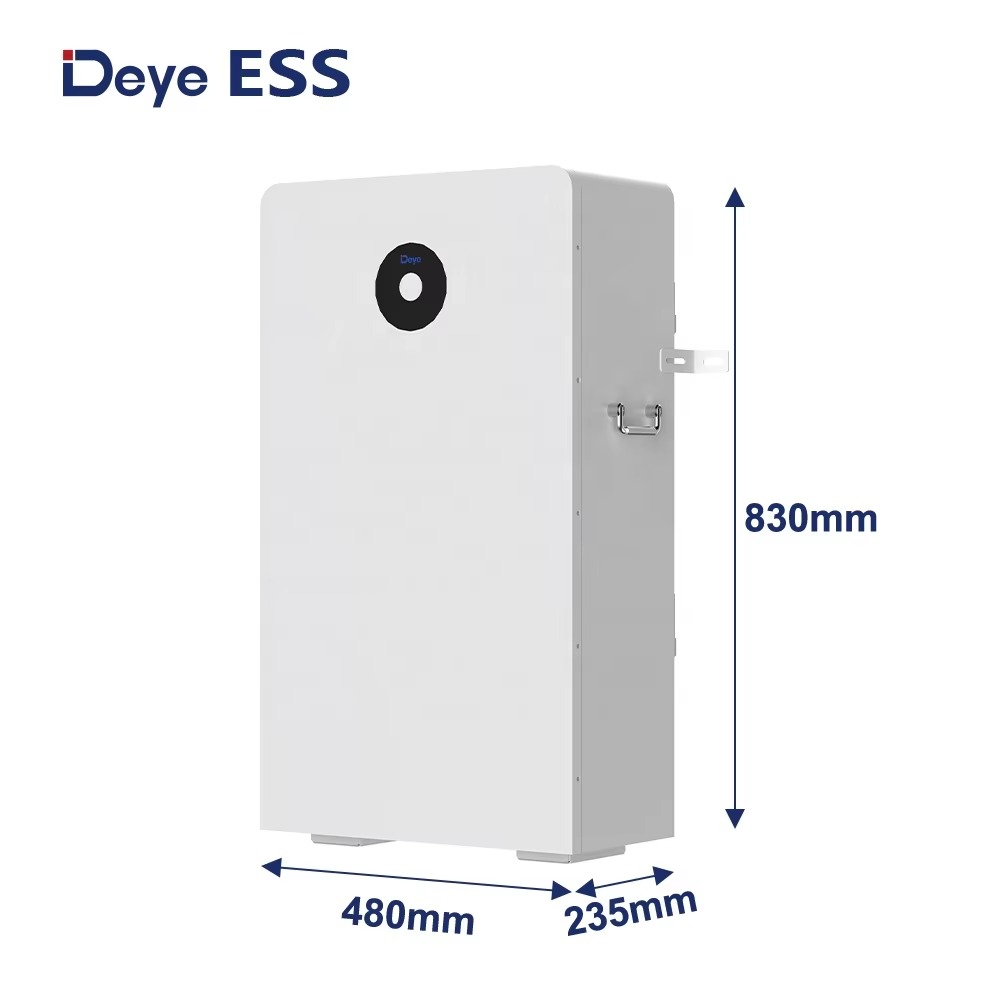

| Dimensions | 480 x 830 x 235 mm |
| Weight | Approximately 122 kg |
| IP Rating | IP20 (suitable for indoor use) |
| Operating Temperature Range | Charge: 0°C to 55°C, Discharge: -20°C to 55°C |
| Relative Humidity | 95% (maximum) |

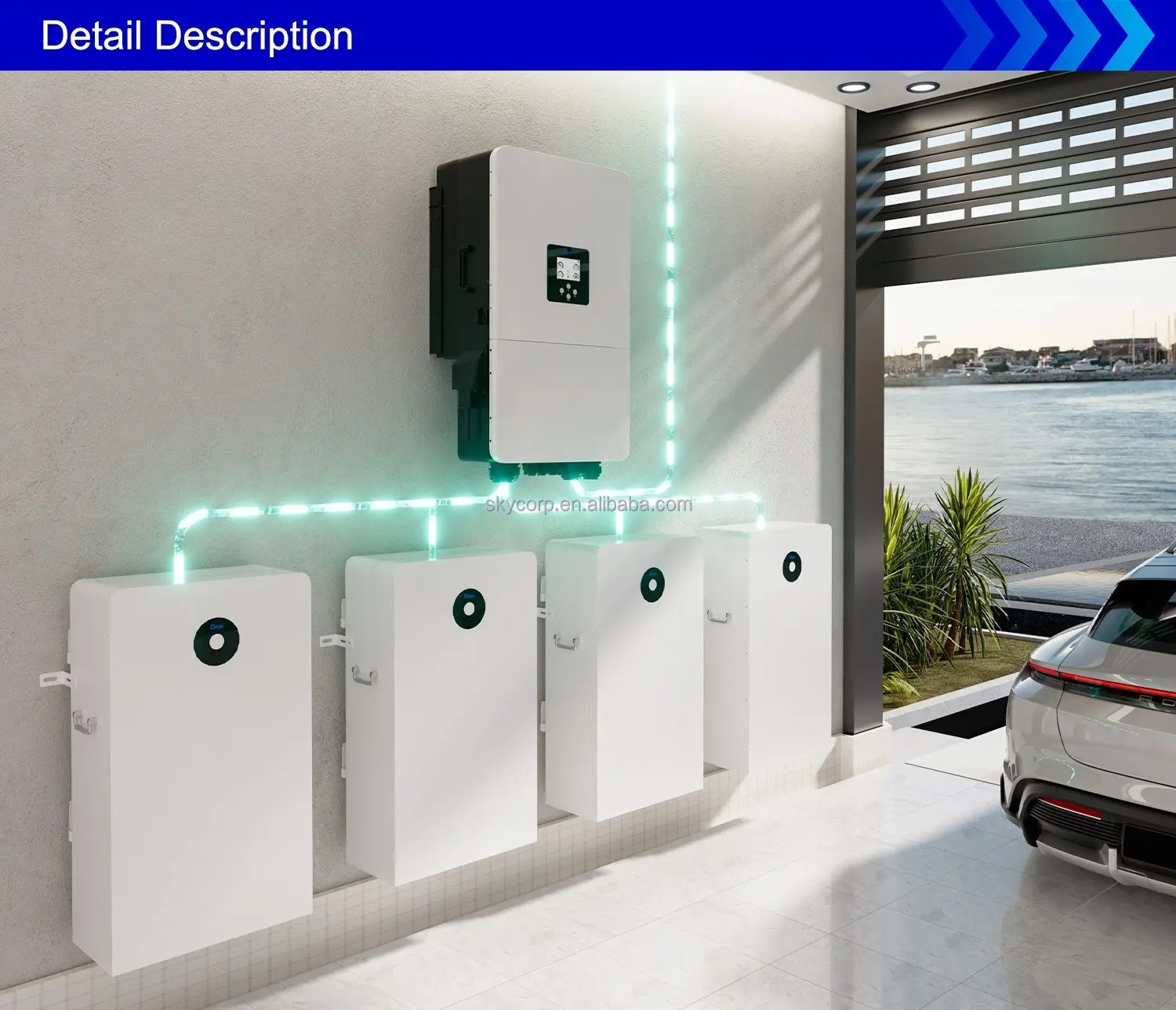

| Installation | Wall-mounted or floor-mounted |
| Warranty Period | 5 years |
| Certification | UN38.3, MSDS |
