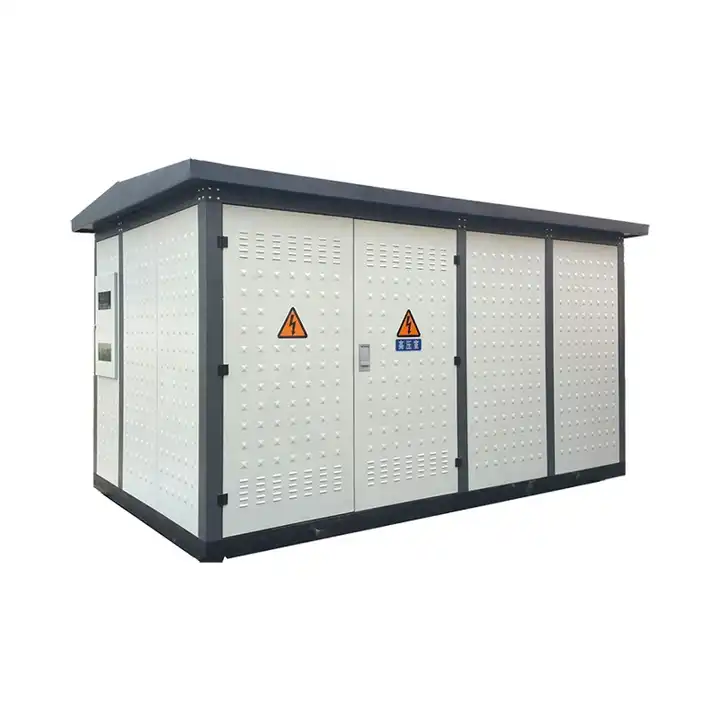

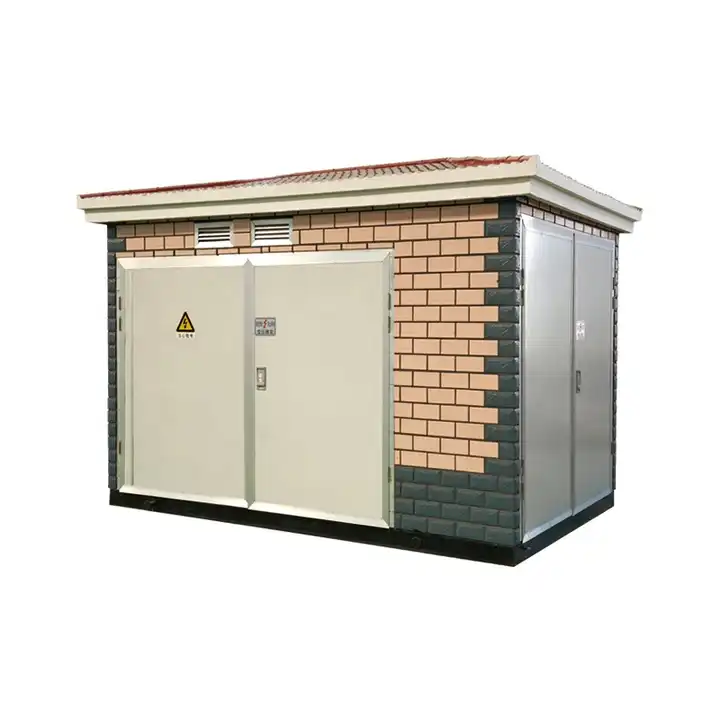

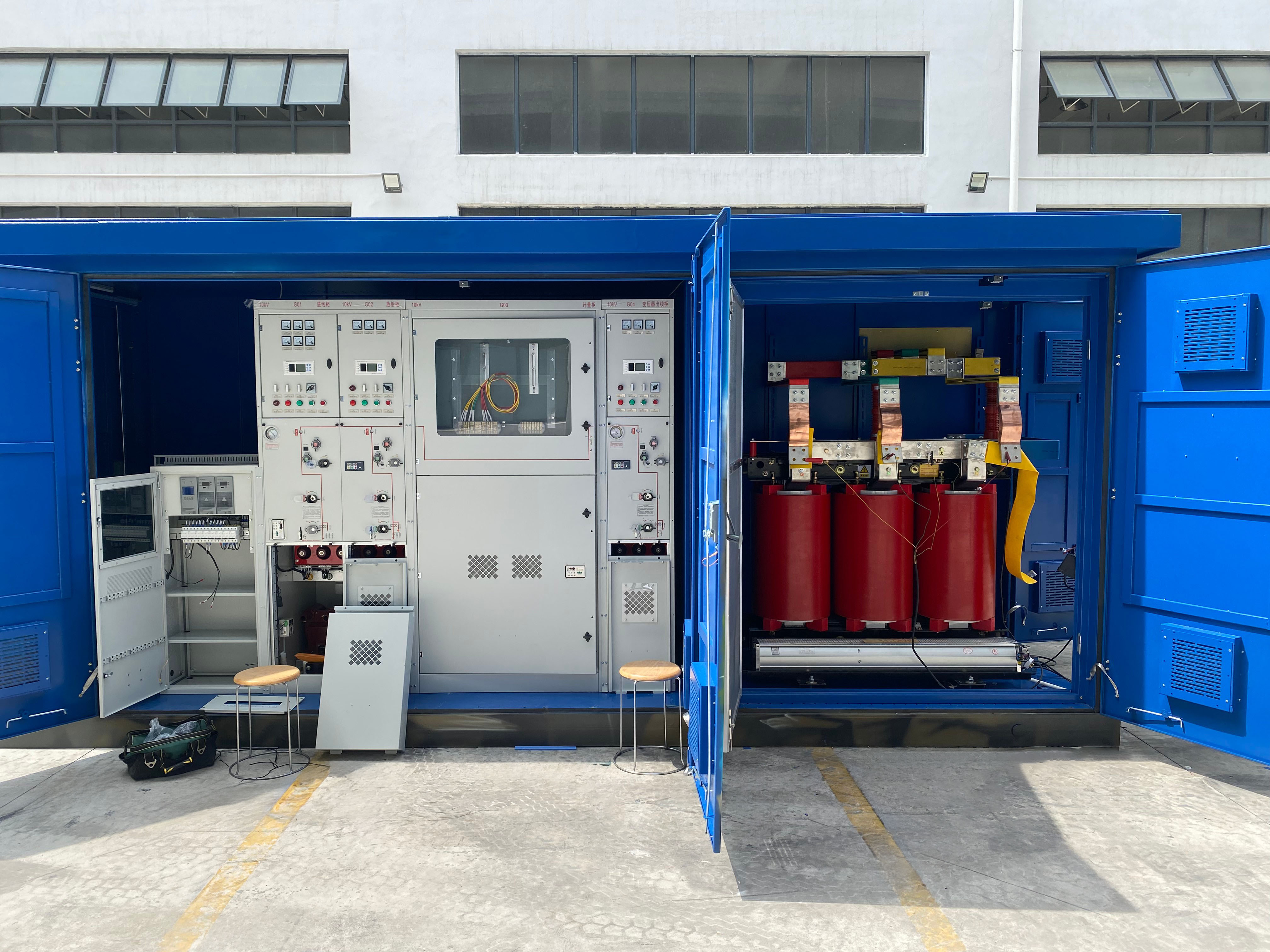

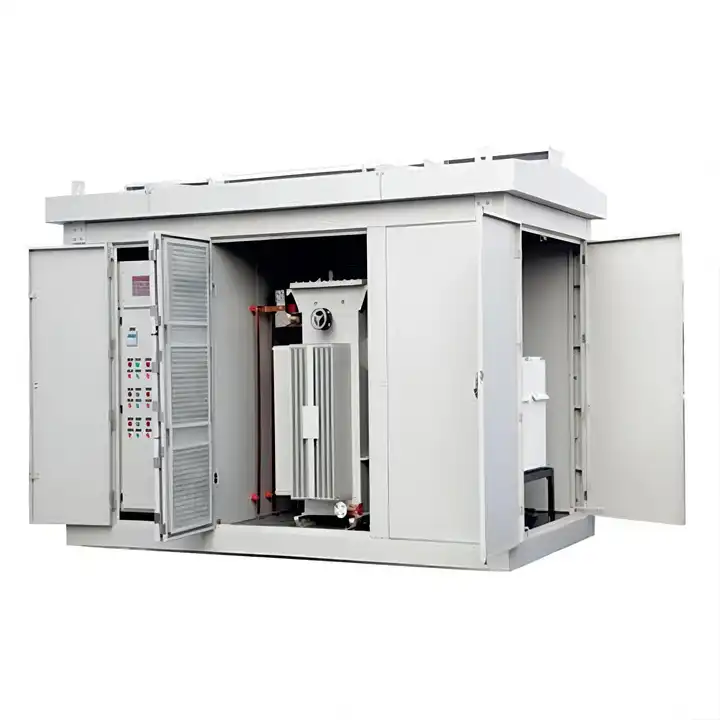

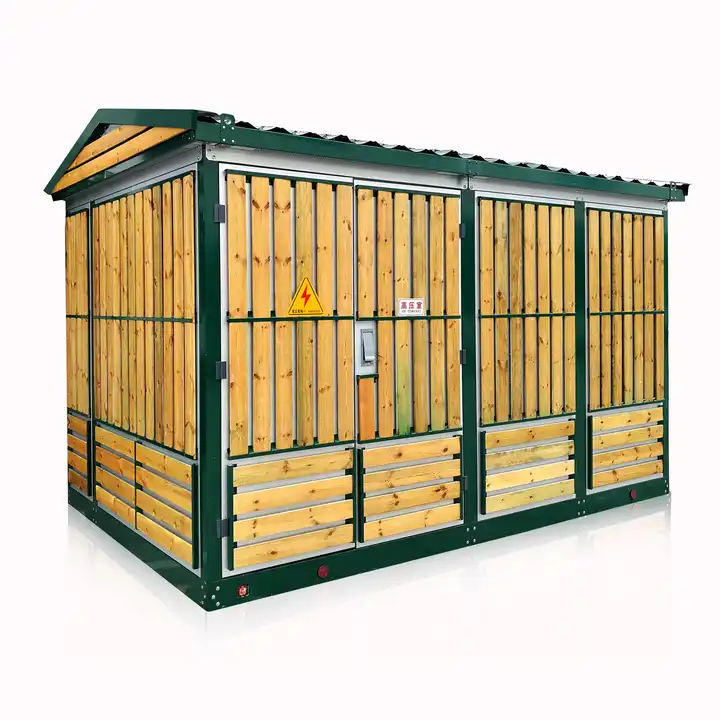

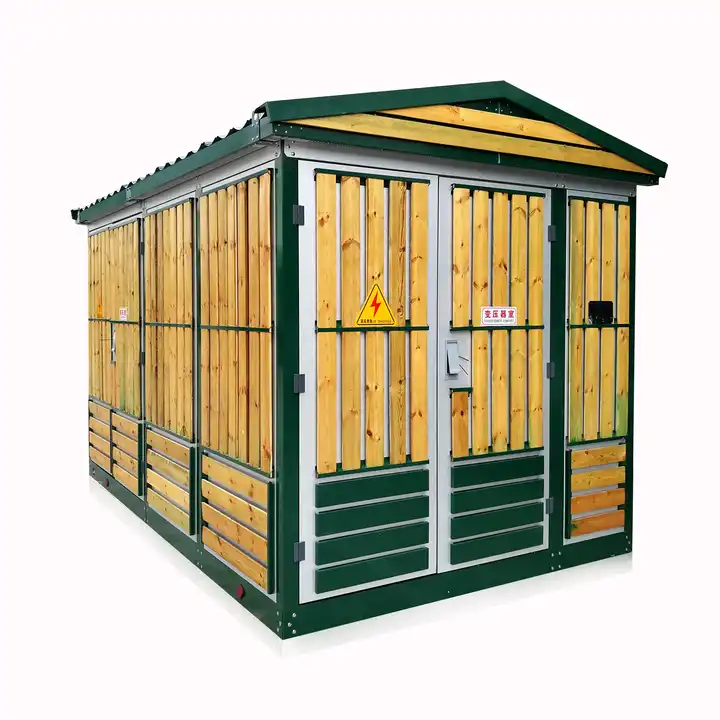

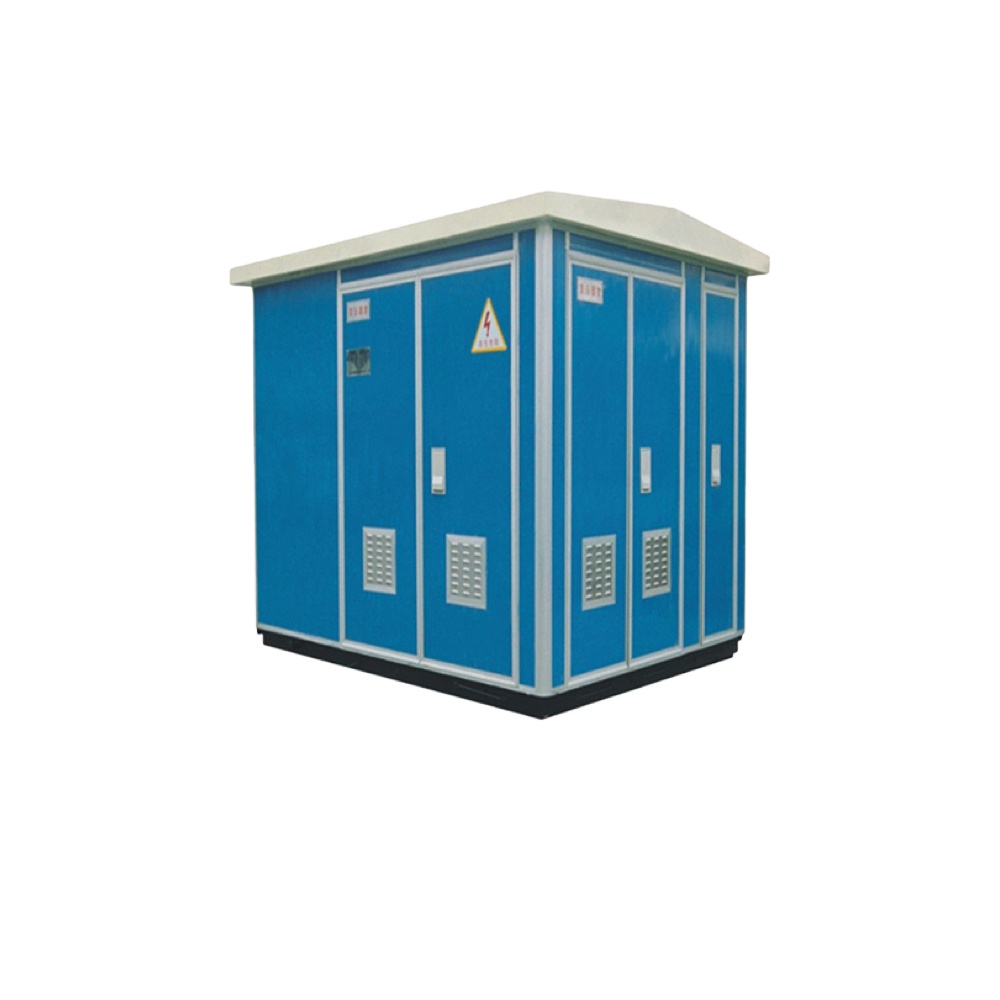

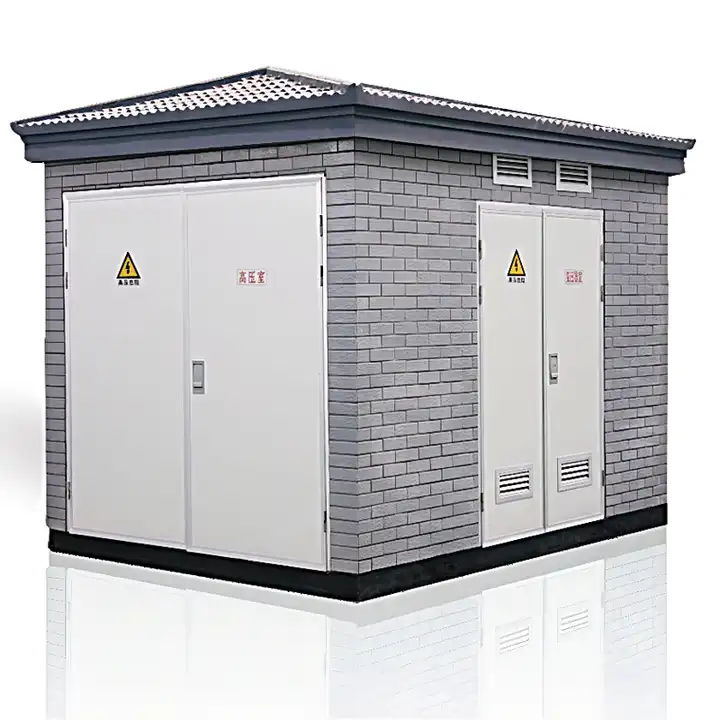

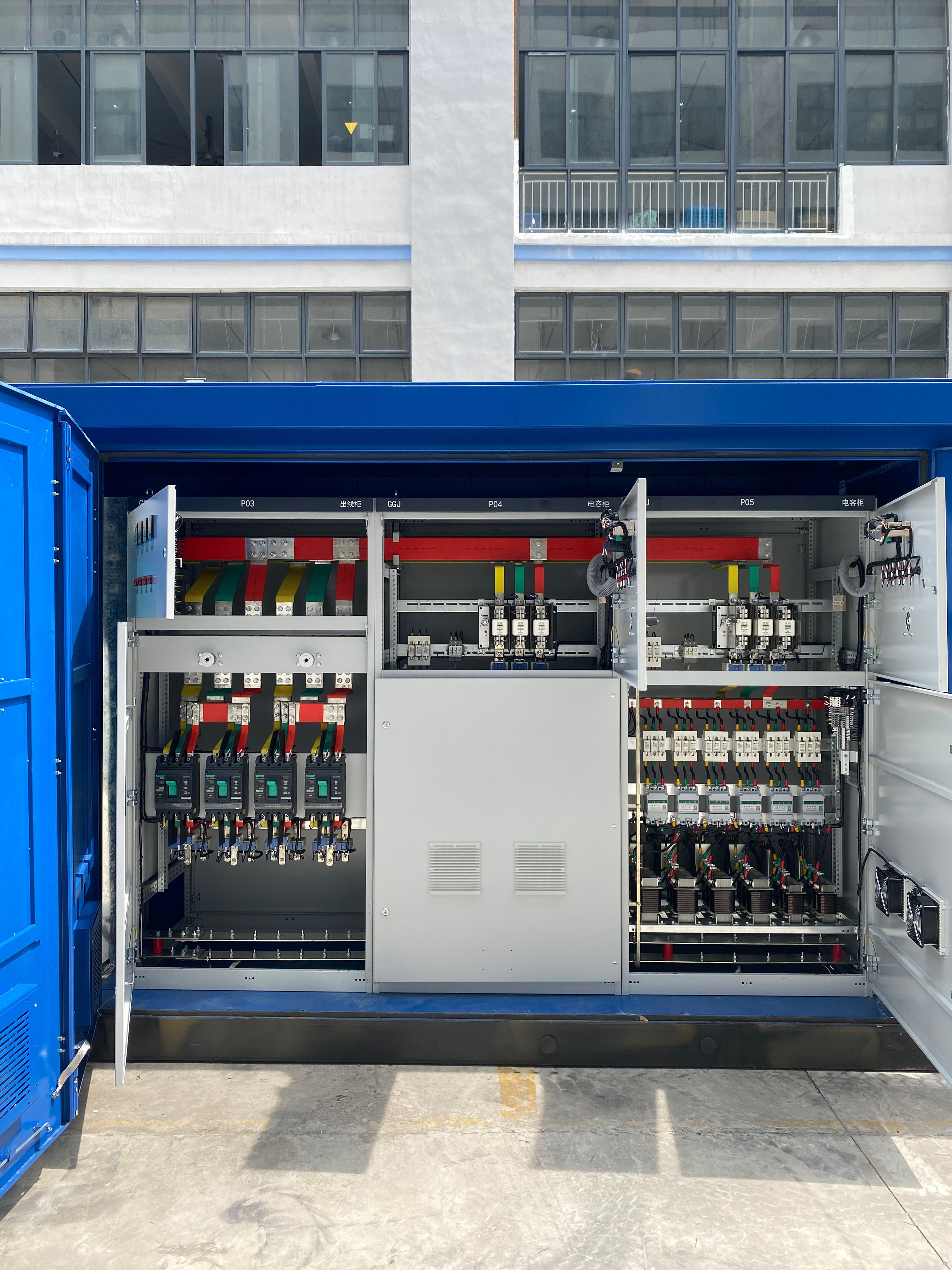

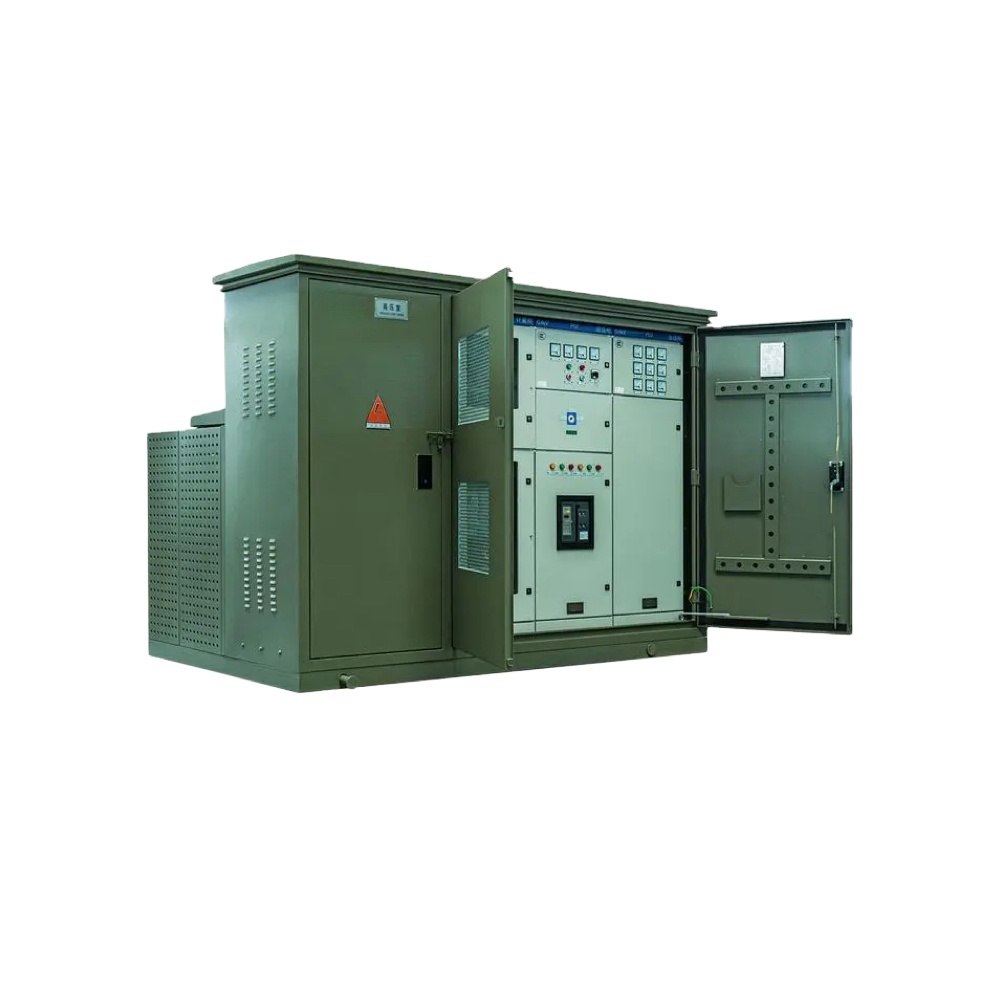

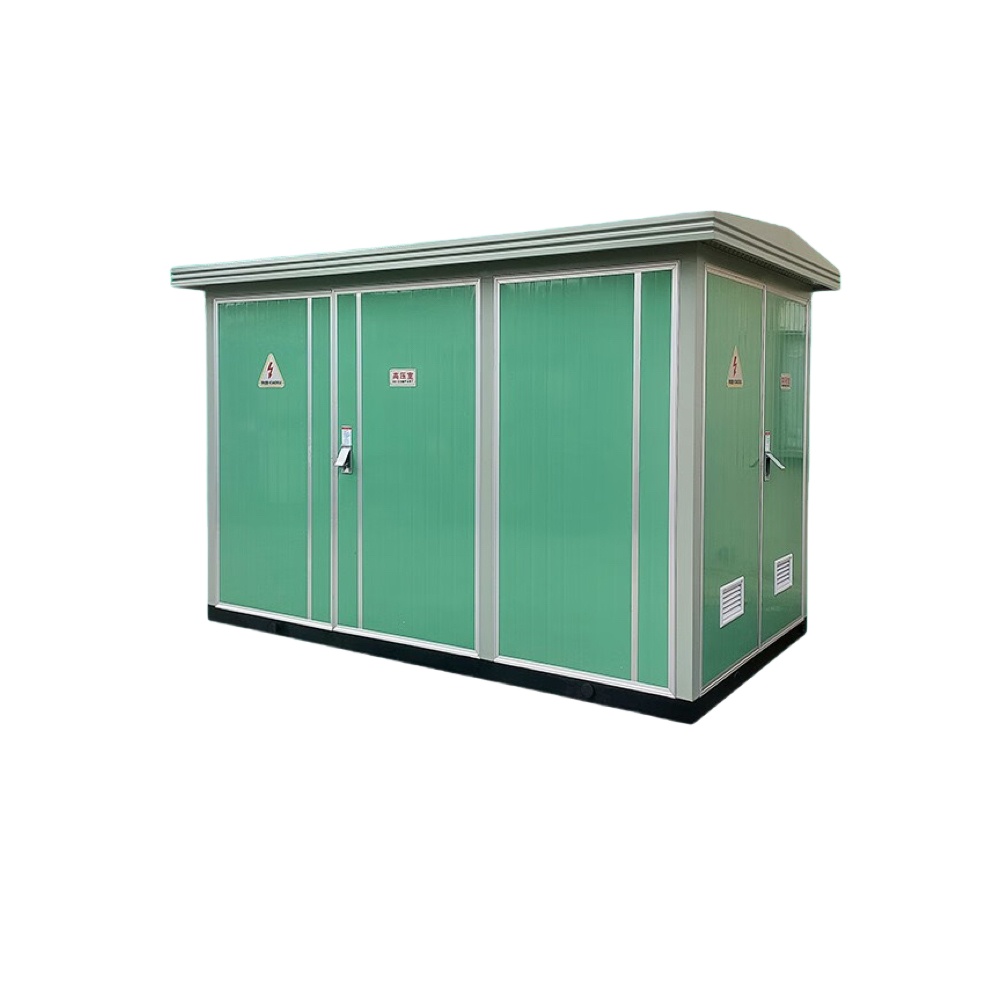

Distribution substations are essential components of electrical power networks, ensuring reliable power distribution. Our distribution substation is a comprehensive power supply unit designed for 3-phase AC 50Hz systems with a maximum rated capacity of 1600 KVA. It is widely utilized in various applications, including industrial and mining enterprises, residential areas, hospitals, shopping malls, and high-rise buildings.
| Ambient temperature: -25°C ~ 40°C |
| Relative humidity: Daily average < 95%, monthly average < 90%, with an average water vapor pressure below 2.2kPa |
| Altitude: <1000m |
| Seismic intensity: below magnitude 8 |
| External wind speed: less than 35m/s |
| Installation Location: Suitable for areas free from fire hazards, explosion risks, and chemical corrosion. |
| Compartment | Item | Unit | Parameter |
|---|---|---|---|
| High voltage compartment | Rated frequency | Hz | 50/60 Hz |
| Rated Voltage | KV | 3.3KV - 35KV | |
| Rated current | A | 400 - 2150A | |
| Transfer current | A | 1200-3150A | |
| BIL | KV | 75/85, 170/185 | |
| Rated short circuit breaking current | KA | 20, 31.5 |
*This table is for reference only and does not represent all product specifications.
