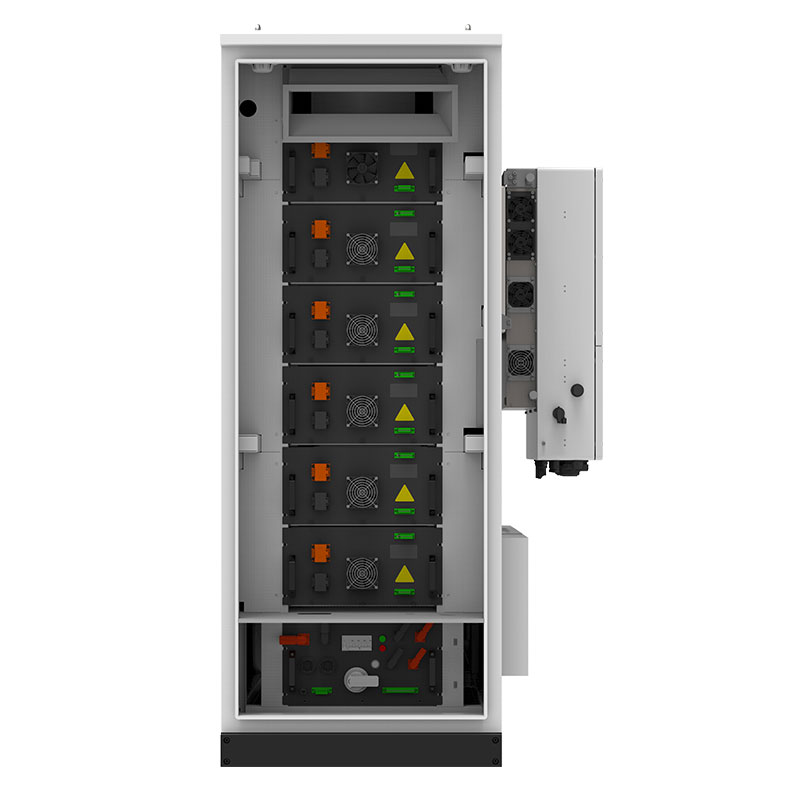

| Battery Input | |||
|---|---|---|---|
| Cell Type | LFP 280Ah | ||
| Battery System | 1P120S | ||
| Rated Energy | 107.52kWh | ||
| Rated Voltage | 384V | ||
| Voltage Range | 336~432V | ||
| PV Input | |||
| Input power Max. | 60kW | 80kW | 100kW |
| PV Voltage | 150V~850V | 150V~850V | 150V~850V |
| MPPT | 3 | 4 | 4 |
| MAX. Input Current | 40A*3 | 40A*4 | 40A*4 |
| AC Output | |||
| Rated Power | 30kW | 40kW | 50kW |
| Max. Power | 30kvA | 40kvA | 50kvA |
| Nominal Voltage | 400Vac/3P*N*PE | ||
| Nominal Frequency | 50Hz/60Hz | ||
| THDi | <3% | ||
| DC Ratio | <0.5%Ipn | ||
| Power Factor | 0.8 leading-0.8 lagging | ||
| General | |||
| Efficiency | 90% | ||
| Charge/Discharge Rate | 0.5P Max. | ||
| DoD | 95%(25±2℃) | ||
| Cycle Life | ≥8000 Cycles | ||
| Ingress Rating | IP55 | ||
| Cooling | Force air cooling | ||
| Operating Temperature | 25~55℃ | ||
| Humidity | 0~95%RH, non-condensing | ||
| Altitude | ≤2000m (derating above 2000m) | ||
| Dimensions(W*D*H) | 800*1200*2100mm | ||
| Weight | 1.2t | ||
| Fire Safety | Aerosol | ||
| Connective | Ethernet/RS485 | ||
| Compliance | UN38.3, IEC62477, IEC62619, IEC63056, UL9540A, EN50549 | ||
