Pre-installed containerized systems (battery + PV input) reduce installation/commissioning time and costs. Plug-and-play deployment for rapid setup.
AI-optimized air-cooling maintains full power at 45°C. Round-trip efficiency (RTE) 3% higher than competitors. LFP batteries ensure safety and long cycle life.

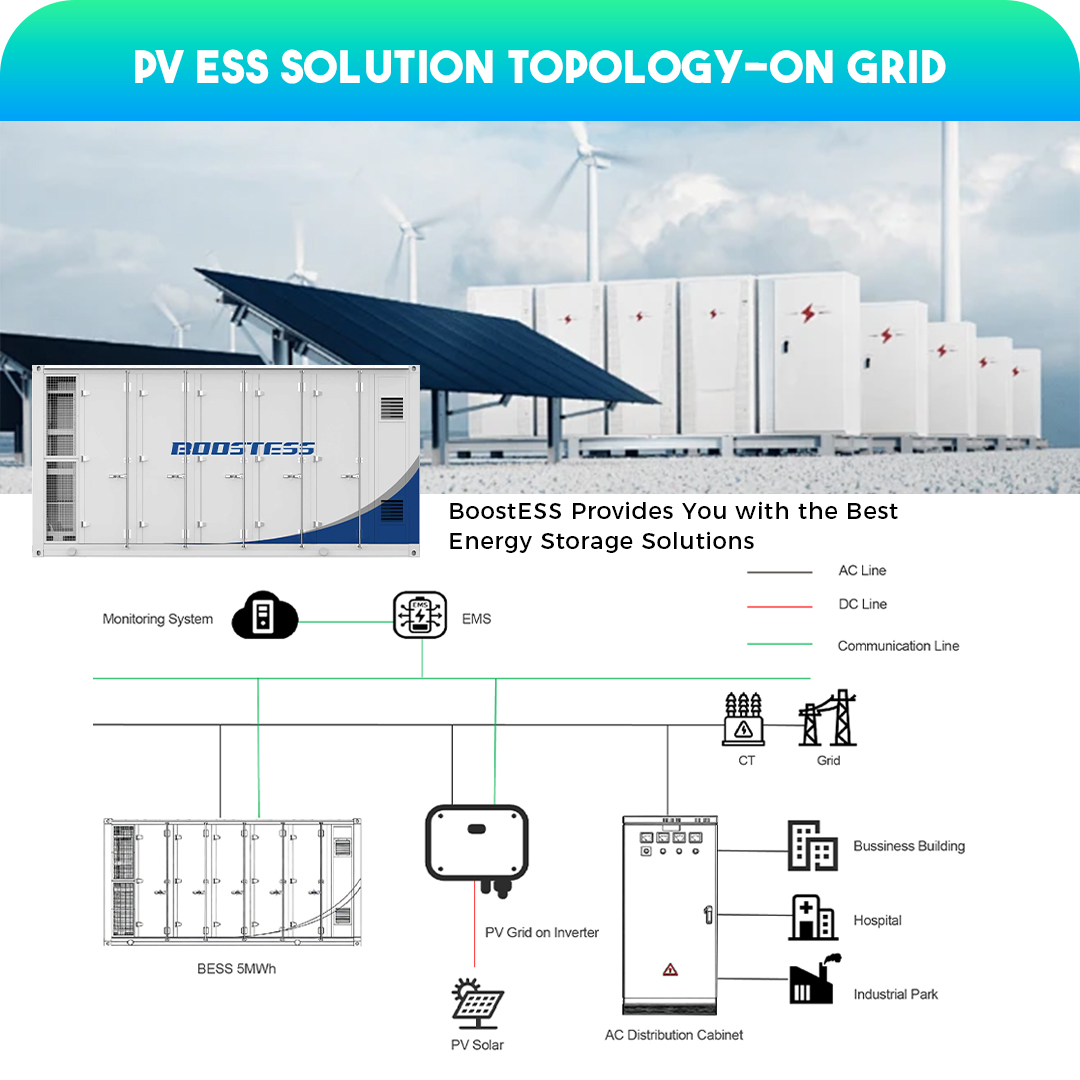

Modular cabinets/containers allow flexible capacity customization (100kWh–5MWh). Supports on/off-grid operation and parallel deployment.
Reduces energy costs by 30%–70% through peak shaving, solar integration, and grid independence. Lower maintenance costs via cloud monitoring.
Multi-layer protection: automatic fire extinguishers, PACK-level immersion fire tech, and active thermal management. Strict quality certifications (IEC/UN38.3).
Cloud-based remote monitoring, AI energy optimization, and 24/7 fault detection. Adaptive charging/discharging strategies maximize ROI.
Fully automated production lines (air/liquid-cooled PACKs). ODM capabilities and GWh-scale project experience.

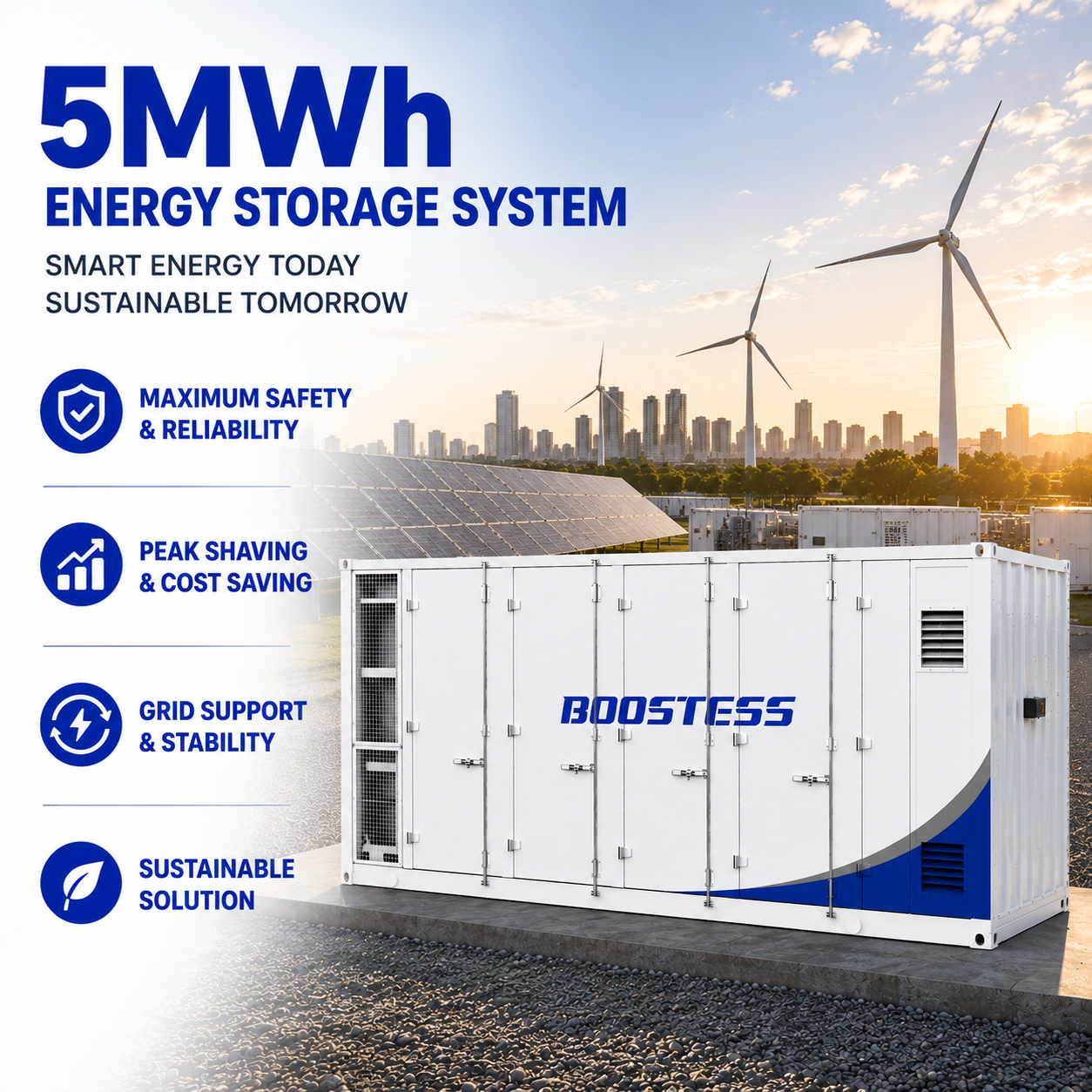

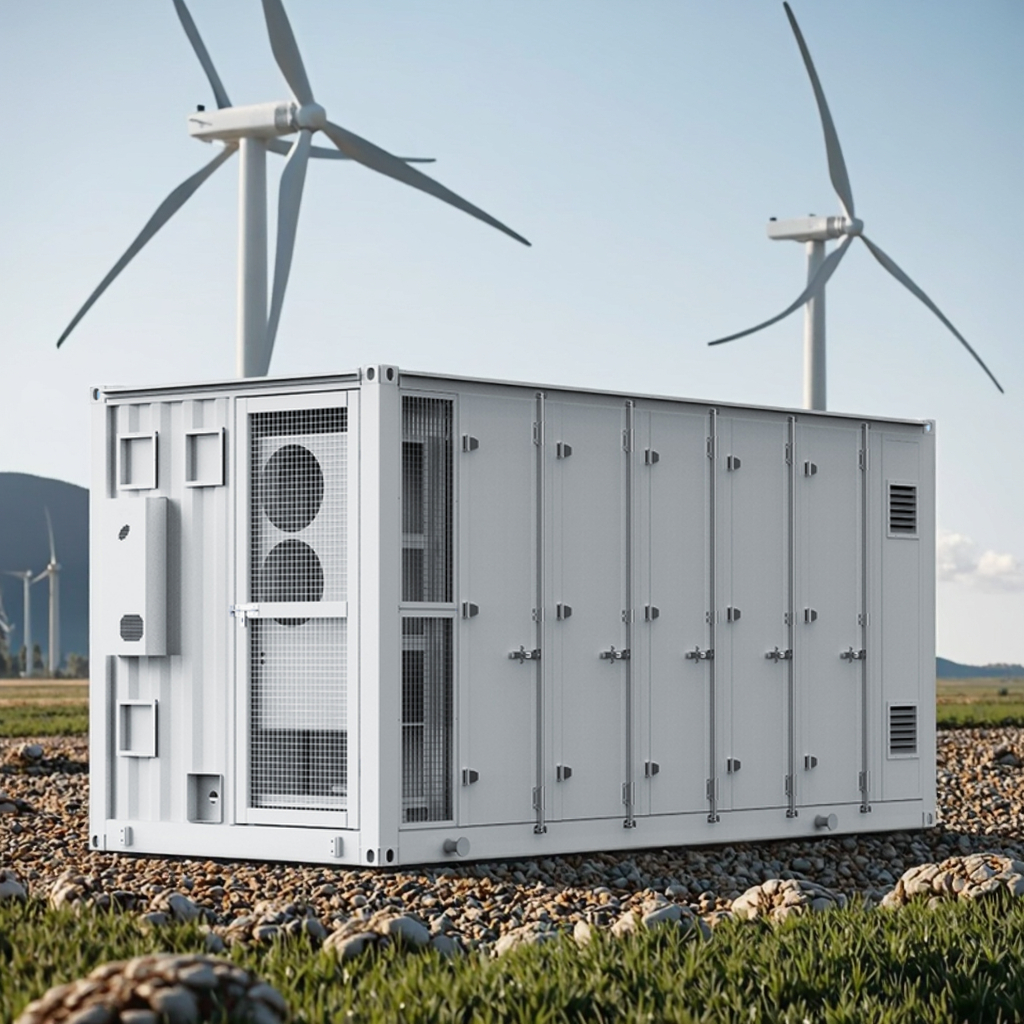

| Technical Specifications: 1mwh 5mwh Lifepo4 Battery Energy Storage Container | |||
|---|---|---|---|
| Battery Pack Type | 314 Ah / 332.8 V | Rated Energy Capacity | 5015 kWh |
| Cell Type | LFP 314 Ah | Battery Cycle | 8000@25°C, 80%DOD |
| Rated Output Power | 2500kW | Maximum Output Power | 2750kVA |
| Rated On-grid Voltage | 690Vac | Maximum Output Current | 2301A |
| Max Efficiency | 99.03% | Protection Level | IP55 |
| Cooling Method | Liquid Cooling | Operating Temp | -20°C to 55°C |

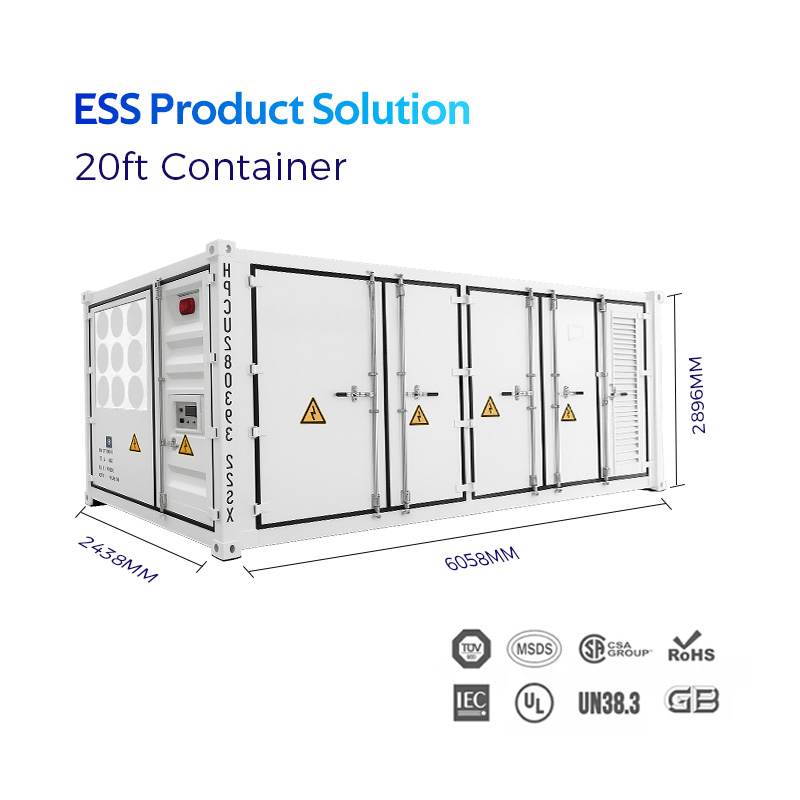

| Dimensions | 6096*2438*2896 mm | Container Weight | 43 tons |
| Communication | CAN, RS485, Ethernet | Certifications | IEC, UL9540A |
