All-in-One Hybrid Solar Energy Storage System 50kWh-500kWh with Lifepo4 Battery and Grid-Tie Inverter

📘 Product Parameters

Product model: HJ-ESS-215A (100KW/215KWh) \| Certificate: CE, ISO 9001, UL 9540, IEC 62619, UN 38.3
DC Parameters		AC Parameters
Battery Type	Lithium Iron Phosphate	AC side rated power	100KW
Cell capacity	3.2V/314Ah	Maximum power on AC side	110KW
System battery configuration	1P240S	Cable total harmonic distortion rate	<3% of rated power
Battery rated capacity	215kWh	AC side rated voltage	380VAC
Battery voltage range	DC636-876V	Communication access method	3P+N+PE
Charge and discharge rate	0.5C	Rated grid frequency	50/60Hz
Discharge depth	80%	Power factor range	0.98
Battery cooling method	Air cooling	Off-grid operation	Support
System Parameters
Size	160012802200mm (reference)	Temperature control method	Industrial grade temperature controlled air conditioner
Protection level	IP55	Fire protection plan	Aerosol, perfluorohexanone
System communication protocol	Standard: Modbus	Communication Interface	RS485, RJ45

Air Cooling

HJ-ESS-100A (50kW/100kWh)

HJ-ESS-115A (50kW/115kWh)

HJ-ESS-215A (100kW/215kWh)

HJ-ESS-DESA series 215 kWh - 1075 kWh

Liquid Cooling

HJ-ESS-372L (150kW/372kWh)

HJ-ESS-DESL series (372kW - 1860kWh)

HJ-ESS-EPSL (3440kW - 6880kWh)

HJ-ESS-DESA series 372kWh - 1860 kWh

📦 Products Description

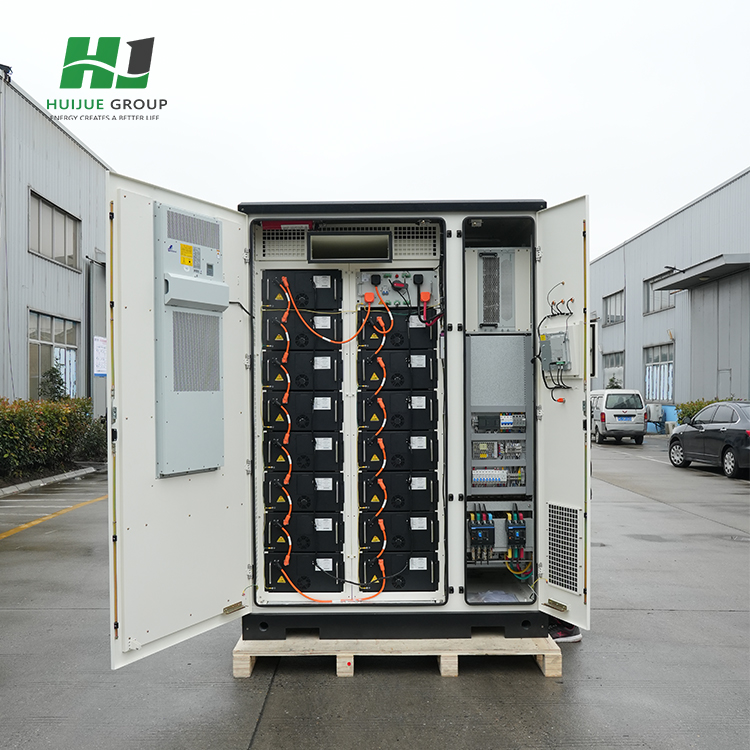

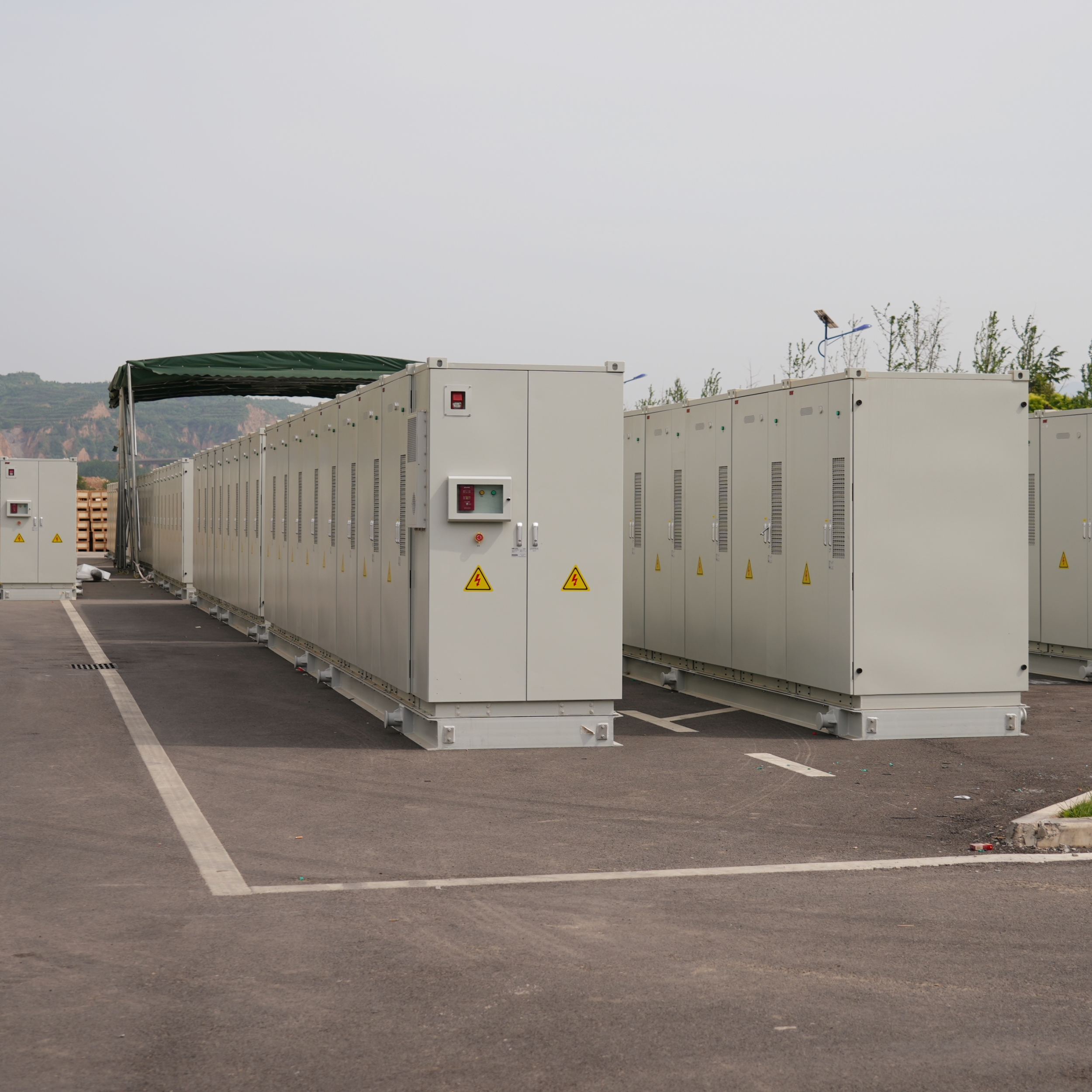

HJ-ESS-215A is a high-capacity air-cooled energy storage system designed for outdoor industrial and commercial applications. The system features 100KW power output and 215KWh energy storage capacity, offering businesses an efficient energy management solution that helps optimize energy consumption, enhance renewable energy utilization, and ensure stable power supply.

⚙️ Features

Supports Multiple Operating Modes: Compatible with both grid-connected and off-grid operation modes.

High Compatibility: Compatible with solar PV systems, enabling hybrid energy solutions.

High Integration and Comprehensive System: Integrated with a smart energy management system that supports real-time monitoring and control.

Integrated Safety Features: Including overvoltage, overcurrent, and short-circuit protection.

💡 Application

Suitable for medium to large industrial and commercial facilities as an energy storage solution.

Well-suited for providing backup power to hospitals, data centers, and manufacturing plants.

Peak shaving and load shifting in energy-intensive industries to reduce operational costs.

🏢 Company Profile

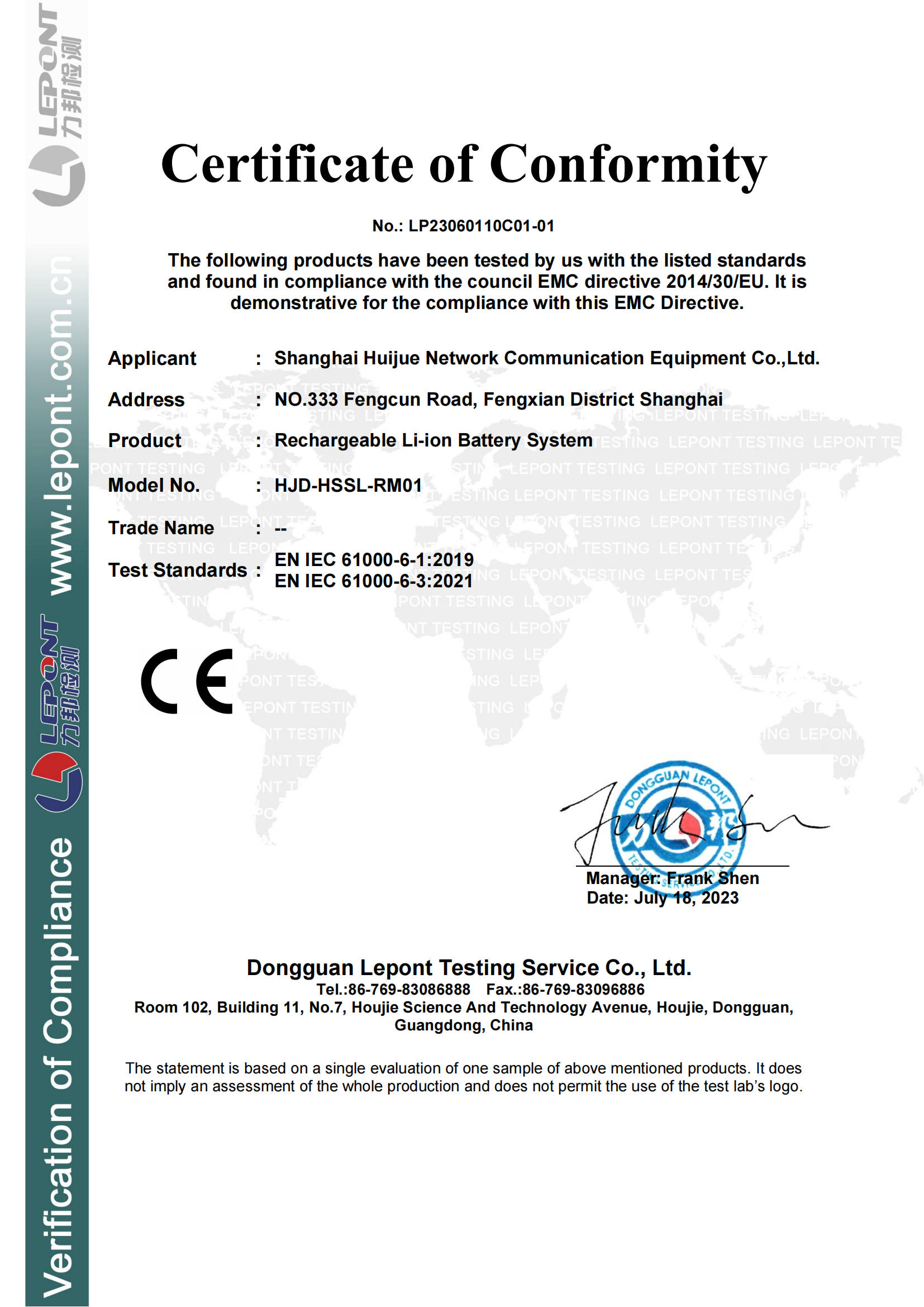

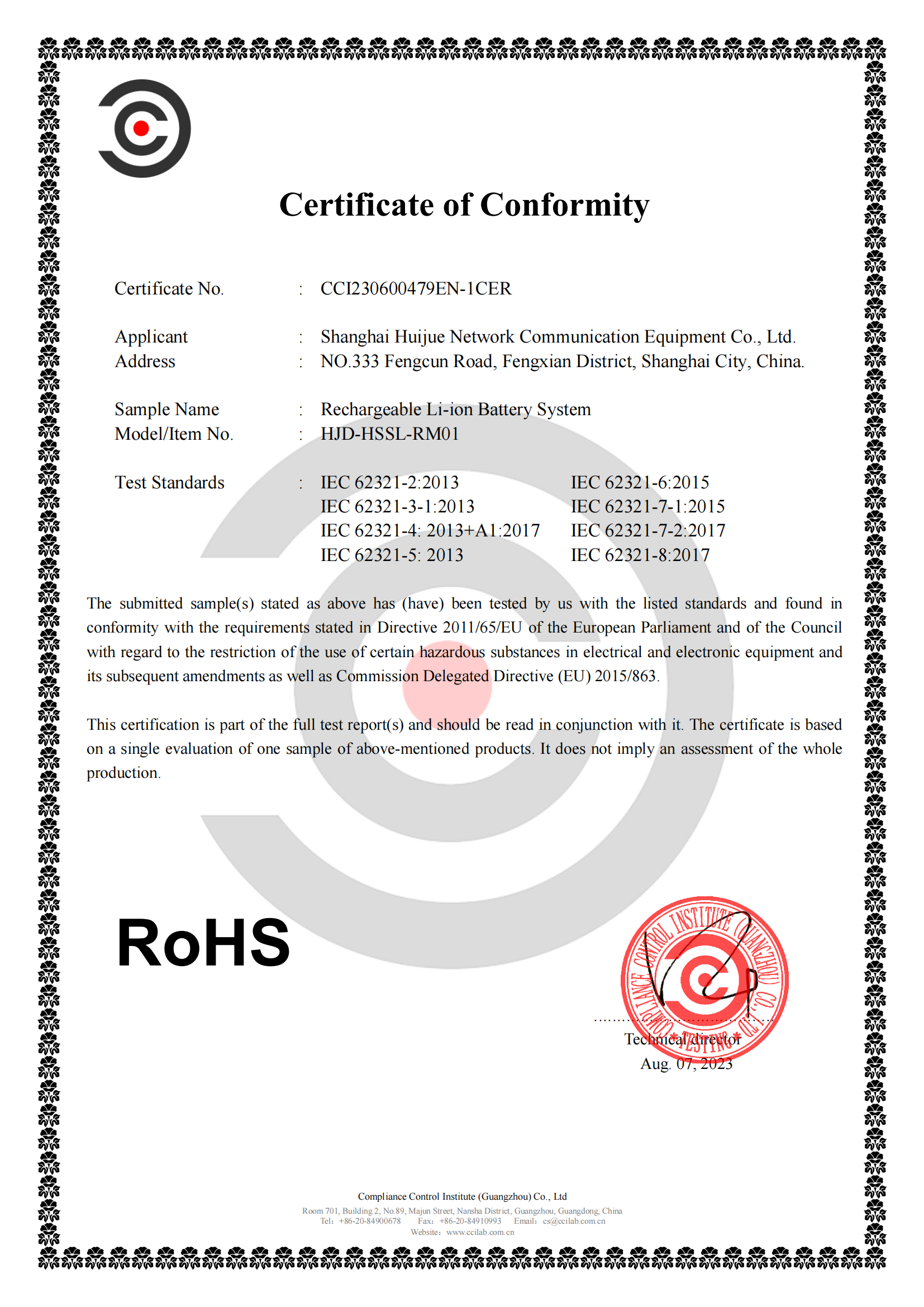

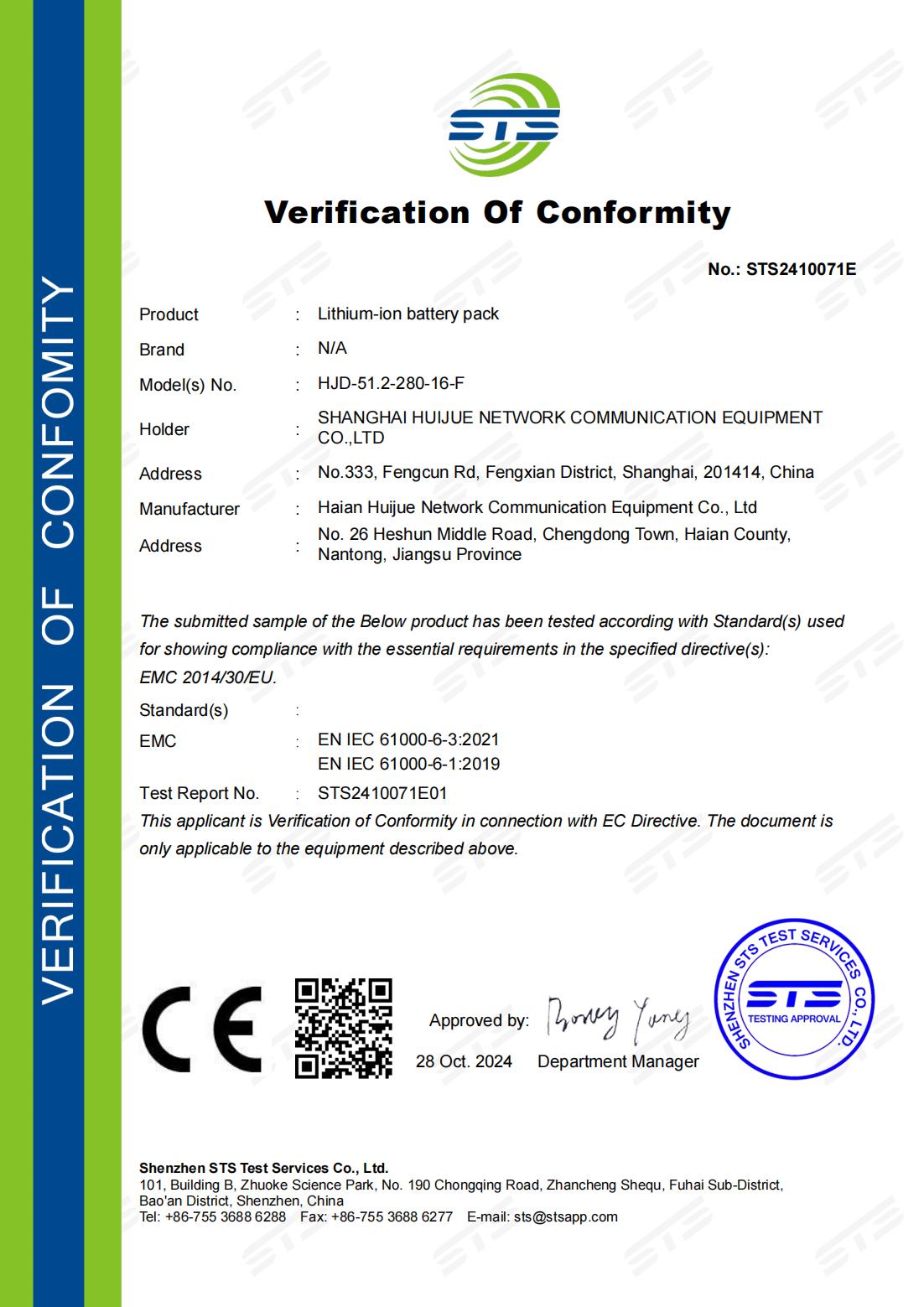

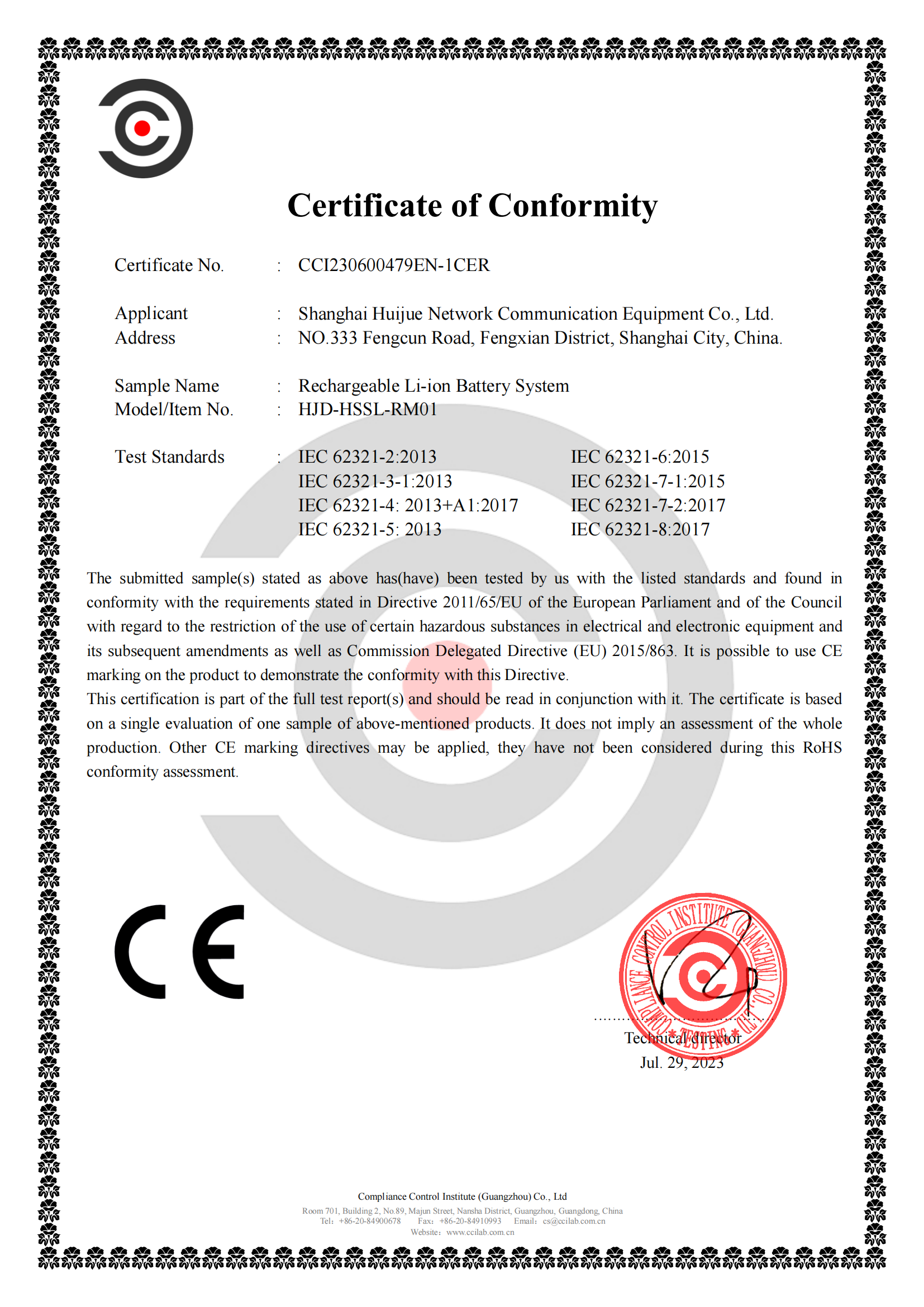

📜 Certifications

❓ FAQ

Q1: What is the MOQ for the products?

A1: It depends on the order details. Large quantities can qualify for a discount.

Q2: Can samples be sent to customers?

A2: Yes, sample orders are supported (with free samples available for specific items).

Q3: Do you supply custom packaging and accept OEM?

A3: Yes, we provide custom packaging and OEM services. You simply need to send your design requirements and logo to proceed.

Q4: How long does the production and delivery take?

A4: The lead time depends on your specific order volume. Please consult our support team for detailed timeline information.

Q5: What are the available shipping options?

A5: We can arrange shipping by air or sea depending on customer requirements.

Q6: Do your products come with a warranty?

A6: Yes, we provide a 1-3 year warranty depending on the specific product model.
