| DC Battery Parameters | |
|---|---|
| Battery Cell Type | LFP 280Ah |

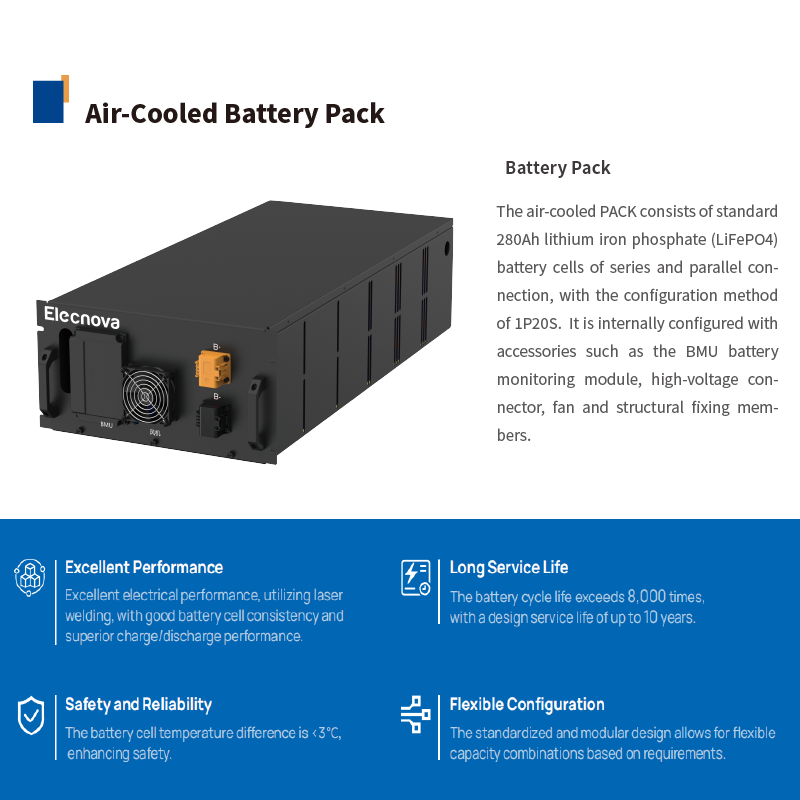

| Battery Pack Configuration | 17.92kWh/1P20S |
| Battery System Configuration | 215kWh/1P240S |
| Battery Voltage Range | 600~876V DC |
| System Rated Voltage | 768V DC |
| AC Side Parameters | |
| AC Rated Power | 100kW |
| AC Maximum Power | 110kW (continuous for 1min) |
| AC Current Distortion Rate | ≤3% |
| DC Component | ≤0.5%Ipn |
| Grid Rated Voltage | 400V AC |
| Adjustable Power Factor Range | -1~1 |
| Rated Grid Frequency | 50Hz |
| System Parameters | |
| Energy Conversion Efficiency | ≥90% |
| Charge/Discharge Rate | ≤0.5P |
| Discharge Depth | 95%DOD |
| Number of Cycles | ≥8,000 times |
| Charge/Discharge Switching Time | ≤100ms |

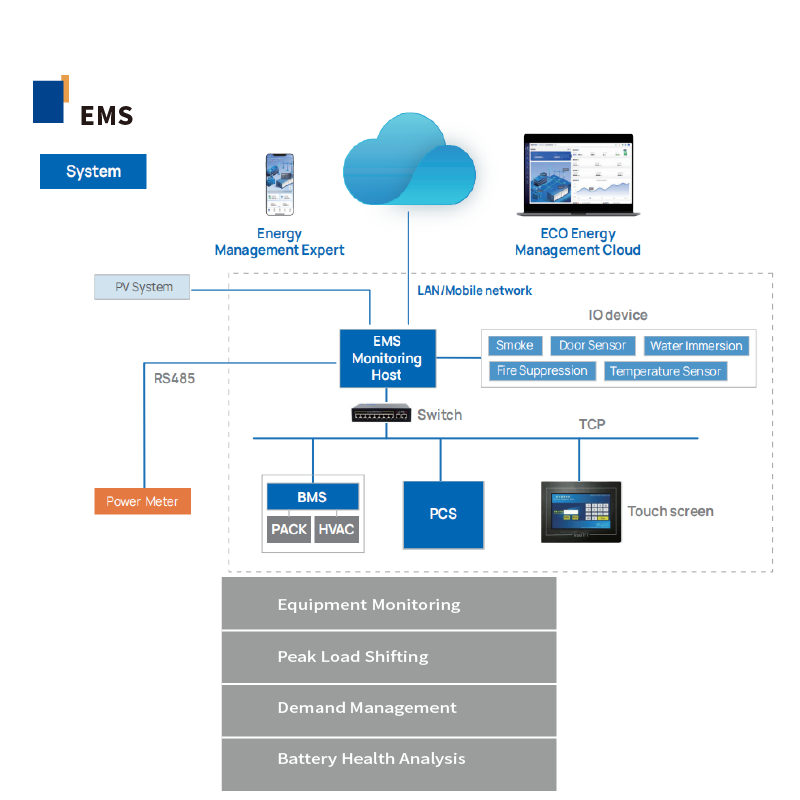

| Communication Interface | Ethernet /RS485 |
| Protection Level | IP55 |
| Cooling Method | Forced Air Cooling |
| Operating Temperature | -25~55℃ |
| Dimensions (W*D*H) | 1,250*1,300*2,350 (mm) |
| Weight | 2,500kg |
| Compliance Standards | UN38.3, IEC62619, UL1973, UL9540 |
