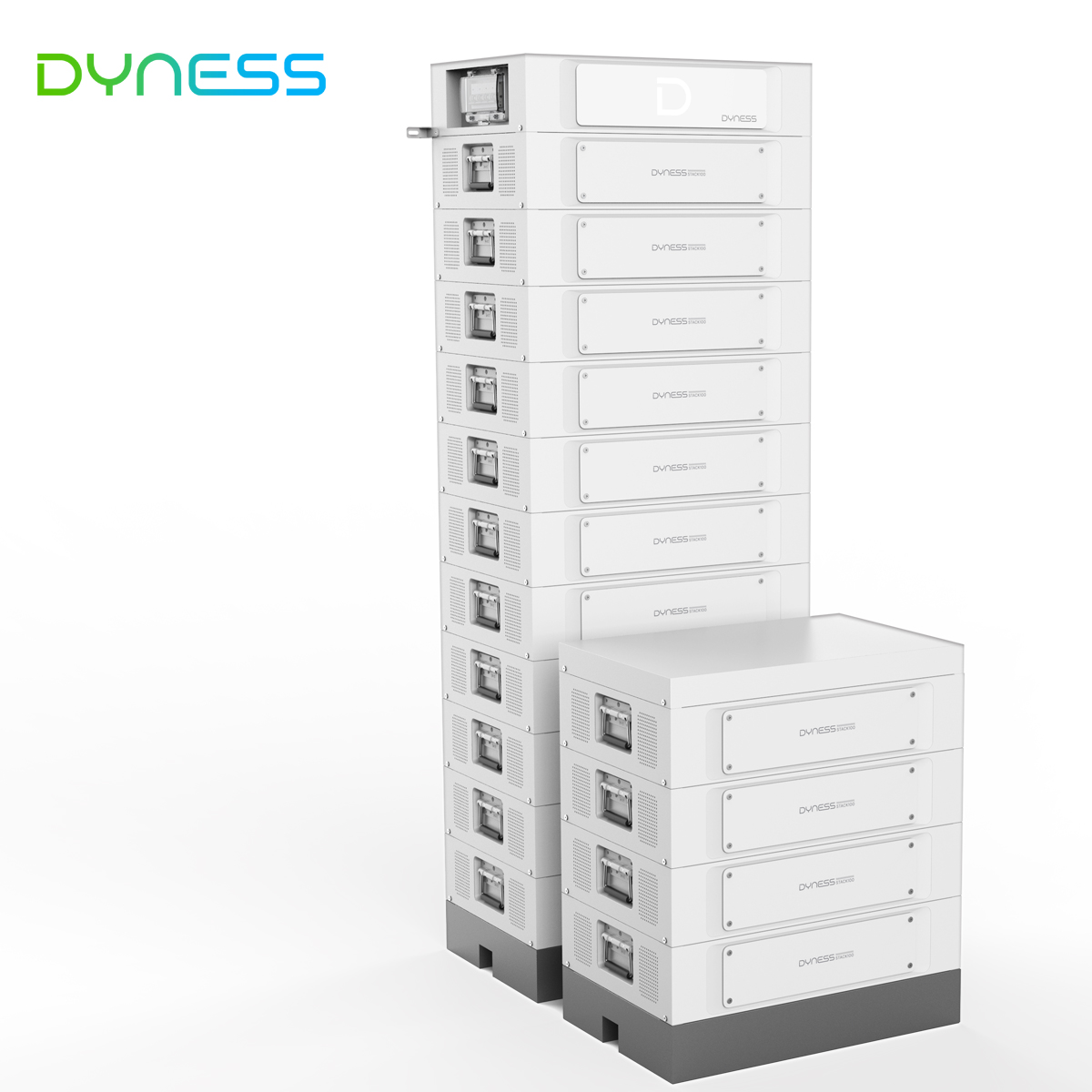

Dyness High Voltage Stack100 15.36kWh - 76.8kWh Home Energy Storage Battery BESS Compatible with Goodwe Sofar Deye Inverters
Dyness High Voltage Stack100 15.36kWh - 76.8kWh Home Energy Storage Battery BESS Compatible with Goodwe Sofar Deye Inverters
Dyness High Voltage Stack100 15.36kWh - 76.8kWh Home Energy Storage Battery BESS Compatible with Goodwe Sofar Deye Inverters
Dyness High Voltage Stack100 15.36kWh - 76.8kWh Home Energy Storage Battery BESS Compatible with Goodwe Sofar Deye Inverters
Dyness High Voltage Stack100 15.36kWh - 76.8kWh Home Energy Storage Battery BESS Compatible with Goodwe Sofar Deye Inverters
1 / 5
Dyness High Voltage Stack100 15.36kWh - 76.8kWh Home Energy Storage Battery BESS Compatible with Goodwe Sofar Deye Inverters
Dyness High Voltage Stack100 15.36kWh - 76.8kWh Home Energy Storage Battery BESS Compatible with Goodwe Sofar Deye Inverters
Dyness High Voltage Stack100 15.36kWh - 76.8kWh Home Energy Storage Battery BESS Compatible with Goodwe Sofar Deye Inverters
Dyness High Voltage Stack100 15.36kWh - 76.8kWh Home Energy Storage Battery BESS Compatible with Goodwe Sofar Deye Inverters
Dyness High Voltage Stack100 15.36kWh - 76.8kWh Home Energy Storage Battery BESS Compatible with Goodwe Sofar Deye Inverters

Dyness High Voltage Stack100 15.36kWh - 76.8kWh Home Energy Storage Battery BESS Compatible with Goodwe Sofar Deye Inverters

Send Inquiry

Product Description

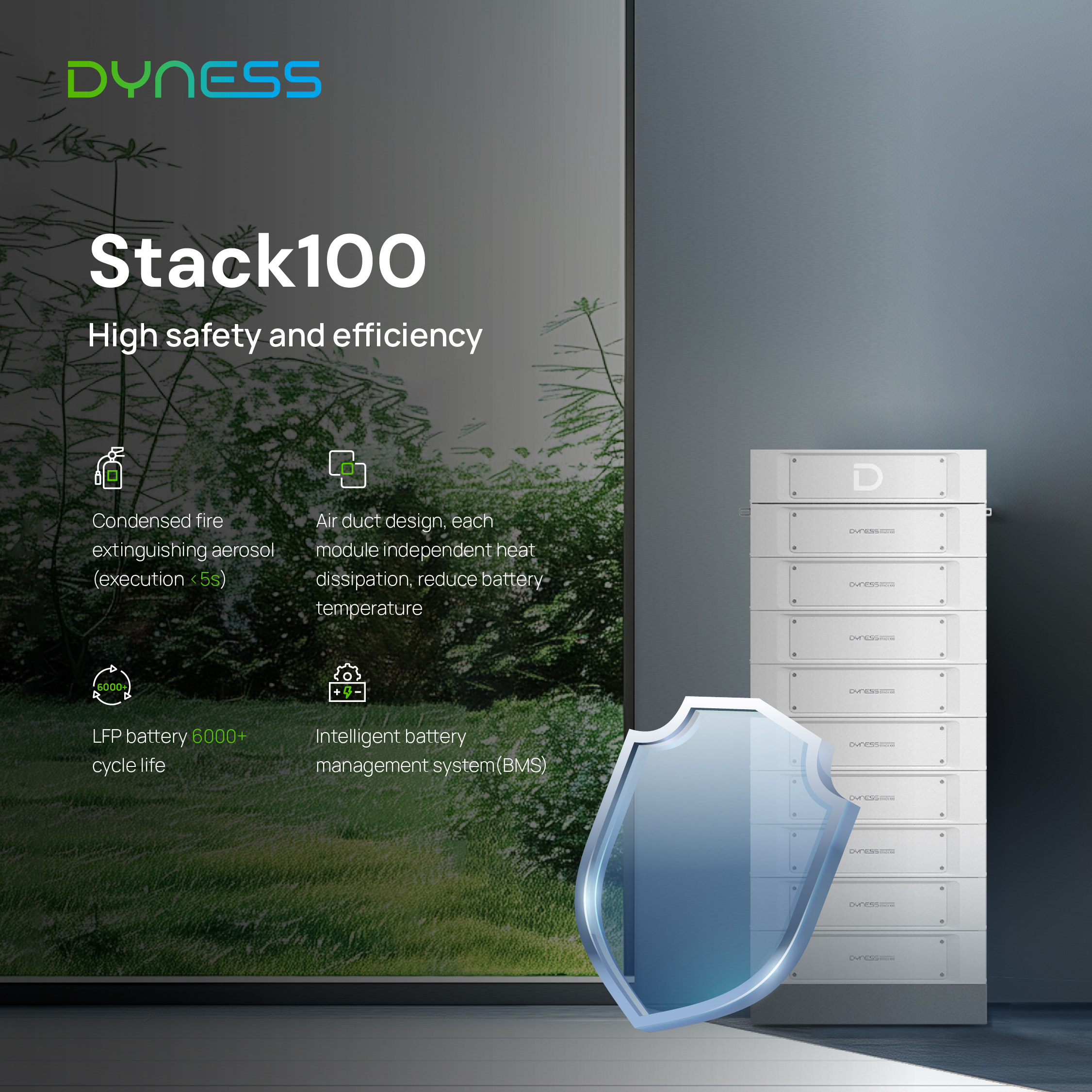

Product Detail
Product Detail
Specifications
Model STACK 100-3s STACK 100-5s STACK 100-6s STACK 100-10s STACK 100-12s STACK 100-15s
Module Voltage/Capacity 51.2V/100Ah
System Modules Serial Number 3 5 6 10 12 15
System Energy Range 15.4kWh 25.6kWh 30.7kWh 51.2kWh 61.4kWh 76.8kWh
Operating Voltage 134-175V 224-292V 268-350V 448-584V 537-700V 672-876V
Recommended Charge/Discharge Current 50A (0.5C)
Max. Charge/Discharge Current 100A (1C)
Peak Discharge Current (2min @ 25°C) 125A (1.25C)
Depth of Discharge 95%
Communication CAN/RS485
Cycle life 10 Years
Max. Single Cluster Dimension [W*D*H] 591*390*634 mm 591*390*901 mm 591*390*1035 mm 591*390*1569 mm 591*390*1836 mm 591*390*2236 mm
Single Module Weight 47Kg
Protection Level IP20
Fire Protection System Aerosol fire extinguisher
Certification & Safety Standard CE-EMC/CE-RED/62619/63056/62477/62040/UN38.3
Compatible Inverters Deye/Goodwe/Solis/SAJ/Sinexcel/Hoymiles/Growatt/Ecatus/Sermatec/ATESS/Sunways etc
Features

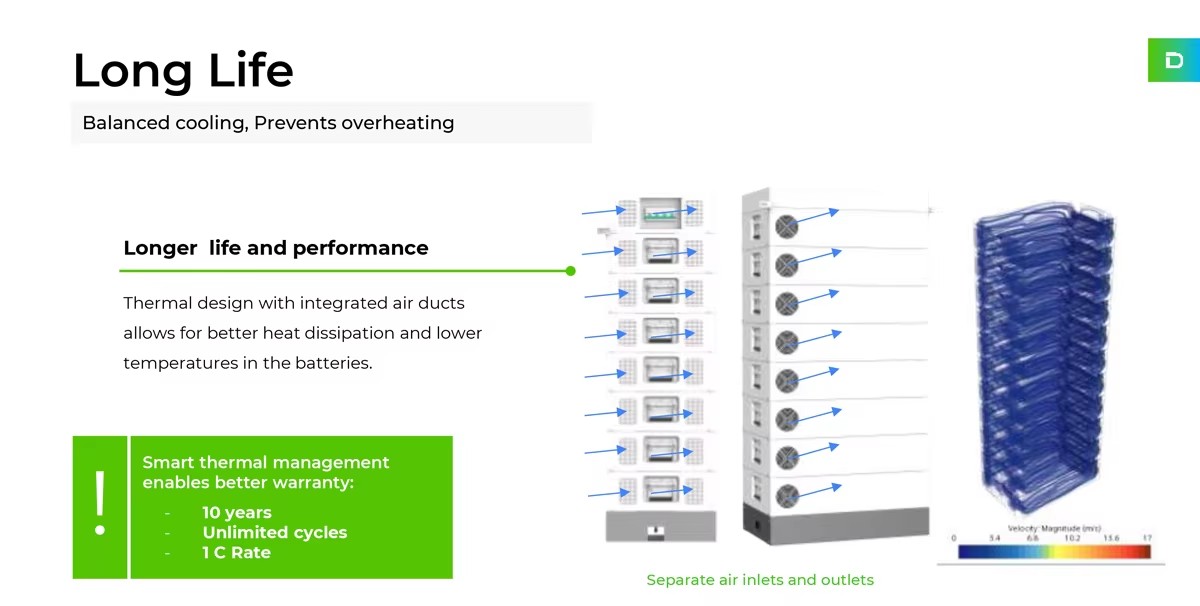

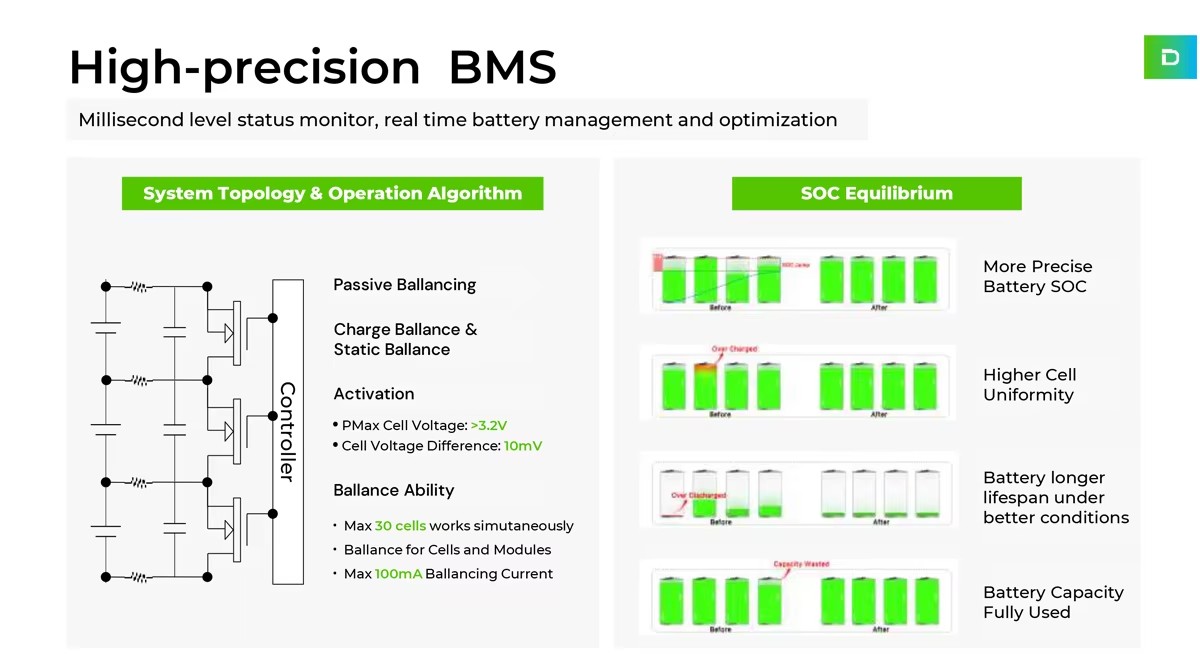

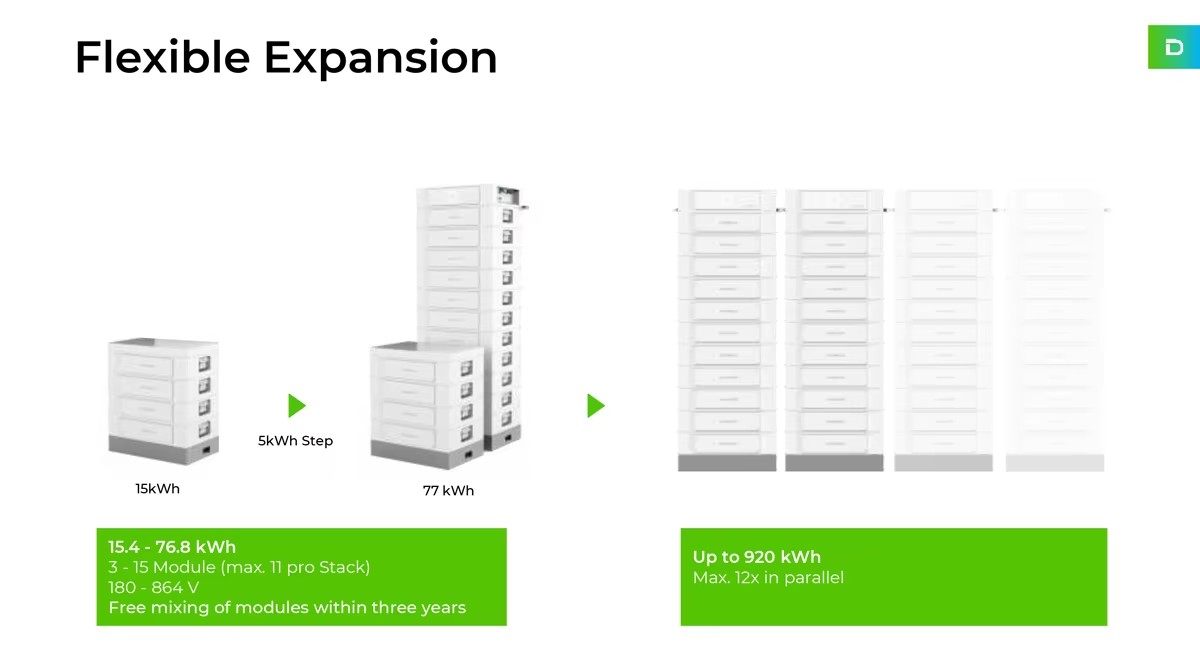

Features 1 Features 2 Features 3 Features 4

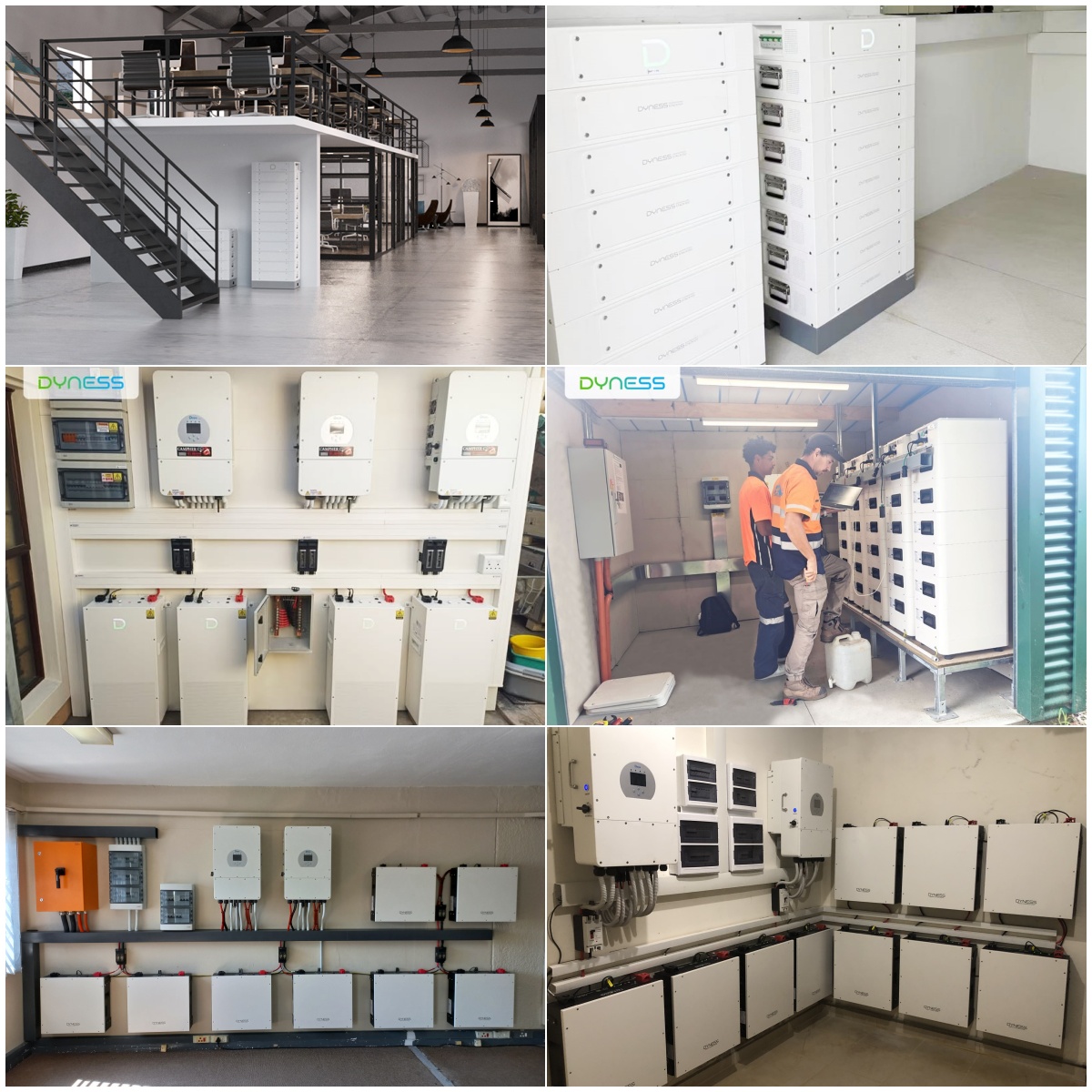

Projects Pictures
Projects Pictures
Product Package
Product Package
Frequently Asked Questions
Q1: What is the nominal capacity and voltage of a single module?
A1: Each single battery module has a nominal voltage of 51.2V and a capacity of 100Ah, supplying 5.12kWh of energy.
Q2: How scalable is the energy range of this stackable system?
A2: The system can stack from 3 to 15 modules in series, allowing you to configure the total energy capacity flexibly from 15.4kWh up to 76.8kWh.
Q3: What inverters are compatible with this energy storage system?
A3: It is widely compatible with major market-leading hybrid inverters, including Deye, Goodwe, Solis, SAJ, Sinexcel, Hoymiles, Growatt, Ecatus, Sermatec, ATESS, Sunways, and more.
Q4: What built-in safety features are included in the design?
A4: The battery system is equipped with an integrated Aerosol fire extinguisher for advanced thermal runaway protection and carries an IP20 protection level.
Q5: Which international certifications and safety standards does it meet?
A5: The system is certified under major global safety standards, including CE-EMC, CE-RED, IEC 62619, IEC 63056, IEC 62477, IEC 62040, and UN38.3.
Q6: What is the expected cycle life of the battery system?
A6: The stackable battery system is engineered for long-term durability, offering a designed cycle life of 10 years.
