Exclusive for Italy Customers: Pre-orders are now open for Polish stock arrival around mid-July.
Available Kits: High-performance kits including 315AH and 314AH solutions. Order directly through this link for priority allocation.

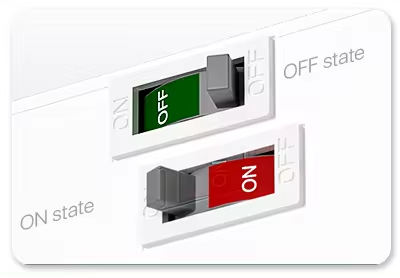

Protection against short circuit hazards and overheating overload.

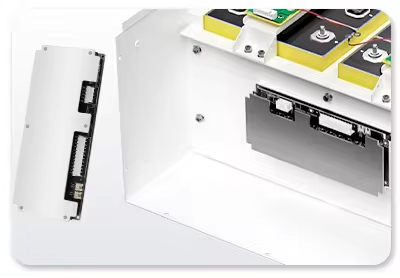

Ensures voltage consistency across all cells for optimal performance.
Stabilized signal for remote monitoring via your smartphone.

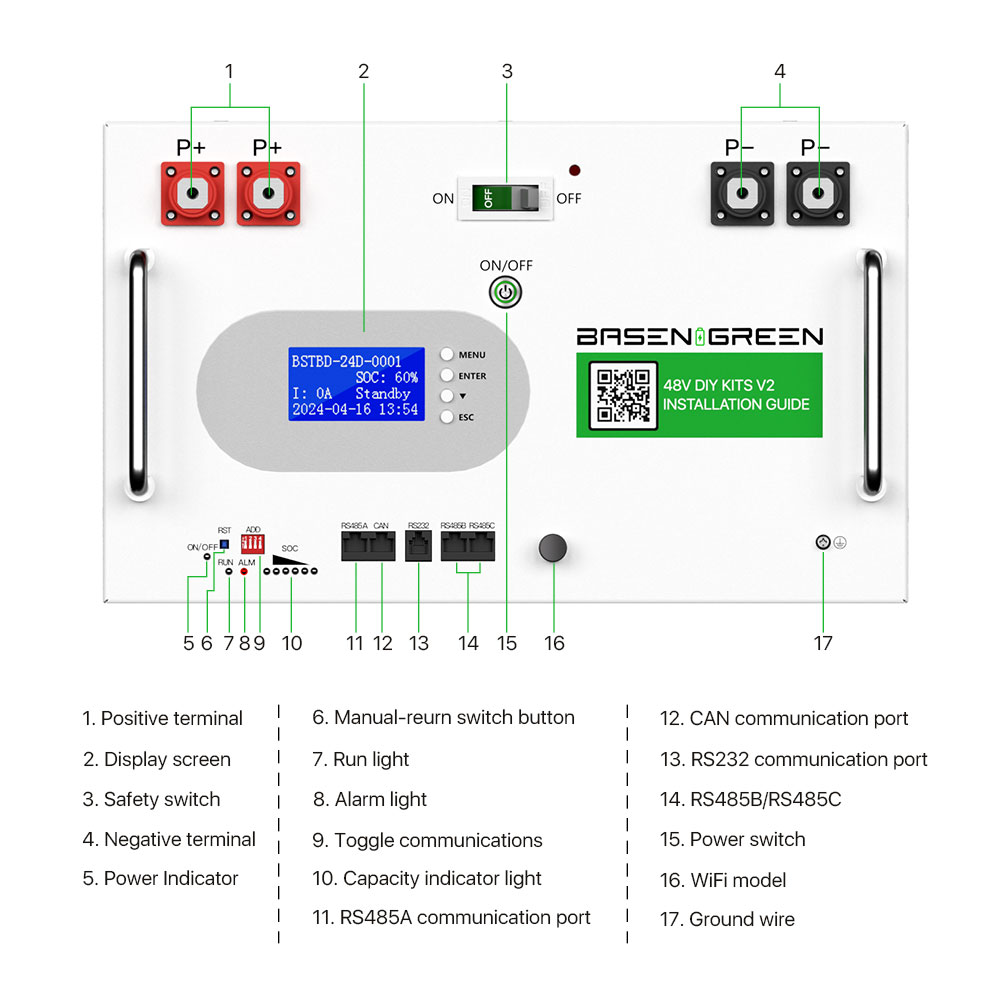

Switchable communication protocols displayed directly on the unit.

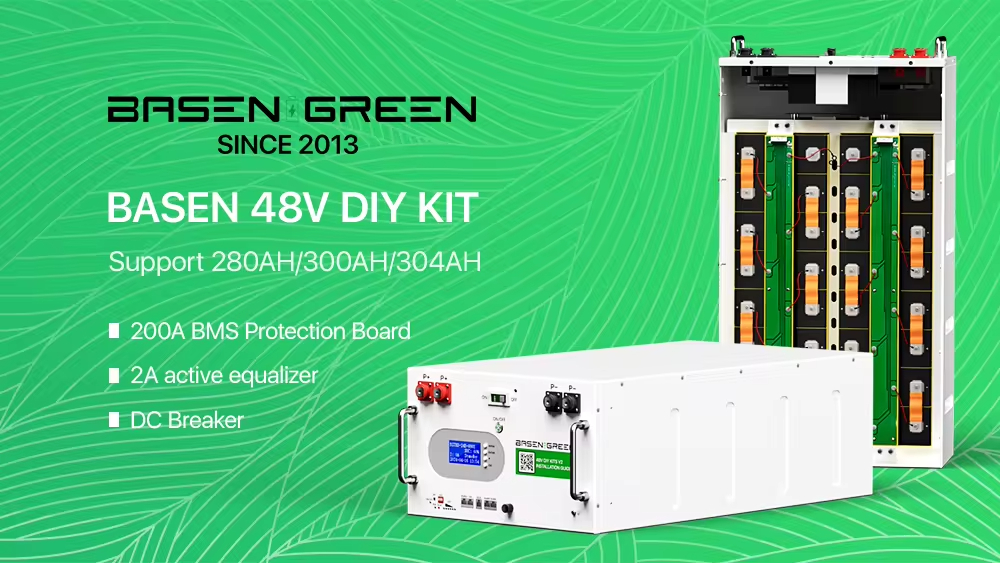

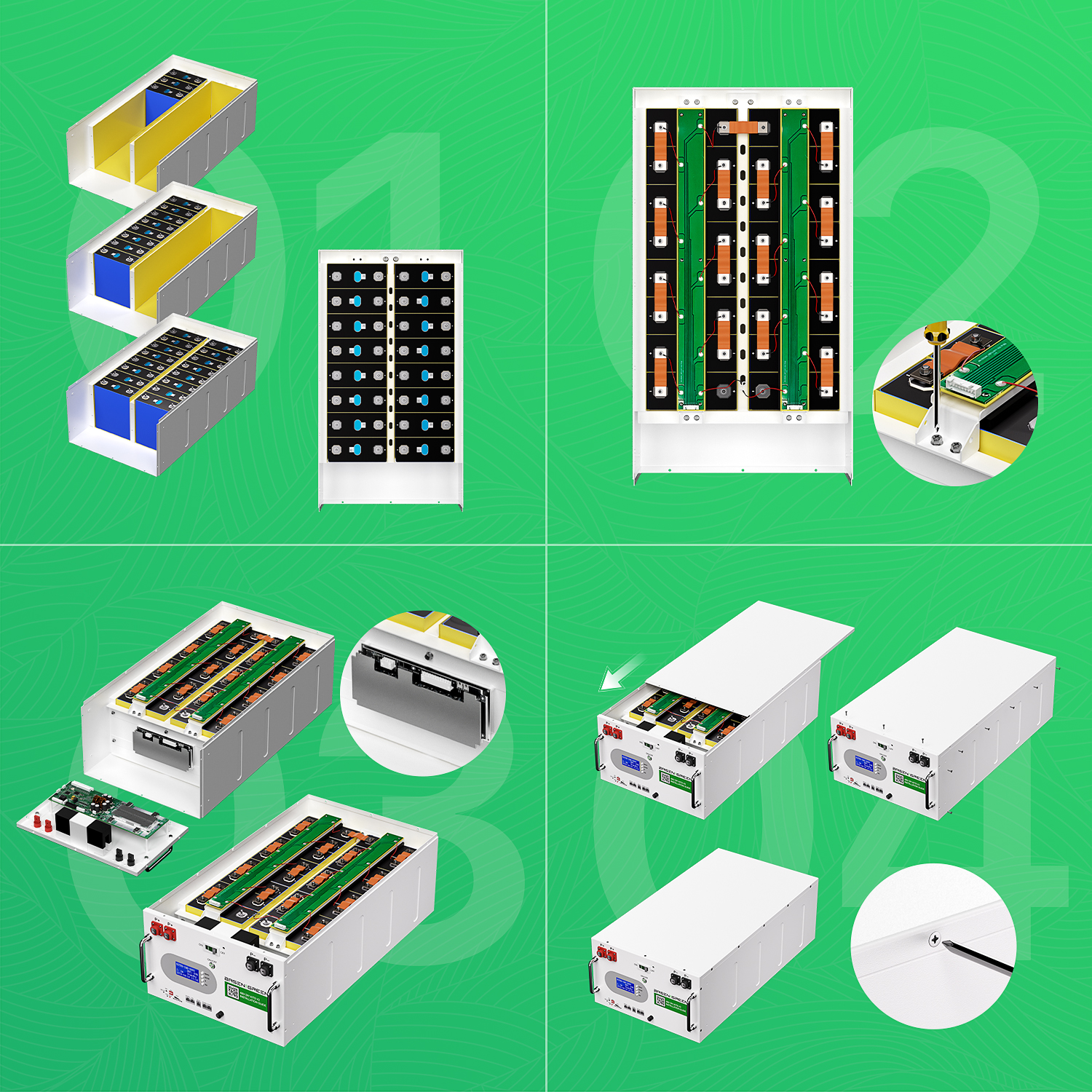

The Battery case includes Smart BMS with LCD display and BT Kits. Components are pre-assembled for efficient installation.
| Parameter | Value |
|---|---|
| Nominal Voltage | 51.2V |
| Nominal Capacity | 280Ah @0.5C discharge |
| Nominal Power | 14.336KWh |
| Dimension | 770*425*255mm |
| Weight | 32KG |
| Charge Voltage | 57.6V |
| Max Discharge Current | 200A |
| Working Temperature | -10℃ ~ 50℃ (Discharge) |
| IP Level | IP20 |

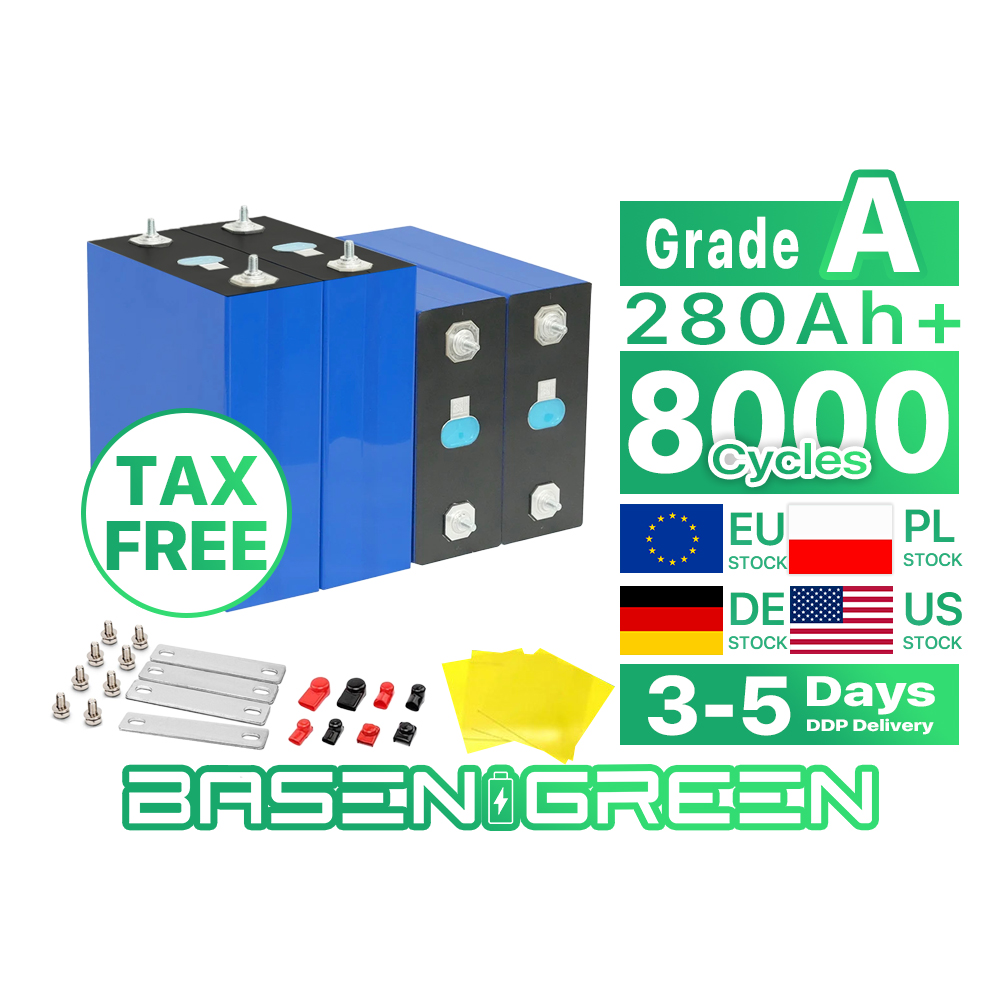

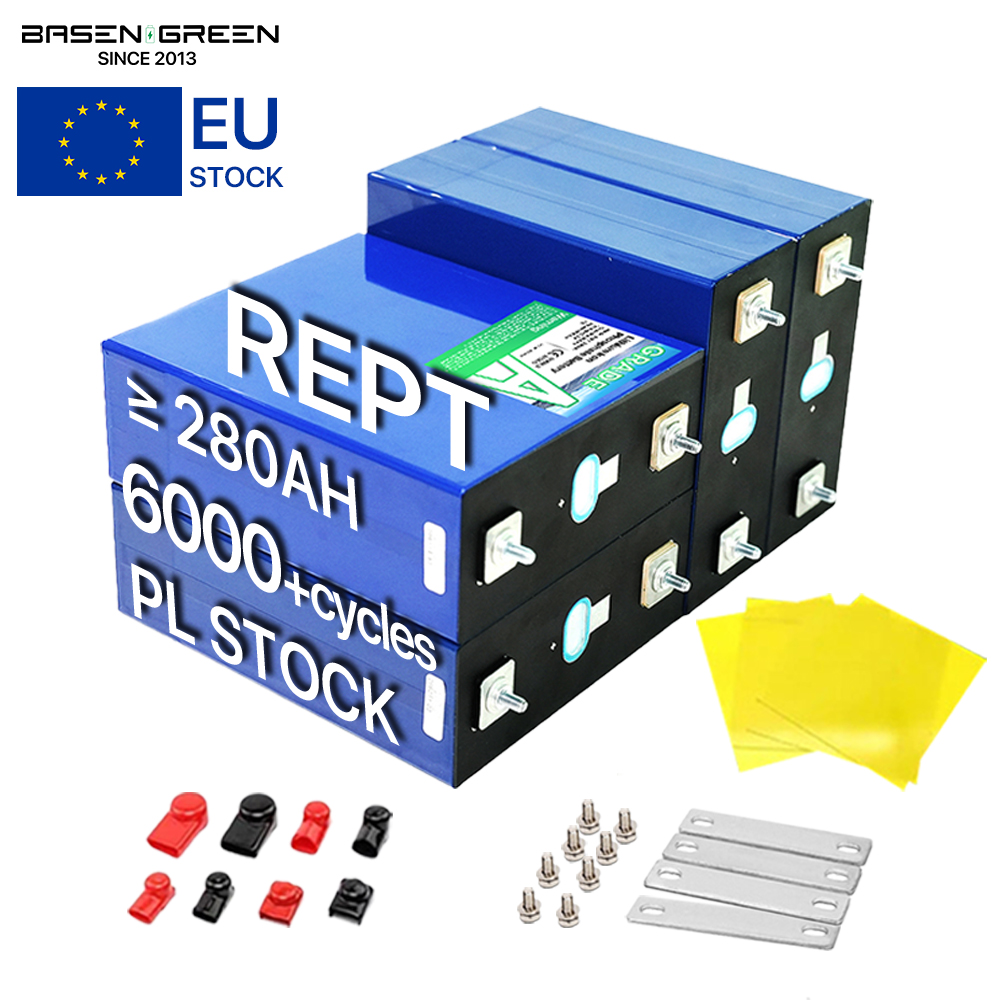

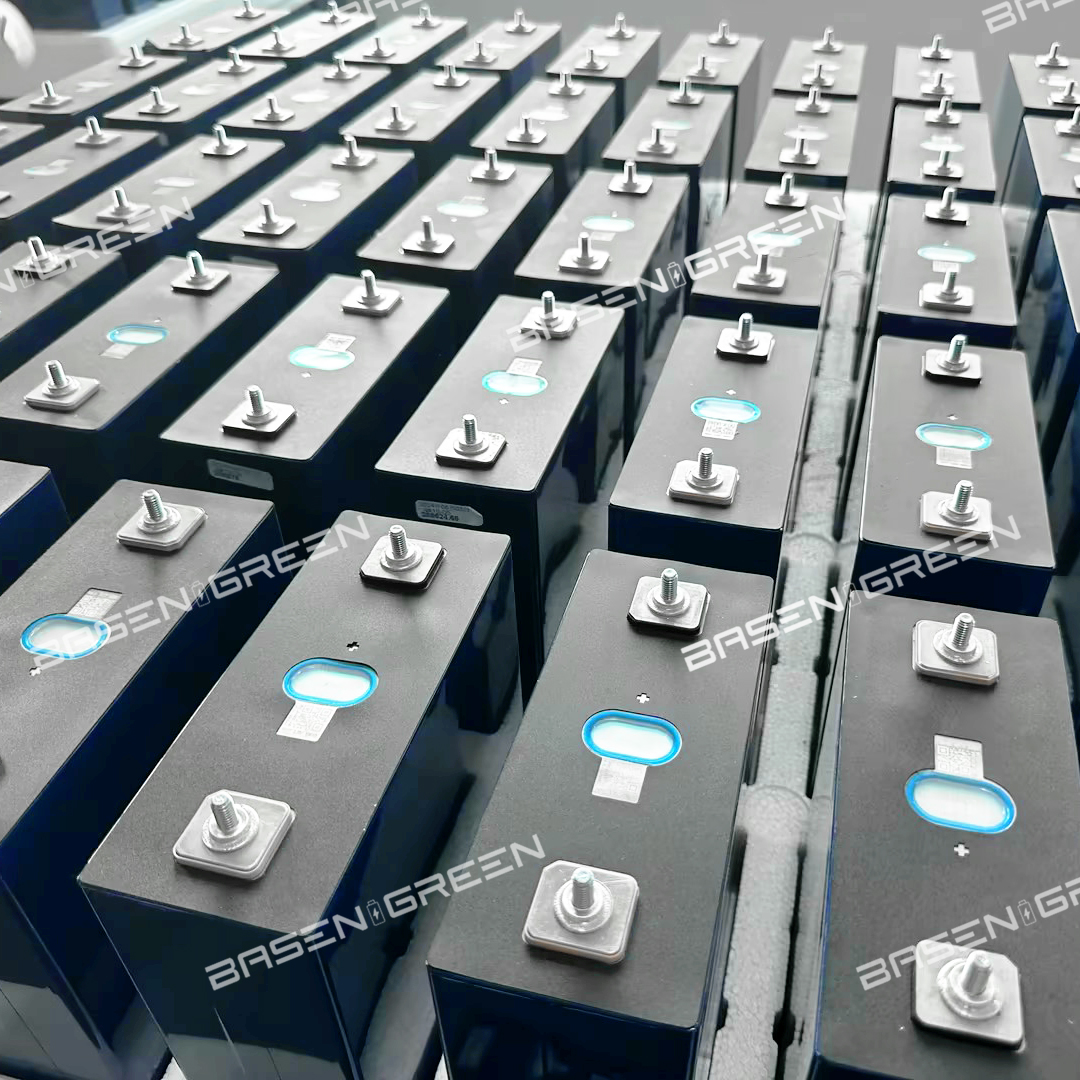

| Model | Capacity | Cycle Life | Resistance |
|---|---|---|---|
| LF230 | 230Ah | 4000+ | ≤0.5mΩ |
| LF280K | 280Ah | 8000+ | ≤0.25mΩ |
| LF304 | 304Ah | 4000+ | ≤0.5mΩ |
| MB30 | 306Ah | 10000+ | ≤0.25mΩ |
| MB31 | 314Ah | 8000+ | ≤0.25mΩ |
| Location | Method | Timeframe | Service Type |
|---|---|---|---|
| EU/USA Stock | Express or Truck | 3-7 Days | DDP (Tax Included) |
| China to EU | Sea/Train + Express | 40-60 Days | DDP (Door to Door) |
| China to USA | Sea + Express | 35-55 Days | DDP (Door to Door) |

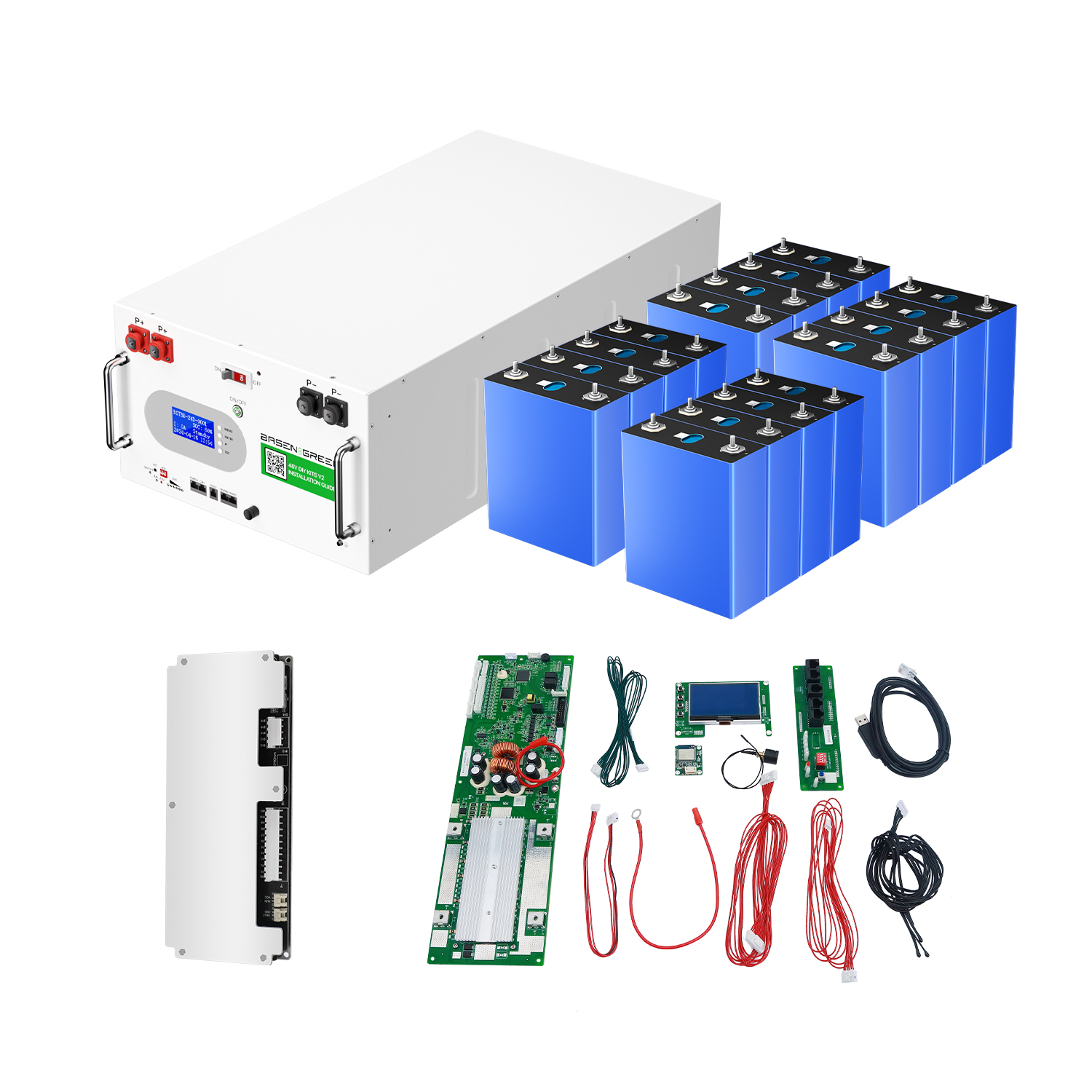

The kit includes the shell (case), front panel, handle, smart BMS with Bluetooth, LCD display, insulation boards, busbars, bolts, and necessary communication cables.
Yes, we conduct testing for voltage, internal resistance, and capacity. However, it is highly recommended to verify and balance the cells before final assembly into a pack.
We offer a 5-year warranty from the date of delivery. If a single battery's capacity drops below 80% of its initial capacity under normal use, we provide a replacement or a satisfied solution.
We provide DDP (Duty Paid) services for the EU, USA, Canada, UK, Australia, and Philippines. For other regions, we offer CIF and FOB options. Shipping can be arranged by sea, air, or express.
Absolutely. These LiFePO4 cells are ideal for 12V, 24V, 48V, and larger energy storage systems used in homes, campers, RVs, yachts, and backup power stations.
If there is loss of cargo or visible damage that renders the battery unusable, please contact us with photos or video. We will arrange a resend or a refund for the damaged components.
