Drill Pipe Tong - Hydraulic Power Drill Pipe Tong

China Drill Pipe Tong - Hydraulic Power Drill Pipe Tong supplier
Drill Pipe Tong - Hydraulic Power Drill Pipe Tong supplier Drill Pipe Tong - Hydraulic Power Drill Pipe Tong supplier

Large Image :  Drill Pipe Tong - Hydraulic Power Drill Pipe Tong

Product Details:

Place of Origin: China
Brand Name: CCSC
Certification: API
Model Number: Hydraulic Power Drill Pipe Tong

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: plywood box
Delivery Time: 10-20days
Payment Terms: T/T
Contact Now
Detailed Product Description

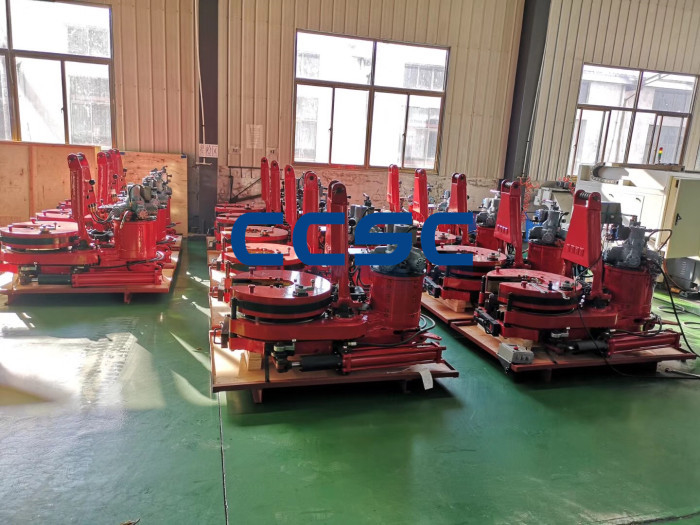

Hydraulic drill pipe tong - Drill Pipe Power Tong





Hydraulic drill pipe tong - drill pipe power tong is a wellhead handling tool which is using for quick and safe making up and breaking out of drill pipes and drill collars,they are strictly designed and manufactured in according with API 7K.

hydraulic drill pipe tong



Available Specication



Model Applicable pipe diameter Max Torque Tong Head (rpm) Hydraulic Shifting Distance Rise and fall distance
mm inch KN.M High Gear Lower Gear

Pressure

(Mpa)

Flow (L/min) mm mm
ZQ203-100 121-203 3 1/2 coupling 8 body 100 40 2.7 16.6 114 1500 /
ZQ203-100II 121-203 3 1/2 coupling 8 body 100 40 2.7 16.6 114 1500 0-430
ZQ203-100III 121-203 3 1/2 coupling 8 body 100 40 2.7 16.6 114 / 0-800
ZQ203-125 127-203 3 1/2 coupling 8 body 125 40 2.7 20 114 1500 /
ZQ203-125II 127-203 3 1/2 coupling 8 body 125 40 2.7 20 114 1500 0-430
ZQ203-125III 127-203 3 1/2 coupling 8 body 125 40 2.7 20 114 / 0-800
ZQ162-50 85-162 2 3/8 coupling 5 body 50 60 4.1 16 120 1000 /
ZQ162-50II 85-162 2 3/8 coupling 5 body 50 60 4.1 16 120 1000 0-440
ZQ127-25 65-127 2 3/8 coupling 3 1/2 body 25 65 10.5 12 180 1000 /
