Hydraulic casing tong - Casing Power Tong

I'm Online Chat Now

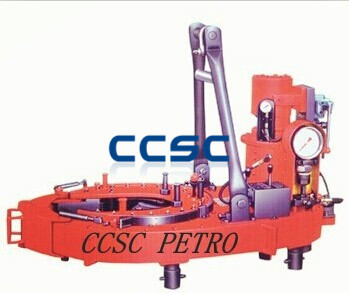

Hydraulic casing tong - Casing Power Tong

China Hydraulic casing tong - Casing Power Tong supplier

Large Image :  Hydraulic casing tong - Casing Power Tong

Product Details:

Place of Origin: China
Brand Name: CCSC
Certification: API
Model Number: Hydraulic casing tong - Casing Power Tong

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: plywood box
Delivery Time: 3-4 weeks
Payment Terms: T/T
Contact Now
Detailed Product Description



Hydraulic casing tong - Casing Power Tong





Hydraulic casing tong - casing power tong is a wellhead handling tool which is using for quick and safe making up and breaking out of casing,they are strictly designed and manufactured in according with API 7K,size ranges available to meet your casing size.

hydraulic drill pipe tong



Available Specification



Model Applicable pipe diameter Max Torque (KN.M) Hydraulic Tong Head Speed (rpm)
mm inch high gear mid gear low gear

Pressure

(Mpa)

Flow (L/min) high gear mid gear low gear
TQ178-16 101.6-178 4-7 2.4-3 / 14.5-17.5 18 110-160 54-97 / 9-13.1
TQ178-16Y 101.6-178 4-7 2.4-3 / 15-18 18 110-160 54-79 / 9-13
TQ340-20A 101.6-340 4-13 3/8 3.7 / 15-20 16 110-160 50-80 / 6-14
TQ340-35 114.3-340 4 1/2-13 3/8 2.5-3 6.0-7.5 32-40 18 110-160 60-86 21-30 2.6-5.3
TQ340-35A 114.3-340 4-13 3/8 4.0-5.0 / 27-30 18 110-160 80-98 / 12-16
TQ340-35Y 114.3-340 4 1/2-13 3/8 4.0-5.6 / 26-35.2 21 110-170 57-95 / 9-15
TQ340-50 114.3-340 5 1/2-13 3/8 3.4-4.5 11 44-56 17.2 110-200 52-75 27.4 4.2-6
TQ356-55 114.3-356 4 1/2-14 3.4-4.5 / 45-57.4 16.6 110-160 52-76 / 3.9-5.6
TQ508-70Y 244.5-508 9 5/8-20 8.4-10.7 / 48.9-70.5 20 110-170 26-43.6 / 4-6.6
