Plug Valve - Low Torque Valve - Low torque plug valve

China Plug Valve - Low Torque Valve - Low torque plug valve supplier
Plug Valve - Low Torque Valve - Low torque plug valve supplier Plug Valve - Low Torque Valve - Low torque plug valve supplier Plug Valve - Low Torque Valve - Low torque plug valve supplier Plug Valve - Low Torque Valve - Low torque plug valve supplier

Large Image :  Plug Valve - Low Torque Valve - Low torque plug valve

Product Details:

Place of Origin: China
Brand Name: CCSC
Certification: API
Model Number: Plug valve - Low torque valve

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: plywood box
Delivery Time: 5 weeks
Payment Terms: T/T
Contact Now
Detailed Product Description
1: Working Pressure: From 2,000psi To 15,000psi 2: Nominal Pipe Size: 1", 1-1/2", 2" , 3"
3: End Connection: Threaded, FIG 1002, Fig 1502 4: Sour Gas Service Is Available
5: FMC Type To 3" Bore Size Available 6: SPM Type To 3" Bore Size Available
7: Halliburton Type To 2" Bore Size Available 8: MSI Type To 3" Bore Size Available

Plug Valve - Low Torque Valve - Low torque plug valve

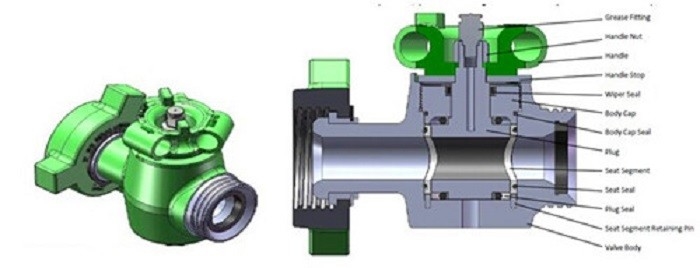

Plug Valve  is also called low torque valve, which seat seal type is line seal. Similar to ball valve, there is reduced bore of plug valve.

our plug valve - low torque valve is interchangable with FMC ULT type or SPM EXL type. For 1", 1"X2", 1-1/2" and 2" plug valve, plug is top entry. and for 3" and 4" plug valve, plug is bottom entry. but for Halliburton plug valve, all are bottom entry.

Our plug valves - low torque valve are tough, field proven that provide dependable service for applications such as cementing, fracturing, acidizing, well kill, coil tubing and sand control.

Plug valve manifold is used to control flow direction, which is composed of plug valves, choke tee, treating iron and fittings
