Home ProductsWellhead Equipment

Casing head- Casing head spool - Wellhead casing head - API 6a casing head

I'm Online Chat Now

Casing head- Casing head spool - Wellhead casing head - API 6a casing head

China Casing head- Casing head spool - Wellhead casing head - API 6a casing head supplier
Casing head- Casing head spool - Wellhead casing head - API 6a casing head supplier Casing head- Casing head spool - Wellhead casing head - API 6a casing head supplier Casing head- Casing head spool - Wellhead casing head - API 6a casing head supplier

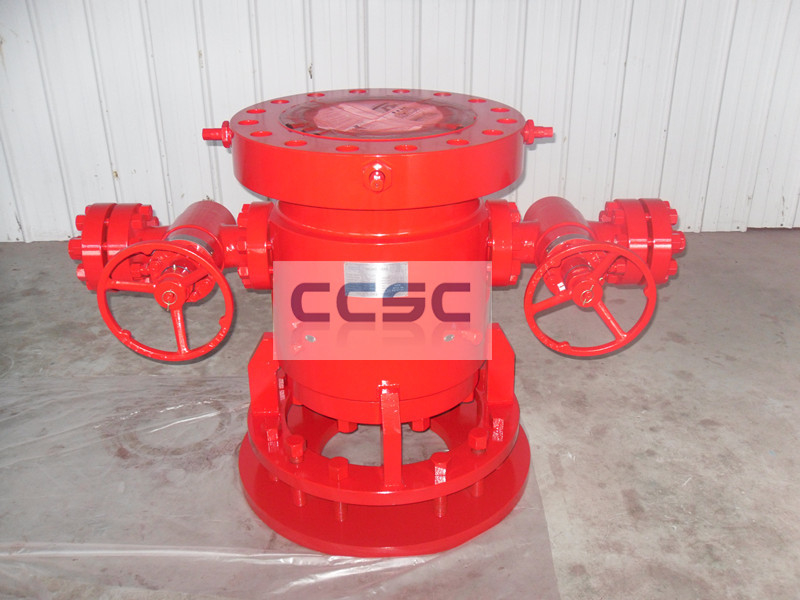

Large Image :  Casing head- Casing head spool - Wellhead casing head - API 6a casing head

Product Details:

Place of Origin: China
Brand Name: CCSC
Certification: API 6A
Model Number: casing head - casing head spool

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: plywood box
Delivery Time: 4 - 5 weeks
Payment Terms: T/T
Contact Now
Detailed Product Description
Working Pressure: 2000PSI-20000PSI Medium: Oil,natural Gas,mud
Working Temperature: -46℃-121℃(L-U) Material Class: AA –HH
Specification Class: PSL1-PSL4 Performance Class: PR1-PR2
Feature 1: Versatile Straight-bore Design,Uses A 45°landing Shoulder Feature 2: Accepts A Wide Variety Of Slip And Mandrel Casing Hangers
Feature 3: Has A Additional Lockscrews For Bowl Protection Feature 4: Allows Use Of Lockscrews To Retain Hanger
Feature 5: Three Different Types Of Outlets: Line Pipe, Flanged (Studded) Extended Flanged Outlets Feature 6: Multiple Bottom Connections, Such As: Slip-on Weld, Slip-on Weld With O-ring, Threaded And Sure Lock.

Casing head- Casing head spool - Wellhead casing head - API 6a casing head



Casing Head - Casing head spool is the very important equipment used in drilling process .casing head can control the wellhead pressure,casing head are often welded or screwed on the top of the conductor pipe or the casing then become a part of the wellhead system of the oil well.

Casing Head has a straight bore bowl with 45°landing shoulder design which avoids damage to sealing areas by drilling tools and prevents test plug and bowl protector wedging problems when pressure is applied.

Casing Head provided by CCSC are normally furnished with threaded outlets and studded outlets and also can be manufactured by request. Bottom connections can be furnished threaded or slip-on for welding.

Casing Head provided by CCSC can used for single completions and model of dual completions.
