Three phase test separator - four phase test separator - test separator - well testing separator

I'm Online Chat Now

Three phase test separator - four phase test separator - test separator - well testing separator

China Three phase test separator - four phase test separator - test separator - well testing separator supplier

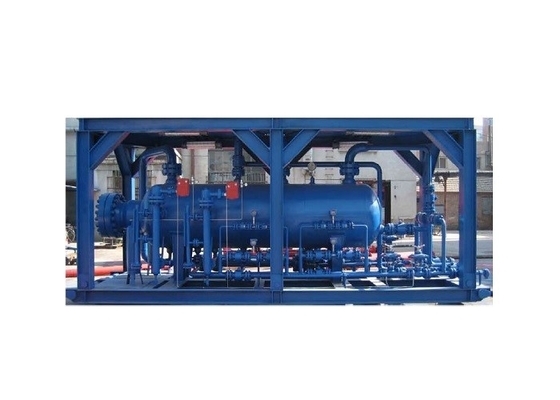

Large Image :  Three phase test separator - four phase test separator - test separator - well testing separator

Product Details:

Place of Origin: China
Brand Name: CCSC
Certification: API, ASME
Model Number: Test Separator

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Delivery Time: 3 - 4 months
Payment Terms: T/T
Contact Now
Detailed Product Description
1: Wide Range Of Vessel Sizes For Different Flow Rates 2: Gas Metering With Orifice Diameters Or Mass Flowmeter
3: Pneumatic Control Valves On Gas And Oil Outlets 4: Fitted With Deflector Plate, Coalescing Plates, Foam And Vortex Breaker, Weir Plate, And Mist Extractor
5: Sand-jet Line For Fast Cleaning 6: Sampling Points For All Phases
7: Two Relief Valves To Protect Against Overpressure 8: Compliant With API Spec. 12J, ASME VIII, Div. 1 Or 2, NACE MR 0175

Three phase test separator - four phase test separator - test separator - well testing separator

Three phase separator is a kind of device who can separate oil, gas and water by their own specific gravity and measure volume from well for each phase during whole well testing job that can be operated onshore or offshore. So gas outlet is normally set on top three phase separator. And oil & water outlet is set on bottom. Measuring equipment like fluid meters and gas meters is installed on oil, water and gas outlet.

As Three phase separator vessel is pressure vessel, there is safety valve and rupture disck on top of vessel to protect equipment. Two safety valves setting is another option. Three phase separator vessel is made according to ASME VIII and U mark is stamped on nameplate.

Oil and water interface level should be controlled, so control valve is also used on Three phase separator.

Normally Three phase separator is work for one well during one well testing job. but sometimes it also used to test several wells which connect togother. Portable or tailer mounted Three phase separator is better for well testing team.
